Description:
Innovative Features of 5mm Round RGB Color LED Diodes
The 5mm round RGB color LED diodes are celebrated for their ability to combine red, green, and blue light to produce over 16 million hues, enabling designers and engineers to create vibrant displays and lighting solutions with a single component. Their compact size does not compromise their performance, as these diodes boast high brightness levels, low power consumption, and long service life, making them an ideal choice for a wide range of applications.
Diverse Applications in the Electronics Industry
The application of 5mm round RGB color LED diodes spans various sectors, from consumer electronics to industrial equipment. They are a staple in creating dynamic lighting effects for electronic displays, signage, and decorative lighting. Additionally, their use in mood lighting, medical devices, and automotive interiors demonstrates their adaptability and effectiveness in enhancing the functionality and aesthetics of electronic products.
Benefits for Professionals and End-Users
For professionals in the electronics industry, incorporating 5mm round RGB color LED diodes into their projects translates into enhanced product appeal, greater design flexibility, and cost savings in terms of energy consumption and maintenance. End-users benefit from the enriched user experience and the ability to personalize their electronic devices and environments, thanks to the customizable color options these diodes offer.
Case Studies: Illuminating Success
One compelling case study involves a leading smartphone manufacturer that integrated 5mm round RGB color LED diodes into their devices, allowing users to customize their phone backlighting according to their preferences, significantly boosting user satisfaction and market differentiation. Another example showcases their use in commercial signage, where their dynamic color-changing capabilities led to increased visibility and customer engagement for businesses.
User Testimonials: Glowing Reviews
Testimonials from industry professionals underscore the value of 5mm round RGB color LED diodes. An electronics design engineer highlighted their “unmatched color versatility and reliability,” which substantially improved the aesthetic and functional appeal of their latest consumer electronic product. A procurement manager noted the “cost-efficiency and supplier reliability” of these diodes, emphasizing their positive impact on production costs and product quality.
Conclusion: Embracing Colorful Innovation
The exploration of 5mm round RGB color LED diodes reveals their pivotal role in advancing lighting and display technology. By offering unparalleled color versatility within a compact and efficient format, these diodes open new avenues for creativity and innovation in the electronics industry. For professionals aiming to elevate their electronic designs and products, leveraging the capabilities of these RGB color LED diodes is not just an option—it’s a necessity.
Features

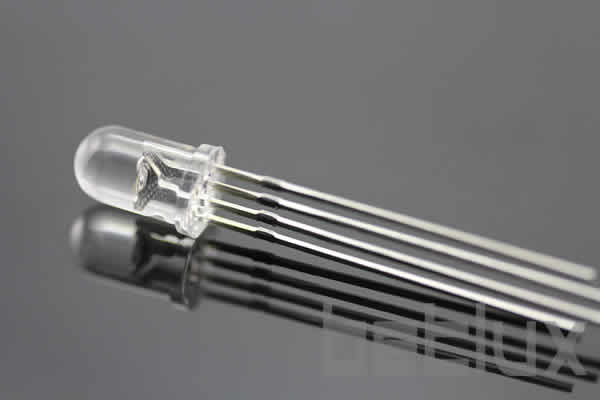

- 5.0mm Round Type, RGB Full Color LEDs: These LEDs combine red, green, and blue light, which can be mixed to produce a wide spectrum of colors.
- Lens Options: Available with either diffused or water-clear lenses. Diffused lenses provide a softer light spread, while water-clear lenses offer a more concentrated and direct light.
- Popular T-1 Diameter Package: Their standard 5.0mm diameter size (often referred to as T-1) makes them compatible with a wide range of applications and devices.
- IC Compatibility / Low Current Capability: These LEDs can be easily integrated with integrated circuits, making them suitable for complex electronic designs. Their low current requirement enhances energy efficiency.
- RoHS Compliance: They meet environmental and safety standards, ensuring the use of materials that are safe and environmentally friendly.
Applications
- Mood and Ambient Lighting: RGB LEDs are perfect for creating a variety of mood settings in both commercial and residential environments.
- Consumer Electronics: Used in devices such as TVs, gaming consoles, and home appliances for status indicators, backlighting, and more.
- Decorative Lighting: Ideal for decorative purposes in events, festivals, and public displays due to their wide range of colors.
- Advertising and Signage: Utilized in electronic billboards, signage, and display panels where dynamic and colorful presentations are required.
- Automotive Lighting: Suitable for interior and exterior lighting in vehicles, offering customization and enhanced aesthetic appeal.
- Interactive Installations: Used in art installations and interactive displays for their ability to provide dynamic color-changing effects.
- Electronic Gadgets: Incorporated into gadgets like smartphones, tablets, or other portable devices for backlighting or status indicators.
- Party and Stage Lighting: Essential in creating vibrant and dynamic lighting effects for parties, concerts, and stage performances.
- Safety and Indication Devices: Employed in various safety equipment and indicators where color coding is necessary for conveying different messages or warnings.
Electrical-optical characteristics:
Article No
| color | material | wavelength
| apperance | v_typ | v_max | luminous_min | luminous_typ | degree |
|---|---|---|---|---|---|---|---|---|---|
BL-L515RGBC-CA |
Blue |
InGaN |
430 |
Water Clear |
4.2 |
800 |
2000 |
20 |
|
BL-L515RGBC-CA |
Ultra Orange |
AlGaInP |
630 |
Water Clear |
2.5 |
800 |
2000 |
20 |
|
BL-L515RGBC-CA |
Ultra Pure Green |
InGaN |
525 |
Water Clear |
4.2 |
2000 |
5000 |
20 |
|
BL-L515RGBC-CC |
Blue |
InGaN |
430 |
Water Clear |
4.2 |
800 |
2000 |
20 |
|
BL-L515RGBC-CC |
Ultra Pure Green |
InGaN |
525 |
Water Clear |
4.2 |
2000 |
5000 |
20 |
|
BL-L515RGBC-CC |
Ultra Orange |
AlGaInP |
630 |
Water Clear |
2.5 |
800 |
2000 |
20 |
|
BL-L515RGBW-CA |
Ultra Orange |
AlGaInP |
630 |
Water Diff. |
2.5 |
200 |
500 |
30 |
|
BL-L515RGBW-CA |
Blue |
InGaN |
430 |
Water Diff. |
4.2 |
150 |
300 |
30 |
|
BL-L515RGBW-CA |
Ultra Pure Green |
InGaN |
525 |
Water Diff. |
4.2 |
300 |
600 |
30 |
|
BL-L515RGBW-CC |
Ultra Pure Green |
InGaN |
525 |
Water Diff. |
4.2 |
300 |
600 |
30 |
|
BL-L515RGBW-CC |
Blue |
InGaN |
430 |
Water Diff. |
4.2 |
150 |
300 |
30 |
|
BL-L515RGBW-CC |
Ultra Orange |
AlGaInP |
630 |
Water Diff. |
2.5 |
200 |
500 |
30 |
Package configuration & Internal circuit diagram
All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.
Partno description:
LEDs, Light Emitting diodes, which include various small kinds, such as 3mm, 5mm, 8mm, 10mm; round type, rectangular type square type, tower type, Oval led, elliptical, flat top; SMDs, high power led, piranha LEDs
More Information
Lens Color:
| Code | D | T | C | W | E | |
| Meaning | color Diffused | Color Tinted | Water Clear | Water Diffused | Orange diffused |
Absolute maximum ratings (Ta=25°C)
| Parameter | SR | LR | UR | UE | UY | UG | PG | BG | B | UB | UV | W | Unit |
| Forward Current I F | 25 | 25 | 25 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | mA |
| Power Dissipation P d | 60 | 60 | 60 | 65 | 65 | 75 | 110 | 110 | 120 | 120 | 120 | 120 | mW |
| Reverse Voltage V R | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | V |
| Peak Forward Current I PF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 100 | 100 | 100 | 100 | 100 | mA |
| Operation Temperature T OPR | -40 to +80 | °C | |||||||||||
| Storage Temperature T STG | -40 to +85 | °C | |||||||||||
| Lead Soldering Temperature T SOL | Max.260+-5°C for 3 sec Max. (1.6mm from the base of the epoxy bulb) | °C | |||||||||||
Related Information
Applied for:
The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment,
communication equipment and household applications). Consult Betlux’s Sales in advance for information on
applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs
may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical
and life support systems and safety devices).
CAUTIONS for Through-Hole LED Lamps
1. Application
The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment, communication equipment and household applications). Consult Betlux’s Sales in advance for information on applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical and life support systems and safety devices).
2. Storage
The storage ambient for the LEDs should not exceed 30℃ temperature or 70% relative humidity. It is
recommended that LEDs out of their original packaging are used within three months
For extended storage out of their original packaging, it is recommended that the LEDs be stored in a sealed
container with appropriate desiccant or in a desiccator with nitrogen ambient.
3. Cleaning
Use alcohol-based cleaning solvents such as isopropyl alcohol to clean the LED if necessary
4. Lead Forming & Assembly
During lead forming, the leads should be bent at a point at least 3mm from the base of LED lens. Do not use
the base of the leadframe as a fulcrum during forming.
Lead forming must be done before soldering, at normal temperature.
During assembly on PCB, use minimum clinch force possible to avoid excessive mechanical stress.
Soldering
When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.
Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.
Recommended soldering conditions:
| IR Reflow Soldering (for SMD display) | Wave Soldering | Soldering Iron | |||
| Pre-Heat | 150-180°C | Pre-Heat | 100°C Max. | Temperature | 300°C Max. |
| Pre-Heat Time | 120sec Max. | Pre-Heat Time | 60sec Max. | ||
| Peak Temperature | 260°C Max. | SolderWave | 260°C Max. | Soldering Time | 3sec Max.(one time only) |
| Soldering Time | 10 sec Max. | Soldering Time | 5sec Max. | ||
Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED
ESD(Electrostatic Discharge)
Static Electricity or power surge will damage the LED.
Suggestions to prevent ESD (Electrostatic Discharge):
n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs
n All devices, equipment, and machinery must be properly grounded
n Work tables, storage racks, etc. should be properly grounded
n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s
plastic lens as a result of friction between LEDs during storage and handling
ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,
low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”
and Vf of the suspect LEDs at low currents.
The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP
product.
Drive Method
An LED is a current-operated device. In order to ensure intensity uniformity on multiple LEDs connected in
parallel in an application, it is recommended that a current limiting resistor be incorporated in the drive circuit,
in series with each LED as shown in Circuit A below.
When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:
- Determine the Forward Voltage (Vf) of the LED(s):
Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.
- Determine the Forward Current (If) of the LED(s):
The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.
- Decide on the Configuration:
Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.
Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.
Calculate Total Power Requirements:
Power (W) = Total Forward Voltage (V) x Total Forward Current (A)
For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:
Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W
- Select an Appropriate Power Supply:
- Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
- Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
- Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
- Consider Additional Features:
- Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
- Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
- Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
- Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
- Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.
In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.
Here are some well-regarded brands in the industry:
- Mean Well: One of the most recognized brands in the LED power supply industry, Mean Well offers a wide range of products suitable for both indoor and outdoor applications. Their units often come with features like overcurrent protection, dimming capabilities, and high efficiency.
- Tridonic: A global leader in lighting technology, Tridonic offers LED drivers and power supplies that cater to various lighting solutions, from simple setups to advanced smart lighting systems.
- Philips Advance Xitanium: Philips is a well-known brand in the lighting industry, and their Xitanium series of LED drivers are known for reliability and performance. They cater to both indoor and outdoor LED applications.
- Osram: Another giant in the lighting industry, Osram offers a range of LED drivers and power supplies suitable for various applications, including architectural and street lighting.
- LIFUD: Specializing in LED drivers, LIFUD is known for its high-quality products that cater to both commercial and residential LED lighting solutions.
- MOSO: This brand offers a variety of LED drivers, especially for outdoor and industrial applications. Their products are known for durability and performance.
- TDK-Lambda: With a history in power electronics, TDK-Lambda offers a range of power supplies and LED drivers suitable for various applications, emphasizing reliability and advanced features.
