Through hole LED
Series No:
Weight:(g/pcs)
Dimension:(mm)
Package:
Specification:
Datasheet Inquiry
Description:

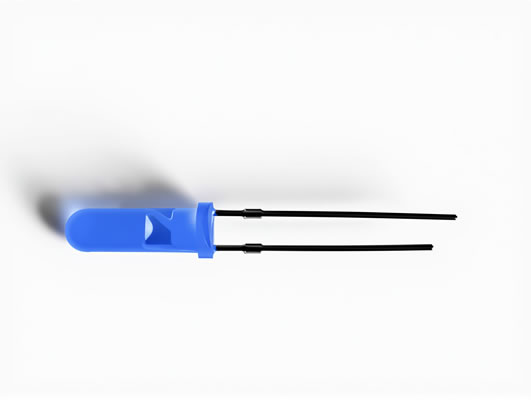

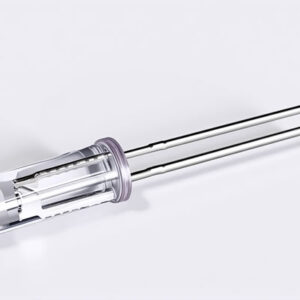

17mm Lens 5mm LED Diode – High-Intensity Indicator LED for Long-Range Visibility
The 17mm lens 5mm LED diode is a specially engineered high-brightness indicator LED designed for applications that require extended throw distance, enhanced luminous focus, and superior visibility. With its enlarged 17mm optical lens head, this LED provides a concentrated and well-defined beam, making it far more effective than standard 5mm LEDs in demanding environments where long-range signaling and sharp illumination are essential.
Built with a durable epoxy lens and available in multiple single-color options, the diode is widely preferred in professional electronics, industrial devices, outdoor signaling equipment, and precision instrumentation. Its compact 5mm base makes it universally compatible with existing PCB layouts while delivering performance similar to higher-power LED modules.
Features of the 17mm Lens 5mm LED Diode
• Extended 17mm Optical Lens
The tall, elongated lens improves light projection, achieving better beam focus and increased visibility at long distances—ideal for control panels, level indicators, and measurement instruments.
• High-Brightness LED Chip
Engineered for superior luminous efficiency, offering a strong and consistent light output even at lower driving currents.
• Multiple Color Options
Available in red, green, yellow, blue, and white to suit different signaling needs in industrial and consumer applications.
• Compatibility With Standard 5mm LED Mounting
Despite its extended lens height, the LED maintains the same pin spacing and footprint as standard 5mm diodes, making PCB integration easy.
• Durable and Reliable Construction
The epoxy resin lens structure provides impact resistance and excellent optical clarity, suitable for harsh operating environments.
• RoHS Compliant
Manufactured according to environmental standards to ensure safe and responsible component sourcing.
Applications
The 17mm lens 5mm LED diode is a preferred option across industries requiring high visibility and precise light output. Typical applications include:
Industrial Indicators
• Control panels
• Fault alarms
• Equipment status displays
Measurement & Instrumentation
• Level meters
• Sensor feedback lights
• Calibration devices
Consumer & Commercial Electronics
• Audio equipment indicators
• Gaming consoles and arcade machines
• Dashboard-style displays
Outdoor & Long-Distance Signaling
• Signal beacons
• Position markers
• Light guides and pointer indicators
Automotive & Transportation
• Dashboard add-on indicators
• Switch illumination
• Custom vehicle lighting
Hobby, DIY & Educational Kits
• Prototyping projects
• Training kits
• Light-signal demonstrations
This versatility makes it a reliable LED choice for manufacturers, engineers, and electronics designers looking for enhanced illumination in compact form factors.
Benefits & Advantages
1. Superior Visibility
The 17mm lens offers a narrow, boosted beam capable of being seen clearly from farther distances compared to conventional 5mm LEDs.
2. Enhanced Optical Control
The elongated cylindrical lens minimizes light dispersion, producing clean, direct illumination suitable for precision displays.
3. Energy-Efficient
High-efficiency LED chip ensures strong brightness with minimal power consumption, supporting battery-powered and low-current devices.
4. Excellent Durability
Epoxy lens and robust lead frame structure make it resilient to vibration, temperature shifts, and long operating hours.
5. Easy System Integration
Same pin design as standard 5mm LEDs enables quick replacement or upgrading without altering PCB layouts.
Case Study: Industrial Control Panel Upgrade
A manufacturer of industrial compressors replaced traditional short-lens indicator LEDs with 17mm lens 5mm LED diodes to improve visibility from across a factory floor. Operators reported:
• 60% improvement in long-distance readability
• Higher accuracy in monitoring machine status
• Reduced maintenance calls due to clearer alert indicators
The upgrade enhanced workflow efficiency and reduced operation errors.
User Testimonials
• Electronics Engineer – Ohio, USA
“The 17mm lens 5mm LED diode gives excellent focused brightness. Perfect for our machinery status indicators—very reliable and easy to mount.”
• Instrument Manufacturer – UK
“We switched to this longer-lens LED for our measurement meters. Clarity and visible range improved immediately. Highly recommended for precision equipment.”
• DIY Hobbyist – Australia
“Great for custom projects. The beam is stronger and more defined than any normal 5mm LED I’ve used.”
Conclusion
The 17mm lens 5mm LED diode is a performance-enhanced indicator LED that delivers superior visibility, excellent optical focus, and dependable long-term operation. Whether used in industrial equipment, commercial lighting, or custom electronics, it ensures high-quality illumination with seamless integration.
For manufacturers seeking improved display performance and durable LED indicators, this long-lens 5mm LED is an ideal choice—engineered for reliability, efficiency, and precision.
Electrical-optical characteristics:
Package configuration & Internal circuit diagram
Obtain 3D specification files
Initial Graphics Exchange Specification (.IGS)Standard for the Exchange of Product Model Data (.STEP)To examine all 3D specifications, save the files to your local drive and open them with your 3D application.
Lens colors in 3D files are solely for visual representation; consult the Datasheet for accurate lens type and color information.
In the event of a mismatch, the dimensions in the datasheet take precedence over the 3D specifications.
All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.
Partno description:
LEDs, Light Emitting diodes, which include various small kinds, such as 3mm, 5mm, 8mm, 10mm; round type, rectangular type square type, tower type, Oval led, elliptical, flat top; SMDs, high power led, piranha LEDs
More Information
Lens Color:
| Code | D | T | C | W | E | |
| Meaning | color Diffused | Color Tinted | Water Clear | Water Diffused | Orange diffused |
Absolute maximum ratings (Ta=25°C)
| Parameter | SR | LR | UR | UE | UY | UG | PG | BG | B | UB | UV | W | Unit |
| Forward Current I F | 25 | 25 | 25 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | mA |
| Power Dissipation P d | 60 | 60 | 60 | 65 | 65 | 75 | 110 | 110 | 120 | 120 | 120 | 120 | mW |
| Reverse Voltage V R | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | V |
| Peak Forward Current I PF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 100 | 100 | 100 | 100 | 100 | mA |
| Operation Temperature T OPR | -40 to +80 | °C | |||||||||||
| Storage Temperature T STG | -40 to +85 | °C | |||||||||||
| Lead Soldering Temperature T SOL | Max.260+-5°C for 3 sec Max. (1.6mm from the base of the epoxy bulb) | °C | |||||||||||
Related Information
Applied for:
The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment,
communication equipment and household applications). Consult Betlux’s Sales in advance for information on
applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs
may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical
and life support systems and safety devices).
CAUTIONS for Through-Hole LED Lamps
1. Application
The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment, communication equipment and household applications). Consult Betlux’s Sales in advance for information on applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical and life support systems and safety devices).
2. Storage
The storage ambient for the LEDs should not exceed 30℃ temperature or 70% relative humidity. It is
recommended that LEDs out of their original packaging are used within three months
For extended storage out of their original packaging, it is recommended that the LEDs be stored in a sealed
container with appropriate desiccant or in a desiccator with nitrogen ambient.
3. Cleaning
Use alcohol-based cleaning solvents such as isopropyl alcohol to clean the LED if necessary
4. Lead Forming & Assembly
During lead forming, the leads should be bent at a point at least 3mm from the base of LED lens. Do not use
the base of the leadframe as a fulcrum during forming.
Lead forming must be done before soldering, at normal temperature.
During assembly on PCB, use minimum clinch force possible to avoid excessive mechanical stress.
Soldering
When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.
Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.
Recommended soldering conditions:
| IR Reflow Soldering (for SMD display) | Wave Soldering | Soldering Iron | |||
| Pre-Heat | 150-180°C | Pre-Heat | 100°C Max. | Temperature | 300°C Max. |
| Pre-Heat Time | 120sec Max. | Pre-Heat Time | 60sec Max. | ||
| Peak Temperature | 260°C Max. | SolderWave | 260°C Max. | Soldering Time | 3sec Max.(one time only) |
| Soldering Time | 10 sec Max. | Soldering Time | 5sec Max. | ||
Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED
ESD(Electrostatic Discharge)
Static Electricity or power surge will damage the LED.
Suggestions to prevent ESD (Electrostatic Discharge):
n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs
n All devices, equipment, and machinery must be properly grounded
n Work tables, storage racks, etc. should be properly grounded
n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s
plastic lens as a result of friction between LEDs during storage and handling
ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,
low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”
and Vf of the suspect LEDs at low currents.
The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP
product.
Drive Method
An LED is a current-operated device. In order to ensure intensity uniformity on multiple LEDs connected in
parallel in an application, it is recommended that a current limiting resistor be incorporated in the drive circuit,
in series with each LED as shown in Circuit A below.
When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:
- Determine the Forward Voltage (Vf) of the LED(s):
Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.
- Determine the Forward Current (If) of the LED(s):
The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.
- Decide on the Configuration:
Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.
Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.
Calculate Total Power Requirements:
Power (W) = Total Forward Voltage (V) x Total Forward Current (A)
For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:
Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W
- Select an Appropriate Power Supply:
- Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
- Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
- Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
- Consider Additional Features:
- Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
- Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
- Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
- Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
- Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.
In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.
