Through hole LED
Series No:
Weight:(g/pcs)
Dimension:(mm)
Package:
Specification:
Datasheet Inquiry
Description:

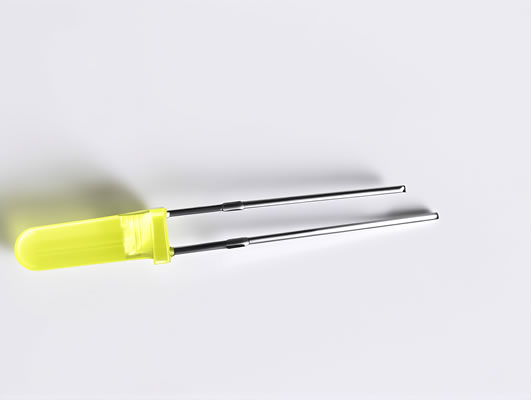

5mm Round LED Diode, 15mm Height Lens LED – High-Brightness Extended Lens Indicator
The 5mm round LED diode with a 15mm height lens is designed for applications requiring enhanced visibility, long-range indication, and precise light control. Featuring a tall extended lens structure, this LED delivers superior brightness, a focused beam, and consistent optical output, making it suitable for demanding consumer, commercial, and industrial environments.
Manufactured with high-quality materials and engineered for long operational life, this LED diode ensures excellent performance whether used for panel indication, backlighting, signaling, or illumination in compact devices. Its standard 5mm (T-1¾) round epoxy lens supports compatibility with a wide range of circuit layouts, making it a versatile choice for engineers and product developers.
Key Features
✔ 15mm Extended Lens for Enhanced Visibility
The tall lens design significantly increases the projection distance, providing:
-
A narrower and more focused beam angle
-
Improved visibility through thick or recessed panels
-
Better performance in bright ambient environments
✔ High Luminous Output
Equipped with a high-efficiency LED chip, this diode offers:
-
Strong, uniform brightness
-
Reliable illumination suitable for indoor and outdoor use
✔ Available in Multiple Colors
Customizable LED colors such as:
Red, Green, Blue, Yellow, Orange, White
Optional wavelength and luminous intensity options allow OEM engineers to match specific project requirements.
✔ Durable Epoxy Lens Material
The lens is made of high-transparency epoxy, providing:
-
Excellent impact resistance
-
UV and heat stability
-
Crack-resistant optical clarity
✔ Low Power Consumption
Engineered for minimal power draw, ideal for:
-
Battery-powered devices
-
Low-energy electronic systems
-
High-density indicator arrays
✔ Long Operating Life
High-quality chips ensure:
-
Tens of thousands of hours of stable operation
-
Minimal light decay
-
Strong reliability in continuous-use environments
✔ Fully RoHS Compliant
Manufactured using environmentally friendly materials.
Applications
The 5mm round LED diode with a 15mm height lens is widely used across industries where long-distance visibility and precision illumination are important:
Industrial & Instrumentation
-
Status indicators on controllers, PLCs, analyzers, and test equipment
-
Machine panel signaling and equipment diagnostics
-
Indicator towers and compact signal displays
Consumer Electronics
-
Appliance indicator lights
-
Remote controls and signal markers
-
Fitness machines and smart home controllers
Automotive & Transportation
-
Dashboard indication
-
Switch and button illumination
-
Instrument panels, gear indicators, and diagnostic lights
Gaming, Vending & Entertainment Equipment
-
Arcade game indicators
-
Vending machine status lights
-
Ticketing and kiosk signaling
Telecommunication & Networking Hardware
-
Modem, router, and network equipment indicators
-
Signal, alarm, and power status indicators
Medical & Laboratory Devices
-
Monitoring equipment
-
Compact diagnostic instruments
-
Signal and power indicators
Lighting & Decorative Applications
-
Mini signal lamps
-
Accent lighting
-
Low-power decorative modules
Benefits & Advantages
1. Long-Range Light Projection
The extended 15mm lens maximizes brightness visibility through:
-
Thick plastic enclosures
-
Deep control panels
-
Outdoor or high-glare environments
2. High Reliability in Harsh Conditions
Designed for demanding operating conditions:
-
Temperature stability
-
Excellent moisture resistance
-
Mechanical durability
3. Easy Design Integration
Standard 5mm footprint ensures:
-
Simple PCB insertion
-
Compatibility with existing LED sockets and housings
-
Smooth replacement in legacy equipment
4. Customization Options
-
Various intensities and wavelengths
-
Diffused / water clear / colored lens
-
Special voltage or matched-pair configurations
5. Cost-Effective for Mass Production
Ideal for manufacturers requiring:
-
Low component cost
-
High yield
-
Long-term availability
Case Study
A leading industrial control manufacturer needed an LED that could maintain high visibility on deep-set metal panel boards. Traditional 5mm LEDs were too short, causing dim visibility. Switching to the 15mm height lens 5mm LED provided:
-
60% improved viewing clarity
-
Faster operator response time
-
Reduced misreads during equipment maintenance
After testing, the company standardized this LED across its entire product series.
User Testimonial
Richard P. – Senior Electronics Engineer (USA):
“The extended 15mm lens makes a huge difference. Our previous LEDs were barely visible through the thick panel windows. These perform exceptionally well and are now our default indicator choice.”
Laura G. – Product Developer (UK):
“Bright, reliable, and easy to integrate. The long lens provides exactly the projection we needed for our consumer control units.”
Conclusion
The 5mm round LED diode with a 15mm tall lens is an excellent solution for engineers and manufacturers seeking superior brightness, long-range visibility, and reliable performance. With multiple color options, low power consumption, and long operating life, it serves as a highly versatile indicator light for industrial, commercial, automotive, medical, and consumer applications.
If your project needs a dependable, high-brightness LED with extended reach, this diode provides a robust and efficient choice.
Electrical-optical characteristics:
Package configuration & Internal circuit diagram
Obtain 3D specification files
Initial Graphics Exchange Specification (.IGS)Standard for the Exchange of Product Model Data (.STEP)To examine all 3D specifications, save the files to your local drive and open them with your 3D application.
Lens colors in 3D files are solely for visual representation; consult the Datasheet for accurate lens type and color information.
In the event of a mismatch, the dimensions in the datasheet take precedence over the 3D specifications.
All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.
Partno description:
LEDs, Light Emitting diodes, which include various small kinds, such as 3mm, 5mm, 8mm, 10mm; round type, rectangular type square type, tower type, Oval led, elliptical, flat top; SMDs, high power led, piranha LEDs
More Information
Lens Color:
| Code | D | T | C | W | E | |
| Meaning | color Diffused | Color Tinted | Water Clear | Water Diffused | Orange diffused |
Absolute maximum ratings (Ta=25°C)
| Parameter | SR | LR | UR | UE | UY | UG | PG | BG | B | UB | UV | W | Unit |
| Forward Current I F | 25 | 25 | 25 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | mA |
| Power Dissipation P d | 60 | 60 | 60 | 65 | 65 | 75 | 110 | 110 | 120 | 120 | 120 | 120 | mW |
| Reverse Voltage V R | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | V |
| Peak Forward Current I PF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 100 | 100 | 100 | 100 | 100 | mA |
| Operation Temperature T OPR | -40 to +80 | °C | |||||||||||
| Storage Temperature T STG | -40 to +85 | °C | |||||||||||
| Lead Soldering Temperature T SOL | Max.260+-5°C for 3 sec Max. (1.6mm from the base of the epoxy bulb) | °C | |||||||||||
Related Information
Applied for:
The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment,
communication equipment and household applications). Consult Betlux’s Sales in advance for information on
applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs
may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical
and life support systems and safety devices).
CAUTIONS for Through-Hole LED Lamps
1. Application
The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment, communication equipment and household applications). Consult Betlux’s Sales in advance for information on applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical and life support systems and safety devices).
2. Storage
The storage ambient for the LEDs should not exceed 30℃ temperature or 70% relative humidity. It is
recommended that LEDs out of their original packaging are used within three months
For extended storage out of their original packaging, it is recommended that the LEDs be stored in a sealed
container with appropriate desiccant or in a desiccator with nitrogen ambient.
3. Cleaning
Use alcohol-based cleaning solvents such as isopropyl alcohol to clean the LED if necessary
4. Lead Forming & Assembly
During lead forming, the leads should be bent at a point at least 3mm from the base of LED lens. Do not use
the base of the leadframe as a fulcrum during forming.
Lead forming must be done before soldering, at normal temperature.
During assembly on PCB, use minimum clinch force possible to avoid excessive mechanical stress.
Soldering
When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.
Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.
Recommended soldering conditions:
| IR Reflow Soldering (for SMD display) | Wave Soldering | Soldering Iron | |||
| Pre-Heat | 150-180°C | Pre-Heat | 100°C Max. | Temperature | 300°C Max. |
| Pre-Heat Time | 120sec Max. | Pre-Heat Time | 60sec Max. | ||
| Peak Temperature | 260°C Max. | SolderWave | 260°C Max. | Soldering Time | 3sec Max.(one time only) |
| Soldering Time | 10 sec Max. | Soldering Time | 5sec Max. | ||
Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED
ESD(Electrostatic Discharge)
Static Electricity or power surge will damage the LED.
Suggestions to prevent ESD (Electrostatic Discharge):
n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs
n All devices, equipment, and machinery must be properly grounded
n Work tables, storage racks, etc. should be properly grounded
n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s
plastic lens as a result of friction between LEDs during storage and handling
ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,
low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”
and Vf of the suspect LEDs at low currents.
The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP
product.
Drive Method
An LED is a current-operated device. In order to ensure intensity uniformity on multiple LEDs connected in
parallel in an application, it is recommended that a current limiting resistor be incorporated in the drive circuit,
in series with each LED as shown in Circuit A below.
When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:
- Determine the Forward Voltage (Vf) of the LED(s):
Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.
- Determine the Forward Current (If) of the LED(s):
The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.
- Decide on the Configuration:
Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.
Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.
Calculate Total Power Requirements:
Power (W) = Total Forward Voltage (V) x Total Forward Current (A)
For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:
Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W
- Select an Appropriate Power Supply:
- Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
- Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
- Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
- Consider Additional Features:
- Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
- Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
- Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
- Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
- Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.
In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.
Here are some well-regarded brands in the industry:
- Mean Well: One of the most recognized brands in the LED power supply industry, Mean Well offers a wide range of products suitable for both indoor and outdoor applications. Their units often come with features like overcurrent protection, dimming capabilities, and high efficiency.
- Tridonic: A global leader in lighting technology, Tridonic offers LED drivers and power supplies that cater to various lighting solutions, from simple setups to advanced smart lighting systems.
- Philips Advance Xitanium: Philips is a well-known brand in the lighting industry, and their Xitanium series of LED drivers are known for reliability and performance. They cater to both indoor and outdoor LED applications.
- Osram: Another giant in the lighting industry, Osram offers a range of LED drivers and power supplies suitable for various applications, including architectural and street lighting.
- LIFUD: Specializing in LED drivers, LIFUD is known for its high-quality products that cater to both commercial and residential LED lighting solutions.
- MOSO: This brand offers a variety of LED drivers, especially for outdoor and industrial applications. Their products are known for durability and performance.
- TDK-Lambda: With a history in power electronics, TDK-Lambda offers a range of power supplies and LED drivers suitable for various applications, emphasizing reliability and advanced features.
