Series No:
Weight:(g/pcs)
Dimension:(mm)
Package:
Specification:
Inquiry
Description:
The Brilliance of 5mm Bullet LED Diodes in Opto-Electronics
Opto-electronics, a discipline at the intersection of optics and electronics, thrives on innovation, with components like the 5mm bullet LED diode playing pivotal roles. These diodes stand out for their mono color emission, precise beam angle, and the unique ability to concentrate light in specific directions, making them invaluable in various applications.
Features and Unparalleled Applications
5mm LEDs are renowned for their versatility, offering an array of colors including the notable 520 nm green light, known for its clarity and visibility. This characteristic makes these diodes ideal for use in signaling, decorative lighting, and as photodiodes in sensing applications. The precise control over light emission lends itself well to applications requiring high degrees of specificity and efficiency.
Advantages of 5mm Bullet LEDs
The compact size and focused light output of 5mm bullet LED diodes allow for their integration into a multitude of electronic devices without compromising on performance. They offer several advantages over traditional lighting solutions, including lower power consumption, longer lifespan, and enhanced durability. These benefits not only contribute to the sustainability of electronic products but also ensure cost-effectiveness over time.
Case Studies: Illuminating Success
A compelling case study involves a leading automotive manufacturer that incorporated 5mm bullet LED diodes into the tail lights of their vehicles. The use of these LEDs not only improved visibility but also reduced energy consumption, showcasing the diodes’ blend of efficiency and performance. Another case study from the consumer electronics sector highlights how these LEDs have been used in portable devices, enhancing user experience with vibrant displays and indicators.
Hearing from the Field: User Testimonials
Feedback from those who have integrated 5mm bullet LED diodes into their projects is overwhelmingly positive. An electronics manufacturer engineer stated, “The adoption of these LEDs has significantly enhanced our product designs, offering both aesthetic appeal and functionality.” A purchaser added, “These diodes have been a game-changer, providing us with a reliable and efficient component that meets our diverse needs.”
Conclusion: A Bright Future with 5mm Bullet LED Diodes
The exploration into the 5mm bullet LED diode encapsulates its transformative impact on the opto-electronics industry. With their superior features, diverse applications, and undeniable benefits, these diodes are set to continue influencing the development of innovative, efficient, and sustainable electronic devices.
Call to Action: Embrace the future of opto-electronics with the advanced capabilities of 5mm bullet LED diodes. Discover how these components can elevate your electronic designs to new height.
Features

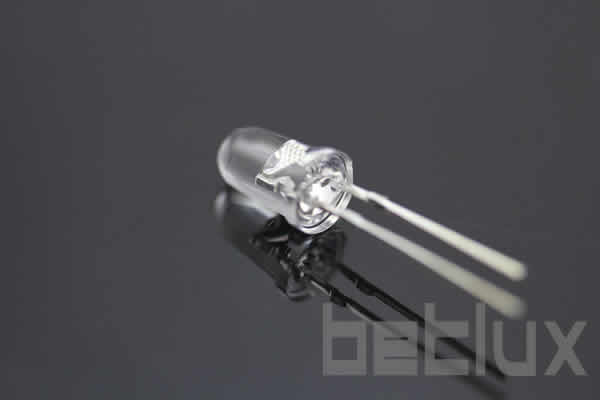

- 5.0mm Round-Helmet Type Design: These LEDs feature a round shape with a helmet-like appearance, providing a unique visual and lighting profile.
- Ultra Brightness: Offers high luminosity for clear visibility and strong illumination, making them ideal for applications requiring intense light output.
- Choice of Various Viewing Angles: Available in different viewing angles, allowing for customization to suit specific lighting needs and preferences.
- Lens Options: Offered with various lens types, including diffused (for softer, more spread-out light), transparent (for clear, direct light), and water clear (for maximum brightness and clarity).
- IC Compatible / Low Current Capability: Designed for compatibility with integrated circuits (ICs) and efficient on power consumption, suitable for energy-sensitive applications.
- RoHS Compliance: Manufactured in line with the Restriction of Hazardous Substances directive, ensuring the LEDs are environmentally friendly and safe for use.
Applications
- Indicator Lights: Ideal for use as indicator lights in electronic devices, appliances, and machinery, where the helmet shape can offer a distinct light pattern.
- Decorative Lighting: Suitable for decorative applications in architectural designs, art installations, and event setups, where the unique shape can enhance aesthetic appeal.
- Automotive Lighting: Appropriate for automotive applications, particularly for interior lighting or dashboard indicators, where the helmet shape can provide distinct illumination.
- Consumer Electronics: Can be used in personal electronic devices for status indicators or as a design feature, especially where a distinctive lighting pattern is desired.
- Safety and Warning Signals: Suitable for use in safety signs, emergency lighting systems, and warning signals, where high visibility is crucial.
- Entertainment and Stage Lighting: Perfect for stage and entertainment lighting, offering creative effects with different lens types.
- Educational and DIY Projects: Often used in DIY electronics and educational projects due to their unique design and versatility.
- General Lighting Applications: Can be employed in various lighting applications where the round-helmet design offers a specific advantage in light dispersion.
Electrical-optical characteristics:
Article No
| color | material | wavelength
| apperance | v_typ | v_max | luminous_min | luminous_typ | degree |
|---|---|---|---|---|---|---|---|---|---|
BL-L523BC |
Blue |
InGaN |
430 |
Water Clear |
4.2 |
1000 |
2500 |
18 |
|
BL-L523BGC |
Ultra Bluish Green |
InGaN |
505 |
Water Clear |
4.2 |
1800 |
4000 |
18 |
|
BL-L523LRC |
Super Red |
AlGaAs,DH |
660 |
Water Clear |
2.2 |
300 |
850 |
18 |
|
BL-L523PGC |
Ultra Pure Green |
InGaN |
525 |
Water Clear |
4.2 |
2000 |
5000 |
18 |
|
BL-L523SRC |
Hi Red |
AlGaAs,SH |
660 |
Water Clear |
2.2 |
100 |
300 |
18 |
|
BL-L523UBC |
Ultra Blue |
InGaN |
470 |
Water Clear |
4.2 |
2000 |
5500 |
18 |
|
BL-L523UEC |
Ultra Orange |
AlGaInP |
630 |
Water Clear |
2.5 |
900 |
2400 |
18 |
|
BL-L523UGC |
Ultra Green |
AlGaInP |
574 |
Water Clear |
2.5 |
300 |
900 |
18 |
|
BL-L523URC |
Ultra Red |
AlGaAs,DDH |
660 |
Water Clear |
2.2 |
800 |
1400 |
18 |
|
BL-L523UWC |
Ultra White |
InGaN |
- |
Water Clear |
4.2 |
4500 |
12000 |
18 |
|
BL-L523UYC |
Ultra Yellow |
AlGaInP |
590 |
Water Clear |
2.5 |
900 |
2100 |
18 |
|
BL-L523VC |
UV |
InGaN |
405 |
Water Clear |
4.2 |
90 |
160 |
18 |
Package configuration & Internal circuit diagram
All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.
Partno description:
LEDs, Light Emitting diodes, which include various small kinds, such as 3mm, 5mm, 8mm, 10mm; round type, rectangular type square type, tower type, Oval led, elliptical, flat top; SMDs, high power led, piranha LEDs
More Information
Lens Color:
| Code | D | T | C | W | E | |
| Meaning | color Diffused | Color Tinted | Water Clear | Water Diffused | Orange diffused |
Absolute maximum ratings (Ta=25°C)
| Parameter | SR | LR | UR | UE | UY | UG | PG | BG | B | UB | UV | W | Unit |
| Forward Current I F | 25 | 25 | 25 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | mA |
| Power Dissipation P d | 60 | 60 | 60 | 65 | 65 | 75 | 110 | 110 | 120 | 120 | 120 | 120 | mW |
| Reverse Voltage V R | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | V |
| Peak Forward Current I PF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 100 | 100 | 100 | 100 | 100 | mA |
| Operation Temperature T OPR | -40 to +80 | °C | |||||||||||
| Storage Temperature T STG | -40 to +85 | °C | |||||||||||
| Lead Soldering Temperature T SOL | Max.260+-5°C for 3 sec Max. (1.6mm from the base of the epoxy bulb) | °C | |||||||||||
Related Information
Applied for:
The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment,
communication equipment and household applications). Consult Betlux’s Sales in advance for information on
applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs
may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical
and life support systems and safety devices).
CAUTIONS for Through-Hole LED Lamps
1. Application
The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment, communication equipment and household applications). Consult Betlux’s Sales in advance for information on applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical and life support systems and safety devices).
2. Storage
The storage ambient for the LEDs should not exceed 30℃ temperature or 70% relative humidity. It is
recommended that LEDs out of their original packaging are used within three months
For extended storage out of their original packaging, it is recommended that the LEDs be stored in a sealed
container with appropriate desiccant or in a desiccator with nitrogen ambient.
3. Cleaning
Use alcohol-based cleaning solvents such as isopropyl alcohol to clean the LED if necessary
4. Lead Forming & Assembly
During lead forming, the leads should be bent at a point at least 3mm from the base of LED lens. Do not use
the base of the leadframe as a fulcrum during forming.
Lead forming must be done before soldering, at normal temperature.
During assembly on PCB, use minimum clinch force possible to avoid excessive mechanical stress.
Soldering
When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.
Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.
Recommended soldering conditions:
| IR Reflow Soldering (for SMD display) | Wave Soldering | Soldering Iron | |||
| Pre-Heat | 150-180°C | Pre-Heat | 100°C Max. | Temperature | 300°C Max. |
| Pre-Heat Time | 120sec Max. | Pre-Heat Time | 60sec Max. | ||
| Peak Temperature | 260°C Max. | SolderWave | 260°C Max. | Soldering Time | 3sec Max.(one time only) |
| Soldering Time | 10 sec Max. | Soldering Time | 5sec Max. | ||
Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED
ESD(Electrostatic Discharge)
Static Electricity or power surge will damage the LED.
Suggestions to prevent ESD (Electrostatic Discharge):
n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs
n All devices, equipment, and machinery must be properly grounded
n Work tables, storage racks, etc. should be properly grounded
n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s
plastic lens as a result of friction between LEDs during storage and handling
ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,
low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”
and Vf of the suspect LEDs at low currents.
The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP
product.
Drive Method
An LED is a current-operated device. In order to ensure intensity uniformity on multiple LEDs connected in
parallel in an application, it is recommended that a current limiting resistor be incorporated in the drive circuit,
in series with each LED as shown in Circuit A below.
When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:
- Determine the Forward Voltage (Vf) of the LED(s):
Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.
- Determine the Forward Current (If) of the LED(s):
The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.
- Decide on the Configuration:
Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.
Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.
Calculate Total Power Requirements:
Power (W) = Total Forward Voltage (V) x Total Forward Current (A)
For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:
Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W
- Select an Appropriate Power Supply:
- Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
- Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
- Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
- Consider Additional Features:
- Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
- Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
- Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
- Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
- Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.
In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.
