Understanding 5mm Bi-color LED Diodes
5mm bi-color LED diodes are compact, efficient light sources that combine two different colors within a single package. Unlike standard LEDs that emit a single color, bi-color LEDs can switch between two colors depending on the polarity of the applied voltage. This dual-color feature, also referred to as tricolor LED functionality when including a combined color mode, makes these components incredibly versatile.
Key Features and Applications
The primary allure of 5mm LEDs lies in their compact size and dual functionality. These LEDs are particularly beneficial in applications requiring color-coded signals or status indicators, such as consumer electronics, automotive dashboards, and industrial control panels. Their ability to switch colors without the need for multiple LEDs not only saves space but also simplifies circuit design.
Dual Color LED: A Game-Changer
The dual color LED technology, synonymous with the 5mm bi-color LED diode, represents a leap in electronic component design. By incorporating two different color diodes within a single unit, engineers can design more compact and efficient devices. This feature is especially valuable in space-constrained applications where the efficient use of space is critical.
The Benefits of Incorporating 5mm LEDs
Adopting 5mm bi-color LEDs in electronics manufacturing offers numerous advantages. Their low power consumption, long lifespan, and robustness make them an eco-friendly and cost-effective choice. Additionally, the flexibility of color switching allows for creative design possibilities, enhancing the aesthetic and functional appeal of electronic products.
Case Studies: Innovative Applications of 5mm LEDs
Several electronics manufacturers have successfully integrated 5mm bi-color LEDs into their products, leading to significant enhancements in performance and user experience. For instance, a leading consumer electronics company incorporated these LEDs into their smart home devices, enabling them to display different statuses through color changes, thereby improving user interaction and satisfaction.
User Testimonials: Praise for Bi-color LEDs
The feedback from both engineers and purchasers in the electronics industry has been overwhelmingly positive. One electronics manufacturer engineer commented, “The versatility and reliability of the 5mm bi-color LED diodes have significantly streamlined our design process, allowing us to innovate faster.” Similarly, a purchaser mentioned, “These LEDs have not only reduced our component costs but also enhanced the durability and attractiveness of our products.”
Conclusion: Embracing the Future with 5mm Bi-color LED Diodes
The 5mm bi-color LED diode represents a significant advancement in electronic component technology. Its dual-color functionality, combined with its compact size and efficiency, offers immense benefits to electronics manufacturers, engineers, and purchasers. As the demand for more efficient and compact electronic components grows, the role of these LEDs is set to become even more critical.
Call to Action: For electronics manufacturers looking to stay ahead of the curve, incorporating 5mm bi-color LED diodes into your products can lead to significant advantages in terms of innovation, efficiency, and cost-effectiveness. Explore the possibilities today and revolutionize your product offerings.
Features

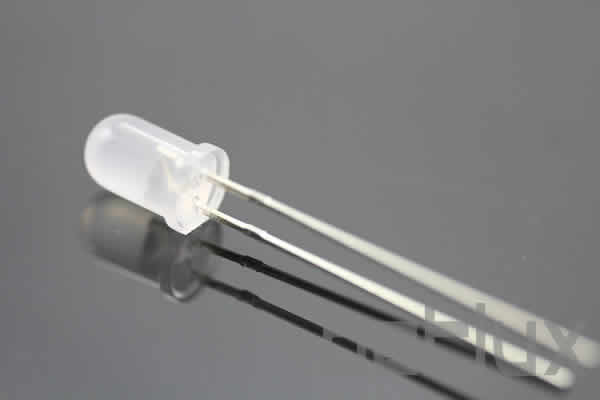

- 5.0mm Round Bi-Color Lamps: These LEDs contain two different color diodes within a single 5.0mm round housing, offering dual-color output.
- Two Leads Configuration: Simplifies wiring and installation, with one lead for each color and a shared common anode or cathode.
- Various Viewing Angles: Available in different angles to suit specific visibility and design requirements.
- Lens Options: Come in diffused, transparent, and water-clear lenses, catering to different aesthetic and functional needs in various applications.
- IC Compatible / Low Current Capability: Can be easily integrated with integrated circuits and are designed for low power consumption, enhancing energy efficiency.
- Common Anode or Common Cathode Options: Provide flexibility in circuit design, allowing for easier integration with various electrical configurations.
- RoHS Compliance: Adheres to environmental and safety standards, ensuring the use of materials that are safe and environmentally friendly.
Applications
- Indicator Lights: Commonly used in electronic devices, control panels, and instrumentation for status indication, such as power, operation, or fault conditions.
- Consumer Electronics: Utilized in various gadgets for dual-color status indicators, such as battery charging (red/green) or connectivity status.
- Automotive Applications: Employed in vehicle dashboards, signal indicators, or decorative lighting, where dual-color output is advantageous.
- Toys and Novelty Items: Incorporated into toys and novelty items for colorful and engaging lighting effects.
- Commercial Signage and Displays: Used in advertising displays, signboards, and informational signs for dynamic, multi-colored lighting.
- Safety and Emergency Equipment: Ideal for safety signs and equipment where dual-color indicators can signal different states like caution or danger.
- Communication Devices: Serve as dual-state indicators in communication equipment, showing different operational statuses.
Electrical-optical characteristics:
Article No
| color | material | wavelength
| apperance | v_typ | v_max | luminous_min | luminous_typ | degree |
|---|---|---|---|---|---|---|---|---|---|
BL-L517EGW |
Orange |
GaAsP/GaP |
635 |
Water Diff. |
2.5 |
8 |
20 |
60 |
|
BL-L517EGW |
Green |
GaP/GaP |
570 |
Water Diff. |
2.5 |
5 |
15 |
60 |
|
BL-L517UEUGW |
Ultra Green |
AlGaInP |
574 |
Water Diff. |
2.5 |
80 |
130 |
60 |
|
BL-L517UEUGW |
Ultra orange |
AlGaInP |
630 |
Water Diff. |
2.5 |
100 |
190 |
60 |
|
BL-L517YGW |
Yellow |
GaAsP/GaP |
585 |
Water Diff. |
2.5 |
5 |
15 |
60 |
|
BL-L517YGW |
Green |
GaP/GaP |
570 |
Water Diff. |
2.5 |
5 |
15 |
60 |
Package configuration & Internal circuit diagram
All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.
Partno description:
LEDs, Light Emitting diodes, which include various small kinds, such as 3mm, 5mm, 8mm, 10mm; round type, rectangular type square type, tower type, Oval led, elliptical, flat top; SMDs, high power led, piranha LEDs
More Information
Lens Color:
| Code | D | T | C | W | E | |
| Meaning | color Diffused | Color Tinted | Water Clear | Water Diffused | Orange diffused |
Absolute maximum ratings (Ta=25°C)
| Parameter | SR | LR | UR | UE | UY | UG | PG | BG | B | UB | UV | W | Unit |
| Forward Current I F | 25 | 25 | 25 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | mA |
| Power Dissipation P d | 60 | 60 | 60 | 65 | 65 | 75 | 110 | 110 | 120 | 120 | 120 | 120 | mW |
| Reverse Voltage V R | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | V |
| Peak Forward Current I PF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 100 | 100 | 100 | 100 | 100 | mA |
| Operation Temperature T OPR | -40 to +80 | °C | |||||||||||
| Storage Temperature T STG | -40 to +85 | °C | |||||||||||
| Lead Soldering Temperature T SOL | Max.260+-5°C for 3 sec Max. (1.6mm from the base of the epoxy bulb) | °C | |||||||||||
Related Information
Applied for:
The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment,
communication equipment and household applications). Consult Betlux’s Sales in advance for information on
applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs
may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical
and life support systems and safety devices).
CAUTIONS for Through-Hole LED Lamps
1. Application
The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment, communication equipment and household applications). Consult Betlux’s Sales in advance for information on applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical and life support systems and safety devices).
2. Storage
The storage ambient for the LEDs should not exceed 30℃ temperature or 70% relative humidity. It is
recommended that LEDs out of their original packaging are used within three months
For extended storage out of their original packaging, it is recommended that the LEDs be stored in a sealed
container with appropriate desiccant or in a desiccator with nitrogen ambient.
3. Cleaning
Use alcohol-based cleaning solvents such as isopropyl alcohol to clean the LED if necessary
4. Lead Forming & Assembly
During lead forming, the leads should be bent at a point at least 3mm from the base of LED lens. Do not use
the base of the leadframe as a fulcrum during forming.
Lead forming must be done before soldering, at normal temperature.
During assembly on PCB, use minimum clinch force possible to avoid excessive mechanical stress.
Soldering
When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.
Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.
Recommended soldering conditions:
| IR Reflow Soldering (for SMD display) | Wave Soldering | Soldering Iron | |||
| Pre-Heat | 150-180°C | Pre-Heat | 100°C Max. | Temperature | 300°C Max. |
| Pre-Heat Time | 120sec Max. | Pre-Heat Time | 60sec Max. | ||
| Peak Temperature | 260°C Max. | SolderWave | 260°C Max. | Soldering Time | 3sec Max.(one time only) |
| Soldering Time | 10 sec Max. | Soldering Time | 5sec Max. | ||
Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED
ESD(Electrostatic Discharge)
Static Electricity or power surge will damage the LED.
Suggestions to prevent ESD (Electrostatic Discharge):
n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs
n All devices, equipment, and machinery must be properly grounded
n Work tables, storage racks, etc. should be properly grounded
n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s
plastic lens as a result of friction between LEDs during storage and handling
ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,
low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”
and Vf of the suspect LEDs at low currents.
The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP
product.
Drive Method
An LED is a current-operated device. In order to ensure intensity uniformity on multiple LEDs connected in
parallel in an application, it is recommended that a current limiting resistor be incorporated in the drive circuit,
in series with each LED as shown in Circuit A below.
When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:
- Determine the Forward Voltage (Vf) of the LED(s):
Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.
- Determine the Forward Current (If) of the LED(s):
The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.
- Decide on the Configuration:
Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.
Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.
Calculate Total Power Requirements:
Power (W) = Total Forward Voltage (V) x Total Forward Current (A)
For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:
Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W
- Select an Appropriate Power Supply:
- Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
- Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
- Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
- Consider Additional Features:
- Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
- Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
- Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
- Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
- Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.
In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.
Here are some well-regarded brands in the industry:
- Mean Well: One of the most recognized brands in the LED power supply industry, Mean Well offers a wide range of products suitable for both indoor and outdoor applications. Their units often come with features like overcurrent protection, dimming capabilities, and high efficiency.
- Tridonic: A global leader in lighting technology, Tridonic offers LED drivers and power supplies that cater to various lighting solutions, from simple setups to advanced smart lighting systems.
- Philips Advance Xitanium: Philips is a well-known brand in the lighting industry, and their Xitanium series of LED drivers are known for reliability and performance. They cater to both indoor and outdoor LED applications.
- Osram: Another giant in the lighting industry, Osram offers a range of LED drivers and power supplies suitable for various applications, including architectural and street lighting.
- LIFUD: Specializing in LED drivers, LIFUD is known for its high-quality products that cater to both commercial and residential LED lighting solutions.
- MOSO: This brand offers a variety of LED drivers, especially for outdoor and industrial applications. Their products are known for durability and performance.
- TDK-Lambda: With a history in power electronics, TDK-Lambda offers a range of power supplies and LED drivers suitable for various applications, emphasizing reliability and advanced features.
