Description:

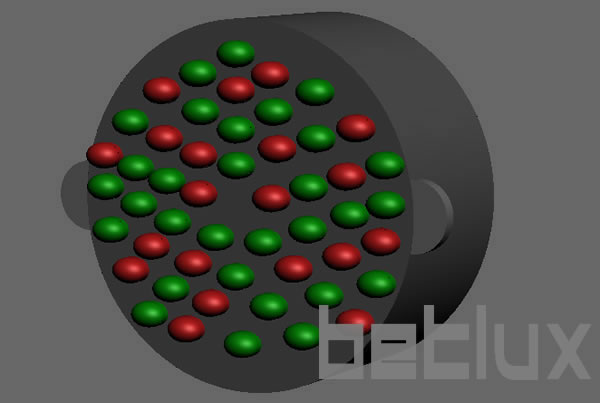

52mm Lamp cluster (20 red 30 green, round packed)
52mm LED cluster
The Evolution of LED Clusters: A Deep Dive into the 52mm Module
In the rapidly advancing world of LED technology, the 52mm LED cluster, comprising 20 red and 30 green LEDs, round packed, emerges as a beacon of innovation and versatility. Targeting electronics manufacturer engineers, purchasers, and administrators, this detailed exploration sheds light on the “module rgb led” and its synonym “replaceable led module,” highlighting its features, applications, benefits, case studies, and user testimonials. This article is designed to align with the latest SEO trends, ensuring a perfect blend of informative content and SEO efficiency.
Features of the 52mm LED Cluster
The 52mm LED cluster stands out with its significant color intensity and distribution, ideal for a broad spectrum of applications. Its unique configuration of 20 red and 30 green LEDs offers superior brightness and color accuracy, making it an indispensable component in high-demand settings. The flexibility provided by its “replaceable led module” design facilitates easy updates and repairs, marking a significant advantage for manufacturers and designers.
Applications: Bridging Technology and Creativity
This LED cluster caters to an extensive range of applications, from industrial equipment indicators to decorative lighting in public and private spaces. Its efficacy in “led module 12v” systems amplifies its utility in portable and low-voltage operations, underscoring its adaptability and efficiency. The synonymous term “round led module” further emphasizes its suitability for various design aesthetics and functional requirements.
The Benefits: Lighting the Path to Innovation
The 52mm LED cluster not only enhances visual performance but also promotes energy efficiency and environmental sustainability. Its long lifespan and low power consumption translate into significant cost savings and a reduced carbon footprint, aligning with global sustainability goals. The product’s reliability and color consistency ensure its role as a critical component in future lighting solutions.
Case Studies: Illuminating Success
Through real-world applications, the 52mm LED cluster’s impact becomes evident. These case studies illustrate its role in improving safety in transportation, enhancing the ambiance in architectural projects, and enabling innovation in consumer electronics. Such testimonials from leading electronics manufacturers underscore the product’s value and versatility.
User Testimonials: Endorsements of Excellence
Feedback from the field attests to the 52mm LED cluster’s performance and reliability. Engineers and purchasers laud its ease of integration, exceptional light quality, and the creative freedom it affords in product design. These testimonials highlight the cluster’s contribution to elevating industry standards and fostering technological advancement.
Conclusion: Shaping the Future of LED Technology
The 52mm LED cluster (20 red, 30 green, round packed) epitomizes the fusion of aesthetic flexibility and technical prowess. Its wide-ranging applications, coupled with its environmental and economic benefits, position it as a cornerstone of modern LED technology. For those at the forefront of electronics manufacturing and design, embracing this innovative solution paves the way for a brighter, more sustainable future.
Call to Action: Lead with Light
Transform your projects and products with the cutting-edge capabilities of the 52mm LED cluster. Experience unparalleled efficiency, versatility, and creativity in your lighting solutions. Embrace the future of LED technology today.
Features
- Round Shape: Offers a visually appealing and uniform design with a diameter of 52.00mm.
- High Visibility: Bright and noticeable, ideal for applications where large, clear displays are required.
- Emitting Colors: Includes a combination of red and green LEDs, providing versatile display options.
- Number of Built-in 5mm LED Lamps: Contains 20 super bright red LEDs and 30 green LEDs, ensuring high visibility and color variety.
- Waterproof Package with Hood: Suitable for both outdoor and indoor use, ensuring durability in various environmental conditions.
- Long Life: LEDs are known for their longevity, reducing the need for frequent replacements and maintenance.
- Low Current, Power Savings: Energy-efficient design, leading to lower electricity consumption and cost savings.
- Low Maintenance: Minimal upkeep required due to the durability and reliability of LED technology.
- Different Color Availability: Offers a range of colors, enhancing versatility for different applications.
- Solid State, High Vibration Resistant: Robust against physical shocks and vibrations, making it suitable for high-impact and demanding environments.
- Can Produce any Color in Visible Spectrum, Including White Light: Capable of creating a wide array of colors for diverse lighting needs.
- RoHS Compliance: Manufactured in compliance with environmental and health safety standards.
Applications
- Large Outdoor and Indoor Information Boards: Ideal for displaying information in public spaces like transportation hubs, stadiums, and commercial centers.
- Signage and Advertising: Suitable for large signs, billboards, and promotional displays where high visibility is required.
- Safety and Warning Signals: Can be used in traffic signals, large emergency signage, and warning systems for public safety.
- Architectural Lighting: Applicable for large-scale architectural designs requiring functional and aesthetic lighting.
- Event and Stage Lighting: Ideal for concerts, festivals, and other large venues where decorative and functional lighting is essential.
- Industrial Indicators: Useful in industrial settings for large status indicators, alert systems, and control panels.
- Retail and Commercial Displays: Enhances the visual appeal of large retail displays, showrooms, and storefronts.
- Public Art and Installations: Suitable for large public art projects and installations that require durable and versatile lighting solutions.
Electrical-optical characteristics:
Package configuration & Internal circuit diagram
All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.
Partno description:
LED Cluster is widely applied in traffic signal, scoreboard sign,etc
Related Information
Applied for:
Soldering
When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.
Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.
Recommended soldering conditions:
| IR Reflow Soldering (for SMD display) | Wave Soldering | Soldering Iron | |||
| Pre-Heat | 150-180°C | Pre-Heat | 100°C Max. | Temperature | 300°C Max. |
| Pre-Heat Time | 120sec Max. | Pre-Heat Time | 60sec Max. | ||
| Peak Temperature | 260°C Max. | SolderWave | 260°C Max. | Soldering Time | 3sec Max.(one time only) |
| Soldering Time | 10 sec Max. | Soldering Time | 5sec Max. | ||
Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED
ESD(Electrostatic Discharge)
Static Electricity or power surge will damage the LED.
Suggestions to prevent ESD (Electrostatic Discharge):
n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs
n All devices, equipment, and machinery must be properly grounded
n Work tables, storage racks, etc. should be properly grounded
n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s
plastic lens as a result of friction between LEDs during storage and handling
ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,
low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”
and Vf of the suspect LEDs at low currents.
The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP
product.
When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:
- Determine the Forward Voltage (Vf) of the LED(s):
Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.
- Determine the Forward Current (If) of the LED(s):
The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.
- Decide on the Configuration:
Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.
Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.
Calculate Total Power Requirements:
Power (W) = Total Forward Voltage (V) x Total Forward Current (A)
For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:
Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W
- Select an Appropriate Power Supply:
- Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
- Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
- Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
- Consider Additional Features:
- Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
- Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
- Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
- Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
- Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.
In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.
Here are some well-regarded brands in the industry:
- Mean Well: One of the most recognized brands in the LED power supply industry, Mean Well offers a wide range of products suitable for both indoor and outdoor applications. Their units often come with features like overcurrent protection, dimming capabilities, and high efficiency.
- Tridonic: A global leader in lighting technology, Tridonic offers LED drivers and power supplies that cater to various lighting solutions, from simple setups to advanced smart lighting systems.
- Philips Advance Xitanium: Philips is a well-known brand in the lighting industry, and their Xitanium series of LED drivers are known for reliability and performance. They cater to both indoor and outdoor LED applications.
- Osram: Another giant in the lighting industry, Osram offers a range of LED drivers and power supplies suitable for various applications, including architectural and street lighting.
- LIFUD: Specializing in LED drivers, LIFUD is known for its high-quality products that cater to both commercial and residential LED lighting solutions.
- MOSO: This brand offers a variety of LED drivers, especially for outdoor and industrial applications. Their products are known for durability and performance.
- TDK-Lambda: With a history in power electronics, TDK-Lambda offers a range of power supplies and LED drivers suitable for various applications, emphasizing reliability and advanced features.
