Innovate with Dual-Color: The Power of 3mm LEDs

Series No:

Weight:(g/pcs)

0.17

Dimension:(mm)

3 x 3.8 x 6.1

Package:

Specification:

Inquiry

Description:

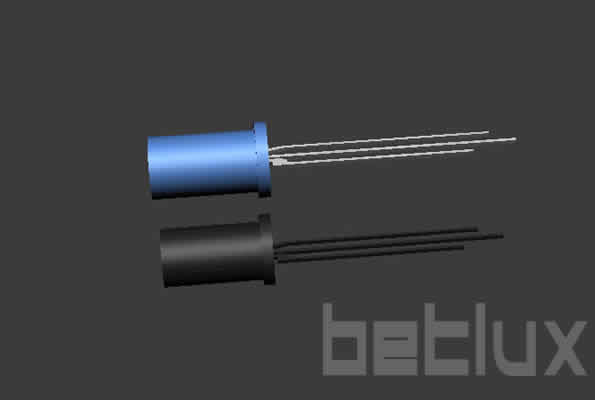

Illuminating Innovation: The Two-Color 3mm LED Diode

At the forefront of LED technology lies the two-color 3mm LED diode, a marvel of engineering that combines two distinct colors in a single package. This compact component, known for its efficiency and versatility, is capable of emitting different colors without the need for multiple LEDs. This ability not only saves space but also opens up a realm of creative possibilities for electronic device design.

Distinct Features of Two-Color 3mm LEDs

Dual Emission: The primary feature of two-color LEDs is their ability to emit two distinct colors, typically achieved through the integration of two different LED chips within the same package.
Compact Design: Despite housing two LEDs, the 3mm package remains incredibly compact, offering designers the flexibility to incorporate them into various electronic devices without space constraints.
Energy Efficiency: Like their single-color counterparts, two-color 3mm LEDs are designed for low power consumption, making them an energy-efficient choice for modern electronics.

Diverse Applications: From Indicators to Ambiance

The applications of two-color 3mm LED diodes are vast and varied. They are commonly used as status indicators on electronic devices, where they can signal different modes or alerts through color changes. Additionally, these LEDs are perfect for creating ambient lighting in consumer electronics, offering a range of colors to enhance the user experience. Beyond these, multi-color LEDs find applications in signage, automotive lighting, and decorative installations, where their compact size and dual-color capabilities provide unmatched versatility.

Benefits of Integrating Two-Color 3mm LEDs

Choosing two-color 3mm LED diodes for electronic projects offers several advantages:

Enhanced Functionality: The dual-color feature allows for more informative and intuitive indicator systems, improving user interaction with devices.
Design Flexibility: The compact size and multi-color functionality of these LEDs enable more creative and space-efficient designs.
Cost-Effectiveness: By incorporating two colors into a single LED, manufacturers can reduce the number of components required, leading to cost savings in both materials and assembly.

Case Studies: Lighting the Way Forward

One compelling case study involves a leading consumer electronics brand that utilized two-color 3mm LEDs in their latest line of smart home devices. The LEDs served as dynamic indicators for device status, such as power on/off and connectivity status, significantly enhancing the aesthetic appeal and functionality of the products.

User Testimonials: Shining a Light on Success

“We’ve seen remarkable improvements in product design and user feedback since incorporating two-color 3mm LEDs into our devices,” states a Product Development Engineer from a renowned tech company. “Their versatility and efficiency have allowed us to innovate beyond traditional constraints.”

Conclusion: The Bright Future of Two-Color 3mm LEDs

The exploration into the world of two-color 3mm LED diodes reveals their critical role in advancing the design and functionality of modern electronics. With their unique blend of compactness, efficiency, and dual-color capabilities, these LEDs are set to remain at the forefront of electronic component innovation. As technology continues to evolve, the significance of incorporating efficient, versatile components like the two-color 3mm LED diode becomes increasingly apparent.

Call to Action: Step into the future of electronics with the innovative two-color 3mm LED diode. Discover how these compact, versatile components can transform your projects, offering enhanced functionality and design aesthetics. Embrace the power of dual-color illumination and elevate your electronic designs to new heights.

Features

3.0mm Cylindrical LED Lamp: The cylindrical design provides a unique aesthetic and can be beneficial for specific applications requiring a more focused light distribution.
Various Viewing Angles: These LEDs come in different viewing angles, making them versatile for various applications where directionality of light is important.
Lens Options: Available with diffused, transparent, and water-clear lenses. Diffused lenses offer a softer light dispersion, transparent lenses provide a more defined light path, and water-clear lenses deliver the most direct and concentrated light output.
IC Compatibility / Low Current Capability: These LEDs are suitable for integration with integrated circuits, making them applicable for complex electronic designs. Their low current operation enhances energy efficiency, making them ideal for battery-powered devices.
RoHS Compliance: They meet strict environmental and safety standards, indicating that they are manufactured using materials that are safe and environmentally friendly.

Applications

Indicator Lights: Commonly used in electronics, appliances, and control panels to indicate power status, operational states, or alerts.
Backlighting: Suitable for backlighting in small displays, keypads, and control panels in various electronic devices.
Consumer Electronics: Used in portable electronics for indicators or aesthetic enhancements, such as in mobile phones, audio devices, and handheld gadgets.
Automotive Lighting: Employed in vehicle dashboards and instrumentation for indicators or backlighting.
Signal and Signage Applications: Incorporated into signal lights, digital billboards, and other signage for visibility and attention-grabbing purposes.
Toys and Novelty Items: Integrated into toys and novelty items, adding visual appeal and enhancing user interaction.
DIY Projects and Hobby Electronics: Popular in DIY and hobbyist projects due to their small size, ease of use, and versatility.
Decorative and Accent Lighting: Utilized in decorative applications for homes and commercial spaces, including mood lighting and artistic installations.

Electrical-optical characteristics:

Article No	color	material	wavelength	apperance	v_max	luminous_min	luminous_typ	degree
BL-L345EGW	Orange	GaAsP/GaP	635	Water Diff.	2.5	5	15	100
BL-L345EGW	Green	GaP/GaP	570	Water Diff.	2.5	3	10	100
BL-L345UEUGW	Ultra Green	AlGaInP	574	Water Diff.	2.5	70	120	100
BL-L345UEUGW	Ultra orange	AlGaInP	630	Water Diff.	2.5	90	180	100
BL-L345YGW	Yellow	GaAsP/GaP	585	Water Diff.	2.5	3	10	100
BL-L345YGW	Green	GaP/GaP	570	Water Diff.	2.5	3	10	100

Package configuration & Internal circuit diagram

All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.

Partno description:

LEDs, Light Emitting diodes, which include various small kinds, such as 3mm, 5mm, 8mm, 10mm; round type, rectangular type square type, tower type, Oval led, elliptical, flat top; SMDs, high power led, piranha LEDs

More Information

Lens Color:

Code	D	T	C	W	E
Meaning	color Diffused	Color Tinted	Water Clear	Water Diffused	Orange diffused

Absolute maximum ratings (Ta=25°C)

Parameter	SR	LR	UR	UE	UY	UG	PG	BG	B	UB	UV	W	Unit
Forward Current I F	25	25	25	30	30	30	30	30	30	30	30	30	mA
Power Dissipation P d	60	60	60	65	65	75	110	110	120	120	120	120	mW
Reverse Voltage V R	5	5	5	5	5	5	5	5	5	5	5	5	V
Peak Forward Current I PF (Duty 1/10 @1KHZ)	150	150	150	150	150	150	150	100	100	100	100	100	mA
Operation Temperature T OPR	-40 to +80												°C
Storage Temperature T STG	-40 to +85												°C
Lead Soldering Temperature T SOL	Max.260+-5°C for 3 sec Max. (1.6mm from the base of the epoxy bulb)												°C

Related Information

Applied for:

The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment,

communication equipment and household applications). Consult Betlux’s Sales in advance for information on

applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs

may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical

and life support systems and safety devices).

CAUTIONS for Through-Hole LED Lamps

1. Application
The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment, communication equipment and household applications). Consult Betlux’s Sales in advance for information on applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical and life support systems and safety devices).

2. Storage
The storage ambient for the LEDs should not exceed 30℃ temperature or 70% relative humidity. It is
recommended that LEDs out of their original packaging are used within three months
For extended storage out of their original packaging, it is recommended that the LEDs be stored in a sealed
container with appropriate desiccant or in a desiccator with nitrogen ambient.

3. Cleaning
Use alcohol-based cleaning solvents such as isopropyl alcohol to clean the LED if necessary

4. Lead Forming & Assembly
During lead forming, the leads should be bent at a point at least 3mm from the base of LED lens. Do not use
the base of the leadframe as a fulcrum during forming.
Lead forming must be done before soldering, at normal temperature.
During assembly on PCB, use minimum clinch force possible to avoid excessive mechanical stress.

Soldering

When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.

Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.

Recommended soldering conditions:

IR Reflow Soldering (for SMD display)		Wave Soldering		Soldering Iron
Pre-Heat	150-180°C	Pre-Heat	100°C Max.	Temperature	300°C Max.
Pre-Heat Time	120sec Max.	Pre-Heat Time	60sec Max.
Peak Temperature	260°C Max.	SolderWave	260°C Max.	Soldering Time	3sec Max.(one time only)
Soldering Time	10 sec Max.	Soldering Time	5sec Max.

Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED

ESD(Electrostatic Discharge)

Static Electricity or power surge will damage the LED.

Suggestions to prevent ESD (Electrostatic Discharge):

n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs

n All devices, equipment, and machinery must be properly grounded

n Work tables, storage racks, etc. should be properly grounded

n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s

plastic lens as a result of friction between LEDs during storage and handling

ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,

low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”

and Vf of the suspect LEDs at low currents.

The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP

product.

Drive Method

An LED is a current-operated device. In order to ensure intensity uniformity on multiple LEDs connected in

parallel in an application, it is recommended that a current limiting resistor be incorporated in the drive circuit,

in series with each LED as shown in Circuit A below.

When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:

Determine the Forward Voltage (Vf) of the LED(s):

Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.

Determine the Forward Current (If) of the LED(s):

The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.

Decide on the Configuration:

Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.

Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.

Calculate Total Power Requirements:

Power (W) = Total Forward Voltage (V) x Total Forward Current (A)

For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:

Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W

Select an Appropriate Power Supply:
Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.

Consider Additional Features:

Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.

In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.

Here are some well-regarded brands in the industry:

Mean Well: One of the most recognized brands in the LED power supply industry, Mean Well offers a wide range of products suitable for both indoor and outdoor applications. Their units often come with features like overcurrent protection, dimming capabilities, and high efficiency.
Tridonic: A global leader in lighting technology, Tridonic offers LED drivers and power supplies that cater to various lighting solutions, from simple setups to advanced smart lighting systems.
Philips Advance Xitanium: Philips is a well-known brand in the lighting industry, and their Xitanium series of LED drivers are known for reliability and performance. They cater to both indoor and outdoor LED applications.
Osram: Another giant in the lighting industry, Osram offers a range of LED drivers and power supplies suitable for various applications, including architectural and street lighting.
LIFUD: Specializing in LED drivers, LIFUD is known for its high-quality products that cater to both commercial and residential LED lighting solutions.
MOSO: This brand offers a variety of LED drivers, especially for outdoor and industrial applications. Their products are known for durability and performance.
TDK-Lambda: With a history in power electronics, TDK-Lambda offers a range of power supplies and LED drivers suitable for various applications, emphasizing reliability and advanced features.
