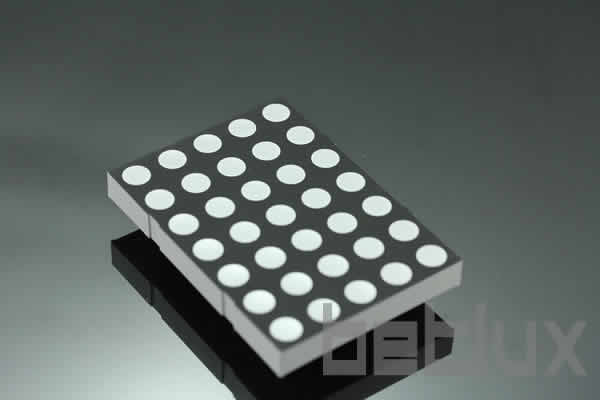

3.4 inch height 5×8 LED dot matrix

Series No:

BL-M34A581

Weight:(g/pcs)

54

Dimension:(mm)

56.8 x 90.7 x 9.2

Dot height:(mm)

3.4 inch

Dot pitch:(mm)

11.43mm

Dot size:(mm)

7.62mm

Specification:

download

Inquiry

Description:

Introduction

In the dynamic field of electronic displays, the 3.4 inch height 5×8 LED dot matrix stands out as a pivotal technology, especially for applications requiring high visibility and flexibility. Known for its utility as an indicator LED, this technology has transformed various aspects of visual communication tools. This article explores the distinctive features, applications, and multiple benefits of this advanced LED matrix, supported by compelling case studies and user testimonials from the electronics industry.

Features of the 3.4 Inch Height 5×8 LED Dot Matrix

The 5×8 LED matrix serves as a critical component in modern display systems, offering superior clarity and customization options:

High Definition and Clarity

  • Resolution: With 40 LEDs organized in a 5×8 grid, this matrix provides exceptional resolution, making it perfect for displaying complex icons and characters.
  • Brightness: The use of high-intensity LEDs ensures that the display remains visible even in bright conditions.

Customizable and Scalable

  • Colors and Effects: It supports various colors and effects, thanks to advanced LED matrix 5×8 control systems, enhancing the dynamic presentation of information.
  • Modularity: The matrices can be tiled together to create larger displays, making them ideal for scalable applications.

Applications Across Industries

The versatility of the 3.4 inch height 5×8 LED dot matrix enables its use in a multitude of settings:

  • Advertising Displays: High impact visual advertising on billboards and store displays.
  • Traffic Signals: Reliable traffic management systems utilize these matrices for clear and instant communication with drivers.
  • Consumer Electronics: From microwave ovens to smart home devices, these displays enhance user interfaces with their bright, readable outputs.

Technological Advantages and Benefits

Adopting the 5×8 LED matrix in electronic designs offers significant advantages:

  • Energy Efficiency: LEDs are well-known for their low power consumption, providing cost-effective operation over long periods.
  • Durability: The robust design of the LEDs, often using thru hole technology, ensures longevity and resilience in various environmental conditions.
  • Ease of Integration: Engineers find it straightforward to integrate these matrices with existing systems, supported by comprehensive red LED data sheets that provide detailed technical specifications.

Case Studies: Real-World Applications

Case Study 1: Urban Traffic Control

A major city implemented the 5×8 LED matrix in its traffic light systems to enhance the clarity and responsiveness of signals. This upgrade has led to a measurable decrease in traffic congestion and accidents, showcasing the practical benefits of this technology.

Case Study 2: Retail Advertising Solutions

A retail chain incorporated these LED matrices into their storefront displays, resulting in a 30% increase in foot traffic. The vibrant displays provided by the indicator LED capabilities of the matrix made promotions more eye-catching and effective.

User Testimonials

Testimonial from a Consumer Electronics Developer: “Integrating the 3.4 inch 5×8 LED matrix into our products has significantly enhanced the user experience. The clarity and versatility of the display have been key to our success.”

Testimonial from a Traffic System Engineer: “The reliability and brightness of the LED matrices have greatly improved our traffic management systems. They are visible from long distances and under all weather conditions, which is crucial for safety.”

Conclusion

The 3.4 inch height 5×8 LED dot matrix represents a leap forward in display technology, offering unparalleled clarity, versatility, and reliability. Its wide range of applications and benefits make it an essential component for any forward-thinking electronics project.

Call to Action: Leverage the advanced capabilities of the 5×8 LED dot matrix to transform your display solutions today!

3.4 inch height 5x8 LED dot matrix
3.4 inch height 5×8 LED dot matrix

Features

  • 3.4-Inch Matrix Height (87.63mm): Provides a sizable display area for clear visibility, ideal for applications where medium visual impact is needed.
  • Dot Size: 7.62mm, Circle Dot: Prominent, circular dots for good visibility and aesthetic appeal.
  • Column and Row Configuration: 5 Columns x 8 Rows: A matrix of 40 individual dots allows for displaying a range of symbols or characters.
  • Dimensions (Width x Height): 56.80 x 90.70mm: Efficient dimensions for effective display size while maintaining spatial economy.
  • Bi-Color Selected: Ability to display information in two different colors, enhancing the display’s versatility and visual appeal.
  • Low Current Operation: Energy-efficient design, suitable for both battery-powered and low-power electronic devices.
  • High Contrast and Light Output: Ensures excellent readability in various lighting conditions.
  • Compatible with ASCII and EBCDIC Code: Can display a wide range of characters and symbols, increasing its utility.
  • Stackable Horizontally: Allows for the expansion of the display area by aligning multiple units side by side.
  • Column Cathode and Column Anode Available: Offers flexibility in electronic design and circuit integration.
  • Easy Mounting on P.C. Boards or Sockets: Facilitates straightforward installation and integration into electronic systems.
  • Categorized for Luminous Intensity: Ensures consistent brightness levels across units for uniform display quality.
  • Technically Rugged: Durable and reliable, capable of withstanding various operational conditions.
  • Standard Design: Gray Surface and White Dot: Visually appealing with high contrast for ease of reading.
  • RoHS Compliance: Adheres to environmental safety standards.

Applications

  • Public Information Displays: Ideal for airports, train stations, or event venues for displaying large, clear information.
  • Advertising and Retail Signage: Effective in retail settings or for promotional purposes where eye-catching displays are required.
  • Industrial Displays: Suitable for factory or process control environments to show data, status messages, or alerts.
  • Scoreboards and Event Timers: Perfect for sports stadiums, arenas, or event spaces requiring visible displays.
  • Interactive Kiosks: Can be used in information kiosks in public spaces, museums, or exhibitions.
  • Educational Tools: Useful in educational settings for displaying large visual aids or instructional content.
  • Healthcare Signage: Appropriate for hospitals or clinics for displaying patient information, room numbers, or alerts.
  • Safety and Emergency Signage: Suitable for safety alerts, warning messages, or directional signage in various settings.
  • Transportation Systems: Effective for displaying route numbers, schedules, or status updates in transportation systems.

RoHs Compliance, Pb-free              Anti-Static Attention

Electrical-optical characteristics:
Filters Sort results
Reset Apply
Part No.(Row Cathode)
Part No. (Row Anode)
Color
Material
Peak Wavelength (nm)
Voltage typ. (v)
Voltage Max. (v)
Luminous Min.
Luminous typ.
BL-M34A581B
BL-M34B581B
ultra Blue
InGaN/SiC
470
9
180
250
BL-M34A581D
BL-M34B581D
Super Red
GaAlAs/DH
660
4.2
400
560
BL-M34A581DUG (D)
BL-M34B581DUG (D)
Ultra Red
AlGaInP
660
2.5
160
BL-M34A581DUG (UG)
BL-M34B581DUG (UG)
Ultra Green
AlGaInP
574
2.5
190
BL-M34A581E
BL-M34B581E
Orange
GaAsP/GaP
635
5
312
500
BL-M34A581EG (E)
BL-M34B581EG (E)
Orange
GaAsP/GaP
635
2.5
110
BL-M34A581EG (G)
BL-M34B581EG (G)
Green
GaP/GaP
570
2.5
125
BL-M34A581EG
BL-M34B581EG
Green
GaP/GaP
570
5
393
600
BL-M34A581EG
BL-M34B581EG
Orange
GaAsP/GaP
635
5
312
500
BL-M34A581G
BL-M34B581G
Green
GaP/GaP
570
5
393
600
BL-M34A581PG
BL-M34B581PG
Ultra Pure Green
InGaN/SiC
525
9
440
720
BL-M34A581S
BL-M34B581S
Hi Red
GaAlAs/SH
660
4.2
350
530
BL-M34A581SG (G)
BL-M34B581SG (G)
Green
GaP/GaP
570
2.5
125
BL-M34A581SG (S)
BL-M34B581SG (S)
Super Red
AlGaInP
660
2.5
140
BL-M34A581SG
BL-M34B581SG
Green
GaP/GaP
570
5
393
600
BL-M34A581SG
BL-M34B581SG
Hi Red
GaAlAs/SH
660
4.2
350
530
BL-M34A581UB
BL-M34B581UB
ultra Blue
InGaN/SiC
470
9
220
360
BL-M34A581UE
BL-M34B581UE
Ultra Orange
AlGaInP
630
5
400
560
BL-M34A581UEUG (UE)
BL-M34B581UEUG (UE)
Ultra Orange
AlGaInP
630
2.5
150
BL-M34A581UEUG (UG)
BL-M34B581UEUG (UG)
Ultra Green
AlGaInP
574
2.5
190
1 2
Package configuration & Internal circuit diagram
3.4 inch height 5x8 LED dot matrix


All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.

Partno description:

LED dot matrix is widely used in LED information board indoor and semi-outdoor

Part No of LED dot matrix

More Information

Reflector Surface color (1st number)/ dot Lens color (2nd number):

Number012345
Ref Surface ColorWhiteBlackGrayRedGreen
Dot Epoxy ColorWater clearWhite diffusedRed DiffusedGreen DiffusedYellow Diffused

Absolute maximum ratings (Ta= 25°C)

Parameter SDUREYGUnit
Forward Current IF 252525252530mA
Power Dissipation Pd 606060606065mW
Reverse Voltage VR 555555V
Peak Forward Current IPF (Duty 1/10 @1KHZ) 150150150150150150mA
Operation Temperature TOPR-40 to +80°C
Storage Temperature TSTG-40 to +85°C
Lead Soldering Temperature TSOL  Max.260+ 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb)°C

Absolute maximum ratings (Ta= 25°C)

ParameterUHRUEYOUYUGPGUBUWUnit
Forward Current IF3030303030303030mA
Power Dissipation Pd7565656575110120120mW
Reverse Voltage VR55555555V
Peak Forward Current IPF (Duty 1/10 @1KHZ)150150150150150150100100mA
Operation Temperature TOPR-40 to +80°C
Storage Temperature TSTG-40 to +85°C
Lead Soldering Temperature TSOLMax.260+ 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb)°C
Related Information

Applied for:
trainbus information boardLED screnmessage boardindustry instrument

1. Application
The Seven Segment LED is widely applied for ordinary electronic equipment (such as office equipment,
communication equipment and household applications). Checking with BETLUX’s Sales in
advance for information on applications in which exceptional reliability is required, particularly
when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in
aviation, transportation, traffic control equipment, medical and life support systems and safety
devices).

2. Storage
The storage ambient for the Seven Segment LED should not exceed 30℃ temperature or 70% relative humidity.
For extended storage out of their original packaging, it is recommended that the Seven Segment LEDs be stored
in a sealed container with appropriate desiccant, or in a desiccator with nitrogen ambient.

3. Cleaning
Avoid using any unspecified chemical solvent to clean LED . For example, Trichloroethylene, Chlorosen, Acetone, and Diflon S3MC.
Any cleaning method can only be taken under normal temperature in one minute or less if it is required.
Use water to clean the Seven Segment LED if necessary under room temperature
dry it immediately after that.

4.Forming
Any unsuitable stress applied to the epoxy may break bonding wires in LED
Any forming on lead pin must be done before soldering, not during or after soldering.
Avoid applying any stress to resin in order to prevent the epoxy fracture and break on bonding wire.
While forming, please use a tie bar cut or equivalent to hold or bend the pin.
2mm from the base of resin is the minimum distance for the place bending the lead pin.
Avoid bending the lead pin at the same point twice or more.

seven segment display forming caution

Soldering

When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.

Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.

Recommended soldering conditions:



IR Reflow Soldering (for SMD display)Wave SolderingSoldering Iron
Pre-Heat150-180°CPre-Heat100°C Max.Temperature300°C Max.
Pre-Heat Time120sec Max.Pre-Heat Time60sec Max.
Peak Temperature260°C Max.SolderWave260°C Max.Soldering Time3sec Max.(one time only)
Soldering Time10 sec Max.Soldering Time5sec Max.

Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED

ESD(Electrostatic Discharge)

Static Electricity or power surge will damage the LED.

Suggestions to prevent ESD (Electrostatic Discharge):

n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs

n All devices, equipment, and machinery must be properly grounded

n Work tables, storage racks, etc. should be properly grounded

n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s

 plastic lens as a result of friction between LEDs during storage and handling

ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,

low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”

and Vf of the suspect LEDs at low currents.

The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP

 product.

antistatic notice-smd led

LED dirve IC by  Maxim Integrated

 MAX6959  4½-Digit LED Display Driver

 MAX6958  4½-Digit LED Display Driver

 MAX6955  7-, 14-, 16-Segment LED Display Driver

 MAX6956  LED Static Display Driver and I/O Port

 MAX6954  7-, 14-, 16-Segment LED Display Driver

 MAX6952  5 x 7 Matrix LED Display Driver

 MAX6957  LED Static Display Driver and I/O Port

MAX6950  5-Digit LED Display Driver

 MAX6951  8-Digit LED Display Driver

 ICM7212  4-Digit LED Driver

 ICM7212A  4-Digit LED Driver

 ICM7212AM  4-Digit LED Driver

 ICM7212M  4-Digit LED Driver

 ICM7218A  8-Digit LED Driver

 ICM7218B  8-Digit LED Driver

 ICM7218C  8-Digit LED Driver

 ICM7218D  8-Digit LED Driver

 MAX7221  8-Digit LED Display Driver

 MAX7219  8-Digit LED Display Driver

 provide in-depth design and IC selection help for design engineers.  Each solution is dedicated to a popular end-equipment type and features design information, circuits and a block diagram.   Within a block diagram, click on a block to view best-fit integrated circuits recommended by Maxim engineers.

When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:

  • Determine the Forward Voltage (Vf) of the LED(s):

Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.

  • Determine the Forward Current (If) of the LED(s):

The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.

  • Decide on the Configuration:

Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.

Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.

Calculate Total Power Requirements:

Power (W) = Total Forward Voltage (V) x Total Forward Current (A)

For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:

Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W

  • Select an Appropriate Power Supply:
  • Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
  • Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
  • Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
  • Consider Additional Features:
  • Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
  • Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
  • Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
  • Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
  • Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.

In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.

Here are some well-regarded brands in the industry:

  • Mean Well: One of the most recognized brands in the LED power supply industry, Mean Well offers a wide range of products suitable for both indoor and outdoor applications. Their units often come with features like overcurrent protection, dimming capabilities, and high efficiency.
  • Tridonic: A global leader in lighting technology, Tridonic offers LED drivers and power supplies that cater to various lighting solutions, from simple setups to advanced smart lighting systems.
  • Philips Advance Xitanium: Philips is a well-known brand in the lighting industry, and their Xitanium series of LED drivers are known for reliability and performance. They cater to both indoor and outdoor LED applications.
  • Osram: Another giant in the lighting industry, Osram offers a range of LED drivers and power supplies suitable for various applications, including architectural and street lighting.
  • LIFUD: Specializing in LED drivers, LIFUD is known for its high-quality products that cater to both commercial and residential LED lighting solutions.
  • MOSO: This brand offers a variety of LED drivers, especially for outdoor and industrial applications. Their products are known for durability and performance.
  • TDK-Lambda: With a history in power electronics, TDK-Lambda offers a range of power supplies and LED drivers suitable for various applications, emphasizing reliability and advanced features.
Need help?
Scroll to Top
