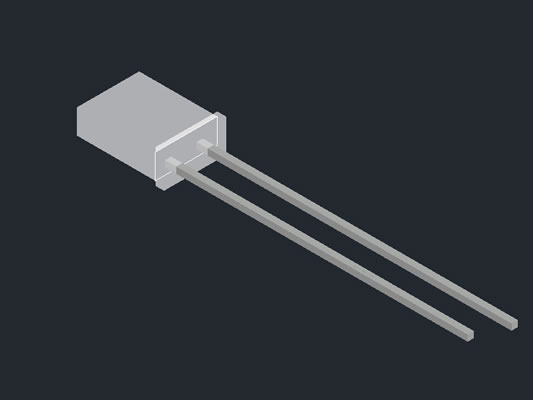

2x5x7mm rectangular LED,bi-color LED diode,2 leads

Article No:

BL-L2517

Color:

Weight:(g/pcs)

0.17

Dimension:(mm)

5 x 2 x 7

Inquiry

Product Series information
Filters Sort results
Reset Apply
Product Series
Series No:BL-L2517
Specification Download:
Dimension
5 × 2 × 7 mm
Description:
___________________________________________________________________________________________________________________________________________________

⭐ 2×5×7mm Rectangular LED, Bi-Color LED Diode (2 Leads) – Compact Dual-Color Indicator for Modern Electronics

The 2×5×7mm rectangular LED, bi-color LED diode with 2 leads is a versatile, space-efficient, and highly reliable optical indicator designed for today’s compact electronic devices. It integrates two color chips inside a slim rectangular housing, allowing engineers to create multi-status indication using a single LED component. With excellent brightness, durable construction, and simple lead configuration, this LED is widely used in consumer devices, industrial panels, medical equipment, instruments, and compact displays.

For manufacturers seeking efficient, multi-signal visual communication inside limited PCB space, the 2×5×7mm bi-color LED diode is one of the most cost-effective and dependable solutions.


⭐ Introduction

The 2×5×7mm rectangular LED, bi-color type offers the advantage of dual-color functionality—typically red/green or red/yellow—within a minimal 2-lead design. Unlike tri-lead or quad-lead LEDs, the 2-lead configuration allows the LED to switch colors by simply reversing the polarity. This makes it extremely convenient for circuit designers, reducing wiring complexity while offering brilliant, high-visibility color output.

Whether used as a power indicator, charging status signal, device mode indicator, or diagnostic light, this LED delivers reliable results with low power consumption.


⭐ Key Features

1. Compact 2×5×7mm Rectangular Package

The rectangular shape provides:

  • Directional, uniform illumination

  • A wider, cleaner light window compared to round LEDs

  • Easy alignment on control panels or bar-style layouts

  • Excellent space optimization for dense PCBs

Its slim 2mm width is ideal for products requiring flat or narrow indicators.


2. Bi-Color Output Using a Simple 2-Lead Design

This LED includes two chips in one body, allowing:

  • Two distinct colors from a single LED

  • Polarity-controlled switching

  • Smooth, clear transitions between states

  • No need for extra driver circuitry

This makes it perfect for:

  • Power ON / OFF

  • Charging / Full

  • Standby / Active

  • Good / Fault

  • Mode switching


3. High Brightness and Optical Uniformity

The LED lens material ensures:

  • Excellent color saturation

  • Sharp visibility even in bright environments

  • Balanced brightness between both colors

  • High reliability for 50,000–100,000 hours

Its rectangular optical geometry improves the consistency of light output across its entire surface.


4. Durable Epoxy Package

The LED body is manufactured using high-quality epoxy, providing:

  • Impact resistance

  • Moisture and vibration tolerance

  • UV and temperature stability

  • Long operational lifespan

This makes it suitable for environments where long-term stability is essential.


5. Multiple Lens Options

Available lens types:

  • Diffused – soft, uniform glow

  • Transparent – stronger brightness

  • Water-clear – maximum luminosity

This allows designers to choose the optical style best suited for the product’s look and function.


⭐ Applications

The 2×5×7mm bi-color LED diode is widely used across multiple sectors because of its compact size and dual-state functionality.

✔ Consumer Electronics

  • Charging indicators

  • Battery level displays

  • Smart appliance status lights

  • Remote control sensors

  • Audio equipment indicators

Dual colors simplify user understanding without occupying extra board space.

✔ Industrial Equipment

  • Control panel indicators

  • Process status indicators

  • Instrumentation lights

  • Fault warning signals

  • Diagnostic equipment

Its rectangular footprint creates clean, aligned visual rows.

✔ Medical Devices

  • Alert lights

  • Diagnostic equipment signals

  • Portable monitoring device indicators

High visibility ensures reliable feedback for medical personnel.

✔ Communication & Networking Devices

  • Router/modem status lights

  • Server activity indicators

  • Signal quality indicators

Dual color output supports multiple network states.

✔ Automotive & Transportation

  • Dashboard indicators

  • Switch lights

  • Module status indicators

The LED withstands vibrations and performs reliably in automotive environments.

✔ DIY Projects & Prototyping

Makers use this LED for:

  • Compact displays

  • RGB simulation (two colors)

  • Multi-status signaling

  • Pattern lighting

The rectangular shape is ideal for custom LED arrays.


⭐ Benefits & Advantages

✔ Saves PCB Space

Two colors in one LED = less wiring, fewer components, and simpler PCB layout.

✔ Easy Integration

2-lead design supports quick installation and easy polarity switching.

✔ Reliable and Long-Life

Built to withstand extended operation in demanding environments.

✔ Cost-Effective for Mass Production

Reduces component count and simplifies manufacturing.

✔ Wide Application Compatibility

Ideal for everything from consumer electronics to industrial systems.

✔ Sharp Visual Output

Brightness and color contrast enhance user interface clarity.


Smart Charger
Smart Charger

⭐ Case Study: Smart Charger Manufacturer

A manufacturer of compact battery chargers needed:

  • A single LED for multiple charging states

  • A slim profile to fit inside a 12mm panel opening

  • Low power consumption for efficient energy use

By using the 2×5×7mm bi-color LED, they achieved:

  • Clear Red = Charging / Green = Full modes

  • Reduced PCB footprint by replacing two separate LEDs

  • Cleaner front-panel design

  • Consistent brightness even under high ambient light

The LED is now used across their entire product line.


⭐ User Testimonials

Electronics Designer – Germany

"Very reliable bi-color LED. Tight footprint but bright enough for industrial panels. Makes layout simple."

Product Engineer – USA

"We use the 2×5×7mm bi-color diode for battery indicators. Perfect size and strong light output."

Hobbyist – UK

"Great for my custom LED bar displays. The rectangular lens looks sharp and modern."


⭐ Conclusion

The 2×5×7mm rectangular bi-color LED diode (2 leads) is a powerful compact indicator ideal for designs requiring dual-state illumination without additional circuitry. Its brightness, long lifespan, clear rectangular lighting surface, and efficient 2-lead configuration make it an excellent choice for engineers seeking reliable and visually effective indicators.

Whether used in industrial panels, consumer gadgets, automotive equipment, or medical devices, this LED delivers consistent performance and outstanding value.

___________________________________________________________________________________________________________________________________________________
Dimension and Circuit Drawing:
Related Article List
Filters Sort results
Reset Apply
More information, Contact us at sales@betlux.com
Related Information

Soldering

When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.

Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.

Recommended soldering conditions:



IR Reflow Soldering (for SMD display)Wave SolderingSoldering Iron
Pre-Heat150-180°CPre-Heat100°C Max.Temperature300°C Max.
Pre-Heat Time120sec Max.Pre-Heat Time60sec Max.
Peak Temperature260°C Max.SolderWave260°C Max.Soldering Time3sec Max.(one time only)
Soldering Time10 sec Max.Soldering Time5sec Max.

Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED

ESD(Electrostatic Discharge)

Static Electricity or power surge will damage the LED.

Suggestions to prevent ESD (Electrostatic Discharge):

n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs

n All devices, equipment, and machinery must be properly grounded

n Work tables, storage racks, etc. should be properly grounded

n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s

 plastic lens as a result of friction between LEDs during storage and handling

ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,

low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”

and Vf of the suspect LEDs at low currents.

The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP

 product.

antistatic notice-smd led

When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:

  • Determine the Forward Voltage (Vf) of the LED(s):

Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.

  • Determine the Forward Current (If) of the LED(s):

The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.

  • Decide on the Configuration:

Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.

Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.

Calculate Total Power Requirements:

Power (W) = Total Forward Voltage (V) x Total Forward Current (A)

For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:

Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W

  • Select an Appropriate Power Supply:
  • Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
  • Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
  • Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
  • Consider Additional Features:
  • Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
  • Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
  • Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
  • Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
  • Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.

In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.
