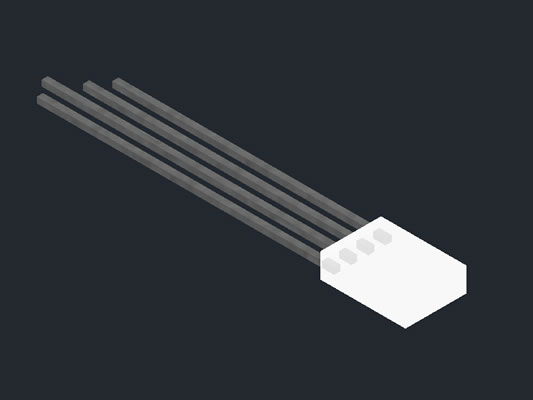

2x5x7mm rectangular LED diode,RGB color

Article No:

BL-L2505

Color:

Weight:(g/pcs)

0.3

Dimension:(mm)

5 x 2 x 7

Inquiry

Product Series information
Filters Sort results
Reset Apply
Product Series
Series No:BL-L2505
Specification Download:
Dimension
5 × 5.9 × 7.15 mm
Description:
___________________________________________________________________________________________________________________________________________________

⭐ 2×5×7mm Rectangular LED Diode, RGB Color – High-Performance Multi-Color Indicator for Compact Electronics

The 2×5×7mm rectangular LED diode, RGB color is a compact, high-brightness multispectral indicator designed for modern electronic products that require flexible color output, stable performance, and space-saving installation. Its slim rectangular shape offers directional illumination and precise light windows, making it a favorite among electronics engineers, product developers, and industrial device manufacturers.

Unlike standard round LEDs, the rectangular 2×5×7mm RGB diode provides a clean, uniform glow across a wider surface area, making it ideal for panel indicators, backlighting elements, small displays, and multi-color status signals. With its ability to produce red, green, and blue from a single LED package, this component delivers full-spectrum possibilities for next-generation designs.


⭐ Key Features

1. Compact Rectangular 2×5×7mm Package

Engineered in a slim, narrow housing, the diode offers:

  • Precise optical output through a flat rectangular lens

  • Space-efficient integration in dense PCBs

  • Enhanced visibility for front-panel indicators

  • Ability to create LED bar arrays or multi-LED patterns

The 7mm height ensures strong forward projection while maintaining low footprint.


2. Full RGB Color Output in One LED

This LED includes three internal chips—red, green, and blue—allowing:

  • Millions of color combinations through PWM control

  • Multi-status indicators using only one LED

  • Color transitions, alerts, and dynamic lighting effects

Engineers can achieve multi-mode indication without using multiple LEDs.


3. High Brightness & Uniform Illumination

Each color chip provides:

  • Stable luminous intensity

  • Sharp, crisp color transitions

  • Low power consumption

  • Excellent color mixing when required

This makes the LED suitable even in bright indoor environments and panel lighting.


4. Durable and Long-Life Construction

The LED body is made from high-quality epoxy resin offering:

  • Shock and vibration resistance

  • UV and temperature stability

  • Excellent heat dissipation

  • Typical lifespan: 50,000–100,000 hours

This ensures reliability in harsh and industrial environments.


5. Wide Viewing Angle and Lens Options

Lens transparency can be:

  • Diffused for soft, blended color

  • Transparent for stronger beam

  • Water-clear for maximum brightness

Engineers can match optical style with application requirements.


⭐ Applications

Thanks to its RGB capability and compact rectangular profile, this LED fits a wide range of electronic systems.

✔ Consumer Electronics

  • Gaming controllers

  • Audio equipment

  • Battery status lights

  • Charging stations

  • Smart gadgets

RGB allows multi-mode feedback and modern design aesthetics.

✔ Communication & Networking Devices

  • Router status indicators

  • Modem traffic signals

  • Server diagnostic panels

Color-coded states improve usability and monitoring accuracy.

✔ Industrial Control Panels

  • Warning indicators

  • Multi-state process lights

  • Machine feedback signals

The rectangular lens creates clean visual alignment on panel surfaces.

✔ Medical & Laboratory Equipment

  • Status indicators for diagnostic devices

  • Mode indication on laboratory control systems

  • Compact signal lighting for portable instruments

RGB simplifies multi-signal presentation in limited space.

✔ Automotive Applications

  • Interior control modules

  • Switch indicators

  • Instrumentation backlighting

Durability and color flexibility make it suitable for automotive-grade designs.

✔ Custom Projects & Prototyping

Makers and engineers use it for:

  • LED art

  • Micro-displays

  • Signal boards

  • DIY electronics

The rectangular form factor is ideal for tight prototypes.


⭐ Benefits & Advantages

✔ Space-Saving Multicolor Indicator

One LED replaces three single-color indicators—reducing PCB footprint.

✔ Highly Versatile Color Control

Ideal for color-coded alarms, status patterns, and notification sequences.

✔ Robust Construction

Works well in environments requiring long-term stability and consistent performance.

✔ Cost-Efficient for OEM Production

Delivers RGB functionality without complex optical assemblies.

✔ Easy to Integrate

Standard through-hole leads make hand-soldering and automated soldering straightforward.

✔ Excellent for Modern Designs

Adds visual appeal and clarity to front-facing products.


Medical Device
Medical Device

⭐ Case Study: Medical Device Startup

A medical monitoring device manufacturer needed:

  • A compact RGB status LED

  • High visibility under bright hospital lighting

  • Low heat and low power output

  • Attractive indicator for a minimalist product design

Using the 2×5×7mm rectangular RGB LED, they achieved:

  • Three operational states (ready, running, error) using a single LED

  • Reduced PCB complexity by 26%

  • Improved user clarity via bright, sharp color output

  • Sleek aesthetic with clean rectangular light windows

The LED became part of their standard component library for multiple products.


⭐ User Testimonials

Electronics R&D Engineer – Japan

"This rectangular RGB LED is perfect for compact boards. Excellent brightness and easy to mix colors."

Manufacturing Manager – USA

"Reduced our BOM by combining multiple indicators into one RGB unit. Very reliable in mass production."

Prototype Builder – EU

"The rectangular lens gives a sophisticated look. Works great for my multi-color indicators."


⭐ Conclusion

The 2×5×7mm rectangular LED diode, RGB color stands as a powerful, compact, and versatile lighting component ideal for modern electronics. Delivering multi-color capability, long lifespan, easy solderability, and stable illumination, it is the perfect solution for engineers and manufacturers designing next-generation devices.

Whether you need vibrant status indication, simple three-color signaling, or dynamic RGB effects, this rectangular LED provides performance, reliability, and flexibility in one compact package.

___________________________________________________________________________________________________________________________________________________
Dimension and Circuit Drawing:
Related Article List
Filters Sort results
Reset Apply
More information, Contact us at sales@betlux.com
Related Information

Soldering

When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.

Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.

Recommended soldering conditions:



IR Reflow Soldering (for SMD display)Wave SolderingSoldering Iron
Pre-Heat150-180°CPre-Heat100°C Max.Temperature300°C Max.
Pre-Heat Time120sec Max.Pre-Heat Time60sec Max.
Peak Temperature260°C Max.SolderWave260°C Max.Soldering Time3sec Max.(one time only)
Soldering Time10 sec Max.Soldering Time5sec Max.

Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED

ESD(Electrostatic Discharge)

Static Electricity or power surge will damage the LED.

Suggestions to prevent ESD (Electrostatic Discharge):

n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs

n All devices, equipment, and machinery must be properly grounded

n Work tables, storage racks, etc. should be properly grounded

n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s

 plastic lens as a result of friction between LEDs during storage and handling

ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,

low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”

and Vf of the suspect LEDs at low currents.

The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP

 product.

antistatic notice-smd led

When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:

  • Determine the Forward Voltage (Vf) of the LED(s):

Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.

  • Determine the Forward Current (If) of the LED(s):

The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.

  • Decide on the Configuration:

Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.

Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.

Calculate Total Power Requirements:

Power (W) = Total Forward Voltage (V) x Total Forward Current (A)

For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:

Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W

  • Select an Appropriate Power Supply:
  • Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
  • Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
  • Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
  • Consider Additional Features:
  • Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
  • Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
  • Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
  • Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
  • Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.

In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.
