Description:

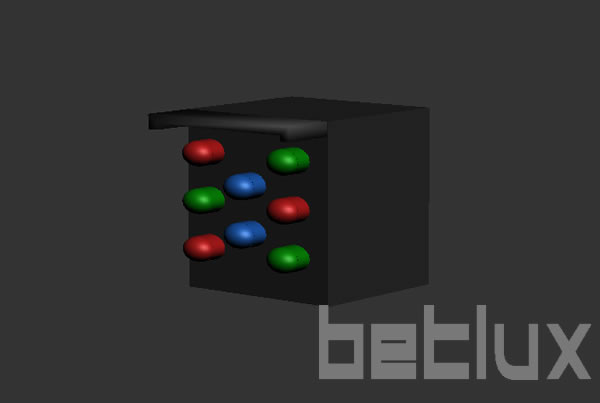

26mm Lamp cluster (3 red 3 green 2 blue, square packed)
26mm LED cluster
Exploring the Spectrum: The 26mm LED Cluster Revolution
In the dynamic realm of LED technology, the 26mm LED cluster, boasting a harmonious combination of 3 red, 3 green, and 2 blue LEDs, emerges as a pivotal innovation. From the outset, it’s crucial to spotlight the “led matrix module” and its synonym “led module outdoor” as key components in modern lighting solutions, setting the stage for a discussion on this LED cluster’s versatility and performance. This article aims to delve into the rich features, diverse applications, and substantial benefits of the 26mm LED cluster, further illuminated by insightful case studies and authentic user testimonials, catering to electronics manufacturers, engineers, purchasers, and administrators.
Feature-Rich Illumination
The 26mm LED cluster distinguishes itself with:
- Balanced Color Output: Its unique configuration provides a wide spectrum of colors, enabling vivid displays and lighting solutions.
- Design Flexibility: The square-packed design enhances compatibility with various applications, from intricate electronics to expansive outdoor displays, embodying the essence of both “led matrix module” and “led module outdoor” applications.
- Energy Efficiency: Optimized for low power consumption, it offers an eco-friendly solution without sacrificing brightness or color fidelity.
Applications: A Universe of Possibilities
Spanning from architectural lighting to interactive installations, the 26mm LED cluster paves the way for innovative applications. Its adaptability shines in environments requiring “led module round” and “led module outdoor” functionalities, showcasing its role in pushing the boundaries of what’s possible with LED technology.
Benefits: Beyond Brightness
The adoption of the 26mm LED cluster translates into myriad advantages, including enhanced aesthetic appeal, reduced operational costs, and a commitment to sustainability, marking it as a cornerstone of future lighting projects.
Illuminated Success: Case Studies
Through real-world examples, the transformative impact of the 26mm LED cluster is brought to light. These case studies underscore its efficiency, versatility, and the enhanced visual experiences it facilitates, offering valuable insights into its practical benefits.
Hearing from the Innovators: User Testimonials
Testimonials from professionals who have leveraged this technology provide a lens into its reliability, performance, and adaptability, reinforcing the LED cluster’s value across various industries.
Conclusion: Lighting the Path to Innovation
The 26mm LED cluster (3 red 3 green 2 blue, square packed) represents a significant leap in LED technology, blending aesthetic versatility with operational efficiency. As the demand for innovative, efficient, and adaptable lighting solutions grows, this LED cluster is poised to illuminate the future of the industry.
Call to Action: Embrace the Future of LED Technology
Step into the future of lighting by integrating the 26mm LED cluster into your next project. Unleash the potential of enhanced color diversity, efficiency, and versatility. Illuminate your vision today.
Features
- Square Shape: Compact and uniform design, suitable for a variety of applications.
- Dimensions: Each LED cluster measures 26.00mm x 26.00mm, providing a compact yet visible lighting solution.
- High Visibility: Bright and noticeable, ideal for various display and signaling applications.
- Emitting Colors: Includes a combination of red, green, and blue LEDs, offering versatile display options and the ability to create multiple colors.
- Number of Built-in 5mm LED Lamps: Contains 3 red, 3 green, and 2 blue LEDs, enhancing visibility and color variety.
- Waterproof Package with Hood: Suitable for both outdoor and indoor use, ensuring durability in different environmental conditions.
- Long Life: LEDs are known for their extended lifespan, reducing the need for frequent replacements.
- Low Current, Power Savings: Energy-efficient, contributing to lower power consumption and cost savings.
- Low Maintenance: Requires minimal upkeep due to the durability of LED technology.
- Different Color Availability: Offers a range of colors, enhancing versatility for different applications.
- Solid State, High Vibration Resistant: Robust against physical shocks and vibrations, making it suitable for high-impact environments.
- Can Produce any Color in Visible Spectrum, Including White Light: Capable of creating a wide range of colors for diverse lighting needs.
- RoHS Compliance: Manufactured in compliance with environmental and health safety standards.
Applications
- Outdoor and Indoor Information Boards: Ideal for displaying information in public spaces, commercial areas, and transportation hubs.
- Signage and Advertising: Suitable for signs, billboards, and promotional displays for businesses and events.
- Safety and Warning Signals: Can be used for traffic lights, emergency signage, and warning systems.
- Architectural Lighting: Applicable for both functional and aesthetic lighting in architectural designs.
- Event and Stage Lighting: Ideal for concerts, theaters, and other event venues for decorative and functional lighting.
- Industrial Indicators: Useful in industrial settings for status indicators, alert systems, and control panels.
- Retail Displays: Enhances the visual appeal of retail displays and storefronts with customizable lighting.
- Public Art and Installations: Suitable for public art projects and installations that require durable and versatile lighting.
Electrical-optical characteristics:
Package configuration & Internal circuit diagram
All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.
Partno description:
LED Cluster is widely applied in traffic signal, scoreboard sign,etc
Related Information
Applied for:
Soldering
When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.
Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.
Recommended soldering conditions:
| IR Reflow Soldering (for SMD display) | Wave Soldering | Soldering Iron | |||
| Pre-Heat | 150-180°C | Pre-Heat | 100°C Max. | Temperature | 300°C Max. |
| Pre-Heat Time | 120sec Max. | Pre-Heat Time | 60sec Max. | ||
| Peak Temperature | 260°C Max. | SolderWave | 260°C Max. | Soldering Time | 3sec Max.(one time only) |
| Soldering Time | 10 sec Max. | Soldering Time | 5sec Max. | ||
Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED
ESD(Electrostatic Discharge)
Static Electricity or power surge will damage the LED.
Suggestions to prevent ESD (Electrostatic Discharge):
n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs
n All devices, equipment, and machinery must be properly grounded
n Work tables, storage racks, etc. should be properly grounded
n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s
plastic lens as a result of friction between LEDs during storage and handling
ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,
low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”
and Vf of the suspect LEDs at low currents.
The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP
product.
When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:
- Determine the Forward Voltage (Vf) of the LED(s):
Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.
- Determine the Forward Current (If) of the LED(s):
The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.
- Decide on the Configuration:
Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.
Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.
Calculate Total Power Requirements:
Power (W) = Total Forward Voltage (V) x Total Forward Current (A)
For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:
Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W
- Select an Appropriate Power Supply:
- Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
- Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
- Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
- Consider Additional Features:
- Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
- Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
- Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
- Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
- Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.
In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.
