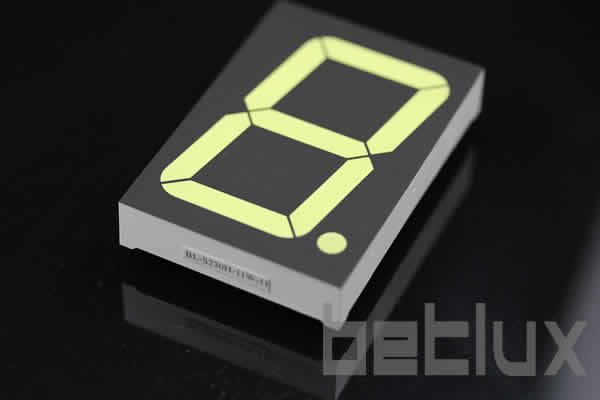

2.30 inch single-digit seven segment led display, bi-color

2.30 inch single-digit seven segment led display, bi-color

Series No:

BL-S230C-11

Weight:(g/pcs)

42

Dimension:(mm)

47.8 x 69.7 x 12

Character Height: (inch)

2.30 inch

Specification:

download

Inquiry

Description:

Introduction

In the electronics industry, the 2.30 inch single-digit seven segment LED display, bi-color is a vital component known for its clarity and versatility. Utilizing a common cathode seven segment display configuration, it surpasses the traditional 2.3 inch seven segment display by offering dual color capabilities. This article will explore the features, applications, and benefits of these displays, supported by case studies and user testimonials.

Features of the 2.30 Inch Single-Digit Seven Segment LED Display, Bi-Color

The 2.30 inch single-digit seven segment LED display, bi-color boasts several notable features:

  • Dual Color Display: The bi-color functionality enhances visual communication by allowing two different colors to represent various states or conditions.
  • Common Cathode Configuration: This design simplifies the wiring process and is widely preferred in many electronic applications.
  • High Visibility: The 2.30-inch size ensures that numbers are easily readable from a distance, making it ideal for diverse environments.
  • Durability: These LED displays are built to last, withstanding harsh conditions and prolonged usage.
  • Energy Efficiency: LEDs consume less power, making these displays cost-effective over their lifespan.
  • Simplicity: The 2.3 inch seven segment display design is straightforward, making it easy to integrate into various systems.

Applications of the 2.30 Inch Single-Digit Seven Segment LED Display, Bi-Color

These displays are widely used across different industries due to their versatility and reliability:

  • Consumer Electronics: Found in household appliances such as microwaves, ovens, and digital clocks.
  • Industrial Equipment: Used in control panels to display critical machine information and metrics.
  • Public Information Systems: Employed in public transport systems, like buses and trains, to show route numbers and times.
  • Medical Devices: Used in devices like blood pressure monitors and other medical equipment to display readings clearly.
  • Automotive Industry: Used in dashboards to display vital information like speed and fuel levels.

Benefits of the 2.30 Inch Single-Digit Seven Segment LED Display, Bi-Color

Adopting a 2.30 inch single-digit seven segment LED display, bi-color provides numerous benefits:

  • Enhanced Readability: The large size and bright LEDs ensure information is easily visible, even from a distance or in low-light conditions.
  • Cost Efficiency: With low power consumption and high durability, these displays offer a cost-effective solution for long-term use.
  • User-Friendly: Simple to use and understand, these displays are accessible for a wide range of users.
  • Flexibility: The 8 segment display pinout configurations can be adapted to different applications, providing flexibility in design and functionality.
  • Visual Differentiation: The bi-color feature allows for easy distinction between different operational states, enhancing user interaction.

Case Studies of the 2.30 Inch Single-Digit Seven Segment LED Display, Bi-Color

Case Study 1: Industrial Application

A manufacturing plant integrated the 2.30 inch single-digit seven segment LED display, bi-color into their machinery control panels. This change led to a 20% increase in operational efficiency, as workers could easily monitor and adjust machine settings, reducing downtime and errors.

Case Study 2: Public Transportation System

A major city’s transit authority implemented these displays in their bus and train systems to show route numbers and arrival times. The clear, bright displays significantly improved passenger satisfaction by providing accurate and easily readable information.

User Testimonials

Testimonial 1: Electronics Manufacturer Engineer

“Integrating the common cathode seven segment display into our control systems has streamlined our operations. The displays are highly visible and reliable, even in challenging conditions.”

Testimonial 2: Public Transport Administrator

“The upgrade to the 2.30 inch single-digit seven segment LED display, bi-color in our transit system has been transformative. Passengers now have clear, reliable information, which has improved overall service satisfaction.”

Extra Section: Comparing with Red 7 Segment Display

While the red 7 segment display is effective for displaying numerical data, the common cathode seven segment display with bi-color capabilities offers enhanced flexibility. The ability to use two colors for different states or conditions makes it more suitable for applications that require detailed and varied information display. The 8 segment display pinout further expands its usability by providing more detailed character representation.

Conclusion

The 2.30 inch single-digit seven segment LED display, bi-color is a versatile and reliable choice for various applications, from consumer electronics to industrial machinery. Its high visibility, durability, and energy efficiency make it an invaluable component in modern electronic systems. Whether you are an electronics manufacturer, a purchaser, or an administrator, integrating these displays can enhance the functionality and user experience of your products.

Call to Action

If you’re looking to enhance the clarity and reliability of your electronic displays, consider the 2.30 inch single-digit seven segment LED display, bi-color. Contact us today to learn more about how this technology can benefit your operations.

2.30 inch single-digit seven segment led display, bi-color
2.30 inch single-digit seven segment led display, bi-color

Features

  • 2.30-Inch Digit Height (56.80mm): Provides clear visibility for numeric displays, suitable for medium-range viewing distances.
  • Dimensions (Width x Height): 47.80 x 69.70mm: Compact enough for various applications while maintaining good visibility.
  • Bi-Color Selected: Offers the ability to display information in two different colors, enhancing the display’s utility and aesthetic appeal.
  • Single Decimal Point: Adds the capability to show decimal values, increasing its utility in various contexts.
  • Common Anode or Cathode Selection: Flexible design allowing for integration into different types of electronic systems.
  • Low Current Operation: Energy-efficient, beneficial for applications where power conservation is important.
  • Excellent Character Appearance: Ensures digits are displayed clearly and sharply, enhancing readability.
  • High Light Output: Bright enough to be easily readable in a variety of lighting conditions.
  • Easy Mounting on PC Boards or Sockets: Facilitates straightforward installation, suitable for various mounting setups.
  • IC Compatible: Can be integrated with integrated circuits, making it suitable for advanced electronic control systems.
  • Multicolor Availability: Indicates the availability of displays in various colors, adding versatility in design and functionality.
  • Categorized for Luminous Intensity: Guarantees consistent brightness levels across units, important for uniform display quality.
  • Technically Rugged: Durable and reliable, capable of withstanding various operational conditions.
  • Standard Design: Gray Surface, White Segment: Offers a classic look with high contrast for ease of reading.
  • RoHS Compliance: Adheres to environmental safety standards by avoiding hazardous substances.

Applications

  • Public Information Displays: Ideal for medium-sized displays in public areas, such as transport stations or information boards.
  • Industrial Control Panels: Suitable for use in industrial environments where clear, color-coded numeric displays are necessary for monitoring and control.
  • Retail and Advertising Displays: Effective in retail settings or for advertising purposes where medium-sized, eye-catching numeric displays are beneficial.
  • Educational Tools: Can be used in educational settings for displaying numeric information in a visually engaging manner.
  • Healthcare Equipment: Useful in healthcare settings for equipment that requires medium-sized, easy-to-read numeric displays.
  • Event and Timing Displays: Suitable for events or competitions where timing or scoring needs to be displayed to an audience.
Electrical-optical characteristics:
Filters Sort results
Reset Apply
Part No. (Cathode)
Part No. (Anode)
Emitting Color
Material
Peak Wavelength (nm)
Voltage typ.(v)
Voltage max. (v)
Luminous min
Luminous typ
BL-S230C-11B
BL-S230D-11B
ultra Blue
InGaN/SiC
470
4.2
114
130
BL-S230C-11D
BL-S230D-11D
Super Red
GaAlAs/DH
660
2.2
150
220
BL-S230C-11DUG (D)
BL-S230D-11DUG (D)
Ultra Red
AlGaInP
660
2.5
220
BL-S230C-11DUG (UG)
BL-S230D-11DUG (UG)
Ultra Green
AlGaInP
574
2.5
220
BL-S230C-11E
BL-S230D-11E
Orange
GaAsP/GaP
635
2.5
107
165
BL-S230C-11EG (E)
BL-S230D-11EG (E)
Orange
GaAsP/GaP
635
2.5
165
BL-S230C-11EG (G)
BL-S230D-11EG (G)
Green
GaP/GaP
570
2.5
165
BL-S230C-11EG
BL-S230D-11EG
Orange
GaAsP/GaP
635
2.5
107
165
BL-S230C-11EG
BL-S230D-11EG
Green
GaP/GaP
570
2.5
107
165
BL-S230C-11G
BL-S230D-11G
Green
GaP/GaP
570
2.5
107
165
BL-S230C-11H
BL-S230D-11H
Red
GaP/GaP
700
2.6
BL-S230C-11PG
BL-S230D-11PG
Ultra Pure Green
InGaN/SiC
525
4.2
170
245
BL-S230C-11S
BL-S230D-11S
Hi Red
GaAlAs/SH
660
2.2
100
150
BL-S230C-11SG (G)
BL-S230D-11SG (G)
Green
GaP/GaP
570
2.5
165
BL-S230C-11SG (S)
BL-S230D-11SG (S)
Super Red
AlGaInP
660
2.5
150
BL-S230C-11SG
BL-S230D-11SG
Green
GaP/GaP
570
2.5
107
165
BL-S230C-11SG
BL-S230D-11SG
Hi Red
GaAlAs/SH
660
2.2
100
150
BL-S230C-11UB
BL-S230D-11UB
ultra Blue
InGaN/SiC
470
4.2
120
150
BL-S230C-11UE
BL-S230D-11UE
Ultra Orange
AlGaInP
630
2.5
110
170
BL-S230C-11UEUG (UE)
BL-S230D-11UEUG (UE)
Ultra Orange
AlGaInP
630
2.5
170
1 2
Package configuration & Internal circuit diagram
2.30 inch single-digit seven segment led display, bi-color


All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.

Partno description:

LED seven segment , called also LED numeric display, is widely applied in home appliance panel display and other application.

Part No of Seven segment LED display

More information

Reflector Surface color (1st number)/ Segment Lens color (2nd number):

Number012345
Ref Surface ColorWhiteBlackGrayRedGreen
Epoxy ColorWater clearWhite diffusedRed DiffusedGreen DiffusedYellow Diffused

Absolute maximum ratings (Ta= 25°C)

Parameter SDUREYGUnit
Forward Current IF 252525252530mA
Power Dissipation Pd 606060606065mW
Reverse Voltage VR 555555V
Peak Forward Current IPF (Duty 1/10 @1KHZ) 150150150150150150mA
Operation Temperature TOPR-40 to +80°C
Storage Temperature TSTG-40 to +85°C
Lead Soldering Temperature TSOL  Max.260+ 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb)°C

Absolute maximum ratings (Ta= 25°C)

ParameterUHRUEYOUYUGPGUBUWUnit
Forward Current IF3030303030303030mA
Power Dissipation Pd7565656575110120120mW
Reverse Voltage VR55555555V
Peak Forward Current IPF (Duty 1/10 @1KHZ)150150150150150150100100mA
Operation Temperature TOPR-40 to +80°C
Storage Temperature TSTG-40 to +85°C
Lead Soldering Temperature TSOLMax.260+ 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb)°C
Related Information

Applied for:
dvd player radio train instrument refrigerator

1. Application
The Seven Segment LED is widely applied for ordinary electronic equipment (such as office equipment,
communication equipment and household applications). Checking with BETLUX’s Sales in
advance for information on applications in which exceptional reliability is required, particularly
when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in
aviation, transportation, traffic control equipment, medical and life support systems and safety
devices).

2. Storage
The storage ambient for the Seven Segment LED should not exceed 30℃ temperature or 70% relative humidity.
For extended storage out of their original packaging, it is recommended that the Seven Segment LEDs be stored
in a sealed container with appropriate desiccant, or in a desiccator with nitrogen ambient.

3. Cleaning
Avoid using any unspecified chemical solvent to clean LED . For example, Trichloroethylene, Chlorosen, Acetone, and Diflon S3MC.
Any cleaning method can only be taken under normal temperature in one minute or less if it is required.
Use water to clean the Seven Segment LED if necessary under room temperature
dry it immediately after that.

4.Forming
Any unsuitable stress applied to the epoxy may break bonding wires in LED
Any forming on lead pin must be done before soldering, not during or after soldering.
Avoid applying any stress to resin in order to prevent the epoxy fracture and break on bonding wire.
While forming, please use a tie bar cut or equivalent to hold or bend the pin.
2mm from the base of resin is the minimum distance for the place bending the lead pin.
Avoid bending the lead pin at the same point twice or more.

seven segment display forming caution

Soldering

When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.

Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.

Recommended soldering conditions:



IR Reflow Soldering (for SMD display)Wave SolderingSoldering Iron
Pre-Heat150-180°CPre-Heat100°C Max.Temperature300°C Max.
Pre-Heat Time120sec Max.Pre-Heat Time60sec Max.
Peak Temperature260°C Max.SolderWave260°C Max.Soldering Time3sec Max.(one time only)
Soldering Time10 sec Max.Soldering Time5sec Max.

Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED

ESD(Electrostatic Discharge)

Static Electricity or power surge will damage the LED.

Suggestions to prevent ESD (Electrostatic Discharge):

n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs

n All devices, equipment, and machinery must be properly grounded

n Work tables, storage racks, etc. should be properly grounded

n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s

 plastic lens as a result of friction between LEDs during storage and handling

ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,

low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”

and Vf of the suspect LEDs at low currents.

The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP

 product.

antistatic notice-smd led

LED dirve IC by  Maxim Integrated

 MAX6959  4½-Digit LED Display Driver

 MAX6958  4½-Digit LED Display Driver

 MAX6955  7-, 14-, 16-Segment LED Display Driver

 MAX6956  LED Static Display Driver and I/O Port

 MAX6954  7-, 14-, 16-Segment LED Display Driver

 MAX6952  5 x 7 Matrix LED Display Driver

 MAX6957  LED Static Display Driver and I/O Port

MAX6950  5-Digit LED Display Driver

 MAX6951  8-Digit LED Display Driver

 ICM7212  4-Digit LED Driver

 ICM7212A  4-Digit LED Driver

 ICM7212AM  4-Digit LED Driver

 ICM7212M  4-Digit LED Driver

 ICM7218A  8-Digit LED Driver

 ICM7218B  8-Digit LED Driver

 ICM7218C  8-Digit LED Driver

 ICM7218D  8-Digit LED Driver

 MAX7221  8-Digit LED Display Driver

 MAX7219  8-Digit LED Display Driver

 provide in-depth design and IC selection help for design engineers.  Each solution is dedicated to a popular end-equipment type and features design information, circuits and a block diagram.   Within a block diagram, click on a block to view best-fit integrated circuits recommended by Maxim engineers.

When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:

  • Determine the Forward Voltage (Vf) of the LED(s):

Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.

  • Determine the Forward Current (If) of the LED(s):

The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.

  • Decide on the Configuration:

Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.

Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.

Calculate Total Power Requirements:

Power (W) = Total Forward Voltage (V) x Total Forward Current (A)

For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:

Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W

  • Select an Appropriate Power Supply:
  • Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
  • Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
  • Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
  • Consider Additional Features:
  • Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
  • Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
  • Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
  • Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
  • Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.

In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.

Here are some well-regarded brands in the industry:

  • Mean Well: One of the most recognized brands in the LED power supply industry, Mean Well offers a wide range of products suitable for both indoor and outdoor applications. Their units often come with features like overcurrent protection, dimming capabilities, and high efficiency.
  • Tridonic: A global leader in lighting technology, Tridonic offers LED drivers and power supplies that cater to various lighting solutions, from simple setups to advanced smart lighting systems.
  • Philips Advance Xitanium: Philips is a well-known brand in the lighting industry, and their Xitanium series of LED drivers are known for reliability and performance. They cater to both indoor and outdoor LED applications.
  • Osram: Another giant in the lighting industry, Osram offers a range of LED drivers and power supplies suitable for various applications, including architectural and street lighting.
  • LIFUD: Specializing in LED drivers, LIFUD is known for its high-quality products that cater to both commercial and residential LED lighting solutions.
  • MOSO: This brand offers a variety of LED drivers, especially for outdoor and industrial applications. Their products are known for durability and performance.
  • TDK-Lambda: With a history in power electronics, TDK-Lambda offers a range of power supplies and LED drivers suitable for various applications, emphasizing reliability and advanced features.
Need help?
Scroll to Top
