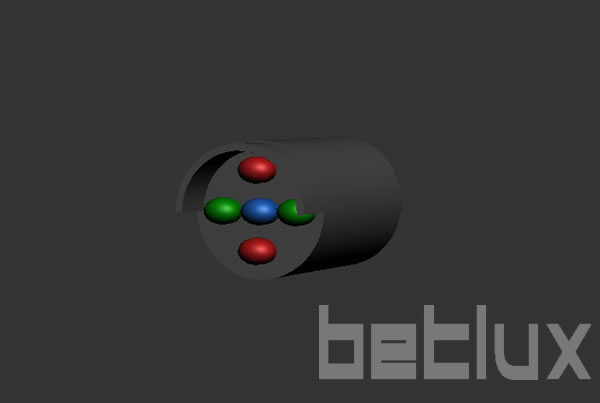

19mm Lamp cluster (2 red 2 green 1 blue, round packed)
19mm LED cluster

Unveiling the Spectrum: The 19mm LED Cluster (2 Red 2 Green 1 Blue, Round Packed)

In the dynamic world of LED technology, the 19mm LED cluster, with its unique configuration of 2 red, 2 green, and 1 blue LED, stands out as a versatile and powerful solution for a wide range of applications. This comprehensive article explores the features, applications, benefits, and real-world impact of this LED cluster, supported by case studies and user testimonials. Targeted at electronics manufacturers, engineers, purchasers, and administrators, the article aims to illuminate the significance of this compact yet potent lighting solution.

Features and Design of the 19mm LED Cluster

The 19mm LED cluster is designed to offer a balanced blend of functionality and aesthetics, featuring a round pack that includes 2 red, 2 green, and 1 blue LED. This section delves into the technical specifications of the cluster, including its luminous intensity, power consumption, and color rendering capabilities. The unique arrangement of LEDs enables it to produce a wide spectrum of colors, making it an ideal choice for various display and lighting applications.

Illuminating Applications: Beyond the Basics

The versatility of the 19mm LED cluster extends its use beyond traditional lighting. This segment of the article explores its applications in signaling devices, decorative lighting, and electronic displays, among others. The discussion highlights how this LED cluster can be utilized in both industrial and consumer products to enhance functionality and visual appeal.

The Advantages of Integrating 19mm LED Clusters

Adopting the 19mm LED cluster comes with a host of benefits, from improved energy efficiency to vibrant color outputs. This section outlines the key advantages, including the cluster’s compact size, longevity, and the ability to create customized color schemes for various applications. The benefits of using a pre-packaged LED cluster, such as simplified installation and reduced production times, are also discussed.

Case Studies: The LED Cluster in Action

Real-world case studies provide tangible evidence of the 19mm LED cluster’s impact across different sectors. This part of the article presents in-depth analyses of specific projects or products that have benefited from the unique attributes of this LED cluster, demonstrating its effectiveness and versatility in practical applications.

Hearing from the Users: Testimonials

User testimonials offer insights into the performance and reliability of the 19mm LED cluster from those who have firsthand experience. This section gathers feedback from a range of stakeholders, including electronics manufacturers, engineers, and end-users, offering a comprehensive perspective on the user experience.

Conclusion: A Bright Future for LED Technology

The 19mm LED cluster represents a significant advancement in LED technology, providing a compact, efficient, and versatile solution for a myriad of lighting and display needs. As the article concludes, it underscores the ongoing innovation in LED solutions and their potential to drive further advancements in electronics and lighting design.

Call to Action

For electronics professionals looking to elevate their projects with high-quality, versatile lighting solutions, the 19mm LED cluster offers an unparalleled option. Discover the potential of this LED cluster and lead the way in leveraging advanced lighting technology.

19mm led cluster (2 red 2 green 1 blue , round packed)
19mm led cluster (2 red 2 green 1 blue , round packed)


  • Round Shape: Offers a visually appealing and uniform design, with a diameter of 19.00mm.
  • High Visibility: Bright and noticeable, ideal for various display and signaling applications.
  • Emitting Colors: Includes a combination of red, green, and blue LEDs, offering versatile display options and the ability to create multiple colors.
  • Number of Built-in 5mm LED Lamps: Contains 2 super bright red LEDs, 2 green LEDs, and 1 blue LED, enhancing visibility and color variety.
  • Waterproof Package with Hood: Suitable for both outdoor and indoor use, ensuring durability in various environmental conditions.
  • Long Life: LEDs are known for their extended lifespan, reducing the need for frequent replacements.
  • Low Current, Power Savings: Energy-efficient, contributing to lower power consumption and cost savings.
  • Low Maintenance: Requires minimal upkeep due to the durability and reliability of LED technology.
  • Different Color Availability: Offers a range of colors, enhancing versatility for different applications.
  • Solid State, High Vibration Resistant: Robust against physical shocks and vibrations, making it suitable for high-impact environments.
  • Can Produce any Color in Visible Spectrum, Including White Light: Capable of creating a wide range of colors for diverse lighting needs.
  • RoHS Compliance: Manufactured in compliance with environmental and health safety standards.


  • Outdoor and Indoor Information Boards: Ideal for displaying information in public spaces, transportation hubs, and commercial areas.
  • Signage and Advertising: Suitable for signs, billboards, and promotional displays where high visibility and color variety are required.
  • Safety and Warning Signals: Can be used for traffic signals, emergency signage, and warning systems.
  • Architectural Lighting: Applicable for functional and aesthetic lighting in architectural designs.
  • Event and Stage Lighting: Ideal for concerts, theaters, and other venues where decorative and functional lighting is essential.
  • Industrial Indicators: Useful in industrial settings for status indicators, alert systems, and control panels.
  • Retail Displays: Enhances the visual appeal of retail displays and storefronts with customizable lighting.
  • Public Art and Installations: Suitable for public art projects and installations requiring durable and versatile lighting.

RoHs Compliance, Pb-free              Anti-Static Attention

Electrical-optical characteristics:
Filters Sort results
Reset Apply
More information, Contact us at sales@betlux.com
Package configuration & Internal circuit diagram
19mm led cluster (2 red 2 green 1 blue , round packed)

All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.

Partno description:

LED Cluster is widely applied in traffic signal, scoreboard sign,etc

Part No of  LED Cluster

Related Information

Applied for:
road signal clusterroad arrow signaloutdoor coreboardoutdoor coreboardoutdoor coreboard


When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.

Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.

Recommended soldering conditions:


IR Reflow Soldering (for SMD display)Wave SolderingSoldering Iron
Pre-Heat150-180°CPre-Heat100°C Max.Temperature300°C Max.
Pre-Heat Time120sec Max.Pre-Heat Time60sec Max.
Peak Temperature260°C Max.SolderWave260°C Max.Soldering Time3sec Max.(one time only)
Soldering Time10 sec Max.Soldering Time5sec Max.

Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED

ESD(Electrostatic Discharge)

Static Electricity or power surge will damage the LED.

Suggestions to prevent ESD (Electrostatic Discharge):

n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs

n All devices, equipment, and machinery must be properly grounded

n Work tables, storage racks, etc. should be properly grounded

n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s

 plastic lens as a result of friction between LEDs during storage and handling

ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,

low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”

and Vf of the suspect LEDs at low currents.

The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP


antistatic notice-smd led

When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:

  • Determine the Forward Voltage (Vf) of the LED(s):

Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.

  • Determine the Forward Current (If) of the LED(s):

The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.

  • Decide on the Configuration:

Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.

Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.

Calculate Total Power Requirements:

Power (W) = Total Forward Voltage (V) x Total Forward Current (A)

For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:

Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W

  • Select an Appropriate Power Supply:
  • Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
  • Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
  • Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
  • Consider Additional Features:
  • Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
  • Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
  • Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
  • Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
  • Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.

In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.
