Description:

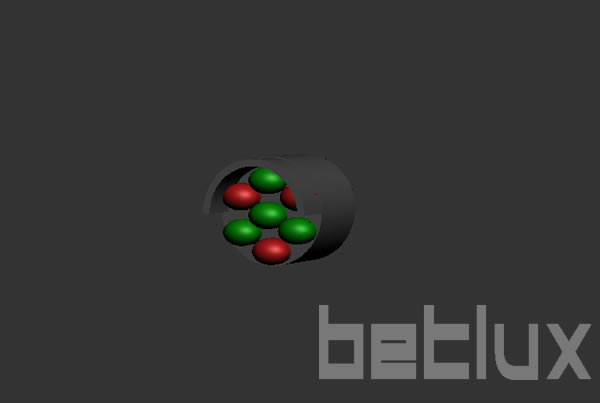

15mm Lamp cluster (3 red 4 green, round packed)
15mm LED cluster
Innovating Illumination: The 15mm LED Cluster (3 Red 4 Green, Round Packed)
In the rapidly evolving world of LED technology, the 15mm LED cluster, featuring 3 red and 4 green LEDs, emerges as a frontrunner in both versatility and efficiency. This article dives deep into the characteristics, applications, benefits, and real-world impacts of this innovative LED module, bolstered by case studies and user testimonials. Designed for electronics manufacturers, engineers, purchasers, and administrators, this content aims to shed light on the pivotal role these compact, yet powerful modules play in a myriad of applications, from industrial indicators to consumer electronics.
Unveiling the 15mm LED Cluster: Features and Design
The 15mm LED cluster stands out for its unique configuration — 3 red and 4 green LEDs, meticulously packed into a round assembly. This section elaborates on the technical specifications, including the cluster’s luminosity, energy efficiency, and durability. Emphasis is placed on the design ingenuity that allows for such compactness, without compromising on the light output or the versatility of these modules.
A Spectrum of Applications: From Indicators to Art Installations
The LED cluster’s potential applications are as varied as they are innovative. This segment explores the breadth of its use cases, from simple status indicators in electronic devices to intricate components of large-scale art installations. The discussion highlights the module’s adaptability and effectiveness in fulfilling diverse lighting requirements.
The Advantages of Choosing 15mm LED Clusters
Switching to or incorporating the 15mm LED cluster into designs brings numerous benefits. This part of the article focuses on the advantages offered by these modules, such as enhanced color vividness, lower energy consumption, and increased operational lifespan. Additionally, the benefits of having a pre-packed, easy-to-integrate module are discussed, emphasizing the ease of use and the reduction in assembly time for manufacturers.
Illuminating Success: Case Studies
Through a series of case studies, the tangible impacts of the 15mm LED clusters are brought to the forefront. This section provides in-depth analyses of several scenarios where these LED modules have been instrumental in achieving design goals, enhancing functionality, or improving aesthetic appeal. These real-world examples serve to illustrate the practical effectiveness and versatility of the LED clusters.
Voices from the Field: User Testimonials
Gathering insights from those who have firsthand experience with the 15mm LED cluster offers an unfiltered view of its performance and reliability. This portion compiles testimonials from a range of stakeholders, including electronics manufacturers, engineers, and end-users, providing a holistic view of the user experience associated with these LED modules.
Conclusion: Brightening the Future with LED Clusters
The 15mm LED cluster, with its 3 red and 4 green LEDs, epitomizes the advancements in LED technology, offering a blend of performance, efficiency, and versatility. As the article concludes, it reaffirms the significance of innovative LED solutions in pushing the boundaries of what is possible in lighting design and functionality.
Call to Action
For electronics professionals seeking to enhance their products or projects with efficient, vibrant lighting, the 15mm LED cluster presents an ideal solution. Discover the potential of these LED modules and lead the way in lighting innovation.
Features
- Round Shape: Provides a visually appealing and uniform design, with a diameter of 15.00mm.
- High Visibility: Designed to be bright and noticeable, suitable for various display and signaling purposes.
- Emitting Colors: Includes a combination of red and green LEDs, offering versatile display options.
- Number of Built-in 5mm LED Lamps: Contains 3 super bright red LEDs and 4 green LEDs, enhancing visibility and color contrast.
- Waterproof Package with Hood: Suitable for both outdoor and indoor use, ensuring durability in different environmental conditions.
- Long Life: LEDs are known for their extended lifespan, reducing the frequency of replacements.
- Low Current, Power Savings: Energy-efficient, leading to lower electricity consumption and cost savings.
- Low Maintenance: Minimal upkeep required due to the durability and reliability of LED technology.
- Different Color Availability: Offers a range of colors, enhancing versatility for different applications.
- Solid State, High Vibration Resistant: Robust against physical shocks and vibrations, suitable for high-impact environments.
- Can Produce any Color in Visible Spectrum, Including White Light: Capable of creating a wide array of colors for diverse lighting needs.
- RoHS Compliance: Manufactured in compliance with environmental and health safety standards.
Applications
- Outdoor and Indoor Information Boards: Ideal for compact spaces in public areas, transportation systems, and small information displays.
- Signage and Advertising: Suitable for small signs, labels, and promotional displays where space is limited.
- Safety and Warning Signals: Can be used in compact traffic signals, emergency signage, and small warning systems.
- Architectural Lighting: Applicable for functional and aesthetic lighting in small architectural elements.
- Event and Stage Lighting: Ideal for small-scale events and performances where decorative and functional lighting is needed.
- Industrial Indicators: Useful in industrial settings for machinery status indicators, alert systems, and small control panels.
- Retail Displays: Enhances the visual appeal of small retail displays and storefronts with customizable lighting.
- Public Art and Installations: Suitable for small-scale public art projects and installations requiring versatile and durable lighting.
Electrical-optical characteristics:
Package configuration & Internal circuit diagram
All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.
Partno description:
LED Cluster is widely applied in traffic signal, scoreboard sign,etc
Related Information
Applied for:
Soldering
When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.
Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.
Recommended soldering conditions:
| IR Reflow Soldering (for SMD display) | Wave Soldering | Soldering Iron | |||
| Pre-Heat | 150-180°C | Pre-Heat | 100°C Max. | Temperature | 300°C Max. |
| Pre-Heat Time | 120sec Max. | Pre-Heat Time | 60sec Max. | ||
| Peak Temperature | 260°C Max. | SolderWave | 260°C Max. | Soldering Time | 3sec Max.(one time only) |
| Soldering Time | 10 sec Max. | Soldering Time | 5sec Max. | ||
Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED
ESD(Electrostatic Discharge)
Static Electricity or power surge will damage the LED.
Suggestions to prevent ESD (Electrostatic Discharge):
n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs
n All devices, equipment, and machinery must be properly grounded
n Work tables, storage racks, etc. should be properly grounded
n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s
plastic lens as a result of friction between LEDs during storage and handling
ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,
low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”
and Vf of the suspect LEDs at low currents.
The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP
product.
When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:
- Determine the Forward Voltage (Vf) of the LED(s):
Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.
- Determine the Forward Current (If) of the LED(s):
The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.
- Decide on the Configuration:
Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.
Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.
Calculate Total Power Requirements:
Power (W) = Total Forward Voltage (V) x Total Forward Current (A)
For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:
Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W
- Select an Appropriate Power Supply:
- Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
- Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
- Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
- Consider Additional Features:
- Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
- Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
- Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
- Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
- Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.
In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.
Here are some well-regarded brands in the industry:
- Mean Well: One of the most recognized brands in the LED power supply industry, Mean Well offers a wide range of products suitable for both indoor and outdoor applications. Their units often come with features like overcurrent protection, dimming capabilities, and high efficiency.
- Tridonic: A global leader in lighting technology, Tridonic offers LED drivers and power supplies that cater to various lighting solutions, from simple setups to advanced smart lighting systems.
- Philips Advance Xitanium: Philips is a well-known brand in the lighting industry, and their Xitanium series of LED drivers are known for reliability and performance. They cater to both indoor and outdoor LED applications.
- Osram: Another giant in the lighting industry, Osram offers a range of LED drivers and power supplies suitable for various applications, including architectural and street lighting.
- LIFUD: Specializing in LED drivers, LIFUD is known for its high-quality products that cater to both commercial and residential LED lighting solutions.
- MOSO: This brand offers a variety of LED drivers, especially for outdoor and industrial applications. Their products are known for durability and performance.
- TDK-Lambda: With a history in power electronics, TDK-Lambda offers a range of power supplies and LED drivers suitable for various applications, emphasizing reliability and advanced features.
