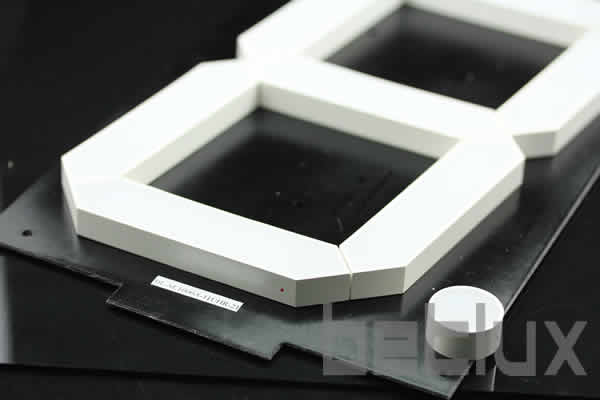

10 inch single big digit segment display

10 inch single big digit segment display

Series No:

BL-SE1000A

Weight:(g/pcs)

380

Dimension:(mm)

180 x 280 x 16.8

Character Height: (inch)

10 inch

Specification:

download

Inquiry

Description:

The 10 inch single big digit segment display is an essential component in the world of electronics, known for its clarity and high visibility. This big 7 segment display, also referred to as a seven seg display, plays a critical role in various applications from industrial equipment to consumer electronics. In this article, we will explore the features, applications, benefits, and real-world case studies of the big 7 segment display, highlighting its significance for electronics manufacturers, engineers, and administrators.

Features of the 10 Inch Single Big Digit Segment Display

High Visibility

The big 7 segment display is designed for exceptional visibility. The large 10-inch digits are easily readable from significant distances and in various lighting conditions, making them ideal for both indoor and outdoor applications. This high visibility ensures that seven segment numbers are clearly seen in any environment.

Robust Design

This seven seg display is built to withstand harsh environments. Its robust construction ensures durability and reliable performance over time, which is essential for industrial and commercial settings. The LED and seven segment display design is resilient against dust, moisture, and temperature variations.

Energy Efficiency

Despite its size, the big 7 segment display is highly energy-efficient. It consumes minimal power, making it suitable for devices that require continuous operation without significantly increasing energy costs. The LED and seven segment display technology ensures bright displays with low power consumption.

Ease of Integration

Integrating the big 7 segment display into various electronic systems is straightforward. Its simple design and compatibility with common seven segment numbers drivers simplify the installation process for engineers and manufacturers. This ease of integration allows for quick deployment in diverse applications.

Applications of the 10 Inch Single Big Digit Segment Display

Consumer Electronics

In consumer electronics, the big 7 segment display is used in devices such as digital clocks, timers, and home appliances. Its clear and bright display enhances user experience by providing easy-to-read numerical data. The large seven segment numbers ensure that information is visible even from a distance.

Industrial Equipment

The 10 inch single big digit segment display is widely used in industrial equipment, including control panels and measurement devices. Its high visibility and reliability are crucial for accurate monitoring and data display in industrial settings. The robust design ensures it can withstand the demands of industrial environments.

Medical Devices

Medical devices, such as diagnostic equipment and monitors, rely on the seven seg display for precise and easily readable numerical displays. This reliability is vital in healthcare environments where accuracy is paramount. The large, clear seven segment numbers improve readability for medical professionals.

Automotive Applications

In the automotive industry, the big 7 segment display is prevalent in dashboards and instrument panels. Its durability and readability enhance driver information systems, contributing to safer and more efficient vehicle operation. The LED and seven segment display technology ensures visibility in varying light conditions.

Benefits of the 10 Inch Single Big Digit Segment Display

Cost-Effective Solution

The big 7 segment display provides a cost-effective solution for numerical data display. Its affordability, combined with high performance, makes it a popular choice across various industries. The efficient LED and seven segment display technology offers bright displays at a lower cost.

Versatility

The seven seg display is highly versatile and can be used in numerous applications, from consumer products to industrial machinery. This adaptability makes it a valuable component for diverse electronic systems. The ability to display large seven segment numbers makes it suitable for a wide range of uses.

Reliable Performance

Known for its reliable performance, the 10 inch single big digit segment display consistently delivers clear and accurate numerical displays. This reliability is crucial for applications where precision is essential. The robust big 7 segment design ensures consistent performance over time.

User-Friendly Design

The big 7 segment display is designed to be user-friendly, with straightforward connections that facilitate easy integration into different systems. This user-friendliness reduces setup time and complexity, benefiting both novice and experienced engineers. The clear display of seven segment numbers ensures ease of use for all users.

Case Studies

Case Study 1: Enhancing Industrial Control Panels

A leading industrial equipment manufacturer integrated the 10 inch single big digit segment display into their control panels. This integration resulted in improved readability and faster data interpretation by operators, leading to enhanced efficiency and reduced errors in the manufacturing process. The robust design of the LED and seven segment display proved invaluable in the harsh industrial environment.

Case Study 2: Improving Medical Device Accuracy

A medical device company used the big 7 segment display in their latest diagnostic equipment. The clear, precise readings provided by the display significantly increased user satisfaction and trust in the device’s reliability. The ability to display accurate seven segment numbers was crucial in the medical field.

Case Study 3: Automotive Dashboard Innovation

An automotive manufacturer integrated the seven seg display into their new vehicle dashboards. The improved visibility and durability of the display contributed to better driver information systems and overall customer satisfaction. The LED and seven segment display technology ensured that the display remained clear under various lighting conditions.

User Testimonials

Testimonial 1: Electronics Engineer

“As an electronics engineer, the big 7 segment display is a key component in my projects. Its reliability and clarity are unmatched, making my work more efficient and accurate. The ease of integrating seven segment numbers into our designs has been a game-changer.”

Testimonial 2: Product Manager

“We chose the 10 inch single big digit segment display for our latest line of consumer electronics. The feedback from users has been overwhelmingly positive, highlighting the display’s readability and performance. The common cathode seven segment display design has proven to be reliable and effective.”

Testimonial 3: Industrial Designer

“The seven seg display has significantly improved our industrial control systems. Its durability and efficiency have been a game-changer for our product offerings. The ability to clearly display seven segment numbers has enhanced our product’s usability.”

Conclusion

The 10 inch single big digit segment display is a versatile, reliable, and cost-effective component that serves a wide range of applications. From consumer electronics to industrial machinery, its benefits are clear and substantial. By incorporating this display into your projects, you can ensure high performance and user satisfaction. Whether you are an electronics engineer, a product manager, or an industrial designer, the big 7 segment display offers the perfect solution for your numerical display needs.

Call to Action: Enhance your electronic projects with the 10 inch single big digit segment display today and experience the difference in performance and reliability.

10 inch single big digit segment display
10 inch single big digit segment display

Big Segment Display

Features:

  • Large digit size: 10.00 inch
  • Digit height: 250.0mm
  • Dimensions: 180.00mm x 280.00mm
  • Includes a single decimal point and a comma
  • Each segment contains a single LED chip
  • Offers the option of common anode or common cathode
  • Designed for low current operation
  • Provides excellent character appearance
  • Delivers high light output for visibility
  • Easy mounting on PC boards or sockets
  • IC compatible for seamless integration
  • Multicolor options available for diverse display needs
  • Luminous intensity categorized for consistent brightness
  • Technically rugged for durability and reliability
  • Standard design features a gray surface with white segments
  • Compliant with RoHS standards for environmental responsibility

Applications:

  • Industrial scoreboards for displaying large-scale production metrics and targets
  • Stadium displays for showcasing scores, game time, and advertisements to large audiences
  • Large-scale timers and clocks for public areas, sports events, and industrial facilities
  • Public information displays for conveying important messages, schedules, and directions
  • Railway and airport displays for departure/arrival times, platform information, and travel details
  • Outdoor advertising displays for promoting products and services in high-traffic areas
  • Panel meters for industrial applications, such as monitoring equipment status and process variables at a larger scale
Electrical-optical characteristics:
Filters Sort results
Reset Apply
Part No. (Cathode)
Part No. (Anode)
Emitting Color
Material
Peak Wavelength (nm)
Voltage typ.(v)
Voltage max. (v)
Luminous min
Luminous typ
BL-SE1000A-11B
BL-SE1000B-11B
ultra Blue
InGaN/SiC
470
4.2
85
185
BL-SE1000A-11D
BL-SE1000B-11D
Super Red
GaAlAs/DH
660
2.2
80
210
BL-SE1000A-11E
BL-SE1000B-11E
Orange
GaAsP/GaP
635
2.5
110
180
BL-SE1000A-11G
BL-SE1000B-11G
Green
GaP/GaP
570
2.5
80
200
BL-SE1000A-11H
BL-SE1000B-11H
Red
GaP/GaP
700
2.6
BL-SE1000A-11PG
BL-SE1000B-11PG
Ultra Pure Green
InGaN/SiC
525
4.2
100
260
BL-SE1000A-11S
BL-SE1000B-11S
Hi Red
GaAlAs/SH
660
2.2
80
180
BL-SE1000A-11UB
BL-SE1000B-11UB
ultra Blue
InGaN/SiC
470
4.2
95
200
BL-SE1000A-11UE
BL-SE1000B-11UE
Ultra Orange
AlGaInP
630
2.5
110
190
BL-SE1000A-11UG
BL-SE1000B-11UG
Ultra Green
AlGaInP
574
2.5
80
210
BL-SE1000A-11UR
BL-SE1000B-11UR
Ultra Red
GaAlAs/DDH
660
2.2
90
220
BL-SE1000A-11UY
BL-SE1000B-11UY
Ultra Yellow
AlGaInP
590
2.5
110
190
BL-SE1000A-11W
BL-SE1000B-11W
Ultra White
InGaN
-
4.2
200
BL-SE1000A-11Y
BL-SE1000B-11Y
Yellow
GaAsP/GaP
585
2.5
80
150
Package configuration & Internal circuit diagram
10 inch single big digit segment display


All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.

Partno description:

LED seven segment , called also LED numeric display, is widely applied in home appliance panel display and other application.

Part No of Seven segment LED display

More information

Reflector Surface color (1st number)/ Segment Lens color (2nd number):

Number012345
Ref Surface ColorWhiteBlackGrayRedGreen
Epoxy ColorWater clearWhite diffusedRed DiffusedGreen DiffusedYellow Diffused

Absolute maximum ratings (Ta= 25°C)

Parameter SDUREYGUnit
Forward Current IF 252525252530mA
Power Dissipation Pd 606060606065mW
Reverse Voltage VR 555555V
Peak Forward Current IPF (Duty 1/10 @1KHZ) 150150150150150150mA
Operation Temperature TOPR-40 to +80°C
Storage Temperature TSTG-40 to +85°C
Lead Soldering Temperature TSOL  Max.260+ 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb)°C

Absolute maximum ratings (Ta= 25°C)

ParameterUHRUEYOUYUGPGUBUWUnit
Forward Current IF3030303030303030mA
Power Dissipation Pd7565656575110120120mW
Reverse Voltage VR55555555V
Peak Forward Current IPF (Duty 1/10 @1KHZ)150150150150150150100100mA
Operation Temperature TOPR-40 to +80°C
Storage Temperature TSTG-40 to +85°C
Lead Soldering Temperature TSOLMax.260+ 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb)°C
Related Information

Applied for:
dvd player radio train instrument refrigerator

1. Application
The Seven Segment LED is widely applied for ordinary electronic equipment (such as office equipment,
communication equipment and household applications). Checking with BETLUX’s Sales in
advance for information on applications in which exceptional reliability is required, particularly
when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in
aviation, transportation, traffic control equipment, medical and life support systems and safety
devices).

2. Storage
The storage ambient for the Seven Segment LED should not exceed 30℃ temperature or 70% relative humidity.
For extended storage out of their original packaging, it is recommended that the Seven Segment LEDs be stored
in a sealed container with appropriate desiccant, or in a desiccator with nitrogen ambient.

3. Cleaning
Avoid using any unspecified chemical solvent to clean LED . For example, Trichloroethylene, Chlorosen, Acetone, and Diflon S3MC.
Any cleaning method can only be taken under normal temperature in one minute or less if it is required.
Use water to clean the Seven Segment LED if necessary under room temperature
dry it immediately after that.

4.Forming
Any unsuitable stress applied to the epoxy may break bonding wires in LED
Any forming on lead pin must be done before soldering, not during or after soldering.
Avoid applying any stress to resin in order to prevent the epoxy fracture and break on bonding wire.
While forming, please use a tie bar cut or equivalent to hold or bend the pin.
2mm from the base of resin is the minimum distance for the place bending the lead pin.
Avoid bending the lead pin at the same point twice or more.

seven segment display forming caution

Soldering

When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.

Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.

Recommended soldering conditions:



IR Reflow Soldering (for SMD display)Wave SolderingSoldering Iron
Pre-Heat150-180°CPre-Heat100°C Max.Temperature300°C Max.
Pre-Heat Time120sec Max.Pre-Heat Time60sec Max.
Peak Temperature260°C Max.SolderWave260°C Max.Soldering Time3sec Max.(one time only)
Soldering Time10 sec Max.Soldering Time5sec Max.

Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED

ESD(Electrostatic Discharge)

Static Electricity or power surge will damage the LED.

Suggestions to prevent ESD (Electrostatic Discharge):

n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs

n All devices, equipment, and machinery must be properly grounded

n Work tables, storage racks, etc. should be properly grounded

n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s

 plastic lens as a result of friction between LEDs during storage and handling

ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,

low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”

and Vf of the suspect LEDs at low currents.

The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP

 product.

antistatic notice-smd led

LED dirve IC by  Maxim Integrated

 MAX6959  4½-Digit LED Display Driver

 MAX6958  4½-Digit LED Display Driver

 MAX6955  7-, 14-, 16-Segment LED Display Driver

 MAX6956  LED Static Display Driver and I/O Port

 MAX6954  7-, 14-, 16-Segment LED Display Driver

 MAX6952  5 x 7 Matrix LED Display Driver

 MAX6957  LED Static Display Driver and I/O Port

MAX6950  5-Digit LED Display Driver

 MAX6951  8-Digit LED Display Driver

 ICM7212  4-Digit LED Driver

 ICM7212A  4-Digit LED Driver

 ICM7212AM  4-Digit LED Driver

 ICM7212M  4-Digit LED Driver

 ICM7218A  8-Digit LED Driver

 ICM7218B  8-Digit LED Driver

 ICM7218C  8-Digit LED Driver

 ICM7218D  8-Digit LED Driver

 MAX7221  8-Digit LED Display Driver

 MAX7219  8-Digit LED Display Driver

 provide in-depth design and IC selection help for design engineers.  Each solution is dedicated to a popular end-equipment type and features design information, circuits and a block diagram.   Within a block diagram, click on a block to view best-fit integrated circuits recommended by Maxim engineers.

When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:

  • Determine the Forward Voltage (Vf) of the LED(s):

Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.

  • Determine the Forward Current (If) of the LED(s):

The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.

  • Decide on the Configuration:

Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.

Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.

Calculate Total Power Requirements:

Power (W) = Total Forward Voltage (V) x Total Forward Current (A)

For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:

Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W

  • Select an Appropriate Power Supply:
  • Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
  • Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
  • Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
  • Consider Additional Features:
  • Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
  • Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
  • Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
  • Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
  • Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.

In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.

Here are some well-regarded brands in the industry:

  • Mean Well: One of the most recognized brands in the LED power supply industry, Mean Well offers a wide range of products suitable for both indoor and outdoor applications. Their units often come with features like overcurrent protection, dimming capabilities, and high efficiency.
  • Tridonic: A global leader in lighting technology, Tridonic offers LED drivers and power supplies that cater to various lighting solutions, from simple setups to advanced smart lighting systems.
  • Philips Advance Xitanium: Philips is a well-known brand in the lighting industry, and their Xitanium series of LED drivers are known for reliability and performance. They cater to both indoor and outdoor LED applications.
  • Osram: Another giant in the lighting industry, Osram offers a range of LED drivers and power supplies suitable for various applications, including architectural and street lighting.
  • LIFUD: Specializing in LED drivers, LIFUD is known for its high-quality products that cater to both commercial and residential LED lighting solutions.
  • MOSO: This brand offers a variety of LED drivers, especially for outdoor and industrial applications. Their products are known for durability and performance.
  • TDK-Lambda: With a history in power electronics, TDK-Lambda offers a range of power supplies and LED drivers suitable for various applications, emphasizing reliability and advanced features.
Need help?
Scroll to Top
