Series No:
Weight:(g/pcs)
Dimension:(mm)
Package:
Specification:
Inquiry
Description:

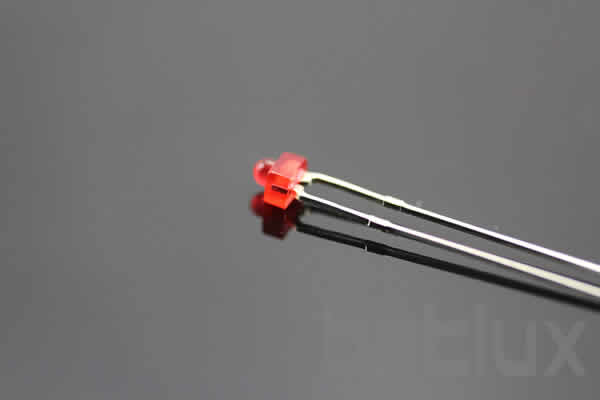

Introduction: The Revolutionary 1.8mm Super Bright LED Diode
The 1.8mm LED represents the pinnacle of miniaturized lighting technology, offering super bright illumination in a package that defies its small stature. Bridging the gap between size and performance, these LEDs provide an ideal solution for space-constrained applications without compromising on light intensity.
Features That Illuminate
- Super Bright Output: Despite their compact size, 1.8mm LEDs deliver an astonishing level of brightness, making them perfect for high-visibility applications.
- Compact Design: Their diminutive form factor allows for integration into the smallest of electronic devices, offering versatility in design.
- Energy Efficiency: These LEDs exemplify energy-saving technology, providing significant illumination with minimal power consumption.
- Durability: Designed for longevity, 1.8mm super bright LEDs ensure a long service life, reducing the need for frequent replacements.
Expanding Applications: Lighting the Way in Electronics
From status indicators in consumer electronics to backlighting in automotive displays, the applications of 1.8mm LEDs are vast and varied. Their ability to deliver intense light in a compact form makes them invaluable in portable electronics, medical devices, and even in aerospace applications, demonstrating their versatility across industries.
Benefits: Illuminating the Advantages
Adopting 1.8mm super bright LEDs offers numerous advantages, including enhanced product design flexibility, improved energy efficiency, and the ability to meet stringent space requirements. Their high luminosity ensures clear visibility in a range of conditions, marking them as a superior choice for innovative lighting solutions.
Case Studies: Real-World Impact of 1.8mm LEDs
This section showcases tangible applications of 1.8mm LEDs, highlighting how they have been utilized in groundbreaking projects to achieve superior lighting performance. From enhancing user experience in consumer electronics to facilitating critical visibility in safety equipment, these case studies demonstrate the transformative power of 1.8mm super bright LEDs.
Voices of Innovation: User Testimonials
Testimonials from industry professionals who have embraced the 1.8mm LED technology provide valuable insights into their practical benefits. Feedback often emphasizes the LEDs’ exceptional brightness, efficiency, and the creative possibilities they unlock, reinforcing their value across the electronics sector.
Conclusion: Embracing the Future with 1.8mm Super Bright LEDs
The exploration of 1.8mm super bright LED diodes reveals their critical role in advancing lighting technology and electronic design. As the demand for compact, efficient, and powerful lighting solutions grows, the significance of these LEDs in driving innovation becomes increasingly clear.
Call to Action
For those at the forefront of electronics manufacturing and design, integrating 1.8mm super bright LEDs into your projects is a strategic move towards achieving dynamic, efficient, and innovative lighting solutions. Explore the endless possibilities these compact yet powerful LEDs offer and illuminate your designs with unparalleled brilliance and efficiency.
Features
- 1.8mm Round Type: The compact size of these LEDs makes them ideal for applications where space is limited, offering design flexibility in small-scale electronics.
- Various Viewing Angles: Available in different viewing angles to cater to specific application needs, ensuring optimal visibility and light distribution for various uses.
- Lens Options: These LEDs come with diffused, transparent, and water-clear lenses. Diffused lenses offer a softer light spread, transparent lenses provide a more focused light output, and water-clear lenses deliver the most direct and intense light.
- IC Compatibility / Low Current Capability: Suitable for integration with integrated circuits, making them ideal for complex electronic designs. Their low current operation enhances energy efficiency, beneficial for battery-powered and energy-saving applications.
- RoHS Compliance: These LED lamps meet environmental and safety standards, ensuring they are manufactured using safe and environmentally friendly materials.
Applications
- Indicator Lights: Commonly used in electronic devices, appliances, and control panels to indicate power status, operational states, or warnings.
- Backlighting: Suitable for backlighting in small displays, keypads, and control panels in various electronic devices.
- Consumer Electronics: Used in portable electronics for indicators or aesthetic enhancements, such as in mobile phones, audio devices, and handheld gadgets.
- Automotive Lighting: Employed in vehicle dashboards and instrumentation for indicators or backlighting.
- Signal and Signage Applications: Incorporated into signal lights, digital billboards, and other signage for visibility and attention-grabbing purposes.
- Toys and Novelty Items: Integrated into toys and novelty items, adding visual appeal and enhancing user interaction.
- Decorative and Accent Lighting: Utilized in decorative applications for homes and commercial spaces, including mood lighting and artistic installations.
- DIY Projects and Hobby Electronics: Popular in DIY electronics and hobbyist projects due to their compact size, ease of use, and versatility.
Electrical-optical characteristics:
Article No
| color | material | wavelength
| apperance | v_typ | v_max | luminous_min | luminous_typ | degree |
|---|---|---|---|---|---|---|---|---|---|
BL-L189BGC |
Ultra Bluish Green |
InGaN |
505 |
Water Clear |
4.2 |
400 |
1000 |
50 |
|
BL-L189LRC |
Super Red |
AlGaAs,DH |
660 |
Water Clear |
2.2 |
200 |
500 |
50 |
|
BL-L189PGC |
Ultra Pure Green |
InGaN |
525 |
Water Clear |
4.2 |
400 |
1200 |
50 |
|
BL-L189SRC |
Hi Red |
AlGaAs,SH |
660 |
Water Clear |
2.2 |
50 |
200 |
50 |
|
BL-L189UBC |
Ultra Blue |
InGaN |
470 |
Water Clear |
4.2 |
400 |
1200 |
50 |
|
BL-L189UEC |
Ultra Orange |
AlGaInP |
630 |
Water Clear |
2.5 |
120 |
700 |
50 |
|
BL-L189UGC |
Ultra Green |
AlGaInP |
574 |
Water Clear |
2.5 |
50 |
800 |
50 |
|
BL-L189URC |
Ultra Red |
AlGaAs,DDH |
660 |
Water Clear |
2.2 |
500 |
700 |
50 |
|
BL-L189UWC |
Ultra White |
InGaN |
- |
Water Clear |
4.2 |
400 |
2500 |
50 |
|
BL-L189UYC |
Ultra Yellow |
AlGaInP |
590 |
Water Clear |
2.5 |
150 |
600 |
50 |
Package configuration & Internal circuit diagram
All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.
Partno description:
LEDs, Light Emitting diodes, which include various small kinds, such as 3mm, 5mm, 8mm, 10mm; round type, rectangular type square type, tower type, Oval led, elliptical, flat top; SMDs, high power led, piranha LEDs
More Information
Lens Color:
| Code | D | T | C | W | E | |
| Meaning | color Diffused | Color Tinted | Water Clear | Water Diffused | Orange diffused |
Absolute maximum ratings (Ta=25°C)
| Parameter | SR | LR | UR | UE | UY | UG | PG | BG | B | UB | UV | W | Unit |
| Forward Current I F | 25 | 25 | 25 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | mA |
| Power Dissipation P d | 60 | 60 | 60 | 65 | 65 | 75 | 110 | 110 | 120 | 120 | 120 | 120 | mW |
| Reverse Voltage V R | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | V |
| Peak Forward Current I PF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 100 | 100 | 100 | 100 | 100 | mA |
| Operation Temperature T OPR | -40 to +80 | °C | |||||||||||
| Storage Temperature T STG | -40 to +85 | °C | |||||||||||
| Lead Soldering Temperature T SOL | Max.260+-5°C for 3 sec Max. (1.6mm from the base of the epoxy bulb) | °C | |||||||||||
Related Information
Applied for:
The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment,
communication equipment and household applications). Consult Betlux’s Sales in advance for information on
applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs
may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical
and life support systems and safety devices).
CAUTIONS for Through-Hole LED Lamps
1. Application
The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment, communication equipment and household applications). Consult Betlux’s Sales in advance for information on applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical and life support systems and safety devices).
2. Storage
The storage ambient for the LEDs should not exceed 30℃ temperature or 70% relative humidity. It is
recommended that LEDs out of their original packaging are used within three months
For extended storage out of their original packaging, it is recommended that the LEDs be stored in a sealed
container with appropriate desiccant or in a desiccator with nitrogen ambient.
3. Cleaning
Use alcohol-based cleaning solvents such as isopropyl alcohol to clean the LED if necessary
4. Lead Forming & Assembly
During lead forming, the leads should be bent at a point at least 3mm from the base of LED lens. Do not use
the base of the leadframe as a fulcrum during forming.
Lead forming must be done before soldering, at normal temperature.
During assembly on PCB, use minimum clinch force possible to avoid excessive mechanical stress.
Soldering
When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.
Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.
Recommended soldering conditions:
| IR Reflow Soldering (for SMD display) | Wave Soldering | Soldering Iron | |||
| Pre-Heat | 150-180°C | Pre-Heat | 100°C Max. | Temperature | 300°C Max. |
| Pre-Heat Time | 120sec Max. | Pre-Heat Time | 60sec Max. | ||
| Peak Temperature | 260°C Max. | SolderWave | 260°C Max. | Soldering Time | 3sec Max.(one time only) |
| Soldering Time | 10 sec Max. | Soldering Time | 5sec Max. | ||
Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED
ESD(Electrostatic Discharge)
Static Electricity or power surge will damage the LED.
Suggestions to prevent ESD (Electrostatic Discharge):
n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs
n All devices, equipment, and machinery must be properly grounded
n Work tables, storage racks, etc. should be properly grounded
n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s
plastic lens as a result of friction between LEDs during storage and handling
ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,
low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”
and Vf of the suspect LEDs at low currents.
The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP
product.
Drive Method
An LED is a current-operated device. In order to ensure intensity uniformity on multiple LEDs connected in
parallel in an application, it is recommended that a current limiting resistor be incorporated in the drive circuit,
in series with each LED as shown in Circuit A below.
When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:
- Determine the Forward Voltage (Vf) of the LED(s):
Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.
- Determine the Forward Current (If) of the LED(s):
The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.
- Decide on the Configuration:
Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.
Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.
Calculate Total Power Requirements:
Power (W) = Total Forward Voltage (V) x Total Forward Current (A)
For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:
Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W
- Select an Appropriate Power Supply:
- Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
- Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
- Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
- Consider Additional Features:
- Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
- Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
- Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
- Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
- Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.
In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.
Here are some well-regarded brands in the industry:
- Mean Well: One of the most recognized brands in the LED power supply industry, Mean Well offers a wide range of products suitable for both indoor and outdoor applications. Their units often come with features like overcurrent protection, dimming capabilities, and high efficiency.
- Tridonic: A global leader in lighting technology, Tridonic offers LED drivers and power supplies that cater to various lighting solutions, from simple setups to advanced smart lighting systems.
- Philips Advance Xitanium: Philips is a well-known brand in the lighting industry, and their Xitanium series of LED drivers are known for reliability and performance. They cater to both indoor and outdoor LED applications.
- Osram: Another giant in the lighting industry, Osram offers a range of LED drivers and power supplies suitable for various applications, including architectural and street lighting.
- LIFUD: Specializing in LED drivers, LIFUD is known for its high-quality products that cater to both commercial and residential LED lighting solutions.
- MOSO: This brand offers a variety of LED drivers, especially for outdoor and industrial applications. Their products are known for durability and performance.
- TDK-Lambda: With a history in power electronics, TDK-Lambda offers a range of power supplies and LED drivers suitable for various applications, emphasizing reliability and advanced features.
