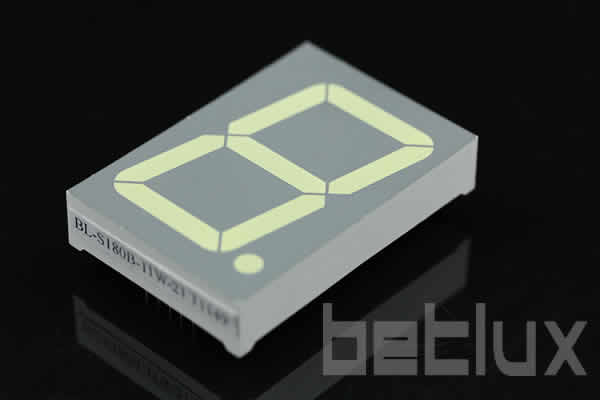

1.80 inch single-digit seven segment led display
Series No:
Weight:(g/pcs)
Dimension:(mm)
Character Height: (inch)
Specification:
Inquiry
Description:
Introduction
The eight segment display technology, especially the 1.80 inch single-digit seven segment LED display, is a critical component in many electronic applications. These displays, known for their clarity and efficiency, are widely used in various industries. In this article, we will explore the features, benefits, and applications of these displays, providing valuable insights for electronics manufacturers, engineers, purchasers, and administrators.
Key Features of 1.80 Inch Single-Digit Seven Segment LED Displays
1. Large and Clear Display
The 1.80 inch single-digit seven segment LED display offers a large and easily readable digit size, making it ideal for environments where visibility is crucial. The significant size ensures that the displayed information can be seen from a distance, enhancing its usability in industrial settings.
2. Bright Illumination
These displays provide bright illumination, which is essential for readability in both well-lit and low-light conditions. The white seven segment display variant is particularly effective in environments that require high contrast for better visibility.
3. Low Power Consumption
Despite their brightness, these displays are designed to be energy-efficient. This low power consumption makes them suitable for various applications, including battery-operated devices and systems where energy efficiency is a priority.
4. Durability and Reliability
The eight segment display technology is known for its durability. These displays are built to withstand harsh environmental conditions, including extreme temperatures, humidity, and mechanical vibrations, ensuring long-term reliability.
5. Easy Integration
Integrating the 1.80 inch single-digit seven segment LED display into different electronic systems is straightforward. They are compatible with standard industrial 7 segment display drivers, making them easy to incorporate into existing designs.
Benefits of 1.80 Inch Single-Digit Seven Segment LED Displays
Enhanced User Experience
The high visibility and readability of these displays enhance the user experience by providing clear and immediate information. This is particularly important in critical applications such as industrial controls and medical devices.
Cost Efficiency
The combination of durability and low power consumption makes the 1.80 inch single-digit seven segment LED display a cost-effective solution. The long lifespan reduces the need for frequent replacements, while the energy efficiency lowers operational costs.
Customization Options
Manufacturers can customize these displays to meet specific requirements, including different colors and brightness levels. This flexibility allows for tailored solutions that fit the unique needs of various applications.
Applications of 1.80 Inch Single-Digit Seven Segment LED Displays
Industrial Equipment
In industrial settings, these displays are used for monitoring and control purposes. The industrial 7 segment display provides clear readouts of measurements and operational statuses, which are essential for maintaining efficiency and safety.
Consumer Electronics
From digital clocks to kitchen appliances, the eight segment display is a staple in consumer electronics. Their reliability and ease of integration make them a popular choice for manufacturers looking to enhance their products with digital displays.
Medical Devices
The reliability and clarity of the 1.80 inch single-digit seven segment LED display make it suitable for medical devices where accurate and visible readouts are critical. These displays are used in various medical equipment such as digital thermometers and blood pressure monitors.
Case Studies
Case Study 1: Industrial Application
A leading manufacturer of industrial control systems integrated the 1.80 inch single-digit seven segment LED display into their latest product line. The enhanced visibility and durability resulted in a significant improvement in operator efficiency and system reliability. The ability to use different colors for different statuses helped in reducing errors and improving response times.
Case Study 2: Consumer Electronics
A major electronics company used the 1.80 inch single-digit seven segment LED display in their new range of kitchen appliances. The displays provided clear, easy-to-read timers and settings, which received positive feedback from consumers for improving usability. The dual-color feature allowed users to easily differentiate between various functions and settings.
User Testimonials
John D., Electronics Engineer
“The 1.80 inch single-digit seven segment LED display has been a game-changer for our designs. Its visibility and durability are unmatched, and our customers love the reliability it brings to their equipment.”
Sara K., Product Manager
“We integrated the eight segment display into our new line of digital clocks, and the feedback has been overwhelmingly positive. The clear, bright display makes a significant difference in user satisfaction.”
Conclusion
The 1.80 inch single-digit seven segment LED display offers numerous benefits, from high visibility and energy efficiency to durability and ease of integration. Its applications across various industries highlight its versatility and effectiveness. By choosing these displays, manufacturers can enhance the performance and user experience of their products. Explore the possibilities with 1.80 inch single-digit seven segment LED displays and elevate your electronic designs.
Call to Action
Interested in integrating the 1.80 inch single-digit seven segment LED display into your products? Contact us today to learn more about customization options and how these displays can benefit your applications.

Features
- 1.80-Inch Digit Size: Provides clear visibility for numeric displays, ideal for applications requiring medium-sized digits.
- Low Current Operation: Energy-efficient, making it suitable for both battery-powered and low-power electronic devices.
- Common Anode and Cathode Options: Offers flexibility in circuit design, accommodating different electrical configurations.
- Excellent Character Appearance: Ensures digits are displayed clearly and legibly, enhancing readability.
- High Light Output: Bright enough for easy reading under various lighting conditions.
- Easy Mounting on PC Boards or Sockets: Designed for straightforward installation, facilitating efficient integration into electronic systems.
- IC Compatible: Can be integrated with integrated circuits, making it suitable for complex electronic designs.
- Multicolor Availability: Indicates the availability of displays in various colors, adding versatility in design and functionality.
- Categorized for Luminous Intensity: Ensures consistent brightness levels across units, important for uniform display quality.
- Technically Rugged: Durable and reliable, capable of withstanding various operational environments.
- Standard Design: Gray Surface, White Segment: Offers a classic look with high contrast for ease of reading.
- RoHS Compliance: Meets environmental standards, adhering to regulations that restrict hazardous substances.
Applications
- Public Information Displays: Suitable for use in transportation stations, public squares, or event venues where clear numeric displays are needed.
- Industrial Control Panels: Ideal for industrial environments where clear numeric displays are necessary for monitoring and control.
- Retail and Advertising Displays: Effective in retail settings or for advertising purposes where eye-catching numeric displays are beneficial.
- Educational Tools: Can be used in educational settings for displaying numeric information in a visually engaging manner.
- Healthcare Equipment: Useful in healthcare settings for equipment that requires medium-sized, easy-to-read numeric displays.
- Event and Timing Displays: Suitable for events or competitions where timing or scoring needs to be displayed clearly to an audience.
Electrical-optical characteristics:
Part No. (Cathode) | Part No. (Anode) | Emitting Color | Material | Peak Wavelength (nm) | Voltage typ.(v) | Voltage max. (v) | Luminous min | Luminous typ |
---|---|---|---|---|---|---|---|---|
BL-S180A-11B |
BL-S180B-11B |
ultra Blue |
InGaN/SiC |
470 |
4.2 |
86 |
97 |
|
BL-S180A-11D |
BL-S180B-11D |
Super Red |
GaAlAs/DH |
660 |
2.2 |
112 |
165 |
|
BL-S180A-11DUG (D) |
BL-S180B-11DUG (D) |
Ultra Red |
AlGaInP |
660 |
2.5 |
165 |
||
BL-S180A-11DUG (UG) |
BL-S180B-11DUG (UG) |
Ultra Green |
AlGaInP |
574 |
2.5 |
125 |
||
BL-S180A-11E |
BL-S180B-11E |
Orange |
GaAsP/GaP |
635 |
2.5 |
80 |
120 |
|
BL-S180A-11EG (E) |
BL-S180B-11EG (E) |
Orange |
GaAsP/GaP |
635 |
2.5 |
120 |
||
BL-S180A-11EG (G) |
BL-S180B-11EG (G) |
Green |
GaP/GaP |
570 |
2.5 |
120 |
||
BL-S180A-11EG |
BL-S180B-11EG |
Orange |
GaAsP/GaP |
635 |
2.5 |
80 |
120 |
|
BL-S180A-11EG |
BL-S180B-11EG |
Green |
GaP/GaP |
570 |
2.5 |
80 |
120 |
|
BL-S180A-11G |
BL-S180B-11G |
Green |
GaP/GaP |
570 |
2.5 |
80 |
120 |
|
BL-S180A-11H |
BL-S180B-11H |
Red |
GaP/GaP |
700 |
2.6 |
|||
BL-S180A-11PG |
BL-S180B-11PG |
Ultra Pure Green |
InGaN/SiC |
525 |
4.2 |
140 |
210 |
|
BL-S180A-11S |
BL-S180B-11S |
Hi Red |
GaAlAs/SH |
660 |
2.2 |
75 |
110 |
|
BL-S180A-11SG (G) |
BL-S180B-11SG (G) |
Green |
GaP/GaP |
570 |
2.5 |
120 |
||
BL-S180A-11SG (S) |
BL-S180B-11SG (S) |
Super Red |
AlGaInP |
660 |
2.5 |
110 |
||
BL-S180A-11SG |
BL-S180B-11SG |
Hi Red |
GaAlAs/SH |
660 |
2.2 |
75 |
110 |
|
BL-S180A-11SG |
BL-S180B-11SG |
Green |
GaP/GaP |
570 |
2.5 |
80 |
120 |
|
BL-S180A-11UB |
BL-S180B-11UB |
ultra Blue |
InGaN/SiC |
470 |
4.2 |
90 |
120 |
|
BL-S180A-11UE |
BL-S180B-11UE |
Ultra Orange |
AlGaInP |
630 |
2.5 |
85 |
125 |
|
BL-S180A-11UEUG (UE) |
BL-S180B-11UEUG (UE) |
Ultra Orange |
AlGaInP |
630 |
2.5 |
165 |
Partno description:
More information
Reflector Surface color (1st number)/ Segment Lens color (2nd number):
Number | 0 | 1 | 2 | 3 | 4 | 5 |
Ref Surface Color | White | Black | Gray | Red | Green | |
Epoxy Color | Water clear | White diffused | Red Diffused | Green Diffused | Yellow Diffused |
Absolute maximum ratings (Ta= 25°C)
Parameter | S | D | UR | E | Y | G | Unit | |
Forward Current IF | 25 | 25 | 25 | 25 | 25 | 30 | mA | |
Power Dissipation Pd | 60 | 60 | 60 | 60 | 60 | 65 | mW | |
Reverse Voltage VR | 5 | 5 | 5 | 5 | 5 | 5 | V | |
Peak Forward Current IPF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | mA | |
Operation Temperature TOPR | -40 to +80 | °C | ||||||
Storage Temperature TSTG | -40 to +85 | °C | ||||||
Lead Soldering Temperature TSOL | Max.260+ 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb) | °C |
Absolute maximum ratings (Ta= 25°C)
Parameter | UHR | UE | YO | UY | UG | PG | UB | UW | Unit |
Forward Current IF | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | mA |
Power Dissipation Pd | 75 | 65 | 65 | 65 | 75 | 110 | 120 | 120 | mW |
Reverse Voltage VR | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | V |
Peak Forward Current IPF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | 100 | 100 | mA |
Operation Temperature TOPR | -40 to +80 | °C | |||||||
Storage Temperature TSTG | -40 to +85 | °C | |||||||
Lead Soldering Temperature TSOL | Max.260+ 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb) | °C |
Related Information
Applied for:
1. Application
The Seven Segment LED is widely applied for ordinary electronic equipment (such as office equipment,
communication equipment and household applications). Checking with BETLUX’s Sales in
advance for information on applications in which exceptional reliability is required, particularly
when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in
aviation, transportation, traffic control equipment, medical and life support systems and safety
devices).
2. Storage
The storage ambient for the Seven Segment LED should not exceed 30℃ temperature or 70% relative humidity.
For extended storage out of their original packaging, it is recommended that the Seven Segment LEDs be stored
in a sealed container with appropriate desiccant, or in a desiccator with nitrogen ambient.
3. Cleaning
Avoid using any unspecified chemical solvent to clean LED . For example, Trichloroethylene, Chlorosen, Acetone, and Diflon S3MC.
Any cleaning method can only be taken under normal temperature in one minute or less if it is required.
Use water to clean the Seven Segment LED if necessary under room temperature
dry it immediately after that.
4.Forming
Any unsuitable stress applied to the epoxy may break bonding wires in LED
Any forming on lead pin must be done before soldering, not during or after soldering.
Avoid applying any stress to resin in order to prevent the epoxy fracture and break on bonding wire.
While forming, please use a tie bar cut or equivalent to hold or bend the pin.
2mm from the base of resin is the minimum distance for the place bending the lead pin.
Avoid bending the lead pin at the same point twice or more.
Soldering
When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.
Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.
Recommended soldering conditions:
IR Reflow Soldering (for SMD display) | Wave Soldering | Soldering Iron | |||
Pre-Heat | 150-180°C | Pre-Heat | 100°C Max. | Temperature | 300°C Max. |
Pre-Heat Time | 120sec Max. | Pre-Heat Time | 60sec Max. | ||
Peak Temperature | 260°C Max. | SolderWave | 260°C Max. | Soldering Time | 3sec Max.(one time only) |
Soldering Time | 10 sec Max. | Soldering Time | 5sec Max. |
Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED
ESD(Electrostatic Discharge)
Static Electricity or power surge will damage the LED.
Suggestions to prevent ESD (Electrostatic Discharge):
n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs
n All devices, equipment, and machinery must be properly grounded
n Work tables, storage racks, etc. should be properly grounded
n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s
plastic lens as a result of friction between LEDs during storage and handling
ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,
low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”
and Vf of the suspect LEDs at low currents.
The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP
product.
LED dirve IC by Maxim Integrated
MAX6959 4½-Digit LED Display Driver
MAX6958 4½-Digit LED Display Driver
MAX6955 7-, 14-, 16-Segment LED Display Driver
MAX6956 LED Static Display Driver and I/O Port
MAX6954 7-, 14-, 16-Segment LED Display Driver
MAX6952 5 x 7 Matrix LED Display Driver
MAX6957 LED Static Display Driver and I/O Port
MAX6950 5-Digit LED Display Driver
MAX6951 8-Digit LED Display Driver
ICM7212 4-Digit LED Driver
ICM7212A 4-Digit LED Driver
ICM7212AM 4-Digit LED Driver
ICM7212M 4-Digit LED Driver
ICM7218A 8-Digit LED Driver
ICM7218B 8-Digit LED Driver
ICM7218C 8-Digit LED Driver
ICM7218D 8-Digit LED Driver
MAX7221 8-Digit LED Display Driver
MAX7219 8-Digit LED Display Driver
When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:
- Determine the Forward Voltage (Vf) of the LED(s):
Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.
- Determine the Forward Current (If) of the LED(s):
The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.
- Decide on the Configuration:
Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.
Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.
Calculate Total Power Requirements:
Power (W) = Total Forward Voltage (V) x Total Forward Current (A)
For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:
Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W
- Select an Appropriate Power Supply:
- Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
- Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
- Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
- Consider Additional Features:
- Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
- Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
- Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
- Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
- Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.
In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.
Here are some well-regarded brands in the industry:
- Mean Well: One of the most recognized brands in the LED power supply industry, Mean Well offers a wide range of products suitable for both indoor and outdoor applications. Their units often come with features like overcurrent protection, dimming capabilities, and high efficiency.
- Tridonic: A global leader in lighting technology, Tridonic offers LED drivers and power supplies that cater to various lighting solutions, from simple setups to advanced smart lighting systems.
- Philips Advance Xitanium: Philips is a well-known brand in the lighting industry, and their Xitanium series of LED drivers are known for reliability and performance. They cater to both indoor and outdoor LED applications.
- Osram: Another giant in the lighting industry, Osram offers a range of LED drivers and power supplies suitable for various applications, including architectural and street lighting.
- LIFUD: Specializing in LED drivers, LIFUD is known for its high-quality products that cater to both commercial and residential LED lighting solutions.
- MOSO: This brand offers a variety of LED drivers, especially for outdoor and industrial applications. Their products are known for durability and performance.
- TDK-Lambda: With a history in power electronics, TDK-Lambda offers a range of power supplies and LED drivers suitable for various applications, emphasizing reliability and advanced features.
