Series No:
Weight:(g/pcs)
Dimension:(mm)
Dot height:(mm)
Dot pitch:(mm)
Dot size:(mm)
Specification:
Inquiry
Description:
Introduction

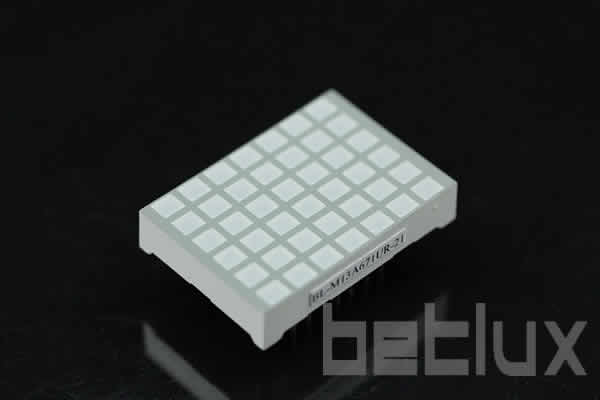

In the expansive world of electronic displays, the 1.3 inch height 6×7 LED dot matrix, square dot stands as a noteworthy advancement. Commonly referred to as the 6×7 LED matrix, this innovative technology is pivotal for applications that require high visibility and compact design. The unique square dot configuration enhances clarity and readability, making it an ideal choice for various electronic devices.
Key Features of the 1.3 Inch 6×7 LED Dot Matrix
The 1.3 inch height 6×7 LED dot matrix boasts several distinctive features that set it apart in the electronics market:
- Square Dot Design: Offers enhanced pixel definition and uniform brightness, crucial for creating clearer images and text.
- Compact Size: Ideal for applications where space is limited but high-quality display is essential.
- High Flexibility: Compatible with various control systems, allowing for versatile programming options.
Applications in Modern Electronics
This LED matrix screen is versatile, finding its place in multiple applications:
- Consumer Electronics: Used in wearable devices, digital watches, and portable displays where space and clarity are key.
- Automotive Displays: Implements dashboard indicators and control panel displays in vehicles.
- Information Boards: Serves in public transport systems for displaying routes, times, and alerts efficiently.
Advantages of Using the 1.3 Inch 6×7 LED Matrix
Integrating the 1.3 inch 6×7 LED matrix into electronic projects offers substantial benefits:
- Energy Efficiency: LEDs consume significantly less power compared to traditional display technologies, reducing overall energy costs.
- Durability: LEDs are known for their longevity, reducing the frequency of replacement and maintenance.
- Customizable Outputs: The matrix can be programmed to display a wide range of symbols and characters in various color combinations.
Case Studies: Impactful Implementations
- Smart Wearable Technology: A leading tech company utilized this LED matrix in their latest smartwatch model, enhancing the device’s display functionality while maintaining a sleek, compact design.
- Public Transport Signage: A city’s transportation department adopted these matrices for bus and train route displays, significantly improving passenger communication during transit.
User Testimonials
- R&D Manager at Innovatech Solutions: “The 1.3 inch 6×7 LED matrix has revolutionized our product designs, allowing us to incorporate high-definition displays into smaller devices without sacrificing quality.”
- Product Specialist at AutoDisplays Inc.: “These LED matrices have been critical in developing our new range of environmentally friendly, energy-efficient vehicle dashboards.”
Conclusion
The 1.3 inch height 6×7 LED dot matrix, square dot is proving to be a game-changer in the field of optoelectronic displays. With its superior clarity, flexibility, and efficiency, it is set to continue leading innovations across various sectors of the electronics industry.
Call to Action:
Ready to elevate your electronic designs? Incorporate the 1.3 inch height 6×7 LED dot matrix, square dot today for unparalleled display quality and efficiency. Contact us to learn more or to place an order!
Features
- Matrix Dimensions: The matrix stands at a height of 30mm, with a display width and height of 23.8×34.0mm, providing a compact and efficient display area.
- Dot Characteristics: It features a dot size of 3.00mm, square-shaped, offering a unique and clear display aesthetic.
- Configuration: With 6 columns and 7 rows, this matrix allows for a variety of simple yet effective display options.
- Single Color Display: The matrix operates in a single color, focusing on simplicity and clarity in its visual output.
- Energy Efficient: Designed for low current operation, it is ideal for energy-saving applications and prolonged use.
- High Visibility: Offers high contrast and light output, ensuring that the display remains easily readable under different lighting conditions.
- Code Compatibility: Compatible with ASCII and EBCDIC codes, the matrix is versatile for various programming and display requirements.
- Horizontal Stackability: Can be stacked horizontally, which is useful for creating wider or more complex display panels.
- Circuit Design Flexibility: Available with both column cathode and anode options, it provides versatility in circuit design.
- Mounting Convenience: Designed for easy installation on printed circuit boards or sockets, making it user-friendly for a range of projects.
- Luminous Intensity Uniformity: The LEDs are categorized for luminous intensity, ensuring consistent brightness across the display.
- Durability: It is technically rugged, enhancing its reliability and suitability for various operational environments.
- Aesthetic Design: The standard gray surface with white dots offers a sleek and professional look.
- Environmental Standards: Being RoHS compliant, it adheres to environmental regulations, emphasizing eco-friendly manufacturing.
Applications
- Compact Display Needs: Ideal for applications where space is limited but a clear and effective display is needed.
- Electronic Devices: Suitable for small electronic devices, including handheld gadgets, wearables, or custom-built electronics.
- Educational Tools: Can be used in educational settings for teaching basic electronics and programming.
- Custom Indicators: Perfect for creating custom indicators or displays in appliances, machines, or control panels.
- DIY Projects: An excellent choice for hobbyists and DIY enthusiasts for building custom gadgets or experimental projects.
- Art and Design: Suitable for small-scale interactive art installations or design projects.
- Informational Signage: Appropriate for small-scale information displays in offices, public spaces, or retail environments.
- Prototyping: Useful for prototyping electronics where a compact, clear display is necessary.
Electrical-optical characteristics:
Part No.(Row Cathode) | Part No. (Row Anode) | Color | Material | Peak Wavelength (nm) | Voltage typ. (v) | Voltage Max. (v) | Luminous Min. | Luminous typ. |
|---|---|---|---|---|---|---|---|---|
BL-M13A671B |
BL-M13B671B |
Ultra Blue |
InGaN |
470 |
4.2 |
75 |
||
BL-M13A671D |
BL-M13B671D |
Super Red |
GaAlAs/GaAs,DH |
660 |
2.2 |
115 |
||
BL-M13A671E |
BL-M13B671E |
Orange |
GaAsP/GaP |
635 |
2.5 |
95 |
||
BL-M13A671G |
BL-M13B671G |
Green |
GaP/GaP |
570 |
2.5 |
100 |
||
BL-M13A671PG |
BL-M13B671PG |
Ultra Pure Green |
InGaN |
525 |
4.2 |
155 |
||
BL-M13A671S |
BL-M13B671S |
Hi Red |
GaAlAs/GaAs,SH |
660 |
2.2 |
105 |
||
BL-M13A671UE |
BL-M13B671UE |
Ultra Orange |
AlGaInP |
630 |
2.5 |
105 |
||
BL-M13A671UG |
BL-M13B671UG |
Ultra Green |
AlGaInP |
574 |
2.5 |
135 |
||
BL-M13A671UHR |
BL-M13B671UHR |
Ultra Red |
AlGaInP |
645 |
2.5 |
125 |
||
BL-M13A671UR |
BL-M13B671UR |
Ultra Red |
GaAlAs/GaAs,DDH |
660 |
2.2 |
125 |
||
BL-M13A671UY |
BL-M13B671UY |
Ultra Yellow |
AlGaInP |
590 |
2.5 |
105 |
||
BL-M13A671W |
BL-M13B671W |
Ultra White |
InGaN |
- |
4.2 |
105 |
||
BL-M13A671Y |
BL-M13B671Y |
Yellow |
GaAsP/GaP |
585 |
2.5 |
95 |
||
BL-M13A671YO |
BL-M13B671YO |
Ultra Amber |
AlGaInP |
619 |
2.5 |
105 |
Package configuration & Internal circuit diagram
All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.
Partno description:
LED dot matrix is widely used in LED information board indoor and semi-outdoor
More Information
Reflector Surface color (1st number)/ dot Lens color (2nd number):
| Number | 0 | 1 | 2 | 3 | 4 | 5 |
| Ref Surface Color | White | Black | Gray | Red | Green | |
| Dot Epoxy Color | Water clear | White diffused | Red Diffused | Green Diffused | Yellow Diffused |
Absolute maximum ratings (Ta= 25°C)
| Parameter | S | D | UR | E | Y | G | Unit | |
| Forward Current IF | 25 | 25 | 25 | 25 | 25 | 30 | mA | |
| Power Dissipation Pd | 60 | 60 | 60 | 60 | 60 | 65 | mW | |
| Reverse Voltage VR | 5 | 5 | 5 | 5 | 5 | 5 | V | |
| Peak Forward Current IPF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | mA | |
| Operation Temperature TOPR | -40 to +80 | °C | ||||||
| Storage Temperature TSTG | -40 to +85 | °C | ||||||
| Lead Soldering Temperature TSOL | Max.260+ 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb) | °C | ||||||
Absolute maximum ratings (Ta= 25°C)
| Parameter | UHR | UE | YO | UY | UG | PG | UB | UW | Unit |
| Forward Current IF | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | mA |
| Power Dissipation Pd | 75 | 65 | 65 | 65 | 75 | 110 | 120 | 120 | mW |
| Reverse Voltage VR | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | V |
| Peak Forward Current IPF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | 100 | 100 | mA |
| Operation Temperature TOPR | -40 to +80 | °C | |||||||
| Storage Temperature TSTG | -40 to +85 | °C | |||||||
| Lead Soldering Temperature TSOL | Max.260+ 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb) | °C | |||||||
Related Information
Applied for:
1. Application
The Seven Segment LED is widely applied for ordinary electronic equipment (such as office equipment,
communication equipment and household applications). Checking with BETLUX’s Sales in
advance for information on applications in which exceptional reliability is required, particularly
when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in
aviation, transportation, traffic control equipment, medical and life support systems and safety
devices).
2. Storage
The storage ambient for the Seven Segment LED should not exceed 30℃ temperature or 70% relative humidity.
For extended storage out of their original packaging, it is recommended that the Seven Segment LEDs be stored
in a sealed container with appropriate desiccant, or in a desiccator with nitrogen ambient.
3. Cleaning
Avoid using any unspecified chemical solvent to clean LED . For example, Trichloroethylene, Chlorosen, Acetone, and Diflon S3MC.
Any cleaning method can only be taken under normal temperature in one minute or less if it is required.
Use water to clean the Seven Segment LED if necessary under room temperature
dry it immediately after that.
4.Forming
Any unsuitable stress applied to the epoxy may break bonding wires in LED
Any forming on lead pin must be done before soldering, not during or after soldering.
Avoid applying any stress to resin in order to prevent the epoxy fracture and break on bonding wire.
While forming, please use a tie bar cut or equivalent to hold or bend the pin.
2mm from the base of resin is the minimum distance for the place bending the lead pin.
Avoid bending the lead pin at the same point twice or more.
Soldering
When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.
Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.
Recommended soldering conditions:
| IR Reflow Soldering (for SMD display) | Wave Soldering | Soldering Iron | |||
| Pre-Heat | 150-180°C | Pre-Heat | 100°C Max. | Temperature | 300°C Max. |
| Pre-Heat Time | 120sec Max. | Pre-Heat Time | 60sec Max. | ||
| Peak Temperature | 260°C Max. | SolderWave | 260°C Max. | Soldering Time | 3sec Max.(one time only) |
| Soldering Time | 10 sec Max. | Soldering Time | 5sec Max. | ||
Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED
ESD(Electrostatic Discharge)
Static Electricity or power surge will damage the LED.
Suggestions to prevent ESD (Electrostatic Discharge):
n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs
n All devices, equipment, and machinery must be properly grounded
n Work tables, storage racks, etc. should be properly grounded
n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s
plastic lens as a result of friction between LEDs during storage and handling
ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,
low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”
and Vf of the suspect LEDs at low currents.
The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP
product.
LED dirve IC by Maxim Integrated
MAX6959 4½-Digit LED Display Driver
MAX6958 4½-Digit LED Display Driver
MAX6955 7-, 14-, 16-Segment LED Display Driver
MAX6956 LED Static Display Driver and I/O Port
MAX6954 7-, 14-, 16-Segment LED Display Driver
MAX6952 5 x 7 Matrix LED Display Driver
MAX6957 LED Static Display Driver and I/O Port
MAX6950 5-Digit LED Display Driver
MAX6951 8-Digit LED Display Driver
ICM7212 4-Digit LED Driver
ICM7212A 4-Digit LED Driver
ICM7212AM 4-Digit LED Driver
ICM7212M 4-Digit LED Driver
ICM7218A 8-Digit LED Driver
ICM7218B 8-Digit LED Driver
ICM7218C 8-Digit LED Driver
ICM7218D 8-Digit LED Driver
MAX7221 8-Digit LED Display Driver
MAX7219 8-Digit LED Display Driver
When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:
- Determine the Forward Voltage (Vf) of the LED(s):
Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.
- Determine the Forward Current (If) of the LED(s):
The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.
- Decide on the Configuration:
Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.
Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.
Calculate Total Power Requirements:
Power (W) = Total Forward Voltage (V) x Total Forward Current (A)
For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:
Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W
- Select an Appropriate Power Supply:
- Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
- Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
- Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
- Consider Additional Features:
- Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
- Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
- Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
- Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
- Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.
In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.
Here are some well-regarded brands in the industry:
- Mean Well: One of the most recognized brands in the LED power supply industry, Mean Well offers a wide range of products suitable for both indoor and outdoor applications. Their units often come with features like overcurrent protection, dimming capabilities, and high efficiency.
- Tridonic: A global leader in lighting technology, Tridonic offers LED drivers and power supplies that cater to various lighting solutions, from simple setups to advanced smart lighting systems.
- Philips Advance Xitanium: Philips is a well-known brand in the lighting industry, and their Xitanium series of LED drivers are known for reliability and performance. They cater to both indoor and outdoor LED applications.
- Osram: Another giant in the lighting industry, Osram offers a range of LED drivers and power supplies suitable for various applications, including architectural and street lighting.
- LIFUD: Specializing in LED drivers, LIFUD is known for its high-quality products that cater to both commercial and residential LED lighting solutions.
- MOSO: This brand offers a variety of LED drivers, especially for outdoor and industrial applications. Their products are known for durability and performance.
- TDK-Lambda: With a history in power electronics, TDK-Lambda offers a range of power supplies and LED drivers suitable for various applications, emphasizing reliability and advanced features.
