Series No:
Weight:(g/pcs)
Dimension:(mm)
Character Height: (inch)
Specification:
Inquiry
Description:
Introduction
In the ever-evolving world of electronics, clear and reliable displays are crucial for conveying information. One of the most popular and versatile components is the 0.56 inch 4-digit seven segment LED display. This display, often detailed in the 5461as datasheet, is widely used for its efficiency and clarity. This article delves into the features, applications, and benefits of this display, with a particular focus on the 7 segment cathode display variant. We will also present case studies and user testimonials to highlight its real-world applications and effectiveness.
Features of the 0.56 Inch 4-Digit Seven Segment LED Display
The 0.56 inch 4-digit seven segment LED display is known for its compact size and high visibility. Key features include:
- High Brightness and Contrast: This display ensures clear visibility even in low-light conditions, making it ideal for both indoor and outdoor use.
- Durability: Designed to withstand various environmental conditions, these displays are highly durable.
- Energy Efficiency: Leveraging LED technology, these displays consume minimal power, which is crucial for battery-operated devices.
- Easy Integration: Compatible with various platforms, including the 5461bs, these displays are straightforward to integrate into different projects and circuits.
Applications of the 0.56 Inch 4-Digit Seven Segment LED Display
This display is versatile, finding applications across numerous fields:
- Digital Clocks and Timers: Often used in digital clocks, countdown timers, and stopwatches for precise time display.
- Measurement Instruments: Essential in devices like voltmeters, ammeters, and multimeters for accurate readings.
- Consumer Electronics: Common in household appliances such as microwaves, ovens, and air conditioners for displaying settings and timings.
- Automotive Displays: Used in car dashboards to show speed, temperature, and other critical data.
Benefits of Using a 0.56 Inch 4-Digit Seven Segment LED Display
Clarity and Readability: The high brightness and contrast ensure that numbers are easy to read, even from a distance.
Cost-Effectiveness: These displays offer a cost-effective solution compared to other display technologies, making them an economical choice for many applications.
Reliability: With a robust design and long lifespan, these displays provide reliable performance, reducing the need for frequent replacements.
Ease of Use: The 7 segment cathode display configuration simplifies wiring and integration, making it accessible for both professionals and hobbyists.
Case Studies
Case Study 1: Industrial Equipment Monitoring
A manufacturing company integrated the 0.56 inch 4-digit seven segment LED display into their equipment monitoring systems. The displays provided clear, real-time data on machine performance, which improved maintenance schedules and reduced downtime by 20%.
Case Study 2: Consumer Electronics Enhancement
A home appliance manufacturer used these displays in their new line of microwaves. Customers appreciated the clear, bright display of cooking times and settings, leading to a 15% increase in customer satisfaction and a reduction in user errors.
User Testimonials
John S., Electronics Engineer: “I’ve been using the 0.56 inch 4-digit seven segment LED display in my projects for years. Its reliability and ease of use make it my go-to choice for numeric displays.”
Emily R., Product Designer: “These displays are fantastic for consumer electronics. Our latest product line saw a significant boost in user satisfaction thanks to the clear, bright display.”
Integration with Common Anode Configurations
The 0.56 inch 4-digit seven segment LED display is also available in 4 digit 7 segment display common anode configurations. These are particularly popular for projects that require a common positive voltage, simplifying the circuit design.
Conclusion
The 0.56 inch 4-digit seven segment LED display is a versatile and reliable component, suitable for a wide range of applications, from industrial equipment to consumer electronics. Its features, including high brightness, durability, and ease of integration, make it an ideal choice for displaying numeric information. Whether you are an electronics manufacturer, engineer, or product designer, this display offers a cost-effective solution to meet your needs.
Call to Action
Ready to enhance your next project with a reliable and clear display? Consider the 0.56 inch 4-digit seven segment LED display. For more information and to place an order, visit our website or contact our sales team today.

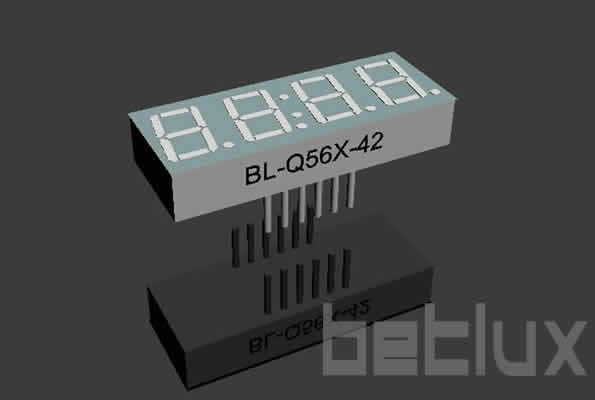

0.56 inch four numeric LED display
0.56 inch digit height(14.20mm)
widthxheight:50.30×19.00mm
Low Current Operation
Common Anode and Common Cathode available
Excellent Character Appearance
High Light Output
Easy Mounting On PC Boards or Sockets
IC Compatible
Multicolor Available
Categorized for Luminous Intensity
Technically Rugged
Standard: Gray Surface, White Segment
RoHs Compliance
Application:
- Digital clocks
- Timers
- Counters
- Instrument panels
- Test and measurement equipment
- Process control displays
- Industrial equipment
- Consumer electronics
- Communication devices
Electrical-optical characteristics:
Part No. (Cathode) | Part No. (Anode) | Emitting Color | Material | Peak Wavelength (nm) | Voltage typ.(v) | Voltage max. (v) | Luminous min | Luminous typ |
|---|---|---|---|---|---|---|---|---|
BL-Q56A-42B |
BL-Q56B-42B |
ultra Blue |
InGaN/SiC |
470 |
4.2 |
65 |
110 |
|
BL-Q56A-42D |
BL-Q56B-42D |
Super Red |
GaAlAs/DH |
660 |
2.2 |
80 |
120 |
|
BL-Q56A-42E |
BL-Q56B-42E |
Orange |
GaAsP/GaP |
635 |
2.5 |
85 |
120 |
|
BL-Q56A-42G |
BL-Q56B-42G |
Green |
GaP/GaP |
570 |
2.5 |
85 |
120 |
|
BL-Q56A-42H |
BL-Q56B-42H |
Red |
GaP/GaP |
700 |
2.6 |
8.5 |
11.5 |
|
BL-Q56A-42PG |
BL-Q56B-42PG |
Ultra Pure Green |
InGaN/SiC |
525 |
4.2 |
120 |
195 |
|
BL-Q56A-42S |
BL-Q56B-42S |
Hi Red |
GaAlAs/SH |
660 |
2.2 |
85 |
115 |
|
BL-Q56A-42UB |
BL-Q56B-42UB |
ultra Blue |
InGaN/SiC |
470 |
4.2 |
85 |
125 |
|
BL-Q56A-42UE |
BL-Q56B-42UE |
Ultra Orange |
AlGaInP |
630 |
2.5 |
100 |
145 |
|
BL-Q56A-42UG |
BL-Q56B-42UG |
Ultra Green |
AlGaInP |
574 |
2.5 |
100 |
145 |
|
BL-Q56A-42UR |
BL-Q56B-42UR |
Ultra Red |
GaAlAs/DDH |
660 |
2.2 |
110 |
165 |
|
BL-Q56A-42UY |
BL-Q56B-42UY |
Ultra Yellow |
AlGaInP |
590 |
2.5 |
90 |
140 |
|
BL-Q56A-42W |
BL-Q56B-42W |
Ultra White |
InGaN |
- |
4.2 |
150 |
||
BL-Q56A-42Y |
BL-Q56B-42Y |
Yellow |
GaAsP/GaP |
585 |
2.5 |
85 |
120 |
Package configuration & Internal circuit diagram
All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.
Partno description:
LED seven segment , called also LED numeric display, is widely applied in home appliance panel display and other application.
More information
Reflector Surface color (1st number)/ Segment Lens color (2nd number):
| Number | 0 | 1 | 2 | 3 | 4 | 5 |
| Ref Surface Color | White | Black | Gray | Red | Green | |
| Epoxy Color | Water clear | White diffused | Red Diffused | Green Diffused | Yellow Diffused |
Absolute maximum ratings (Ta= 25°C)
| Parameter | S | D | UR | E | Y | G | Unit | |
| Forward Current IF | 25 | 25 | 25 | 25 | 25 | 30 | mA | |
| Power Dissipation Pd | 60 | 60 | 60 | 60 | 60 | 65 | mW | |
| Reverse Voltage VR | 5 | 5 | 5 | 5 | 5 | 5 | V | |
| Peak Forward Current IPF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | mA | |
| Operation Temperature TOPR | -40 to +80 | °C | ||||||
| Storage Temperature TSTG | -40 to +85 | °C | ||||||
| Lead Soldering Temperature TSOL | Max.260+ 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb) | °C | ||||||
Absolute maximum ratings (Ta= 25°C)
| Parameter | UHR | UE | YO | UY | UG | PG | UB | UW | Unit |
| Forward Current IF | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | mA |
| Power Dissipation Pd | 75 | 65 | 65 | 65 | 75 | 110 | 120 | 120 | mW |
| Reverse Voltage VR | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | V |
| Peak Forward Current IPF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | 100 | 100 | mA |
| Operation Temperature TOPR | -40 to +80 | °C | |||||||
| Storage Temperature TSTG | -40 to +85 | °C | |||||||
| Lead Soldering Temperature TSOL | Max.260+ 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb) | °C | |||||||
Related Information
Applied for:
1. Application
The Seven Segment LED is widely applied for ordinary electronic equipment (such as office equipment,
communication equipment and household applications). Checking with BETLUX’s Sales in
advance for information on applications in which exceptional reliability is required, particularly
when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in
aviation, transportation, traffic control equipment, medical and life support systems and safety
devices).
2. Storage
The storage ambient for the Seven Segment LED should not exceed 30℃ temperature or 70% relative humidity.
For extended storage out of their original packaging, it is recommended that the Seven Segment LEDs be stored
in a sealed container with appropriate desiccant, or in a desiccator with nitrogen ambient.
3. Cleaning
Avoid using any unspecified chemical solvent to clean LED . For example, Trichloroethylene, Chlorosen, Acetone, and Diflon S3MC.
Any cleaning method can only be taken under normal temperature in one minute or less if it is required.
Use water to clean the Seven Segment LED if necessary under room temperature
dry it immediately after that.
4.Forming
Any unsuitable stress applied to the epoxy may break bonding wires in LED
Any forming on lead pin must be done before soldering, not during or after soldering.
Avoid applying any stress to resin in order to prevent the epoxy fracture and break on bonding wire.
While forming, please use a tie bar cut or equivalent to hold or bend the pin.
2mm from the base of resin is the minimum distance for the place bending the lead pin.
Avoid bending the lead pin at the same point twice or more.
Soldering
When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.
Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.
Recommended soldering conditions:
| IR Reflow Soldering (for SMD display) | Wave Soldering | Soldering Iron | |||
| Pre-Heat | 150-180°C | Pre-Heat | 100°C Max. | Temperature | 300°C Max. |
| Pre-Heat Time | 120sec Max. | Pre-Heat Time | 60sec Max. | ||
| Peak Temperature | 260°C Max. | SolderWave | 260°C Max. | Soldering Time | 3sec Max.(one time only) |
| Soldering Time | 10 sec Max. | Soldering Time | 5sec Max. | ||
Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED
ESD(Electrostatic Discharge)
Static Electricity or power surge will damage the LED.
Suggestions to prevent ESD (Electrostatic Discharge):
n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs
n All devices, equipment, and machinery must be properly grounded
n Work tables, storage racks, etc. should be properly grounded
n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s
plastic lens as a result of friction between LEDs during storage and handling
ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,
low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”
and Vf of the suspect LEDs at low currents.
The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP
product.
LED dirve IC by Maxim Integrated
MAX6959 4½-Digit LED Display Driver
MAX6958 4½-Digit LED Display Driver
MAX6955 7-, 14-, 16-Segment LED Display Driver
MAX6956 LED Static Display Driver and I/O Port
MAX6954 7-, 14-, 16-Segment LED Display Driver
MAX6952 5 x 7 Matrix LED Display Driver
MAX6957 LED Static Display Driver and I/O Port
MAX6950 5-Digit LED Display Driver
MAX6951 8-Digit LED Display Driver
ICM7212 4-Digit LED Driver
ICM7212A 4-Digit LED Driver
ICM7212AM 4-Digit LED Driver
ICM7212M 4-Digit LED Driver
ICM7218A 8-Digit LED Driver
ICM7218B 8-Digit LED Driver
ICM7218C 8-Digit LED Driver
ICM7218D 8-Digit LED Driver
MAX7221 8-Digit LED Display Driver
MAX7219 8-Digit LED Display Driver
When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:
- Determine the Forward Voltage (Vf) of the LED(s):
Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.
- Determine the Forward Current (If) of the LED(s):
The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.
- Decide on the Configuration:
Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.
Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.
Calculate Total Power Requirements:
Power (W) = Total Forward Voltage (V) x Total Forward Current (A)
For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:
Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W
- Select an Appropriate Power Supply:
- Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
- Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
- Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
- Consider Additional Features:
- Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
- Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
- Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
- Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
- Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.
In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.
