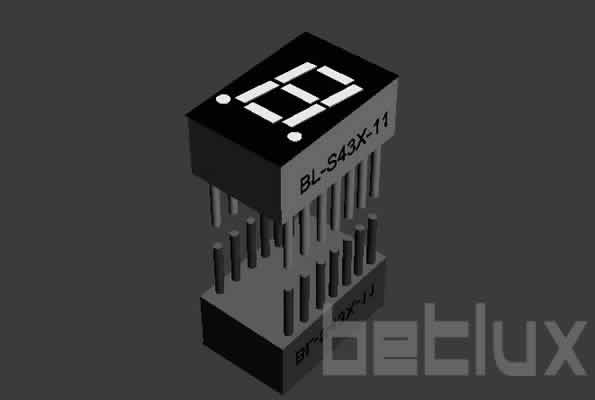

0.43 inch single-digit seven segment led display
Series No:
Weight:(g/pcs)
Dimension:(mm)
Character Height: (inch)
Specification:
Inquiry
Description:
Introduction
The 0.43 inch single-digit seven segment LED display is a crucial component in numerous electronic devices, providing a clear and efficient way to display numerical data. Known for its reliability and clarity, the 7 segment digit display is widely used in digital clocks, meters, and various industrial applications. In this article, we will explore the features, benefits, and real-world applications of these displays, with a focus on common cathode configurations. Additionally, we will include case studies and testimonials to highlight their practical advantages.
What is a 7 Segment Digit Display?
Definition and Overview
A 7 segment digit display is an electronic display device that uses seven individual segments to form numbers and some letters. Each segment is an LED that can be independently illuminated to create the desired numeral. The 0.43 inch size refers to the height of the digits, making it suitable for compact and portable devices.
Key Features of 0.43 Inch Single-Digit Seven Segment LED Displays
Compact Size with High Visibility
Despite its small footprint, the 0.43 inch single-digit seven segment LED display offers excellent visibility. The bright, clearly defined segments ensure that numbers can be read easily from a distance, which is crucial for applications like digital clocks and meters.
Durability and Longevity
These displays are built to last, featuring LEDs with a long operational life and robust construction. They are resistant to mechanical shocks and vibrations, making them suitable for both consumer electronics and industrial applications.
Energy Efficiency
7 segment digit displays are known for their low power consumption, making them an excellent choice for battery-powered devices. This energy efficiency helps extend the operational life of devices without frequent battery replacements.
Ease of Integration
The 0.43 inch single-digit LED displays are designed for easy integration with various electronic systems. They are compatible with a wide range of microcontrollers and can be incorporated with minimal wiring.
Applications of 0.43 Inch Single-Digit Seven Segment LED Displays
Digital Clocks and Timers
One of the most prevalent applications of 7 segment digit displays is in digital clocks and timers. Their high visibility and reliability ensure that the time is easily readable, even from a distance.
Electronic Meters
These displays are widely used in electronic meters such as voltmeters, ammeters, and frequency counters. The precise and clear numerical display allows for accurate readings, which are crucial in industrial and laboratory settings.
Home Appliances
Many home appliances, including microwaves, ovens, and washing machines, use 7 segment LED displays to show settings, timings, and other essential information.
Instrumentation Panels
In industrial settings, instrumentation panels often feature 7 segment LED displays to provide real-time data on various parameters. This ensures efficient monitoring and control.
Benefits of Using 7 Segment Digit Displays
High Readability
The primary advantage of 7 segment digit displays is their high readability. The bright and distinct segments make the numbers easy to read, even in low-light conditions.
Cost-Effective
These displays are relatively inexpensive compared to other types of displays, making them a cost-effective choice for many applications.
Versatility
7 segment LED displays are highly versatile and can be used in a wide range of applications, from simple consumer electronics to complex industrial equipment.
Reliability
Known for their reliability, these displays offer consistent performance over long periods, reducing the need for frequent maintenance or replacement.
Case Studies
Case Study 1: Digital Clocks in Schools
Schools have adopted 0.43 inch single-digit seven segment LED displays in their digital clocks. The clear visibility and reliability of these displays ensure that students and staff can easily keep track of time, promoting punctuality and efficient time management.
Case Study 2: Industrial Instrumentation
A leading manufacturer of industrial instrumentation panels implemented these displays in their products. The decision was based on the display’s durability and readability, which are crucial in industrial environments where precise data monitoring is essential.
User Testimonials
Testimonial 1: John, Electronics Engineer
“As an electronics engineer, I’ve used the 0.43 inch single-digit seven segment LED display in several projects. Its compact size and high visibility make it an excellent choice for both consumer and industrial applications. I’ve found it to be incredibly reliable and easy to integrate.”
Testimonial 2: Sarah, Home Appliance Designer
“I design home appliances, and I always choose 7 segment LED displays for their simplicity and effectiveness. The 0.43 inch size is perfect for the compact designs I work on, and my customers appreciate the clear and bright display.”
Conclusion
The 0.43 inch single-digit seven segment LED display is a versatile, reliable, and cost-effective solution for displaying numerical information in a wide range of applications. From digital clocks and electronic meters to home appliances and industrial instrumentation panels, these displays offer numerous benefits that make them a preferred choice for electronics manufacturers and engineers. With their high readability, durability, and low power consumption, 7 segment LED displays continue to be a staple in the world of electronic displays.
Call to Action
For more information on incorporating 0.43 inch single-digit seven segment LED displays into your projects, or to explore our range of products, visit our website today. Enhance your devices with the reliability and clarity of 7 segment LED displays.
0.43 inch digit height(10.92mm)
widthxheight: 12.60×19.00mm
Double decimal point
Single LED chip per segment
Common anode or common cathode selected
Low Current Operation
Common Anode and Common Cathode available
Excellent Character Appearance
High Light Output
Easy Mounting On PC Boards or Sockets
IC Compatible
Multicolor Available
Categorized for Luminous Intensity
Technically Rugged
Standard: Gray Surface, White Segment
RoHs Compliance
Applications:
- Digital clocks and timers
- Counters and scoreboards
- Process control displays in industrial settings
- Instrumentation panels for measuring and displaying parameters
- Test and measurement instruments
- Consumer electronics such as calculators and small appliances
- Automotive instrumentation for speed, fuel levels, etc.
- Home appliances for displaying time, temperature, etc.
Electrical-optical characteristics:
Part No. (Cathode) | Part No. (Anode) | Emitting Color | Material | Peak Wavelength (nm) | Voltage typ.(v) | Voltage max. (v) | Luminous min | Luminous typ |
---|---|---|---|---|---|---|---|---|
BL-S43A-11B |
BL-S43B-11B |
ultra Blue |
InGaN/SiC |
470 |
4.2 |
25 |
35 |
|
BL-S43A-11D |
BL-S43B-11D |
Super Red |
GaAlAs/DH |
660 |
2.2 |
11 |
20 |
|
BL-S43A-11E |
BL-S43B-11E |
Orange |
GaAsP/GaP |
635 |
2.5 |
9 |
15 |
|
BL-S43A-11G |
BL-S43B-11G |
Green |
GaP/GaP |
570 |
2.5 |
9 |
15 |
|
BL-S43A-11H |
BL-S43B-11H |
Red |
GaP/GaP |
700 |
2.6 |
0.5 |
1 |
|
BL-S43A-11PG |
BL-S43B-11PG |
Ultra Pure Green |
InGaN/SiC |
525 |
4.2 |
15 |
23 |
|
BL-S43A-11S |
BL-S43B-11S |
Hi Red |
GaAlAs/SH |
660 |
2.2 |
5 |
10 |
|
BL-S43A-11UB |
BL-S43B-11UB |
ultra Blue |
InGaN/SiC |
470 |
4.2 |
30 |
45 |
|
BL-S43A-11UE |
BL-S43B-11UE |
Ultra Orange |
AlGaInP |
630 |
2.5 |
12 |
17 |
|
BL-S43A-11UG |
BL-S43B-11UG |
Ultra Green |
AlGaInP |
574 |
2.5 |
11 |
20 |
|
BL-S43A-11UR |
BL-S43B-11UR |
Ultra Red |
GaAlAs/DDH |
660 |
2.2 |
14 |
19 |
|
BL-S43A-11UY |
BL-S43B-11UY |
Ultra Yellow |
AlGaInP |
590 |
2.5 |
11 |
17 |
|
BL-S43A-11W |
BL-S43B-11W |
Ultra White |
InGaN |
- |
4.2 |
40 |
||
BL-S43A-11Y |
BL-S43B-11Y |
Yellow |
GaAsP/GaP |
585 |
2.5 |
9 |
15 |
Partno description:
More information
Reflector Surface color (1st number)/ Segment Lens color (2nd number):
Number | 0 | 1 | 2 | 3 | 4 | 5 |
Ref Surface Color | White | Black | Gray | Red | Green | |
Epoxy Color | Water clear | White diffused | Red Diffused | Green Diffused | Yellow Diffused |
Absolute maximum ratings (Ta= 25°C)
Parameter | S | D | UR | E | Y | G | Unit | |
Forward Current IF | 25 | 25 | 25 | 25 | 25 | 30 | mA | |
Power Dissipation Pd | 60 | 60 | 60 | 60 | 60 | 65 | mW | |
Reverse Voltage VR | 5 | 5 | 5 | 5 | 5 | 5 | V | |
Peak Forward Current IPF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | mA | |
Operation Temperature TOPR | -40 to +80 | °C | ||||||
Storage Temperature TSTG | -40 to +85 | °C | ||||||
Lead Soldering Temperature TSOL | Max.260+ 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb) | °C |
Absolute maximum ratings (Ta= 25°C)
Parameter | UHR | UE | YO | UY | UG | PG | UB | UW | Unit |
Forward Current IF | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | mA |
Power Dissipation Pd | 75 | 65 | 65 | 65 | 75 | 110 | 120 | 120 | mW |
Reverse Voltage VR | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | V |
Peak Forward Current IPF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | 100 | 100 | mA |
Operation Temperature TOPR | -40 to +80 | °C | |||||||
Storage Temperature TSTG | -40 to +85 | °C | |||||||
Lead Soldering Temperature TSOL | Max.260+ 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb) | °C |
Related Information
Applied for:
1. Application
The Seven Segment LED is widely applied for ordinary electronic equipment (such as office equipment,
communication equipment and household applications). Checking with BETLUX’s Sales in
advance for information on applications in which exceptional reliability is required, particularly
when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in
aviation, transportation, traffic control equipment, medical and life support systems and safety
devices).
2. Storage
The storage ambient for the Seven Segment LED should not exceed 30℃ temperature or 70% relative humidity.
For extended storage out of their original packaging, it is recommended that the Seven Segment LEDs be stored
in a sealed container with appropriate desiccant, or in a desiccator with nitrogen ambient.
3. Cleaning
Avoid using any unspecified chemical solvent to clean LED . For example, Trichloroethylene, Chlorosen, Acetone, and Diflon S3MC.
Any cleaning method can only be taken under normal temperature in one minute or less if it is required.
Use water to clean the Seven Segment LED if necessary under room temperature
dry it immediately after that.
4.Forming
Any unsuitable stress applied to the epoxy may break bonding wires in LED
Any forming on lead pin must be done before soldering, not during or after soldering.
Avoid applying any stress to resin in order to prevent the epoxy fracture and break on bonding wire.
While forming, please use a tie bar cut or equivalent to hold or bend the pin.
2mm from the base of resin is the minimum distance for the place bending the lead pin.
Avoid bending the lead pin at the same point twice or more.
Soldering
When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.
Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.
Recommended soldering conditions:
IR Reflow Soldering (for SMD display) | Wave Soldering | Soldering Iron | |||
Pre-Heat | 150-180°C | Pre-Heat | 100°C Max. | Temperature | 300°C Max. |
Pre-Heat Time | 120sec Max. | Pre-Heat Time | 60sec Max. | ||
Peak Temperature | 260°C Max. | SolderWave | 260°C Max. | Soldering Time | 3sec Max.(one time only) |
Soldering Time | 10 sec Max. | Soldering Time | 5sec Max. |
Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED
ESD(Electrostatic Discharge)
Static Electricity or power surge will damage the LED.
Suggestions to prevent ESD (Electrostatic Discharge):
n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs
n All devices, equipment, and machinery must be properly grounded
n Work tables, storage racks, etc. should be properly grounded
n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s
plastic lens as a result of friction between LEDs during storage and handling
ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,
low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”
and Vf of the suspect LEDs at low currents.
The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP
product.
LED dirve IC by Maxim Integrated
MAX6959 4½-Digit LED Display Driver
MAX6958 4½-Digit LED Display Driver
MAX6955 7-, 14-, 16-Segment LED Display Driver
MAX6956 LED Static Display Driver and I/O Port
MAX6954 7-, 14-, 16-Segment LED Display Driver
MAX6952 5 x 7 Matrix LED Display Driver
MAX6957 LED Static Display Driver and I/O Port
MAX6950 5-Digit LED Display Driver
MAX6951 8-Digit LED Display Driver
ICM7212 4-Digit LED Driver
ICM7212A 4-Digit LED Driver
ICM7212AM 4-Digit LED Driver
ICM7212M 4-Digit LED Driver
ICM7218A 8-Digit LED Driver
ICM7218B 8-Digit LED Driver
ICM7218C 8-Digit LED Driver
ICM7218D 8-Digit LED Driver
MAX7221 8-Digit LED Display Driver
MAX7219 8-Digit LED Display Driver
When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:
- Determine the Forward Voltage (Vf) of the LED(s):
Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.
- Determine the Forward Current (If) of the LED(s):
The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.
- Decide on the Configuration:
Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.
Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.
Calculate Total Power Requirements:
Power (W) = Total Forward Voltage (V) x Total Forward Current (A)
For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:
Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W
- Select an Appropriate Power Supply:
- Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
- Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
- Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
- Consider Additional Features:
- Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
- Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
- Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
- Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
- Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.
In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.
Here are some well-regarded brands in the industry:
- Mean Well: One of the most recognized brands in the LED power supply industry, Mean Well offers a wide range of products suitable for both indoor and outdoor applications. Their units often come with features like overcurrent protection, dimming capabilities, and high efficiency.
- Tridonic: A global leader in lighting technology, Tridonic offers LED drivers and power supplies that cater to various lighting solutions, from simple setups to advanced smart lighting systems.
- Philips Advance Xitanium: Philips is a well-known brand in the lighting industry, and their Xitanium series of LED drivers are known for reliability and performance. They cater to both indoor and outdoor LED applications.
- Osram: Another giant in the lighting industry, Osram offers a range of LED drivers and power supplies suitable for various applications, including architectural and street lighting.
- LIFUD: Specializing in LED drivers, LIFUD is known for its high-quality products that cater to both commercial and residential LED lighting solutions.
- MOSO: This brand offers a variety of LED drivers, especially for outdoor and industrial applications. Their products are known for durability and performance.
- TDK-Lambda: With a history in power electronics, TDK-Lambda offers a range of power supplies and LED drivers suitable for various applications, emphasizing reliability and advanced features.
Need help?
Related products
-
1.00 inch single-digit seven segment led display, bi-color
Quick View View products -
0.43 inch single-digit seven segment led display
Quick View View products -
1.00 inch single-digit seven segment led display
Quick View View products -
1.00 inch single-digit seven segment led display
Quick View View products
