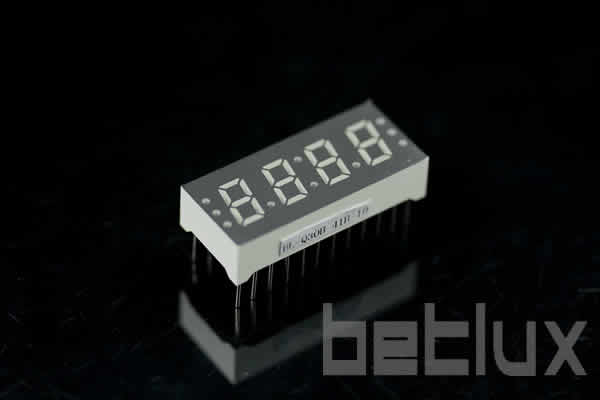

0.30 inch 4-digit seven segment led display
Series No:
Weight:(g/pcs)
Dimension:(mm)
Character Height: (inch)
Specification:
Inquiry
Description:
Introduction
The 0.30 inch 4-digit seven segment LED display has emerged as a vital component in modern digital electronics, renowned for its precise display capabilities and compact design. Commonly featured in numerous 7 seg display datasheets
, this device is essential for engineers and manufacturers seeking reliable and efficient display solutions. In this article, we’ll explore the features, applications, benefits, and real-world effectiveness of this innovative technology, enriched by user testimonials and case studies.
Unveiling the Features of the 0.30 Inch Display
Enhanced Visual Clarity: With each segment crafted for optimal visibility, this display ensures that information is easily readable, a critical feature for devices used in diverse lighting conditions.
Compact Efficiency: The 0.30 inch size of the display is perfect for applications where space saving is crucial without compromising the quality of the readout.
Energy Conservation: Engineered for low power consumption, the display is ideal for battery-powered devices, extending their operational life significantly.
Ease of Integration: Compatibility with a wide range of microcontrollers makes this display a preferred choice for seamless integration into various electronic projects.
Broad Applications in the Electronics Industry
This LED display is extensively used in:
- Consumer Electronics: From wristwatches and calculators to more complex household appliances.
- Medical Equipment: Vital in devices requiring precise, quick-read information such as glucose monitors and blood pressure meters.
- Automotive: Enhances the functionality of dashboard instruments, providing clear and immediate feedback to drivers.
Advantages of Using the 0.30 Inch LED Display
Reliability: The robust construction of the display ensures it can withstand frequent use and harsh conditions, making it ideal for both consumer and industrial applications.
Cost-Effectiveness: Due to its long lifespan and minimal maintenance requirements, this display offers significant cost savings over other technologies.
User-Friendly Design: The simplicity and effectiveness of the display enhance the overall user experience by providing clear and immediate data visualization.
Real-World Success: Case Studies
Case Study 1: A leading consumer electronics company integrated the 0.30 inch display into their line of programmable cooking timers, resulting in a 30% increase in customer satisfaction due to enhanced usability and design.
Case Study 2: An automotive manufacturer employed these displays in a new model of eco-friendly vehicles to provide drivers with real-time, easy-to-read data on fuel efficiency, contributing to a higher market uptake.
User Testimonials
From a Design Engineer: “We rely on the 0.30 inch seven segment display for its precision and durability. It’s our standard choice for small, consumer-focused devices.”
From a Procurement Manager: “These displays are not only cost-efficient but also incredibly reliable. Our long-term maintenance costs have drastically decreased since switching to this model.”
Conclusion
The 0.30 inch 4-digit seven segment LED display represents a leap forward in display technology, combining functionality, efficiency, and reliability. Its widespread adoption across various sectors is a testament to its ability to meet the evolving demands of the electronics industry.
Call to Action
Revolutionize your electronic products with our high-quality 0.30 inch 4-digit seven segment LED display. Contact us today to learn how this advanced technology can improve your offerings and satisfy your customers!
Features
- 0.30-Inch Digit Height (7.60mm): Provides clear visibility for numeric displays, ideal for applications that require small-sized digits.
- Dimensions (Width x Height): 30.40 x 13.20mm: Compact and space-efficient, making it suitable for a variety of applications where space is at a premium.
- Low Current Operation: Energy-efficient, beneficial for both battery-powered and low-power electronic devices.
- Common Anode and Cathode Options: Offers flexibility in circuit design, accommodating various electronic configurations.
- Excellent Character Appearance: Ensures digits are displayed clearly and legibly, enhancing readability.
- High Light Output: Bright enough for easy reading under different lighting conditions.
- Easy Mounting on PC Boards or Sockets: Designed for straightforward installation, facilitating efficient integration into electronic systems.
- IC Compatible: Can be integrated with integrated circuits, suitable for use in complex electronic designs.
- Multicolor Availability: Provides options for different colors, adding versatility in design and functional use.
- Categorized for Luminous Intensity: Ensures consistent brightness levels across units, important for uniform display quality.
- Technically Rugged: Durable and reliable, capable of withstanding various operational environments.
- Standard Design: Gray Surface, White Segment: Offers a classic look with high contrast for ease of reading.
- RoHS Compliance: Meets environmental standards, adhering to regulations that restrict hazardous substances.
Applications
- Industrial Control Panels: Suitable for use in industrial settings for monitoring and controlling processes.
- Electronic Scoreboards: Ideal for sports venues, displaying scores or other information.
- Digital Clocks and Timers: Appropriate for timekeeping devices in various settings, from kitchens to sporting events.
- Consumer Electronics: Useful in household appliances and gadgets that require numeric displays.
- Automotive Dashboards: Suitable for displaying information such as fuel level, temperature, or speed in vehicles.
- Medical Devices: Can be used in healthcare equipment for displaying measurements or timer functions.
- Telecommunication Systems: Ideal for network devices, showing data such as signal strength or channel numbers.
- Retail Price Displays: Effective in showing prices or quantities in retail settings.
- Home Automation Systems: Useful in smart home devices for displaying settings or statuses.
- Portable Electronic Devices: Suitable for handheld gadgets where space is limited.
- Laboratory Equipment: Can be used in scientific instruments for displaying measurements or experimental data.
- Security Systems: Appropriate for security panels displaying status codes or settings.
Electrical-optical characteristics:
Part No. (Cathode) | Part No. (Anode) | Emitting Color | Material | Peak Wavelength (nm) | Voltage typ.(v) | Voltage max. (v) | Luminous min | Luminous typ |
---|---|---|---|---|---|---|---|---|
BL-Q30A-41B |
BL-Q30B-41B |
ultra Blue |
InGaN/SiC |
470 |
4.2 |
60 |
90 |
|
BL-Q30A-41D |
BL-Q30B-41D |
Super Red |
GaAlAs/DH |
660 |
2.2 |
70 |
110 |
|
BL-Q30A-41E |
BL-Q30B-41E |
Orange |
GaAsP/GaP |
635 |
2.5 |
70 |
105 |
|
BL-Q30A-41G |
BL-Q30B-41G |
Green |
GaP/GaP |
570 |
2.5 |
70 |
110 |
|
BL-Q30A-41H |
BL-Q30B-41H |
Red |
GaP/GaP |
700 |
2.6 |
7.5 |
10 |
|
BL-Q30A-41PG |
BL-Q30B-41PG |
Ultra Pure Green |
InGaN/SiC |
525 |
4.2 |
115 |
195 |
|
BL-Q30A-41S |
BL-Q30B-41S |
Hi Red |
GaAlAs/SH |
660 |
2.2 |
75 |
100 |
|
BL-Q30A-41UB |
BL-Q30B-41UB |
ultra Blue |
InGaN/SiC |
470 |
4.2 |
75 |
120 |
|
BL-Q30A-41UE |
BL-Q30B-41UE |
Ultra Orange |
AlGaInP |
630 |
2.5 |
95 |
130 |
|
BL-Q30A-41UG |
BL-Q30B-41UG |
Ultra Green |
AlGaInP |
574 |
2.5 |
95 |
130 |
|
BL-Q30A-41UR |
BL-Q30B-41UR |
Ultra Red |
GaAlAs/DDH |
660 |
2.2 |
97 |
150 |
|
BL-Q30A-41UY |
BL-Q30B-41UY |
Ultra Yellow |
AlGaInP |
590 |
2.5 |
80 |
120 |
|
BL-Q30A-41W |
BL-Q30B-41W |
Ultra White |
InGaN |
- |
4.2 |
140 |
||
BL-Q30A-41Y |
BL-Q30B-41Y |
Yellow |
GaAsP/GaP |
585 |
2.5 |
70 |
105 |
Partno description:
More information
Reflector Surface color (1st number)/ Segment Lens color (2nd number):
Number | 0 | 1 | 2 | 3 | 4 | 5 |
Ref Surface Color | White | Black | Gray | Red | Green | |
Epoxy Color | Water clear | White diffused | Red Diffused | Green Diffused | Yellow Diffused |
Absolute maximum ratings (Ta= 25°C)
Parameter | S | D | UR | E | Y | G | Unit | |
Forward Current IF | 25 | 25 | 25 | 25 | 25 | 30 | mA | |
Power Dissipation Pd | 60 | 60 | 60 | 60 | 60 | 65 | mW | |
Reverse Voltage VR | 5 | 5 | 5 | 5 | 5 | 5 | V | |
Peak Forward Current IPF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | mA | |
Operation Temperature TOPR | -40 to +80 | °C | ||||||
Storage Temperature TSTG | -40 to +85 | °C | ||||||
Lead Soldering Temperature TSOL | Max.260+ 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb) | °C |
Absolute maximum ratings (Ta= 25°C)
Parameter | UHR | UE | YO | UY | UG | PG | UB | UW | Unit |
Forward Current IF | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | mA |
Power Dissipation Pd | 75 | 65 | 65 | 65 | 75 | 110 | 120 | 120 | mW |
Reverse Voltage VR | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | V |
Peak Forward Current IPF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | 100 | 100 | mA |
Operation Temperature TOPR | -40 to +80 | °C | |||||||
Storage Temperature TSTG | -40 to +85 | °C | |||||||
Lead Soldering Temperature TSOL | Max.260+ 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb) | °C |
Related Information
Applied for:
1. Application
The Seven Segment LED is widely applied for ordinary electronic equipment (such as office equipment,
communication equipment and household applications). Checking with BETLUX’s Sales in
advance for information on applications in which exceptional reliability is required, particularly
when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in
aviation, transportation, traffic control equipment, medical and life support systems and safety
devices).
2. Storage
The storage ambient for the Seven Segment LED should not exceed 30℃ temperature or 70% relative humidity.
For extended storage out of their original packaging, it is recommended that the Seven Segment LEDs be stored
in a sealed container with appropriate desiccant, or in a desiccator with nitrogen ambient.
3. Cleaning
Avoid using any unspecified chemical solvent to clean LED . For example, Trichloroethylene, Chlorosen, Acetone, and Diflon S3MC.
Any cleaning method can only be taken under normal temperature in one minute or less if it is required.
Use water to clean the Seven Segment LED if necessary under room temperature
dry it immediately after that.
4.Forming
Any unsuitable stress applied to the epoxy may break bonding wires in LED
Any forming on lead pin must be done before soldering, not during or after soldering.
Avoid applying any stress to resin in order to prevent the epoxy fracture and break on bonding wire.
While forming, please use a tie bar cut or equivalent to hold or bend the pin.
2mm from the base of resin is the minimum distance for the place bending the lead pin.
Avoid bending the lead pin at the same point twice or more.
Soldering
When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.
Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.
Recommended soldering conditions:
IR Reflow Soldering (for SMD display) | Wave Soldering | Soldering Iron | |||
Pre-Heat | 150-180°C | Pre-Heat | 100°C Max. | Temperature | 300°C Max. |
Pre-Heat Time | 120sec Max. | Pre-Heat Time | 60sec Max. | ||
Peak Temperature | 260°C Max. | SolderWave | 260°C Max. | Soldering Time | 3sec Max.(one time only) |
Soldering Time | 10 sec Max. | Soldering Time | 5sec Max. |
Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED
ESD(Electrostatic Discharge)
Static Electricity or power surge will damage the LED.
Suggestions to prevent ESD (Electrostatic Discharge):
n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs
n All devices, equipment, and machinery must be properly grounded
n Work tables, storage racks, etc. should be properly grounded
n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s
plastic lens as a result of friction between LEDs during storage and handling
ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,
low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”
and Vf of the suspect LEDs at low currents.
The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP
product.
LED dirve IC by Maxim Integrated
MAX6959 4½-Digit LED Display Driver
MAX6958 4½-Digit LED Display Driver
MAX6955 7-, 14-, 16-Segment LED Display Driver
MAX6956 LED Static Display Driver and I/O Port
MAX6954 7-, 14-, 16-Segment LED Display Driver
MAX6952 5 x 7 Matrix LED Display Driver
MAX6957 LED Static Display Driver and I/O Port
MAX6950 5-Digit LED Display Driver
MAX6951 8-Digit LED Display Driver
ICM7212 4-Digit LED Driver
ICM7212A 4-Digit LED Driver
ICM7212AM 4-Digit LED Driver
ICM7212M 4-Digit LED Driver
ICM7218A 8-Digit LED Driver
ICM7218B 8-Digit LED Driver
ICM7218C 8-Digit LED Driver
ICM7218D 8-Digit LED Driver
MAX7221 8-Digit LED Display Driver
MAX7219 8-Digit LED Display Driver
When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:
- Determine the Forward Voltage (Vf) of the LED(s):
Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.
- Determine the Forward Current (If) of the LED(s):
The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.
- Decide on the Configuration:
Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.
Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.
Calculate Total Power Requirements:
Power (W) = Total Forward Voltage (V) x Total Forward Current (A)
For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:
Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W
- Select an Appropriate Power Supply:
- Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
- Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
- Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
- Consider Additional Features:
- Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
- Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
- Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
- Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
- Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.
In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.
Here are some well-regarded brands in the industry:
- Mean Well: One of the most recognized brands in the LED power supply industry, Mean Well offers a wide range of products suitable for both indoor and outdoor applications. Their units often come with features like overcurrent protection, dimming capabilities, and high efficiency.
- Tridonic: A global leader in lighting technology, Tridonic offers LED drivers and power supplies that cater to various lighting solutions, from simple setups to advanced smart lighting systems.
- Philips Advance Xitanium: Philips is a well-known brand in the lighting industry, and their Xitanium series of LED drivers are known for reliability and performance. They cater to both indoor and outdoor LED applications.
- Osram: Another giant in the lighting industry, Osram offers a range of LED drivers and power supplies suitable for various applications, including architectural and street lighting.
- LIFUD: Specializing in LED drivers, LIFUD is known for its high-quality products that cater to both commercial and residential LED lighting solutions.
- MOSO: This brand offers a variety of LED drivers, especially for outdoor and industrial applications. Their products are known for durability and performance.
- TDK-Lambda: With a history in power electronics, TDK-Lambda offers a range of power supplies and LED drivers suitable for various applications, emphasizing reliability and advanced features.
