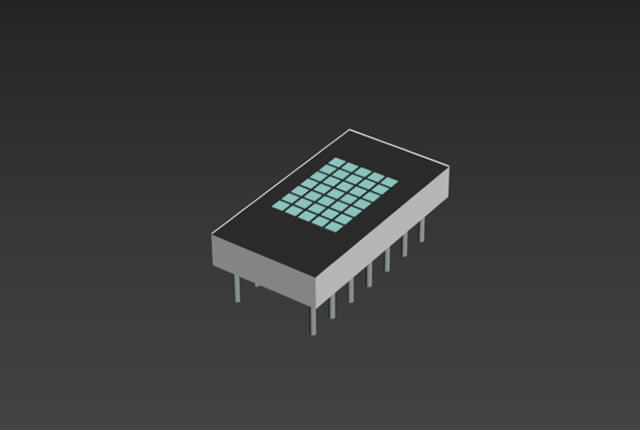

0.3 inch height 5×7 LED dot matrix

Series No:

BL-M03A571

Weight:(g/pcs)

1.75

Dimension:(mm)

10 x 14 x 8

Dot height:(mm)

0.3 inch

Dot pitch:(mm)

2mm

Dot size:(mm)

1.2mm

Specification:

download

Inquiry

Description:

Introduction

In the competitive field of electronic displays, the 0.3 inch height 5×7 LED dot matrix stands out as a versatile and reliable solution. Known for its compact design and clarity, the 5 * 7 dot matrix display offers an array of applications, from advertising panels to consumer electronics interfaces. This article delves into the technology behind these displays, their features, applications, and the benefits they bring to various industries, supplemented by case studies and user testimonials.

Understanding the 5×7 LED Dot Matrix Display

The 5×7 LED dot matrix display refers to an arrangement of LEDs in a 5 column by 7 row matrix which can be used to display characters and graphics in a mono color format. This configuration allows for high visibility and clarity, making it an excellent choice for both simple and complex display needs.

Key Features:

  • Resolution and Clarity: Provides clear visualization of characters and symbols.
  • Versatility: Suitable for both indoor and outdoor applications.
  • Energy Efficiency: Consumes less power compared to other lighting technologies.

Applications of the 5×7 LED Dot Matrix

The adaptability of the 5×7 dot matrix display makes it ideal for a variety of applications:

  • Consumer Electronics: Used in digital clocks, calculators, and other handheld devices.
  • Public Display Systems: Visible in train schedules, stock tickers, and information boards.
  • Advertising: Utilized in dynamic advertising signs and billboards.

Benefits of Using the 0.3 Inch 5×7 LED Dot Matrix

Adopting this technology offers numerous advantages:

  • Low Power Consumption: Ideal for battery-operated devices.
  • High Durability: Resistant to environmental factors such as dust and moisture.
  • Customizability: Flexible design options for specific project requirements.

Case Studies: Practical Applications in Action

These real-world examples highlight the effectiveness of the 5×7 LED dot matrix in various settings:

  1. Transportation Signage: A city’s metro system implemented these displays across all stations, improving commuter experience with real-time updates.
  2. Consumer Product Line: A leading electronics company integrated these displays into their new line of portable music players, enhancing user interaction.

User Testimonials: Feedback from Industry Professionals

  • Product Manager in Consumer Electronics: “The 5×7 dot matrix displays have allowed us to develop user-friendly interfaces that are both cost-effective and energy-efficient.”
  • Signage Specialist: “Our clients have been extremely satisfied with the upgrade to 5×7 LED displays for their outdoor advertising needs, noting the improved clarity and reliability.”

Conclusion

The 0.3 inch height 5×7 LED dot matrix is more than just a component; it is a transformative solution for display technology. With its versatility and efficiency, it continues to benefit a wide range of industries, pushing the boundaries of what is possible in electronic displays.

Call to Action: Ready to enhance your display solutions with advanced, reliable technology? Contact us today to see how our 5×7 LED dot matrix displays can revolutionize your products or advertising strategies.

0.3 inch height 5x7 LED dot matrix
0.3 inch height 5×7 LED dot matrix

Features: 0.3-inch 5×7 LED Dot Matrix

  • Matrix height: 19.7mm
  • Dot size: 1.90mm (circle dot)
  • Column: 5, Row: 7
  • Overall dimensions: 12.70 x 17.80mm
  • Low-current operation
  • High contrast and light output
  • Compatible with ASCII
  • RoHS compliance

Applications:

  • Alphanumeric displays
  • Scrolling text displays
  • Electronic message boards
  • Time and temperature displays
  • Indoor and outdoor signs
  • Information displays

RoHs Compliance, Pb-free              Anti-Static Attention

Electrical-optical characteristics:
Filters Sort results
Reset Apply
Part No.(Row Cathode)
Part No. (Row Anode)
Color
Material
Peak Wavelength (nm)
Voltage typ. (v)
Voltage Max. (v)
Luminous Min.
Luminous typ.
BL-M03A571B-XX
BL-M03B571B-XX
Ultra Blue
InGaN
470
4.2
50
BL-M03A571D-XX
BL-M03B571D-XX
Super Red
GaAlAs/GaAs,DH
660
2.2
80
BL-M03A571E-XX
BL-M03B571E-XX
Red
GaAsP/GaP
635
2.5
50
BL-M03A571G-XX
BL-M03B571G-XX
Green
GaP/GaP
570
2.5
55
BL-M03A571PG-XX
BL-M03B571PG-XX
Ultra Pure Green
InGaN
525
4.5
90
BL-M03A571S-XX
BL-M03B571S-XX
Hi Red
GaAlAs/GaAs,SH
660
2.2
60
BL-M03A571UE-XX
BL-M03B571UE-XX
Ultra Red
AlGaInP
630
2.5
60
BL-M03A571UG-XX
BL-M03B571UG-XX
Ultra Green
AlGaInP
574
2.5
55
BL-M03A571UHR-XX
BL-M03B571UHR-XX
Ultra Red
AlGaInP
645
2.5
80
BL-M03A571UR-XX
BL-M03B571UR-XX
Ultra Red
GaAlAs/GaAs,DDH
660
2.2
80
BL-M03A571UY-XX
BL-M03B571UY-XX
Ultra Yellow
AlGaInP
590
2.5
60
BL-M03A571W-XX
BL-M03B571W-XX
Ultra White
InGaN
/
4.2
50
BL-M03A571Y-XX
BL-M03B571Y-XX
Yellow
GaAsP/GaP
585
2.5
50
BL-M03A571YO-XX
BL-M03B571YO-XX
Ultra Amber
AlGaInP
619
2.5
60
Package configuration & Internal circuit diagram
0.3 inch height 5x7 LED dot matrix


All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.

Partno description:

LED dot matrix is widely used in LED information board indoor and semi-outdoor

Part No of LED dot matrix

More Information

Reflector Surface color (1st number)/ dot Lens color (2nd number):

Number012345
Ref Surface ColorWhiteBlackGrayRedGreen
Dot Epoxy ColorWater clearWhite diffusedRed DiffusedGreen DiffusedYellow Diffused

Absolute maximum ratings (Ta= 25°C)

Parameter SDUREYGUnit
Forward Current IF 252525252530mA
Power Dissipation Pd 606060606065mW
Reverse Voltage VR 555555V
Peak Forward Current IPF (Duty 1/10 @1KHZ) 150150150150150150mA
Operation Temperature TOPR-40 to +80°C
Storage Temperature TSTG-40 to +85°C
Lead Soldering Temperature TSOL  Max.260+ 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb)°C

Absolute maximum ratings (Ta= 25°C)

ParameterUHRUEYOUYUGPGUBUWUnit
Forward Current IF3030303030303030mA
Power Dissipation Pd7565656575110120120mW
Reverse Voltage VR55555555V
Peak Forward Current IPF (Duty 1/10 @1KHZ)150150150150150150100100mA
Operation Temperature TOPR-40 to +80°C
Storage Temperature TSTG-40 to +85°C
Lead Soldering Temperature TSOLMax.260+ 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb)°C
Related Information

Applied for:
trainbus information boardLED screnmessage boardindustry instrument

1. Application
The Seven Segment LED is widely applied for ordinary electronic equipment (such as office equipment,
communication equipment and household applications). Checking with BETLUX’s Sales in
advance for information on applications in which exceptional reliability is required, particularly
when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in
aviation, transportation, traffic control equipment, medical and life support systems and safety
devices).

2. Storage
The storage ambient for the Seven Segment LED should not exceed 30℃ temperature or 70% relative humidity.
For extended storage out of their original packaging, it is recommended that the Seven Segment LEDs be stored
in a sealed container with appropriate desiccant, or in a desiccator with nitrogen ambient.

3. Cleaning
Avoid using any unspecified chemical solvent to clean LED . For example, Trichloroethylene, Chlorosen, Acetone, and Diflon S3MC.
Any cleaning method can only be taken under normal temperature in one minute or less if it is required.
Use water to clean the Seven Segment LED if necessary under room temperature
dry it immediately after that.

4.Forming
Any unsuitable stress applied to the epoxy may break bonding wires in LED
Any forming on lead pin must be done before soldering, not during or after soldering.
Avoid applying any stress to resin in order to prevent the epoxy fracture and break on bonding wire.
While forming, please use a tie bar cut or equivalent to hold or bend the pin.
2mm from the base of resin is the minimum distance for the place bending the lead pin.
Avoid bending the lead pin at the same point twice or more.

seven segment display forming caution

Soldering

When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.

Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.

Recommended soldering conditions:



IR Reflow Soldering (for SMD display)Wave SolderingSoldering Iron
Pre-Heat150-180°CPre-Heat100°C Max.Temperature300°C Max.
Pre-Heat Time120sec Max.Pre-Heat Time60sec Max.
Peak Temperature260°C Max.SolderWave260°C Max.Soldering Time3sec Max.(one time only)
Soldering Time10 sec Max.Soldering Time5sec Max.

Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED

ESD(Electrostatic Discharge)

Static Electricity or power surge will damage the LED.

Suggestions to prevent ESD (Electrostatic Discharge):

n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs

n All devices, equipment, and machinery must be properly grounded

n Work tables, storage racks, etc. should be properly grounded

n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s

 plastic lens as a result of friction between LEDs during storage and handling

ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,

low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”

and Vf of the suspect LEDs at low currents.

The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP

 product.

antistatic notice-smd led
