Series No:
Weight:(g/pcs)
Dimension:(mm)
Package:
Specification:
Inquiry
Description:
Introduction
In the ever-evolving landscape of electronic components, the 5mm oval LED diode stands out as a beacon of efficiency, versatility, and innovation. Tailored for electronics manufacturer engineers, purchasers, and administrators, this comprehensive guide delves into the myriad of features, applications, and tangible benefits that these compact yet powerful light sources offer. Through detailed case studies and genuine user testimonials, we’ll illuminate the significance of the 5mm oval LED diode in various electronic applications, highlighting its impact on the industry.
Features and Applications of 5mm Oval LED Diode
The 5mm oval LED diode is not just another component in the electronics manufacturing process; it is a pivotal innovation that has reshaped the way we think about lighting and signal applications. Its unique size and shape make it highly suitable for a range of uses, from consumer electronics to automotive dashboard lighting, indicating its versatility across different sectors. The 5mm led light’s efficiency in energy consumption and its ability to emit light in a specific direction without the need for diffusers or reflectors sets it apart from conventional lighting solutions.
Benefits of Incorporating 5mm Oval LED Diodes
Adopting 5mm oval LED diodes brings numerous advantages to the table, including reduced energy consumption, longer lifespan, and minimal maintenance needs. These benefits not only contribute to a greener planet by decreasing CO2 emissions but also lead to significant cost savings over time. The reliability and durability of these LEDs ensure they can withstand harsh conditions, making them an ideal choice for outdoor and industrial applications.
Case Studies: 5mm Oval LED Diode in Action
Several case studies underscore the transformative power of 5mm oval LED diodes. For instance, an electronics manufacturer reported a 40% reduction in energy consumption after switching to 5mm led lights for their range of portable devices. Another compelling case is an automotive company that incorporated these LEDs into their new car models’ dashboard and tail lights, resulting in enhanced brightness and visibility, thereby improving safety and aesthetics.
User Testimonials: Shining a Light on Satisfaction
Feedback from the field further validates the effectiveness of 5mm oval LED diodes. “Switching to 5mm LED lights was a game-changer for our wearable tech products. The compact size and brightness level have significantly improved our product’s functionality and user experience,” shared a product manager from a renowned electronics company. A purchasing administrator mentioned, “The durability and long lifespan of 5mm oval LED diodes have considerably reduced our maintenance costs and improved our product offerings’ reliability.”
Conclusion: Embracing the Future with 5mm Oval LED Diodes
The 5mm oval LED diode is more than just a component; it’s a testament to the continuous innovation in the electronics industry. Its myriad of applications, significant benefits, and proven track record in various case studies and user testimonials underscore its indispensable role. As we move forward, embracing these powerful, efficient, and versatile lighting solutions will undoubtedly light the path to a brighter, more sustainable future in electronics manufacturing and beyond.
Call to Action
Discover how integrating 5mm oval LED diodes can illuminate your electronics projects and products. Embrace the future of lighting technology today and witness unparalleled efficiency and innovation.
Features

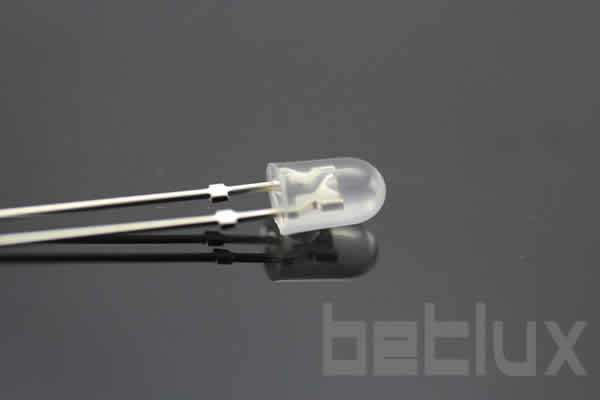

- 5mm Oval Type (5.0 x 4.1 x 7.1mm) LED Lamps: These LEDs are characterized by their unique oval shape, making them distinctive in terms of light dispersion and aesthetic appeal.
- Choice of Various Viewing Angles: Available with a range of viewing angles, allowing for customization based on how the light needs to be projected or seen.
- Lens Options: Offered with different lens types, including diffused (for a softer, more spread-out light), transparent (for a clearer, more direct light), and water clear (for the brightest and most straightforward light).
- IC Compatible / Low Current Capability: Designed to be easily integrated with integrated circuits (ICs) and operate efficiently on low current, enhancing energy efficiency.
- RoHS Compliance: Manufactured in compliance with the Restriction of Hazardous Substances directive, ensuring the product is environmentally friendly and safer for users.
Applications
- Indicator Lights: Suitable for use as indicator lights in electronic devices, machinery, and appliances where an oval light pattern is beneficial.
- Decorative Lighting: Ideal for decorative applications in architectural designs, art installations, and event setups, where the unique shape can enhance visual appeal.
- Automotive Lighting: Appropriate for automotive applications, particularly for signal lights, due to their oval shape and visibility.
- Consumer Electronics: Can be used in personal electronic devices for status indicators or aesthetic enhancements.
- Safety and Warning Signals: Suitable for safety signs, emergency lighting systems, and warning signals where visibility is critical and an oval dispersion pattern is desired.
- Entertainment and Stage Lighting: Ideal for entertainment and stage lighting designs, offering unique lighting effects with different lens types.
- Educational and Hobbyist Projects: Often used in DIY electronics and educational projects for their unique shape and versatility.
- General Illumination: Can be used in general lighting applications where an oval light pattern is preferred for design or functional reasons.
Electrical-optical characteristics:
Article No
| color | material | wavelength
| apperance | v_typ | v_max | luminous_min | luminous_typ | degree |
|---|---|---|---|---|---|---|---|---|---|
BL-L563BC |
Blue |
InGaN |
430 |
Water Clear |
4.2 |
350 |
1000 |
60/30 |
|
BL-L563BGC |
Ultra Bluish Green |
InGaN |
505 |
Water Clear |
4.2 |
650 |
1700 |
60/30 |
|
BL-L563LRC |
Super Red |
AlGaAs,DH |
660 |
Water Clear |
2.2 |
200 |
500 |
60/30 |
|
BL-L563PGC |
Ultra Pure Green |
InGaN |
525 |
Water Clear |
4.2 |
900 |
2000 |
60/30 |
|
BL-L563SRC |
Hi Red |
AlGaAs,SH |
660 |
Water Clear |
2.2 |
50 |
200 |
60/30 |
|
BL-L563UBC |
Ultra Blue |
InGaN |
470 |
Water Clear |
4.2 |
800 |
1800 |
60/30 |
|
BL-L563UEC |
Ultra Orange |
AlGaInP |
630 |
Water Clear |
2.5 |
300 |
850 |
60/30 |
|
BL-L563UGC |
Ultra Green |
AlGaInP |
574 |
Water Clear |
2.5 |
100 |
280 |
60/30 |
|
BL-L563URC |
Ultra Red |
AlGaAs,DDH |
660 |
Water Clear |
2.2 |
500 |
700 |
60/30 |
|
BL-L563UWC |
Ultra White |
InGaN |
- |
Water Clear |
4.2 |
1200 |
2500 |
60/30 |
|
BL-L563UYC |
Ultra Yellow |
AlGaInP |
590 |
Water Clear |
2.5 |
300 |
850 |
60/30 |
|
BL-L563VC |
UV |
InGaN |
405 |
Water Clear |
4.2 |
60 |
100 |
60/30 |
Package configuration & Internal circuit diagram
-led-lamp.gif)
All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.
Partno description:
LEDs, Light Emitting diodes, which include various small kinds, such as 3mm, 5mm, 8mm, 10mm; round type, rectangular type square type, tower type, Oval led, elliptical, flat top; SMDs, high power led, piranha LEDs
More Information
Lens Color:
| Code | D | T | C | W | E | |
| Meaning | color Diffused | Color Tinted | Water Clear | Water Diffused | Orange diffused |
Absolute maximum ratings (Ta=25°C)
| Parameter | SR | LR | UR | UE | UY | UG | PG | BG | B | UB | UV | W | Unit |
| Forward Current I F | 25 | 25 | 25 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | mA |
| Power Dissipation P d | 60 | 60 | 60 | 65 | 65 | 75 | 110 | 110 | 120 | 120 | 120 | 120 | mW |
| Reverse Voltage V R | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | V |
| Peak Forward Current I PF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 100 | 100 | 100 | 100 | 100 | mA |
| Operation Temperature T OPR | -40 to +80 | °C | |||||||||||
| Storage Temperature T STG | -40 to +85 | °C | |||||||||||
| Lead Soldering Temperature T SOL | Max.260+-5°C for 3 sec Max. (1.6mm from the base of the epoxy bulb) | °C | |||||||||||
Related Information
Applied for:
The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment,
communication equipment and household applications). Consult Betlux’s Sales in advance for information on
applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs
may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical
and life support systems and safety devices).
CAUTIONS for Through-Hole LED Lamps
1. Application
The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment, communication equipment and household applications). Consult Betlux’s Sales in advance for information on applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical and life support systems and safety devices).
2. Storage
The storage ambient for the LEDs should not exceed 30℃ temperature or 70% relative humidity. It is
recommended that LEDs out of their original packaging are used within three months
For extended storage out of their original packaging, it is recommended that the LEDs be stored in a sealed
container with appropriate desiccant or in a desiccator with nitrogen ambient.
3. Cleaning
Use alcohol-based cleaning solvents such as isopropyl alcohol to clean the LED if necessary
4. Lead Forming & Assembly
During lead forming, the leads should be bent at a point at least 3mm from the base of LED lens. Do not use
the base of the leadframe as a fulcrum during forming.
Lead forming must be done before soldering, at normal temperature.
During assembly on PCB, use minimum clinch force possible to avoid excessive mechanical stress.
Soldering
When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.
Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.
Recommended soldering conditions:
| IR Reflow Soldering (for SMD display) | Wave Soldering | Soldering Iron | |||
| Pre-Heat | 150-180°C | Pre-Heat | 100°C Max. | Temperature | 300°C Max. |
| Pre-Heat Time | 120sec Max. | Pre-Heat Time | 60sec Max. | ||
| Peak Temperature | 260°C Max. | SolderWave | 260°C Max. | Soldering Time | 3sec Max.(one time only) |
| Soldering Time | 10 sec Max. | Soldering Time | 5sec Max. | ||
Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED
ESD(Electrostatic Discharge)
Static Electricity or power surge will damage the LED.
Suggestions to prevent ESD (Electrostatic Discharge):
n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs
n All devices, equipment, and machinery must be properly grounded
n Work tables, storage racks, etc. should be properly grounded
n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s
plastic lens as a result of friction between LEDs during storage and handling
ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,
low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”
and Vf of the suspect LEDs at low currents.
The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP
product.
Drive Method
An LED is a current-operated device. In order to ensure intensity uniformity on multiple LEDs connected in
parallel in an application, it is recommended that a current limiting resistor be incorporated in the drive circuit,
in series with each LED as shown in Circuit A below.
When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:
- Determine the Forward Voltage (Vf) of the LED(s):
Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.
- Determine the Forward Current (If) of the LED(s):
The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.
- Decide on the Configuration:
Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.
Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.
Calculate Total Power Requirements:
Power (W) = Total Forward Voltage (V) x Total Forward Current (A)
For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:
Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W
- Select an Appropriate Power Supply:
- Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
- Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
- Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
- Consider Additional Features:
- Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
- Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
- Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
- Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
- Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.
In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.
Here are some well-regarded brands in the industry:
- Mean Well: One of the most recognized brands in the LED power supply industry, Mean Well offers a wide range of products suitable for both indoor and outdoor applications. Their units often come with features like overcurrent protection, dimming capabilities, and high efficiency.
- Tridonic: A global leader in lighting technology, Tridonic offers LED drivers and power supplies that cater to various lighting solutions, from simple setups to advanced smart lighting systems.
- Philips Advance Xitanium: Philips is a well-known brand in the lighting industry, and their Xitanium series of LED drivers are known for reliability and performance. They cater to both indoor and outdoor LED applications.
- Osram: Another giant in the lighting industry, Osram offers a range of LED drivers and power supplies suitable for various applications, including architectural and street lighting.
- LIFUD: Specializing in LED drivers, LIFUD is known for its high-quality products that cater to both commercial and residential LED lighting solutions.
- MOSO: This brand offers a variety of LED drivers, especially for outdoor and industrial applications. Their products are known for durability and performance.
- TDK-Lambda: With a history in power electronics, TDK-Lambda offers a range of power supplies and LED drivers suitable for various applications, emphasizing reliability and advanced features.
