Through hole LED
Series No:
Weight:(g/pcs)
Dimension:(mm)
Package:
Specification:
Datasheet Inquiry
Description:

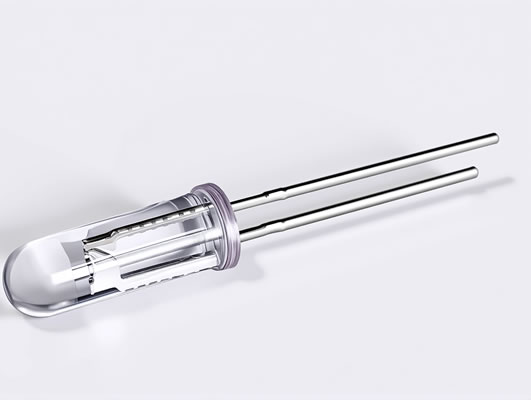

5mm LED Diode, 10mm Height Lens LED — High-Visibility Indicator for Modern Electronics
The 5mm LED diode with a 10mm height lens is engineered for applications that demand enhanced brightness, extended lens height, and long-distance visibility. Designed with precision optical control, this LED is a reliable choice for manufacturers, engineers, and purchasers seeking high-performance indication in consumer electronics, industrial equipment, control panels, and smart devices.
Its elevated 10mm lens structure provides a taller, more pronounced light-emitting surface, ensuring superior visual clarity compared to standard 5mm LEDs. This makes it ideal for environments where visibility under bright ambient light is essential or where the LED must be recessed deeper into an enclosure.
Key Features
✔ 10mm Height Extended Lens Design
The extended lens enhances luminosity and projection distance, producing a focused and easily recognizable light point. This is beneficial for panel indicators, machine interfaces, and handheld devices requiring high visibility.
✔ High Brightness and Stable Illumination
Built with high-quality LED chips, the 5mm diode offers excellent luminous intensity, low power consumption, and reliable performance over long operating hours.
✔ Multiple Lens Options
-
Water Clear for maximum brightness
-
Transparent for directional projection
-
Diffused for soft, uniform illumination
✔ Wide Range of Colors Available
Single-color LED options:
-
Red
-
Green
-
Yellow
-
Blue
-
White
-
Orange
Other wavelengths also supported upon request.
✔ IC-Compatible, Low Current Operation
Optimized for integration with:
-
Microcontrollers
-
Logic boards
-
Consumer device PCBs
-
Digital and analog circuits
✔ RoHS-Compliant Construction
All materials meet international environmental and safety standards.
Applications
The 5mm, 10mm height-lens LED diode is widely used across consumer, commercial, and professional electronics thanks to its high visibility and long lens projection.
Industrial & Commercial Electronics
-
Control cabinets
-
Safety signal lamps
-
Instrumentation devices
-
Power supply status indicators
Consumer Electronics
-
Home appliance indicators
-
Charger status lights
-
Audio/visual equipment
-
Smart home control modules
Gaming & Entertainment Equipment
-
Gaming machines
-
Scoreboards
-
Casino equipment light indicators
Automotive & Transportation
-
Dashboard symbolic indicators
-
Switch backlighting
-
Vehicle accessory lighting
Communication & Networking Devices
-
Routers, switches, and hubs
-
Signal and connectivity indication
Testing & Laboratory Equipment
-
Bench instruments
-
Analyzer interfaces
-
Portable devices requiring strong indicator visibility
Benefits and Advantages
1. Exceptional Visibility
The 10mm elevated lens significantly boosts light output and enhances frontal visibility, especially useful in deep-panel mounting.
2. Mechanical Versatility
The taller lens structure allows fitment into various enclosure thicknesses, including:
-
Recessed panels
-
Thick control boards
-
Industrial cases
3. Long Operating Lifetime
Designed with high-reliability LED chips, the diode delivers stable performance for years without noticeable degradation.
4. Low Power Consumption
Ideal for:
-
Battery-operated devices
-
Energy-efficient electronics
-
Microcontroller-driven systems
5. Strong Compatibility
The pin spacing and lead length support:
-
Wave soldering
-
Hand soldering
-
Automated assembly
Case Studies
Case Study 1 — Industrial Control Upgrade
An automation equipment manufacturer upgraded from standard 5mm LEDs to 10mm-height models due to poor visibility in bright factory environments.
Result: 35% improvement in operator response accuracy and reduced error rates.
Case Study 2 — Gaming Machine Enhancement
A gaming device builder adopted tall-lens LEDs for front panel indicators.
Result: Increased visual appeal, enhanced user feedback, and improved brand experience.
User Testimonials
⭐ Mark D., Electronics Engineer
“Exactly what we needed for high-brightness panel indicators. The 10mm lens provides excellent visibility even under strong overhead lighting.”
⭐ Sofia H., Purchasing Manager
“These LEDs are consistent in quality, easy to solder, and very reliable. Perfect for our consumer electronics product lines.”
⭐ Robert T., Industrial Device Designer
“The taller lens design works great in deeper enclosures. Light projection is much better than standard LEDs.”
Conclusion
The 5mm LED diode with a 10mm height lens is a versatile, durable, and highly visible indicator solution suitable for a wide range of applications. Whether you’re designing consumer electronics, industrial control panels, gaming machines, or smart devices, this LED ensures reliable performance and superior visual clarity.
If you require custom colors, binning options, or tailored optical characteristics, manufacturing support is available.
Electrical-optical characteristics:
Package configuration & Internal circuit diagram
Obtain 3D specification files
Initial Graphics Exchange Specification (.IGS)Standard for the Exchange of Product Model Data (.STEP)To examine all 3D specifications, save the files to your local drive and open them with your 3D application.
Lens colors in 3D files are solely for visual representation; consult the Datasheet for accurate lens type and color information.
In the event of a mismatch, the dimensions in the datasheet take precedence over the 3D specifications.
All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.
Partno description:
LEDs, Light Emitting diodes, which include various small kinds, such as 3mm, 5mm, 8mm, 10mm; round type, rectangular type square type, tower type, Oval led, elliptical, flat top; SMDs, high power led, piranha LEDs
More Information
Lens Color:
| Code | D | T | C | W | E | |
| Meaning | color Diffused | Color Tinted | Water Clear | Water Diffused | Orange diffused |
Absolute maximum ratings (Ta=25°C)
| Parameter | SR | LR | UR | UE | UY | UG | PG | BG | B | UB | UV | W | Unit |
| Forward Current I F | 25 | 25 | 25 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | mA |
| Power Dissipation P d | 60 | 60 | 60 | 65 | 65 | 75 | 110 | 110 | 120 | 120 | 120 | 120 | mW |
| Reverse Voltage V R | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | V |
| Peak Forward Current I PF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 100 | 100 | 100 | 100 | 100 | mA |
| Operation Temperature T OPR | -40 to +80 | °C | |||||||||||
| Storage Temperature T STG | -40 to +85 | °C | |||||||||||
| Lead Soldering Temperature T SOL | Max.260+-5°C for 3 sec Max. (1.6mm from the base of the epoxy bulb) | °C | |||||||||||
Related Information
Applied for:
The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment,
communication equipment and household applications). Consult Betlux’s Sales in advance for information on
applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs
may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical
and life support systems and safety devices).
CAUTIONS for Through-Hole LED Lamps
1. Application
The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment, communication equipment and household applications). Consult Betlux’s Sales in advance for information on applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical and life support systems and safety devices).
2. Storage
The storage ambient for the LEDs should not exceed 30℃ temperature or 70% relative humidity. It is
recommended that LEDs out of their original packaging are used within three months
For extended storage out of their original packaging, it is recommended that the LEDs be stored in a sealed
container with appropriate desiccant or in a desiccator with nitrogen ambient.
3. Cleaning
Use alcohol-based cleaning solvents such as isopropyl alcohol to clean the LED if necessary
4. Lead Forming & Assembly
During lead forming, the leads should be bent at a point at least 3mm from the base of LED lens. Do not use
the base of the leadframe as a fulcrum during forming.
Lead forming must be done before soldering, at normal temperature.
During assembly on PCB, use minimum clinch force possible to avoid excessive mechanical stress.
Soldering
When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.
Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.
Recommended soldering conditions:
| IR Reflow Soldering (for SMD display) | Wave Soldering | Soldering Iron | |||
| Pre-Heat | 150-180°C | Pre-Heat | 100°C Max. | Temperature | 300°C Max. |
| Pre-Heat Time | 120sec Max. | Pre-Heat Time | 60sec Max. | ||
| Peak Temperature | 260°C Max. | SolderWave | 260°C Max. | Soldering Time | 3sec Max.(one time only) |
| Soldering Time | 10 sec Max. | Soldering Time | 5sec Max. | ||
Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED
ESD(Electrostatic Discharge)
Static Electricity or power surge will damage the LED.
Suggestions to prevent ESD (Electrostatic Discharge):
n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs
n All devices, equipment, and machinery must be properly grounded
n Work tables, storage racks, etc. should be properly grounded
n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s
plastic lens as a result of friction between LEDs during storage and handling
ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,
low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”
and Vf of the suspect LEDs at low currents.
The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP
product.
Drive Method
An LED is a current-operated device. In order to ensure intensity uniformity on multiple LEDs connected in
parallel in an application, it is recommended that a current limiting resistor be incorporated in the drive circuit,
in series with each LED as shown in Circuit A below.
When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:
- Determine the Forward Voltage (Vf) of the LED(s):
Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.
- Determine the Forward Current (If) of the LED(s):
The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.
- Decide on the Configuration:
Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.
Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.
Calculate Total Power Requirements:
Power (W) = Total Forward Voltage (V) x Total Forward Current (A)
For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:
Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W
- Select an Appropriate Power Supply:
- Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
- Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
- Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
- Consider Additional Features:
- Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
- Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
- Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
- Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
- Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.
In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.
Here are some well-regarded brands in the industry:
- Mean Well: One of the most recognized brands in the LED power supply industry, Mean Well offers a wide range of products suitable for both indoor and outdoor applications. Their units often come with features like overcurrent protection, dimming capabilities, and high efficiency.
- Tridonic: A global leader in lighting technology, Tridonic offers LED drivers and power supplies that cater to various lighting solutions, from simple setups to advanced smart lighting systems.
- Philips Advance Xitanium: Philips is a well-known brand in the lighting industry, and their Xitanium series of LED drivers are known for reliability and performance. They cater to both indoor and outdoor LED applications.
- Osram: Another giant in the lighting industry, Osram offers a range of LED drivers and power supplies suitable for various applications, including architectural and street lighting.
- LIFUD: Specializing in LED drivers, LIFUD is known for its high-quality products that cater to both commercial and residential LED lighting solutions.
- MOSO: This brand offers a variety of LED drivers, especially for outdoor and industrial applications. Their products are known for durability and performance.
- TDK-Lambda: With a history in power electronics, TDK-Lambda offers a range of power supplies and LED drivers suitable for various applications, emphasizing reliability and advanced features.
