2mm flat top,cylinder super bright LED diode

2mm flat top,cylinder super bright LED diode

Through hole LED

Series No:

BL-L213

Weight:(g/pcs)

0.12

Dimension:(mm)

2.5 x 4.8 x 8

Package:

Specification:

downloadDatasheet

Inquiry

any question?
Description:

2mm Flat Top, Cylinder Super Bright LED Diode – Features, Performance & Applications

The 2mm flat top, cylinder super bright LED diode is a compact, high-performance component engineered for modern electronic devices requiring intense illumination in a small footprint. Despite its miniature size, this LED delivers outstanding brightness, uniform light distribution, and high reliability—qualities that make it essential for engineers, designers, and purchasing professionals in electronics manufacturing.

Because of its flat-top cylindrical structure, the LED produces a controlled and even light output, making it ideal for applications that require precise indication, light piping, or panel integration. Its small form factor allows seamless placement into densely populated PCBs, compact devices, and miniaturized instrumentation.

Key Features of the 2mm Flat Top Cylinder Super Bright LED Diode

1. Ultra-Bright Light Output

Engineered with high-efficiency semiconductor material, the super bright diode delivers exceptional luminosity even at low current. This ensures:

  • Increased visibility in bright environments

  • Enhanced optical performance for indicators

  • Low power consumption efficiency

2. Flat Top Lens for Uniform Illumination

Unlike round-top lenses, the flat top design provides:

  • Wider viewing angle

  • Smooth light diffusion

  • Even surface illumination ideal for light pipes, overlays, and diffusers

This consistency in emitted light makes the LED excellent for user interfaces where clarity and readability matter.

3. Compact 2mm Cylindrical Body

The slim cylindrical housing allows installation in applications with extremely limited space. This form factor is ideal for:

  • Wearable devices

  • Portable electronics

  • Small medical instruments

  • Mini signal indicators

4. Multiple Lens Options

To accommodate various design needs, this LED diode can come with:

  • Water clear lens for maximum brightness

  • Transparent lens for direct focused light

  • Diffused lens for soft, uniform illumination

5. Low Current Operation

The LED performs efficiently using low drive currents, making it compatible with battery-powered electronics and energy-efficient devices. This reduces heat generation while maximizing operating lifespan.

6. High Reliability & Long Lifespan

Manufactured using robust materials and advanced processes, the diode provides:

  • Long operational life (50,000+ hours)

  • High thermal stability

  • Resistance to vibration and mechanical stress

  • Consistent optical output over time

7. RoHS Compliance

The LED adheres to global environmental and safety standards, ensuring that it is free from hazardous substances and safe for commercial and industrial use.

Toys Household appliances Flashing indicators Compact displays
Toys Household appliances Flashing indicators Compact displays

Applications of 2mm Flat Top Cylinder Super Bright LED Diode

1. Indicator Lights

Used extensively for status and power indicators in:

  • PCB modules

  • Industrial controllers

  • Smart meters

  • Consumer electronics

The flat top surface ensures even indicator illumination behind panels and light windows.

2. Compact Electronic Devices

Ideal for space-restricted designs such as:

  • Hearing aids

  • Medical test kits

  • Remote sensors

  • Handheld diagnostic instruments

3. Automotive Electronics

The LED is commonly used in:

  • Dashboard status indicators

  • Key fobs

  • Control panel notification lights

Its durability ensures stable operation despite vibration or temperature changes.

4. Industrial Equipment

Integrated into:

  • Process control panels

  • Instrumentation systems

  • Error/status indicator modules

The flat top lens enhances readability under industrial lighting conditions.

5. Communication & Networking Devices

Useful for signal indication in:

  • Routers

  • Network switches

  • Modem notification panels

6. Consumer Products

Including:

  • Toys

  • Household appliances

  • Flashing indicators

  • Compact displays

7. DIY, Maker & Educational Use

Hobbyists and students value this LED for:

  • Custom circuits

  • Arduino projects

  • Robotics

  • Visual debugging indicators

Benefits of the 2mm Super Bright LED Diode

  • Small footprint with high brightness

  • Excellent uniformity due to flat top design

  • Highly energy-efficient

  • Reliable performance across temperature ranges

  • Ideal for light pipes and narrow-angle applications

  • Flexible mounting options for PCBs

  • Environmentally safe (RoHS)

Case Study: Miniature Medical Indicator Module

A medical device manufacturer integrated the 2mm flat top LED into a portable diagnostic unit where:

  • Low current usage was mandatory

  • High brightness was needed for dim hospital environments

  • Small size allowed tight PCB spacing

The result:
Reduced power consumption by 20% and improved visibility for clinicians, leading to widespread adoption across the product line.

User Testimonials

✔ James R., Electronics Engineer (USA)
“The flat-top design provides excellent light uniformity behind thin plastic panels. One of the brightest 2mm LEDs we’ve used.”

✔ Amanda T., Product Designer (UK)
“Perfect for compact consumer devices. The low current draw and consistent brightness make it ideal for battery products.”

✔ Mark L., Purchasing Manager
“Reliable supply, consistent quality, and RoHS compliance make this LED an easy approval for multiple projects.”

Conclusion

The 2mm flat top cylindrical super bright LED diode is a powerful and compact lighting component that delivers superior brightness, robust performance, and versatile integration options. Its combination of miniature size, uniform light output, and low power consumption makes it a perfect choice for engineers, designers, and manufacturers seeking reliable illumination for compact devices.

If you’re developing next-generation compact electronics or upgrading an indication system, this LED offers the performance, efficiency, and reliability your design requires.

RoHs Compliance, Pb-free              Anti-Static Attention

Electrical-optical characteristics:
Filters Sort results
Reset Apply
More information, Contact us at sales@betlux.com
Package configuration & Internal circuit diagram

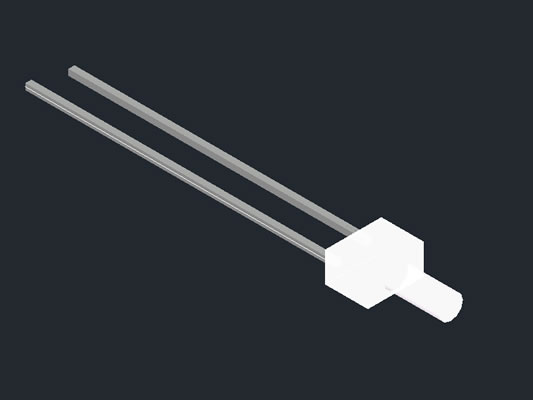

Obtain 3D specification files


downloadInitial Graphics Exchange Specification (.IGS)
downloadStandard for the Exchange of Product Model Data (.STEP)

To examine all 3D specifications, save the files to your local drive and open them with your 3D application.
Lens colors in 3D files are solely for visual representation; consult the Datasheet for accurate lens type and color information.
In the event of a mismatch, the dimensions in the datasheet take precedence over the 3D specifications.

2mm flat top,cylinder super bright LED diode


All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.

Partno description:

LEDs, Light Emitting diodes, which include various small kinds, such as 3mm, 5mm, 8mm, 10mm; round type, rectangular type square type, tower type, Oval led, elliptical, flat top; SMDs, high power led, piranha LEDs

Part No of LED diode

More Information

Lens Color:

CodeDTCWE
Meaningcolor DiffusedColor TintedWater ClearWater DiffusedOrange diffused

Absolute maximum ratings (Ta=25°C)

ParameterSRLRURUEUYUGPGBGBUBUVWUnit
Forward Current I F252525303030303030303030mA
Power Dissipation P d606060656575110110120120120120mW
Reverse Voltage V R555555555555V
Peak Forward Current I PF (Duty 1/10 @1KHZ)150150150150150150150100100100100100mA
Operation Temperature T OPR-40 to +80°C
Storage Temperature T STG-40 to +85°C
Lead Soldering Temperature T SOL  Max.260+-5°C for 3 sec Max. (1.6mm from the base of the epoxy bulb)°C
Related Information

Applied for:
auto lampcameradome lightrgb screentraffic light



The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment,

communication equipment and household applications). Consult Betlux’s Sales in advance for information on

applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs

 may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical

and life support systems and safety devices).

CAUTIONS for Through-Hole LED Lamps

1. Application
The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment, communication equipment and household applications). Consult Betlux’s Sales in advance for information on applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical and life support systems and safety devices).

2. Storage
The storage ambient for the LEDs should not exceed 30℃ temperature or 70% relative humidity. It is
recommended that LEDs out of their original packaging are used within three months
For extended storage out of their original packaging, it is recommended that the LEDs be stored in a sealed
container with appropriate desiccant or in a desiccator with nitrogen ambient.

3. Cleaning
Use alcohol-based cleaning solvents such as isopropyl alcohol to clean the LED if necessary

4. Lead Forming & Assembly
During lead forming, the leads should be bent at a point at least 3mm from the base of LED lens. Do not use
the base of the leadframe as a fulcrum during forming.
Lead forming must be done before soldering, at normal temperature.
During assembly on PCB, use minimum clinch force possible to avoid excessive mechanical stress.

led diode formingassembly notice of led diode

Soldering

When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.

Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.

Recommended soldering conditions:



IR Reflow Soldering (for SMD display)Wave SolderingSoldering Iron
Pre-Heat150-180°CPre-Heat100°C Max.Temperature300°C Max.
Pre-Heat Time120sec Max.Pre-Heat Time60sec Max.
Peak Temperature260°C Max.SolderWave260°C Max.Soldering Time3sec Max.(one time only)
Soldering Time10 sec Max.Soldering Time5sec Max.

Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED

ESD(Electrostatic Discharge)

Static Electricity or power surge will damage the LED.

Suggestions to prevent ESD (Electrostatic Discharge):

n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs

n All devices, equipment, and machinery must be properly grounded

n Work tables, storage racks, etc. should be properly grounded

n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s

 plastic lens as a result of friction between LEDs during storage and handling

ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,

low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”

and Vf of the suspect LEDs at low currents.

The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP

 product.

antistatic notice-smd led

Drive Method

An LED is a current-operated device. In order to ensure intensity uniformity on multiple LEDs connected in

parallel in an application, it is recommended that a current limiting resistor be incorporated in the drive circuit,

 in series with each LED as shown in Circuit A below.

drive notice - led diode

When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:

  • Determine the Forward Voltage (Vf) of the LED(s):

Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.

  • Determine the Forward Current (If) of the LED(s):

The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.

  • Decide on the Configuration:

Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.

Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.

Calculate Total Power Requirements:

Power (W) = Total Forward Voltage (V) x Total Forward Current (A)

For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:

Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W

  • Select an Appropriate Power Supply:
  • Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
  • Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
  • Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
  • Consider Additional Features:
  • Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
  • Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
  • Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
  • Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
  • Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.

In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.

Here are some well-regarded brands in the industry:

  • Mean Well: One of the most recognized brands in the LED power supply industry, Mean Well offers a wide range of products suitable for both indoor and outdoor applications. Their units often come with features like overcurrent protection, dimming capabilities, and high efficiency.
  • Tridonic: A global leader in lighting technology, Tridonic offers LED drivers and power supplies that cater to various lighting solutions, from simple setups to advanced smart lighting systems.
  • Philips Advance Xitanium: Philips is a well-known brand in the lighting industry, and their Xitanium series of LED drivers are known for reliability and performance. They cater to both indoor and outdoor LED applications.
  • Osram: Another giant in the lighting industry, Osram offers a range of LED drivers and power supplies suitable for various applications, including architectural and street lighting.
  • LIFUD: Specializing in LED drivers, LIFUD is known for its high-quality products that cater to both commercial and residential LED lighting solutions.
  • MOSO: This brand offers a variety of LED drivers, especially for outdoor and industrial applications. Their products are known for durability and performance.
  • TDK-Lambda: With a history in power electronics, TDK-Lambda offers a range of power supplies and LED drivers suitable for various applications, emphasizing reliability and advanced features.
