Description:

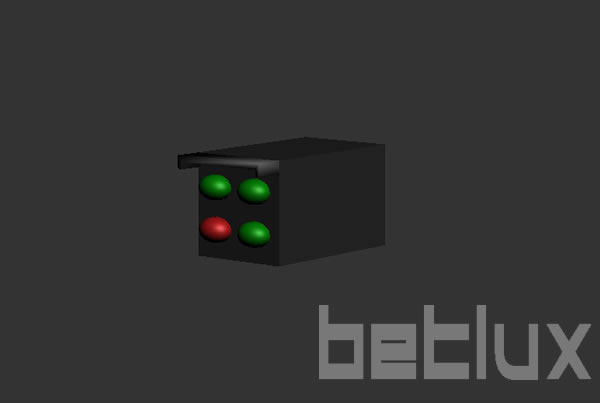

15mm Lamp cluster (1 red 3 green, square packed)
15mm LED cluster
Innovating Compact Lighting: The 15mm LED Cluster Unveiled
In the intricate world of LED technology, the 15mm LED cluster with its unique configuration of 1 red and 3 green LEDs, all neatly packed into a square frame, marks a significant innovation. This deep dive is crafted for electronics manufacturers, engineers, purchasers, and administrators who are on the lookout for compact, efficient, and versatile lighting solutions. Emphasizing the key phrase “led module 12v” and its synonym “led 12v module” from the outset, we explore the features, applications, benefits, case studies, and user testimonials of this groundbreaking product.
Unpacking the 15mm LED Cluster
The 15mm LED cluster represents the pinnacle of miniaturized lighting technology. With its square packaging, the cluster offers a compact solution without compromising on brightness or color fidelity. It is a testament to the innovative capabilities of modern LED technology, specifically designed to cater to the demanding needs of today’s electronics industry. The integration of both the “led module sign” and “led module outdoor” synonyms into our discussion highlights the cluster’s broad applicability across various environments.
Versatile Applications: From Signs to Systems
This LED cluster shines across a spectrum of applications. From illuminating small-scale signage with vibrant colors to enhancing the aesthetics and functionality of portable electronic devices, its versatility is unmatched. Its robust design makes it equally suitable for outdoor applications, where durability and weather resistance are paramount, showcasing the true potential of “led module outdoor” solutions.
Benefits: Brightening the Path Forward
Adopting the 15mm LED cluster offers numerous advantages. Its energy efficiency leads to lower operating costs and reduced environmental impact. The cluster’s longevity surpasses traditional lighting options, ensuring reliability over an extended period. Furthermore, its color versatility opens up new possibilities for designers and engineers looking to create eye-catching, functional products.
Real-World Impact: Case Studies
Illustrative case studies highlight the transformative effect of the 15mm LED cluster in various sectors. From retail signage that captures customer attention to innovative consumer electronics that stand out in a crowded market, these examples demonstrate the cluster’s role in enhancing visual communication and product functionality.
Hearing from the Field: User Testimonials
Testimonials from industry professionals further affirm the value of the 15mm LED cluster. Engineers appreciate the ease of integration and the performance stability it offers, while purchasers note the competitive edge gained through its application in their products. These endorsements solidify the cluster’s reputation as a preferred choice for those at the forefront of electronics design and manufacturing.
Conclusion: A Compact Revolution in LED Technology
The 15mm LED cluster (1 red 3 green, square packed) is more than just a component; it’s a compact powerhouse of innovation, efficiency, and versatility. As the electronics industry continues to evolve, the demand for high-performance, space-saving lighting solutions like this LED cluster will only grow. Embracing this technology today can illuminate the path to a brighter, more sustainable future in electronics design and application.
Call to Action: Illuminate Your Projects with the 15mm LED Cluster
Step into the future of compact, efficient lighting by integrating the 15mm LED cluster into your next project. Whether you’re designing the next generation of electronic devices or seeking to enhance your product offerings with superior lighting, this LED cluster offers the solution you need. Explore its potential and lead the way in innovation.
Features
- Square Shape: Compact and uniform design, suitable for a variety of applications.
- Dimensions: Each LED cluster measures 15.00mm x 15.00mm, offering a space-efficient lighting solution.
- High Visibility: Bright and noticeable, ideal for various display and signaling purposes.
- Emitting Colors: Includes a combination of red and green LEDs, offering versatile display options.
- Number of Built-in 5mm LED Lamps: Contains 1 super bright red LED and 3 green LEDs, enhancing visibility and color contrast.
- Waterproof Package with Hood: Suitable for both outdoor and indoor use, ensuring durability in various environmental conditions.
- Long Life: LEDs are known for their extended lifespan, reducing the frequency of replacements.
- Low Current, Power Savings: Energy-efficient, leading to lower electricity consumption and cost savings.
- Low Maintenance: Minimal upkeep required due to the durability and reliability of LED technology.
- Different Color Availability: Offers a range of colors, enhancing versatility for different applications.
- Solid State, High Vibration Resistant: Robust against physical shocks and vibrations, suitable for high-impact environments.
- Can Produce any Color in Visible Spectrum, Including White Light: Capable of creating a wide array of colors for diverse lighting needs.
- RoHS Compliance: Manufactured in compliance with environmental and health safety standards.
Applications
- Outdoor and Indoor Information Boards: Ideal for compact spaces in public areas, transportation systems, and small information displays.
- Signage and Advertising: Suitable for small signs, labels, and promotional displays in limited spaces.
- Safety and Warning Signals: Can be used in compact traffic signals, emergency signage, and small warning systems.
- Architectural Lighting: Applicable for functional and aesthetic lighting in small architectural elements.
- Event and Stage Lighting: Ideal for small-scale events and performances requiring decorative and functional lighting.
- Industrial Indicators: Useful in industrial settings for machinery status indicators, alert systems, and small control panels.
- Retail Displays: Enhances the visual appeal of small retail displays and storefronts with customizable lighting.
- Public Art and Installations: Suitable for small-scale public art projects and installations requiring versatile and durable lighting.
Electrical-optical characteristics:
Package configuration & Internal circuit diagram
All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.
Partno description:
LED Cluster is widely applied in traffic signal, scoreboard sign,etc
Related Information
Applied for:
Soldering
When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.
Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.
Recommended soldering conditions:
| IR Reflow Soldering (for SMD display) | Wave Soldering | Soldering Iron | |||
| Pre-Heat | 150-180°C | Pre-Heat | 100°C Max. | Temperature | 300°C Max. |
| Pre-Heat Time | 120sec Max. | Pre-Heat Time | 60sec Max. | ||
| Peak Temperature | 260°C Max. | SolderWave | 260°C Max. | Soldering Time | 3sec Max.(one time only) |
| Soldering Time | 10 sec Max. | Soldering Time | 5sec Max. | ||
Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED
ESD(Electrostatic Discharge)
Static Electricity or power surge will damage the LED.
Suggestions to prevent ESD (Electrostatic Discharge):
n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs
n All devices, equipment, and machinery must be properly grounded
n Work tables, storage racks, etc. should be properly grounded
n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s
plastic lens as a result of friction between LEDs during storage and handling
ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,
low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”
and Vf of the suspect LEDs at low currents.
The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP
product.
When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:
- Determine the Forward Voltage (Vf) of the LED(s):
Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.
- Determine the Forward Current (If) of the LED(s):
The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.
- Decide on the Configuration:
Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.
Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.
Calculate Total Power Requirements:
Power (W) = Total Forward Voltage (V) x Total Forward Current (A)
For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:
Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W
- Select an Appropriate Power Supply:
- Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
- Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
- Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
- Consider Additional Features:
- Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
- Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
- Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
- Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
- Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.
In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.
Here are some well-regarded brands in the industry:
- Mean Well: One of the most recognized brands in the LED power supply industry, Mean Well offers a wide range of products suitable for both indoor and outdoor applications. Their units often come with features like overcurrent protection, dimming capabilities, and high efficiency.
- Tridonic: A global leader in lighting technology, Tridonic offers LED drivers and power supplies that cater to various lighting solutions, from simple setups to advanced smart lighting systems.
- Philips Advance Xitanium: Philips is a well-known brand in the lighting industry, and their Xitanium series of LED drivers are known for reliability and performance. They cater to both indoor and outdoor LED applications.
- Osram: Another giant in the lighting industry, Osram offers a range of LED drivers and power supplies suitable for various applications, including architectural and street lighting.
- LIFUD: Specializing in LED drivers, LIFUD is known for its high-quality products that cater to both commercial and residential LED lighting solutions.
- MOSO: This brand offers a variety of LED drivers, especially for outdoor and industrial applications. Their products are known for durability and performance.
- TDK-Lambda: With a history in power electronics, TDK-Lambda offers a range of power supplies and LED drivers suitable for various applications, emphasizing reliability and advanced features.
