Description:

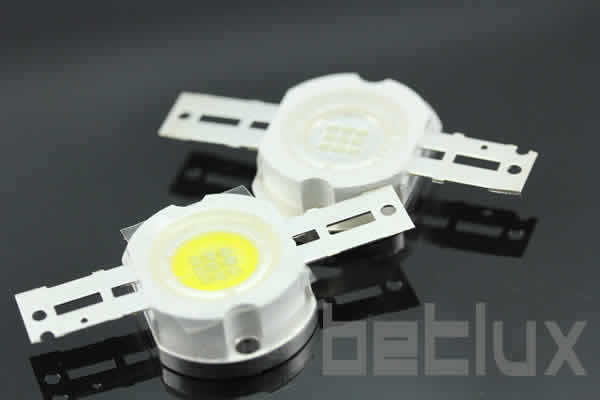

Illuminating the Future: The Power and Versatility of 10W High Power LEDs
In the ever-evolving landscape of lighting technology, 10W high power LEDs stand out as a beacon of innovation, efficiency, and versatility. These powerhouse components, also referred to as “10W LEDs” or “power LEDs,” are revolutionizing the way industries and consumers alike think about illumination. Offering a superior blend of brightness, energy efficiency, and durability, 10W high power LEDs are shaping the future of lighting solutions across a myriad of applications. This article delves into the distinctive features, widespread applications, and the multitude of benefits provided by these LEDs, enriched with insights from case studies and user testimonials. Aimed at electronics manufacturers, engineers, purchasers, and administrators, it highlights the transformative impact of 10W high power LEDs in the technological world.
Unveiling the Features of 10W High Power LEDs
10W high power LEDs are characterized by their exceptional luminosity and compact form factor. Unlike their lower wattage counterparts, these “high power LEDs” are specifically designed to handle more significant power inputs, resulting in brighter light outputs without compromising on energy efficiency. This capability makes them an ideal choice for applications requiring intense illumination from a compact source.
A Spectrum of Applications
From commercial lighting fixtures to automotive headlights, and from outdoor floodlights to sophisticated medical equipment, the applications for 10W LEDs are as varied as they are vast. Their robust performance also makes them suitable for mono color applications where high-intensity, focused light is necessary.
The Advantages of Embracing 10W High Power LEDs
Energy Efficiency: Despite their high output, 10W LEDs consume significantly less energy compared to traditional lighting solutions, contributing to greener, more sustainable energy consumption patterns.
Durability: Engineered for longevity, these LEDs withstand harsh conditions and prolonged use, making them a cost-effective solution over their lifespan.
Versatility: The adaptability of 10W high power LEDs to various environments and purposes underscores their status as a preferred choice for innovative lighting designs.
Illuminating Success: Case Studies and User Testimonials
Case Studies: A landmark project involving the installation of 10W LED street lighting demonstrated not only a dramatic reduction in energy consumption but also an improvement in public safety due to superior night-time visibility.
User Testimonials: Feedback from industry professionals frequently praises the brightness, efficiency, and reliability of 10W high power LEDs, noting their transformative effect on product development and lighting design.
Conclusion: Leading the Charge with 10W High Power LEDs
10W high power LEDs represent more than just an advancement in lighting technology; they symbolize a shift towards more efficient, reliable, and sustainable lighting practices. As the demand for high-quality lighting solutions continues to grow, the role of these LEDs in shaping the future of illumination cannot be overstated.
Call to Action: Brighten your projects with the unmatched intensity and efficiency of 10W high power LEDs. Experience the future of lighting by integrating these powerful LEDs into your designs today.
Features
- 10W Power Rating: These high-output LEDs provide significant brightness, making them suitable for applications that demand strong light sources.
- Suitable for Illumination and Decorative Lighting: Their high intensity makes them ideal for both practical lighting in various settings and for decorative applications that require strong illumination.
- Long Service Life: Typically, these LEDs offer up to 50,000 hours of operation, which significantly reduces the need for frequent replacements and ensures long-term reliability.
- Low Luminosity Loss: Engineered to maintain brightness over time, they provide consistent light output throughout their lifespan.
- Variety of Emitting Colors: Available in multiple colors, offering flexibility for different lighting design requirements and aesthetic preferences.
- Working Current Range: Operates efficiently within a current range of 200-350mA, which is relatively low for such a high-power LED, suggesting efficient power management.
Applications
- General Lighting: Ideal for large residential, commercial, or industrial spaces where intense lighting is required.
- Outdoor Lighting: Suitable for outdoor applications like floodlights, street lighting, and landscape illumination due to their high brightness and durability.
- Architectural and Decorative Lighting: Used in architectural lighting to highlight buildings, monuments, and for creating ambiance in public and private spaces.
- Retail and Display Lighting: Employed in retail environments and display cases where strong, vibrant light is needed to accentuate products.
- Automotive Lighting: Applicable for use in automotive headlights and other high-power automotive lighting applications.
- High Bay Lighting: Ideal for illuminating warehouses, factories, and sports facilities with high ceilings.
- Horticultural Lighting: In agricultural settings, these LEDs can be used for indoor farming and greenhouse lighting, providing the intense light required for plant growth.
- Specialty Applications: Suitable for high-end photography, filming, and other professional applications where powerful lighting is essential.
Electrical-optical characteristics:
Article No
| color | material | wavelength
| apperance | v_typ | v_max | luminous_min | luminous_typ | degree |
|---|---|---|---|---|---|---|---|---|---|
BL-HP15EBGC-10W |
Ultra Bluish Green |
505 |
Water Clear |
11 |
350 |
450 |
105 |
||
BL-HP15EPGC-10W |
Ultra Pure Green |
525 |
Water Clear |
11 |
400 |
500 |
105 |
||
BL-HP15EUBC-10W |
Ultra Blue |
470 |
Water Clear |
11 |
100 |
150 |
105 |
||
BL-HP15EUEC-10W |
Ultra Orange |
630 |
Water Clear |
7 |
200 |
300 |
105 |
||
BL-HP15EUW2C-10W |
Ultra Warm White |
3200k |
Water Clear |
11 |
300 |
400 |
105 |
||
BL-HP15EUWC-10W |
Ultra White |
6000k |
Water Clear |
11 |
400 |
500 |
105 |
||
BL-HP15EUYC-10W |
Ultra Yellow |
590 |
Water Clear |
7 |
200 |
300 |
105 |
Package configuration & Internal circuit diagram
All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.
Partno description:
LEDs, Light Emitting diodes, which include various small kinds, such as 3mm, 5mm, 8mm, 10mm; round type, rectangular type square type, tower type, Oval led, elliptical, flat top; SMDs, high power led, piranha LEDs
More Information
Lens Color:
| Code | D | T | C | W | E | |
| Meaning | color Diffused | Color Tinted | Water Clear | Water Diffused | Orange diffused |
Absolute maximum ratings (Ta=25°C)
| Parameter | SR | LR | UR | UE | UY | UG | PG | BG | B | UB | UV | W | Unit |
| Forward Current I F | 25 | 25 | 25 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | mA |
| Power Dissipation P d | 60 | 60 | 60 | 65 | 65 | 75 | 110 | 110 | 120 | 120 | 120 | 120 | mW |
| Reverse Voltage V R | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | V |
| Peak Forward Current I PF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 100 | 100 | 100 | 100 | 100 | mA |
| Operation Temperature T OPR | -40 to +80 | °C | |||||||||||
| Storage Temperature T STG | -40 to +85 | °C | |||||||||||
| Lead Soldering Temperature T SOL | Max.260+-5°C for 3 sec Max. (1.6mm from the base of the epoxy bulb) | °C | |||||||||||
Related Information
Applied for:
The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment,
communication equipment and household applications). Consult Betlux’s Sales in advance for information on
applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs
may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical
and life support systems and safety devices).
CAUTIONS for Through-Hole LED Lamps
1. Application
The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment, communication equipment and household applications). Consult Betlux’s Sales in advance for information on applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical and life support systems and safety devices).
2. Storage
The storage ambient for the LEDs should not exceed 30℃ temperature or 70% relative humidity. It is
recommended that LEDs out of their original packaging are used within three months
For extended storage out of their original packaging, it is recommended that the LEDs be stored in a sealed
container with appropriate desiccant or in a desiccator with nitrogen ambient.
3. Cleaning
Use alcohol-based cleaning solvents such as isopropyl alcohol to clean the LED if necessary
4. Lead Forming & Assembly
During lead forming, the leads should be bent at a point at least 3mm from the base of LED lens. Do not use
the base of the leadframe as a fulcrum during forming.
Lead forming must be done before soldering, at normal temperature.
During assembly on PCB, use minimum clinch force possible to avoid excessive mechanical stress.
Soldering
When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.
Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.
Recommended soldering conditions:
| IR Reflow Soldering (for SMD display) | Wave Soldering | Soldering Iron | |||
| Pre-Heat | 150-180°C | Pre-Heat | 100°C Max. | Temperature | 300°C Max. |
| Pre-Heat Time | 120sec Max. | Pre-Heat Time | 60sec Max. | ||
| Peak Temperature | 260°C Max. | SolderWave | 260°C Max. | Soldering Time | 3sec Max.(one time only) |
| Soldering Time | 10 sec Max. | Soldering Time | 5sec Max. | ||
Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED
ESD(Electrostatic Discharge)
Static Electricity or power surge will damage the LED.
Suggestions to prevent ESD (Electrostatic Discharge):
n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs
n All devices, equipment, and machinery must be properly grounded
n Work tables, storage racks, etc. should be properly grounded
n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s
plastic lens as a result of friction between LEDs during storage and handling
ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,
low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”
and Vf of the suspect LEDs at low currents.
The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP
product.
Drive Method
An LED is a current-operated device. In order to ensure intensity uniformity on multiple LEDs connected in
parallel in an application, it is recommended that a current limiting resistor be incorporated in the drive circuit,
in series with each LED as shown in Circuit A below.
When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:
- Determine the Forward Voltage (Vf) of the LED(s):
Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.
- Determine the Forward Current (If) of the LED(s):
The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.
- Decide on the Configuration:
Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.
Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.
Calculate Total Power Requirements:
Power (W) = Total Forward Voltage (V) x Total Forward Current (A)
For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:
Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W
- Select an Appropriate Power Supply:
- Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
- Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
- Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
- Consider Additional Features:
- Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
- Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
- Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
- Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
- Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.
In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.
Here are some well-regarded brands in the industry:
- Mean Well: One of the most recognized brands in the LED power supply industry, Mean Well offers a wide range of products suitable for both indoor and outdoor applications. Their units often come with features like overcurrent protection, dimming capabilities, and high efficiency.
- Tridonic: A global leader in lighting technology, Tridonic offers LED drivers and power supplies that cater to various lighting solutions, from simple setups to advanced smart lighting systems.
- Philips Advance Xitanium: Philips is a well-known brand in the lighting industry, and their Xitanium series of LED drivers are known for reliability and performance. They cater to both indoor and outdoor LED applications.
- Osram: Another giant in the lighting industry, Osram offers a range of LED drivers and power supplies suitable for various applications, including architectural and street lighting.
- LIFUD: Specializing in LED drivers, LIFUD is known for its high-quality products that cater to both commercial and residential LED lighting solutions.
- MOSO: This brand offers a variety of LED drivers, especially for outdoor and industrial applications. Their products are known for durability and performance.
- TDK-Lambda: With a history in power electronics, TDK-Lambda offers a range of power supplies and LED drivers suitable for various applications, emphasizing reliability and advanced features.
