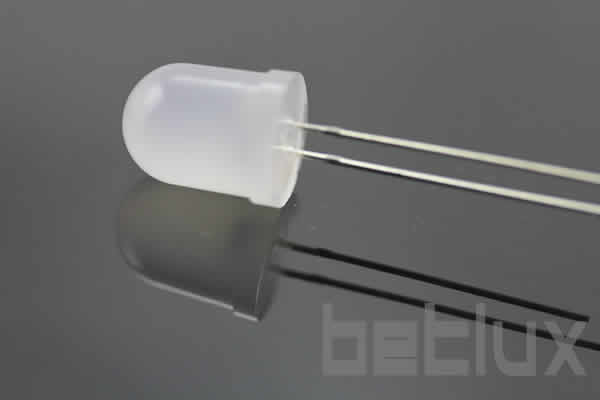

10mm LEDs

10mm LED diode

Series No:

BL-L101

Weight:(g/pcs)

1.5

Dimension:(mm)

9.9 x 11 x 14

Package:

Specification:

download

Inquiry

any question?
Description:

Introduction: Why 10mm LED Diodes Are Essential to Modern Electronics

10mm LED diodes, known for their substantial size compared to standard LED options, offer enhanced brightness and visibility, making them a preferred choice for high-demand applications. Embedded within electronic components, these “led diodes” serve as critical elements in both consumer electronics and industrial applications.

Key Features of 10mm LED Diodes

  • Enhanced Brightness: The larger size of the 10mm LED allows for greater light output, making them ideal for applications where visibility is key.
  • Diverse Color Range: Available in various mono colors, these LEDs provide flexibility in design and functionality.
  • Durability: Built to last, these diodes withstand rigorous use, making them suitable for both indoor and outdoor applications.
  • Energy Efficiency: Despite their powerful output, 10mm LEDs maintain energy efficiency, contributing to environmentally friendly electronic solutions.

A Spectrum of Applications

From signal lights in electronic devices to decorative lighting and advertising displays, the applications of 10mm LED diodes are vast. Their usage extends to automotive lighting, consumer electronics, and even in medical devices, where precision and reliability are paramount.

Benefits: Lighting the Way Forward

Opting for 10mm LEDs brings numerous advantages, including cost savings on energy, enhanced product lifespan, and improved environmental impact. Their ability to operate in various conditions further underscores their versatility and value to electronics manufacturers.

Case Studies: Shining Examples of Success

This section highlights real-world applications of 10mm LED diodes, showcasing their transformative impact on different projects. From enhancing user interfaces in consumer electronics to revolutionizing lighting in architectural projects, these case studies provide tangible evidence of the LEDs’ versatility and performance.

Voices from the Field: User Testimonials

Testimonials from engineers and purchasers who have utilized 10mm LEDs in their projects offer firsthand insights into their practical benefits. Feedback often emphasizes the improved performance, energy efficiency, and innovative applications enabled by these high power LEDs.

Conclusion: Embracing the Future with 10mm LED Technology

The exploration of 10mm LED diodes in electronic components reveals a future where efficient, reliable, and versatile lighting solutions are paramount. As technology continues to evolve, the significance of these LEDs in promoting sustainable, innovative designs becomes increasingly clear.

Call to Action

For those at the forefront of electronics manufacturing and design, integrating 10mm LEDs into your projects represents a step toward embracing efficient, innovative, and versatile lighting solutions. Explore the potential of these powerful LEDs and light up your projects with unmatched efficiency and brilliance.

10mm LED diode
10mm LED diode

Features

  • 10mm Size: The larger size of these LEDs makes them more visible and impactful compared to smaller LEDs. This size is especially useful in applications where visibility from a distance is important.
  • Brightness: Due to their larger size, 10mm LEDs can often house a more powerful light source, making them brighter than smaller LEDs.
  • Variety of Colors: These LEDs are available in a wide range of colors, including standard colors like red, green, blue, yellow, and white, as well as more specialized colors.
  • Viewing Angles: Like other LEDs, 10mm LEDs come with various viewing angles, making them suitable for diverse applications.
  • Lens Options: They can be available with different lens types, such as diffused, which provides a softer light, or water-clear for a more intense and focused beam.
  • IC Compatibility and Low Current Operation: These LEDs can be designed to be compatible with integrated circuits and typically have a low current requirement, making them energy efficient.
  • RoHS Compliance: 10mm LED diodes comply with the Restriction of Hazardous Substances Directive, meaning they are manufactured without the use of certain hazardous materials, making them safer for the environment and human health.

Applications

  • Signage and Displays: Used in large display boards, advertising signs, or informational signs due to their visibility and brightness.
  • Decorative Lighting: Ideal for decorative purposes in architectural lighting, events, and festivals.
  • Indicator Lamps: Suitable for use as indicator lights in various machines, electronic devices, and control panels where larger indicators are necessary.
  • Automotive Lighting: Can be used in custom automotive lighting applications, both for interior and exterior use.
  • DIY Projects: Popular in DIY electronics and hobbyist projects for creating eye-catching and visible light displays.
  • Traffic Signals and Safety Equipment: Their size and brightness make them suitable for traffic lights, safety signs, and emergency lighting.
  • Educational and Scientific Projects: Used in educational kits and scientific projects due to their ease of use and visibility.

RoHs Compliance, Pb-free              Anti-Static Attention

Electrical-optical characteristics:
Filters Sort results
Reset Apply
Article No
color
material
wavelength
apperance
v_typ
v_max
luminous_min
luminous_typ
degree
BL-L101BC
Blue
InGaN
430
Water Clear
4.2
300
800
25
BL-L101BGC
Ultra Bluish Green
InGaN
505
Water Clear
4.2
800
4000
25
BL-L101LRC
Super Red
AlGaAs,DH
660
Water Clear
2.2
250
600
25
BL-L101PGC
Ultra Pure Green
InGaN
525
Water Clear
4.2
1000
5000
25
BL-L101SRC
Hi Red
AlGaAs,SH
660
Water Clear
2.2
50
250
25
BL-L101UBC
Ultra Blue
InGaN
470
Water Clear
4.2
800
2000
25
BL-L101UEC
Ultra Orange
AlGaInP
630
Water Clear
2.5
800
1500
25
BL-L101UGC
Ultra Green
AlGaInP
574
Water Clear
2.5
200
700
25
BL-L101URC
Ultra Red
AlGaAs,DDH
660
Water Clear
2.2
600
1000
25
BL-L101UWC
Ultra White
InGaN
-
Water Clear
4.2
1000
5000
25
BL-L101UYC
Ultra Yellow
AlGaInP
590
Water Clear
2.5
600
1300
25
BL-L101VC
UV
InGaN
405
Water Clear
4.2
80
120
25
Package configuration & Internal circuit diagram
10mm LED diode


All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.

Partno description:

LEDs, Light Emitting diodes, which include various small kinds, such as 3mm, 5mm, 8mm, 10mm; round type, rectangular type square type, tower type, Oval led, elliptical, flat top; SMDs, high power led, piranha LEDs

Part No of LED diode

More Information

Lens Color:

CodeDTCWE
Meaningcolor DiffusedColor TintedWater ClearWater DiffusedOrange diffused

Absolute maximum ratings (Ta=25°C)

ParameterSRLRURUEUYUGPGBGBUBUVWUnit
Forward Current I F252525303030303030303030mA
Power Dissipation P d606060656575110110120120120120mW
Reverse Voltage V R555555555555V
Peak Forward Current I PF (Duty 1/10 @1KHZ)150150150150150150150100100100100100mA
Operation Temperature T OPR-40 to +80°C
Storage Temperature T STG-40 to +85°C
Lead Soldering Temperature T SOL  Max.260+-5°C for 3 sec Max. (1.6mm from the base of the epoxy bulb)°C
Related Information

Applied for:
auto lampcameradome lightrgb screentraffic light



The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment,

communication equipment and household applications). Consult Betlux’s Sales in advance for information on

applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs

 may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical

and life support systems and safety devices).

CAUTIONS for Through-Hole LED Lamps

1. Application
The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment, communication equipment and household applications). Consult Betlux’s Sales in advance for information on applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical and life support systems and safety devices).

2. Storage
The storage ambient for the LEDs should not exceed 30℃ temperature or 70% relative humidity. It is
recommended that LEDs out of their original packaging are used within three months
For extended storage out of their original packaging, it is recommended that the LEDs be stored in a sealed
container with appropriate desiccant or in a desiccator with nitrogen ambient.

3. Cleaning
Use alcohol-based cleaning solvents such as isopropyl alcohol to clean the LED if necessary

4. Lead Forming & Assembly
During lead forming, the leads should be bent at a point at least 3mm from the base of LED lens. Do not use
the base of the leadframe as a fulcrum during forming.
Lead forming must be done before soldering, at normal temperature.
During assembly on PCB, use minimum clinch force possible to avoid excessive mechanical stress.

led diode formingassembly notice of led diode

Soldering

When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.

Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.

Recommended soldering conditions:



IR Reflow Soldering (for SMD display)Wave SolderingSoldering Iron
Pre-Heat150-180°CPre-Heat100°C Max.Temperature300°C Max.
Pre-Heat Time120sec Max.Pre-Heat Time60sec Max.
Peak Temperature260°C Max.SolderWave260°C Max.Soldering Time3sec Max.(one time only)
Soldering Time10 sec Max.Soldering Time5sec Max.

Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED

ESD(Electrostatic Discharge)

Static Electricity or power surge will damage the LED.

Suggestions to prevent ESD (Electrostatic Discharge):

n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs

n All devices, equipment, and machinery must be properly grounded

n Work tables, storage racks, etc. should be properly grounded

n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s

 plastic lens as a result of friction between LEDs during storage and handling

ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,

low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”

and Vf of the suspect LEDs at low currents.

The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP

 product.

antistatic notice-smd led

Drive Method

An LED is a current-operated device. In order to ensure intensity uniformity on multiple LEDs connected in

parallel in an application, it is recommended that a current limiting resistor be incorporated in the drive circuit,

 in series with each LED as shown in Circuit A below.

drive notice - led diode

When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:

  • Determine the Forward Voltage (Vf) of the LED(s):

Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.

  • Determine the Forward Current (If) of the LED(s):

The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.

  • Decide on the Configuration:

Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.

Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.

Calculate Total Power Requirements:

Power (W) = Total Forward Voltage (V) x Total Forward Current (A)

For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:

Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W

  • Select an Appropriate Power Supply:
  • Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
  • Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
  • Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
  • Consider Additional Features:
  • Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
  • Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
  • Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
  • Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
  • Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.

In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.

Here are some well-regarded brands in the industry:

  • Mean Well: One of the most recognized brands in the LED power supply industry, Mean Well offers a wide range of products suitable for both indoor and outdoor applications. Their units often come with features like overcurrent protection, dimming capabilities, and high efficiency.
  • Tridonic: A global leader in lighting technology, Tridonic offers LED drivers and power supplies that cater to various lighting solutions, from simple setups to advanced smart lighting systems.
  • Philips Advance Xitanium: Philips is a well-known brand in the lighting industry, and their Xitanium series of LED drivers are known for reliability and performance. They cater to both indoor and outdoor LED applications.
  • Osram: Another giant in the lighting industry, Osram offers a range of LED drivers and power supplies suitable for various applications, including architectural and street lighting.
  • LIFUD: Specializing in LED drivers, LIFUD is known for its high-quality products that cater to both commercial and residential LED lighting solutions.
  • MOSO: This brand offers a variety of LED drivers, especially for outdoor and industrial applications. Their products are known for durability and performance.
  • TDK-Lambda: With a history in power electronics, TDK-Lambda offers a range of power supplies and LED drivers suitable for various applications, emphasizing reliability and advanced features.
