0805 SMD LED, IR LED

Series No:

BL-LS2012A0E1IR

Weight:(g/pcs)

Dimension:(mm)

2 x 1.25 x 1.1

Package:

SMD 0805 chipLED

Specification:

download

Inquiry

Description:

Introduction

The 0805 SMD LED, IR LED, commonly referred to as an IR LED, represents a critical component in the arena of infrared technology. As a compact and efficient IR emitter LED, it plays a pivotal role in a multitude of electronic applications, leveraging the power of infrared to enhance and enable functionality across devices. This article examines the features, applications, and benefits of the 0805 SMD IR LED, enriched with case studies and testimonials from industry professionals.

Features of 0805 SMD LED, IR LED

The 0805 SMD IR LED boasts several distinctive features:

  • Compact Size: The 0805 package (2.0 x 1.25 mm) allows for integration into space-constrained applications.
  • High Efficiency: These LEDs are designed for optimal infrared emission, providing powerful output while maintaining low power consumption.
  • Versatility: Available in various wavelengths suitable for different IR applications.

Applications of 0805 SMD LED, IR LED

The 0805 SMD IR LED finds applications in various high-tech sectors:

  • Remote Controls: Used in consumer electronics to send signals to TVs, air conditioners, and other devices.
  • Surveillance Systems: Integral to CCTV cameras for night vision capabilities.
  • Optical Sensors: Employed in devices requiring non-contact detection and counting, such as in automated factory lines.
  • Healthcare Devices: Used in medical equipment for diagnostic and treatment purposes involving IR therapy.

Benefits of Using 0805 SMD LED, IR LED

Incorporating the 0805 SMD IR LED into electronic designs offers significant advantages:

  • Enhanced Functionality: Enables a range of functions from basic remote controls to advanced medical applications.
  • Energy Efficiency: Consumes less power, which is crucial for battery-operated devices, extending their operational life.
  • Reliability: These LEDs are known for their long operational life and stability, reducing maintenance costs and frequency of replacement.

Case Studies: Real-World Impact

A notable application was seen in a new line of home security cameras that used the 0805 SMD IR LEDs for their night vision functionality. This integration allowed for clearer images in low-light conditions, which significantly enhanced the product’s effectiveness and customer satisfaction.

User Testimonials

A senior engineer from a leading electronics manufacturing company shared, “The 0805 SMD IR LED has been instrumental in developing our latest range of remote control devices. Its small size and high efficiency have allowed us to design sleeker, more energy-efficient products.”

Conclusion

The 0805 SMD IR LED is an essential element in modern electronics, driving innovation especially in fields requiring infrared technology. Its small footprint, coupled with its powerful output and versatility, makes it an ideal choice for a wide range of applications, from consumer electronics to advanced medical devices.

Call to Action

Upgrade your electronic projects with the efficient and versatile 0805 SMD IR LED. Contact us today to learn more about how these powerful components can enhance your product designs and functionalities.

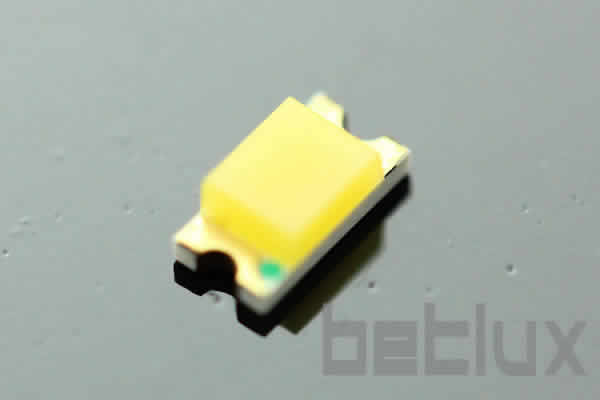

0805 SMD LED, IR LED
0805 SMD LED, IR LED

Features of 0805 SMD IR LED:

  • Compact size: 2.0mm x 1.25mm with 1.1mm thickness.
  • Compatible with automatic placement equipment for easy integration.
  • Wide viewing angle for versatile visibility.
  • Applications include remote control, IR wireless data transmission, and security alarms.
  • Package: 3,000 pieces per reel.
  • RoHS compliant for environmental consideration.

Possible Applications:

  • Infrared remote control systems.
  • IR wireless data transmission.
  • Security alarm systems.
  • Proximity sensors.
  • Ambient light sensing.
  • Smart home applications.
  • Gesture recognition systems.
  • Object detection.
  • Optical encoders.
  • Communication devices.
  • Industrial automation.
  • Medical equipment.
  • Consumer electronics.
  • Wearable technology.
  • Smart appliances.
  • Automotive applications.
  • Robotics.
  • Customized infrared projects.

RoHs Compliance, Pb-free              Anti-Static Attention

Electrical-optical characteristics:
Filters Sort results
Reset Apply
More information, Contact us at sales@betlux.com
Package configuration & Internal circuit diagram
0805 SMD LED, IR LED


All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.

Partno description:

LEDs, Light Emitting diodes, which include various small kinds, such as 3mm, 5mm, 8mm, 10mm; round type, rectangular type square type, tower type, Oval led, elliptical, flat top; SMDs, high power led, piranha LEDs

Part No of  LED diode

More Information

Lens Color:

CodeDTCWE
Meaningcolor DiffusedColor TintedWater ClearWater DiffusedOrange diffused

Absolute maximum ratings (Ta=25°C)

ParameterSRLRURUEUYUGPGBGBUBUVWUnit
Forward Current I F252525303030303030303030mA
Power Dissipation P d606060656575110110120120120120mW
Reverse Voltage V R555555555555V
Peak Forward Current I PF (Duty 1/10 @1KHZ)150150150150150150150100100100100100mA
Operation Temperature T OPR-40 to +80°C
Storage Temperature T STG-40 to +85°C
Lead Soldering Temperature T SOL  Max.260+-5°C for 3 sec Max. (1.6mm from the base of the epoxy bulb)°C
Related Information

Applied for:
auto lampcameradome lightrgb screentraffic light



The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment,

communication equipment and household applications). Consult Betlux’s Sales in advance for information on

applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs

 may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical

and life support systems and safety devices).

CAUTIONS for Through-Hole LED Lamps

1. Application
The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment, communication equipment and household applications). Consult Betlux’s Sales in advance for information on applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical and life support systems and safety devices).

2. Storage
The storage ambient for the LEDs should not exceed 30℃ temperature or 70% relative humidity. It is
recommended that LEDs out of their original packaging are used within three months
For extended storage out of their original packaging, it is recommended that the LEDs be stored in a sealed
container with appropriate desiccant or in a desiccator with nitrogen ambient.

3. Cleaning
Use alcohol-based cleaning solvents such as isopropyl alcohol to clean the LED if necessary

4. Lead Forming & Assembly
During lead forming, the leads should be bent at a point at least 3mm from the base of LED lens. Do not use
the base of the leadframe as a fulcrum during forming.
Lead forming must be done before soldering, at normal temperature.
During assembly on PCB, use minimum clinch force possible to avoid excessive mechanical stress.

led diode formingassembly notice of led diode

Soldering

When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.

Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.

Recommended soldering conditions:



IR Reflow Soldering (for SMD display)Wave SolderingSoldering Iron
Pre-Heat150-180°CPre-Heat100°C Max.Temperature300°C Max.
Pre-Heat Time120sec Max.Pre-Heat Time60sec Max.
Peak Temperature260°C Max.SolderWave260°C Max.Soldering Time3sec Max.(one time only)
Soldering Time10 sec Max.Soldering Time5sec Max.

Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED

ESD(Electrostatic Discharge)

Static Electricity or power surge will damage the LED.

Suggestions to prevent ESD (Electrostatic Discharge):

n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs

n All devices, equipment, and machinery must be properly grounded

n Work tables, storage racks, etc. should be properly grounded

n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s

 plastic lens as a result of friction between LEDs during storage and handling

ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,

low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”

and Vf of the suspect LEDs at low currents.

The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP

 product.

antistatic notice-smd led

Drive Method

An LED is a current-operated device. In order to ensure intensity uniformity on multiple LEDs connected in

parallel in an application, it is recommended that a current limiting resistor be incorporated in the drive circuit,

 in series with each LED as shown in Circuit A below.

drive notice - led diode

When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:

  • Determine the Forward Voltage (Vf) of the LED(s):

Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.

  • Determine the Forward Current (If) of the LED(s):

The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.

  • Decide on the Configuration:

Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.

Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.

Calculate Total Power Requirements:

Power (W) = Total Forward Voltage (V) x Total Forward Current (A)

For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:

Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W

  • Select an Appropriate Power Supply:
  • Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
  • Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
  • Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
  • Consider Additional Features:
  • Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
  • Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
  • Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
  • Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
  • Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.

In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.

Here are some well-regarded brands in the industry:

  • Mean Well: One of the most recognized brands in the LED power supply industry, Mean Well offers a wide range of products suitable for both indoor and outdoor applications. Their units often come with features like overcurrent protection, dimming capabilities, and high efficiency.
  • Tridonic: A global leader in lighting technology, Tridonic offers LED drivers and power supplies that cater to various lighting solutions, from simple setups to advanced smart lighting systems.
  • Philips Advance Xitanium: Philips is a well-known brand in the lighting industry, and their Xitanium series of LED drivers are known for reliability and performance. They cater to both indoor and outdoor LED applications.
  • Osram: Another giant in the lighting industry, Osram offers a range of LED drivers and power supplies suitable for various applications, including architectural and street lighting.
  • LIFUD: Specializing in LED drivers, LIFUD is known for its high-quality products that cater to both commercial and residential LED lighting solutions.
  • MOSO: This brand offers a variety of LED drivers, especially for outdoor and industrial applications. Their products are known for durability and performance.
  • TDK-Lambda: With a history in power electronics, TDK-Lambda offers a range of power supplies and LED drivers suitable for various applications, emphasizing reliability and advanced features.
