Total:360 itemes
| PIC | Product | Size | P/N datasheet |
| 0.7 inch height 5x7 LED dot matrix | 12.70 x 17.80mm | BL-M07A571,BL-M07B571 |
| 0.7 inch height 5x7 LED dot matrix | 12.70 x 17.80mm | BL-M07C571,BL-M07D571 |

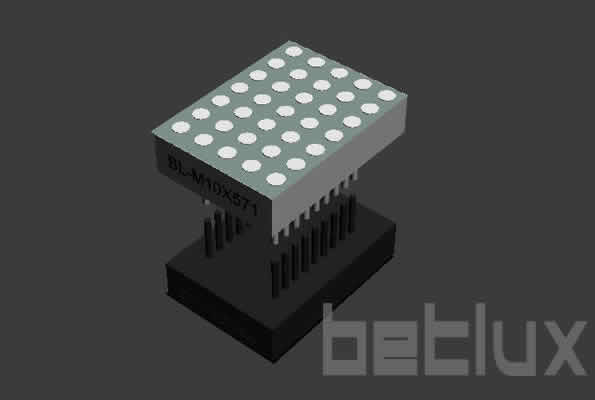

| dot matrix LED 2.54mm 5x7 | 19.96 x 27.94mm | BL-M10A571,BL-M10B571 |
| dot matrix LED 2.54mm 5x7 | 12.70 x 17.80mm | BL-M10C571,BL-M10D571 |
| dot matrix LED 2.54mm 5x7 | 12.70 x 17.80mm | BL-M10E571,BL-M10F571 |

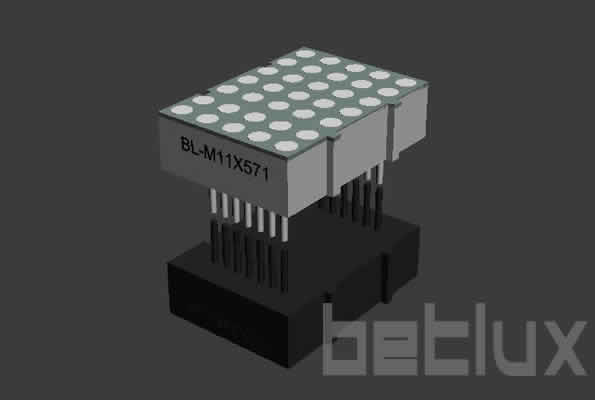

| dot matrix LED display 3mm 5x7 bi-colo | 12.70 x 17.80mm | BL-M11A571,BL-M11B571 |
| dot matrix LED display 3mm 5x7 bi-colo | 12.70 x 17.80mm | BL-M11A571xx,BL-M11B571xx |

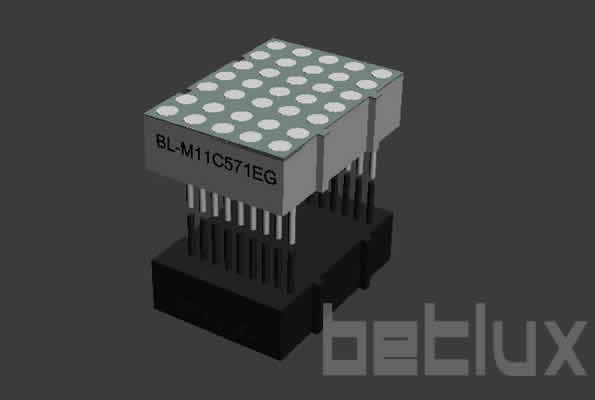

| dot matrix LED display 3mm 5x7 bi-colo | 12.70 x 17.80mm | BL-M11C571xx,BL-M11D571xx |

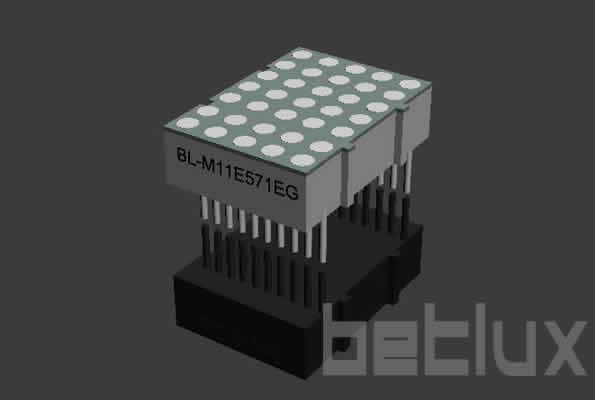

| dot matrix LED display 3mm 5x7 bi-colo | 12.70 x 17.80mm | BL-M11E571xx,BL-M11F571xx |
| 1.2 inch height 5x7 LED dot matrix | 22.80 x 39.10mm | BL-M12A571,BL-M12B571 |

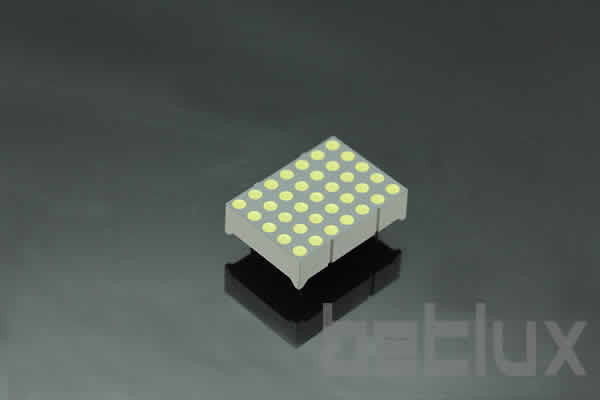

| 1.2 inch height 5x7 LED dot matrix | 22.75 x 31.80mm | BL-M12A572,BL-M12B572 |

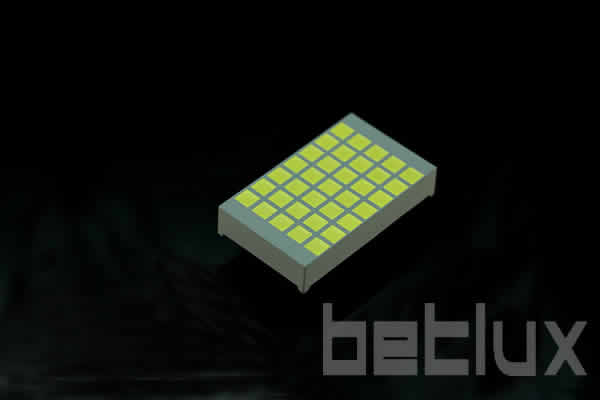

| 1.2 inch height 5x7 LED dot matrix | 25.00 x 42.00mm | BL-M12A573,BL-M12B573 |

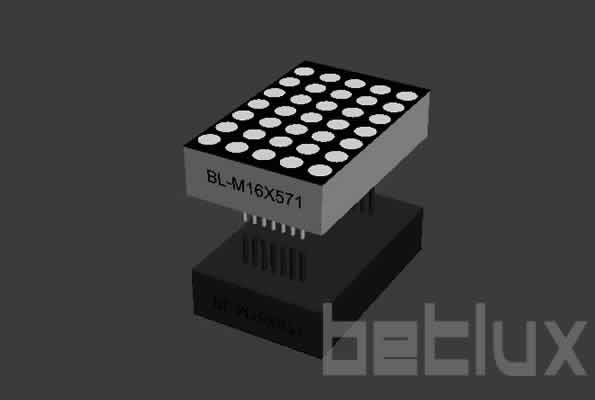

| LED dot matrix display 1.6 inch 5x7 | 29.4 x 44.9mm | BL-M16A571,BL-M16B571 |
| 2.0 inch height 5x7 LED dot matrix | 37.80 x 53.10mm | BL-M20A571,BL-M20B571 |
| 3.0 inch height 5x7 LED dot matrix | 56.90 x 79.80mm | BL-M30A571,BL-M30B571 |
Available in single, bi-color and RGB versions, BETLUX dot matrix displays are widely used in telecommunication, consumer electronics, message and graphic applications.
Wide Height of dot matrix (: 0.7" | 1.2" | 1.4" | 1.5" | 1.9" | 2.0"
2.3" | 3.0" | 3.4" | 4.0" | 4.6" ), with various dot size( 1.90mm | 3.0mm | 3.7mm | 4.8mm | 5.mm | 7.62mm | 10.0mm | 1.8mm);
Betlux's LED dot matrix display are Low Current Operation, and Compatible with ASCII and EBCDIC Codes, Stackable Horizontally
Column Cathode and Column Anode Available
Easy Mounting on PC. Boards or Sockets
Luminous Intensity BIN grading are option
