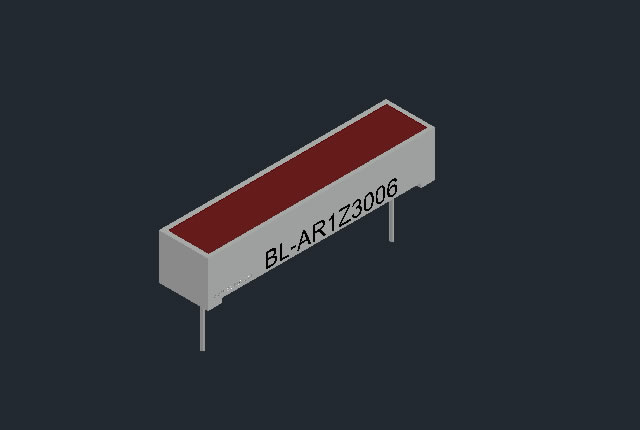

“Precision Illumination: The LED Light Bar (Rectangular, 1 Bar, 30×6mm) for High-Performance Bargraph LED Displays”
Introduction
In the fast-evolving world of electronic indicators and visual feedback systems, the LED light bar (rectangular, 1 bar, 30×6mm) plays a pivotal role. Designed for professional-grade performance, it delivers bright, uniform illumination and exceptional reliability across industrial and consumer applications.
This component is an essential part of a bargraph LED display, where precision and visibility are key. Whether monitoring voltage levels, signal strength, or operational status, this rectangular bargraph LED transforms electrical data into clear, readable light signals. Engineers and electronics manufacturers rely on this compact component for its combination of aesthetic appeal, low power consumption, and robust design.
The LED light bar family continues to gain traction for projects that demand both technical performance and modern visual design. Its rectangular 30×6mm format offers the perfect balance between compact size and visibility, making it a preferred choice for professional-grade instrumentation and control panels.
Features of the 30×6mm LED Light Bar
The bargraph LED display is built for precision and endurance. Every element of its design contributes to stable performance and dependable illumination:
-
Slim Rectangular Profile (30×6mm):
Ideal for narrow display areas or compact panels, providing flexibility in layout and orientation. -
High Brightness and Clarity:
The rectangular bargraph LED emits bright, consistent light that remains visible even in high-ambient environments. -
Energy-Efficient Design:
Consumes minimal current, supporting energy-conscious systems and portable devices. -
Long Operating Life:
With lifespans exceeding 50,000 hours, the component delivers reliability for long-term installations. -
Color Options:
Available in red, green, yellow, blue, and bi-color, allowing for intuitive multi-status indication. -
Strong Epoxy Encapsulation:
Protects internal components from dust, vibration, and temperature fluctuations. -
Uniform Light Emission:
Designed for even brightness across the bar, eliminating hot spots or dim sections. -
Simple Integration:
Standard lead spacing makes it compatible with existing PCB designs, reducing assembly complexity.
These features ensure that the LED light bar is not only functional but also versatile for design and performance optimization.
Applications of the Bargraph LED Display
The bargraph LED display is used across a range of industries and products. Its precision and clarity make it a preferred display technology for data visualization and monitoring:
1. Industrial Automation Panels
In factory automation and process control, LED light bars serve as real-time visual indicators for equipment status, temperature levels, and safety thresholds. Operators benefit from instant visual cues without the need for numerical interpretation.
2. Audio Equipment
Professional audio mixers and amplifiers integrate rectangular bargraph LEDs for signal-level visualization. The vibrant light feedback adds functionality and aesthetic appeal.
3. Communication Systems
In telecommunication devices, the bargraph LED display provides signal strength indicators, enabling quick and easy diagnostics.
4. Power Supply and Battery Management
Used to display voltage, charge level, or current draw, LED bars provide quick, color-coded visual feedback in energy systems.
5. Medical Instruments
Precision monitoring devices employ LED light bars for power indicators, data tracking, and system readiness displays.
6. Automotive and Marine Equipment
Dashboards, control modules, and navigation devices use LED bars for intuitive power, speed, or temperature readouts.
Benefits of Using the 30×6mm Rectangular Bargraph LED
The rectangular bargraph LED offers a combination of performance, energy efficiency, and flexibility that makes it indispensable in modern electronic design:
-
High Visibility in Compact Spaces:
The slim 30×6mm form factor ensures optimal visibility without taking up excessive board space. -
Versatile Design Integration:
Fits seamlessly in both vertical and horizontal display configurations. -
Power Efficiency:
Designed for low-current operation, making it suitable for battery-based applications. -
Exceptional Durability:
Resistant to mechanical stress, ensuring consistent performance in demanding environments. -
Aesthetic Appeal:
Offers clean, professional visuals suitable for both industrial and consumer devices. -
Long-Term Reliability:
With robust encapsulation and efficient heat dissipation, the LEDs maintain performance stability. -
Customizable Options:
Manufacturers can choose from single-color, dual-color, or multi-segment options for unique applications.
Case Studies
Case Study 1 – Industrial Control Systems (Germany)
A German automation company integrated the bargraph LED display into its control consoles to visualize hydraulic pressure levels. The compact 30×6mm LED light bar provided the perfect balance between panel density and visibility. Operators reported faster response times and reduced reading errors by 25%.
Case Study 2 – Audio Equipment Manufacturer (Japan)
A Japanese audio company implemented the rectangular bargraph LED in equalizer units. The slim size and vivid brightness created an attractive, responsive display that enhanced user experience and brand perception.
Case Study 3 – Renewable Energy Systems (USA)
An American solar inverter company adopted LED light bars to monitor power output and battery charge. The component’s clarity in outdoor conditions made it ideal for renewable applications, improving end-user satisfaction and product reliability.
User Testimonials
John P., Electronics Engineer (USA):
„The 30×6mm bargraph LED display fits perfectly into compact circuit boards. Its brightness and uniformity make system status visualization effortless.”
Hiroshi M., Product Designer (Japan):
„We used the rectangular LED light bar in our new series of amplifiers. The display performance is excellent, with no uneven lighting.”
Maria F., Control Systems Manager (Spain):
„Reliable and long-lasting — the LED bars performed flawlessly even under 24/7 industrial operation. Highly recommended for durable equipment.”
Design and Integration Considerations
To achieve optimal performance and longevity from the bargraph LED display, engineers should consider several best practices during integration:
-
Proper Current Regulation:
Always use current-limiting resistors or constant-current drivers to maintain stable brightness and protect the LEDs. -
Voltage Compatibility:
Verify that the LED forward voltage matches the power supply design. -
Heat Dissipation:
Though LEDs generate minimal heat, ensure sufficient spacing and airflow for high-brightness applications. -
Environmental Protection:
Apply conformal coatings for protection against moisture and dust in industrial settings. -
Color Coding Strategy:
Utilize multi-color LED bars for layered data visualization — green for normal, yellow for warning, red for critical. -
Mounting Alignment:
Ensure precise alignment on the PCB to maintain consistent light output and visual symmetry.
Conclusion
The LED light bar (rectangular, 1 bar, 30×6mm) exemplifies modern efficiency, durability, and performance in electronic display components. As part of a bargraph LED display, it translates technical data into vibrant, accessible information — bridging the gap between functionality and design.
Its reliability and compactness make it suitable for everything from control panels to advanced consumer devices. With minimal energy consumption, long lifespan, and aesthetic versatility, this rectangular bargraph LED delivers unmatched performance for engineers and manufacturers.
If your next project demands clear visibility, professional design, and dependable operation, the LED light bar offers a high-quality, scalable solution that meets today’s display challenges.
Features
- Display Area Shape: Rectangular, offering a clear and distinct area for illumination.
- Display Area Number: Features one display area.

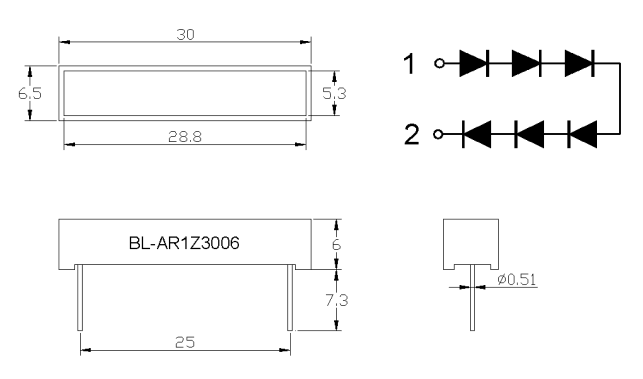

- Reflector Dimensions: Length of 30mm and width of 6mm, creating a slim and elongated display.
- Uniform Light Emitting Area: Ensures consistent and even lighting across the display.
- Low Current Operation: Energy-efficient, reducing power consumption.
- Wide Viewing Angle: Makes the display easily visible from different perspectives.
- Easily Mounted on P.C. Boards: Designed for straightforward integration into electronic systems.
- Flush Mountable: Can be installed to align seamlessly with the surface, ensuring a clean and integrated appearance.
- Excellent On/Off Contrast: Enhances visibility and readability, particularly important for indicator lights.
- Can be Used with Panels and Legend Mounts: Versatile in terms of installation, suitable for various panel types.
- Categorized for Luminous Intensity: Ensures uniform brightness across different units.
- Different Colors in One Unit Available: Provides options for various color displays, enhancing customization.
- Standard: Black Face, White Segment: Offers a classic and easily readable appearance.
- RoHS Compliance: Manufactured in accordance with environmental and safety standards.
Applications
- Indicator Lights: Ideal for applications requiring slim and clear indicator lights in electronics, machinery, or other equipment.
- Control Panels: Suitable for use in control panels in various devices, especially where space is limited.
- Signal Lights: Applicable in settings where small, but clear signal lights are required.
- Instrumentation Displays: Useful for displaying status or readings in narrow instrumentation panels.
- Consumer Electronics: Can be integrated into various consumer electronic devices for display or indication purposes.
- Safety and Emergency Equipment: Suitable for use in compact safety devices requiring clear indicator lights.
- Information Displays: Effective in narrow information displays in public areas or systems.
