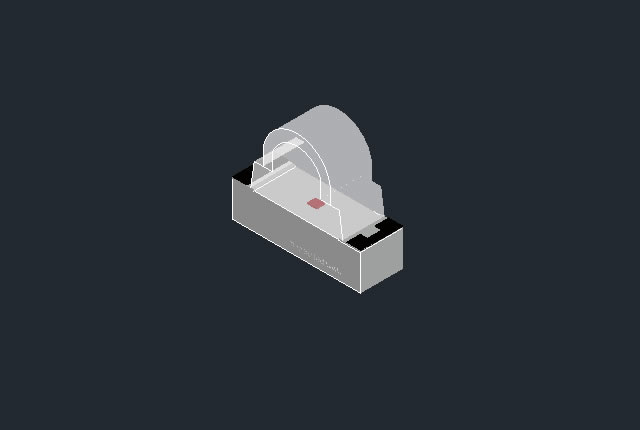

Initial Graphics Exchange Specification (.IGS)Standard for the Exchange of Product Model Data (.STEP)To examine all 3D specifications, save the files to your local drive and open them with your 3D application.
Lens colors in 3D files are solely for visual representation; consult the Datasheet for accurate lens type and color information.
In the event of a mismatch, the dimensions in the datasheet take precedence over the 3D specifications.
Introduction
The 1806 SMD LED, Side Emitting, represents a significant advancement in diode LED technology, particularly suited for applications where space and directional lighting are critical. Known for its compact design and efficient light distribution, this innovative LED provides unique solutions across various industries. This article explores the characteristics, applications, benefits, and real-world effectiveness of the 1806 SMD LED, Side Emitting, supported by case studies and user testimonials.
Features of 1806 SMD LED, Side Emitting
The 1806 SMD LED, Side Emitting offers several distinctive features that make it a preferred choice for designers and engineers:
- Directional Lighting: Designed to emit light laterally, it is perfect for edge-lighting applications.
- Compact Footprint: Its small size allows for integration into slender and compact designs without sacrificing performance.
- High Efficiency: Delivers bright, consistent light while maintaining energy efficiency, crucial for battery-operated devices.
Applications of 1806 SMD LED, Side Emitting
This LED is incredibly versatile, finding applications in various fields:
- Display Lighting: Used extensively in retail display cases and signage where directional light enhances visibility and aesthetics.
- Automotive Lighting: Ideal for dashboard and accent lighting, providing clear and uniform illumination without hotspots.
- Consumer Electronics: Used in devices such as laptops and mobile phones for keyboard backlighting and status indicators.
- Architectural Lighting: Enhances features in buildings with cove lighting and other integrated architectural elements.
Benefits of Using 1806 SMD LED, Side Emitting
Integrating the 1806 SMD LED, Side Emitting into product designs offers significant advantages:
- Enhanced Aesthetic Appeal: Provides a sleek and modern look to electronic devices and lighting installations.
- Improved Energy Efficiency: Consumes less power compared to traditional LEDs, which is beneficial for both cost savings and environmental impact.
- Versatility: Its side-emitting characteristic allows for creative applications in areas where traditional top-emitting LEDs are not suitable.
Case Studies: Demonstrating Effectiveness
One notable application was in a new line of ultra-thin televisions, where the 1806 SMD LED, Side Emitting was used to achieve an impressively slim profile without compromising on screen brightness or uniformity. This innovation not only enhanced the product’s market appeal but also significantly improved viewer satisfaction.
User Testimonials
A senior design engineer from a leading automotive manufacturer noted, «The 1806 SMD LED, Side Emitting has transformed our approach to interior vehicle lighting. Its ability to provide consistent, non-intrusive light is perfect for our needs and has been instrumental in improving the user experience.»
Conclusion
The 1806 SMD LED, Side Emitting is a standout in the field of LED technology, offering specialized solutions that meet the demands of modern applications. Its ability to deliver high-quality, directional light in a compact form factor makes it an invaluable component in both commercial and industrial markets.
Call to Action
Revolutionize your designs with the 1806 SMD LED, Side Emitting. Contact us today to see how this innovative technology can be integrated into your next project to enhance efficiency, aesthetics, and functionality.
Features: 1806 SMD LED, Side Emitting

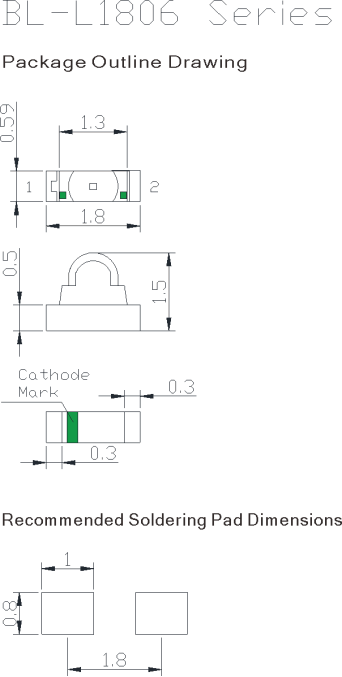

- Compact size: 1.7mm x 0.6mm SMD
- Mono-color type with ultra brightness
- Compatible with automatic placement equipment
- Wide viewing angle for versatile visibility
- Ideal for backlighting and indicator applications
- Package includes 4,000 pieces per reel
- PB-Free for environmental considerations
- RoHS Compliance, meeting environmental standards
Application:
- Backlighting in compact electronic devices
- Indicator lights for various applications
- Integration into small displays and keypads
- Visual signaling in consumer electronics
- Compact lighting solutions in electronic designs
- Status indicators on control panels and instruments
- Low-profile lighting in miniature applications
