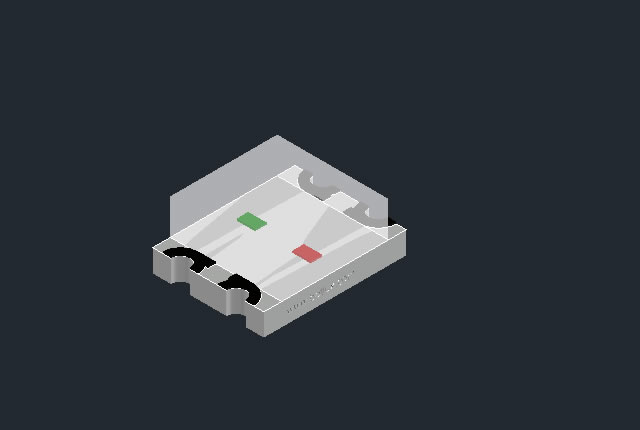

«Compact Precision and Dual Illumination: The 1612 SMD LED, Bi-Color Solution»
Introduction
In modern electronics, the demand for compact yet high-performance light sources continues to grow. The 1612 SMD LED, Bi-Color component perfectly embodies this trend, offering brightness, reliability, and versatility in an exceptionally small form factor. As a vital member of the chip LEDs family, it integrates two light-emitting chips within a single package, allowing multiple color outputs depending on circuit polarity or driving conditions.
These chip LEDs are widely used across industries—from consumer electronics to medical equipment—where dual-color indicators improve functionality and design flexibility. The bi color LED technology provides engineers and product designers with a seamless way to convey status, power, or alerts in minimal space while maintaining energy efficiency. When integrated into a well-designed diode LED circuit, the 1612 SMD LED delivers uniform light output, low heat generation, and long-term durability.
Features of the 1612 SMD LED Bi-Color

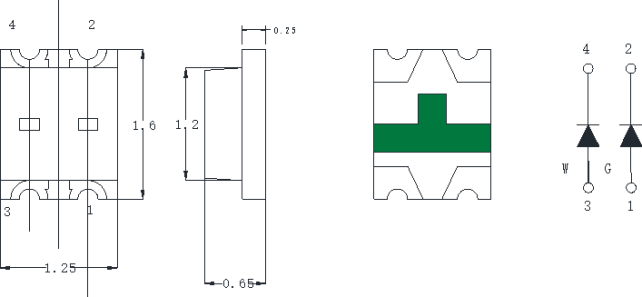

The 1612 SMD LED (1.6 mm × 1.2 mm package) has become one of the most popular chip LEDs in modern electronic design, providing an excellent balance between performance, compactness, and versatility.
Key Features:
-
Ultra-Compact Design:
With dimensions of 1.6 × 1.2 mm, it saves valuable PCB space while maintaining outstanding optical efficiency. -
Bi-Color Output:
Two separate LED chips—typically red/green or red/blue—allow for dual-state illumination within the same component. This bi color LED configuration enhances usability and design clarity. -
High Luminous Intensity:
Despite its size, the chip LEDs generate bright, uniform light, suitable for indicator or backlight applications. -
Low Power Consumption:
Optimized for minimal energy draw, making it ideal for battery-powered and portable devices. -
Wide Viewing Angle:
Delivers consistent visibility even from off-axis angles, crucial for multi-directional display readability. -
Stable Thermal Characteristics:
The diode LED structure ensures efficient heat dissipation, extending component lifespan. -
Automated Assembly Compatibility:
Fully compatible with reflow soldering and high-speed SMT production lines, simplifying manufacturing.
Applications of 1612 SMD LED Bi-Color
The versatility of the 1612 SMD LED makes it indispensable for engineers working on devices requiring compact, multi-status illumination. Its dual-color feature allows easy integration into systems that need simple visual feedback or complex RGB blending in multi-LED arrays.
-
Consumer Electronics:
Used in smartphones, wearable devices, remote controls, and home appliances for power and function indicators. -
Automotive Industry:
Incorporated into dashboard displays, switches, and control modules, where bi color LEDs improve user interaction and signal clarity. -
Medical Equipment:
Reliable chip LEDs provide color-coded feedback in compact diagnostic and monitoring tools, where clarity and precision are critical. -
Industrial Control Panels:
Used for system status indicators and operational feedback, offering durable and efficient illumination under continuous operation. -
Telecommunication Devices:
Integrated into routers and network interfaces to signal connectivity and power status. -
Wearable and Portable Gadgets:
Their low-power consumption makes them ideal for devices like fitness trackers and portable scanners. -
IoT Systems and Smart Devices:
Enables intuitive color-based notifications for real-time data or connectivity feedback.
Benefits of Using Chip LEDs Like 1612 Bi-Color
The 1612 SMD LED stands out among chip LEDs for its efficiency, design adaptability, and long-term reliability.
-
Dual-Color Communication:
The bi color LED offers two distinct color states from a single component, reducing the need for multiple LEDs and simplifying circuit layouts. -
Compact and Lightweight:
Perfect for modern electronics that demand miniaturization without compromising brightness or visibility. -
Enhanced Reliability:
Manufactured to endure mechanical stress, vibration, and temperature fluctuations common in industrial and automotive environments. -
Energy Efficient:
Consumes less power compared to through-hole or traditional diode LED options, improving energy efficiency across the system. -
Cost-Effective Solution:
Consolidating two colors in one package lowers material and assembly costs while simplifying inventory. -
High Design Flexibility:
Can be used for signal indicators, backlighting, or decorative lighting applications across various industries. -
Long Operational Life:
Designed to last over 50,000 hours with minimal color shift, ensuring product longevity.
Case Studies
Case 1 – Automotive Dashboard Indicators (Japan):
A major automotive electronics manufacturer integrated 1612 SMD LEDs into control panel buttons. The compact chip LEDs replaced bulkier alternatives, reducing board area usage by 25% while maintaining dual-color functionality for status signals.
Case 2 – Medical Diagnostics (Germany):
A leading medical device company adopted the bi color LED for portable glucose monitors. The LEDs provided intuitive red/green signaling for operation and error status, improving user experience and product reliability.
Case 3 – IoT Device Indicators (USA):
An IoT sensor manufacturer implemented 1612 SMD LEDs into its wireless modules. The diode LED technology offered precise brightness control, ensuring low-power operation without sacrificing visibility.
User Testimonials
Maria Fernandez, Electronics Engineer (Spain):
«We use chip LEDs like the 1612 series for compact designs. The dual-color output simplifies our interface designs without adding complexity.»
Alexei Petrov, Product Developer (Russia):
«The bi color LED solution improved the usability of our control systems. It’s durable, bright, and performs consistently under stress.»
David Nguyen, Purchasing Manager (Vietnam):
«Switching to 1612 SMD LEDs reduced our production cost and improved assembly efficiency. They’re now standard in our indicator modules.»
Integration in Diode LED Circuits
When incorporating the 1612 SMD LED into a diode LED circuit, engineers should optimize for current regulation, heat management, and PCB layout to ensure maximum performance.
Design Tips:
-
Use Constant-Current Drivers:
Prevent current surges that could damage the LED chips. -
Thermal Management:
Use high-conductivity substrates to efficiently dissipate heat and maintain consistent brightness. -
Polarity Control:
As a bi color LED, polarity reversal determines emitted color; careful design ensures accurate signal transitions. -
Parallel Circuit Design:
Maintain balanced voltage distribution across LEDs in multi-LED configurations. -
Protective Resistors:
Include current-limiting resistors to safeguard against excessive voltage.
Following these design principles ensures long-term stability and reliable illumination from chip LEDs like the 1612 series.
Conclusion
The 1612 SMD LED, Bi-Color diode stands as a shining example of innovation in miniaturized lighting. Combining compact dimensions, energy efficiency, and dual-color versatility, it meets the evolving needs of modern electronics.
For engineers and designers, these chip LEDs offer an exceptional balance between function and form—ideal for compact devices, IoT products, automotive systems, and industrial controls. With superior optical performance, low power consumption, and high reliability, the bi color LED continues to redefine how compact light indicators are designed and integrated.
From diode LED circuits to large-scale automation systems, the 1612 SMD LED remains an industry-trusted component that ensures precision, clarity, and long-term performance.
Features:
1.6mmx1.2mm SMD, 1612 SMD Bi-Color LED
SMD (Surface Mount Device) technology.
Compact size: 1612 package.
Bi-color capability for dual-color illumination.
Efficient and bright illumination.
WIDE VIEWING ANGLE.
Compatible with automatic placement equipment
Suitable for automatic placement on circuit boards.
Versatile design for various applications.
Commonly available in different color combinations.
PACKAGE:4KPCS/REEL
RoHS compliance.
Applications:
Indicator lights with dual-color status.
Display backlighting with two-color options.
Dual-color signage in small-scale applications.
Status indicators on circuit boards.
Decorative lighting in consumer electronics.
Wearable technology.
Portable measurement instruments.
Illumination in control panels.
Automotive interior lighting with dual colors.
General-purpose dual-color lighting applications.
