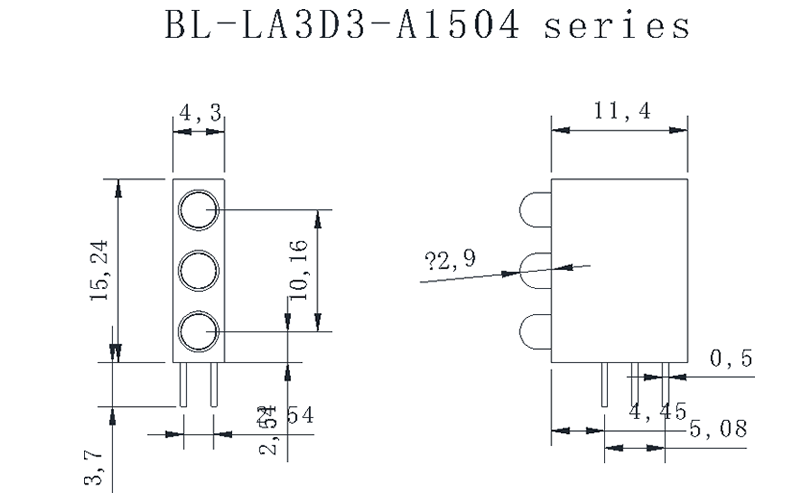

3mm CBI, Triple-Level – Circuit Board Indicator 3mm LED
The 3mm CBI, triple-level circuit board indicator LED is a specialized indicator solution designed for compact PCBs that require multi-status signaling in a vertical stack format. As part of the CBI (Circuit Board Indicator) LED family, this triple-level configuration provides three independent LED positions in one robust housing, making it an ideal choice for applications that demand space efficiency, clear visibility, and reliable multi-color or multi-status indication.
Whether used in instrumentation, telecommunications, servers, or industrial control panels, the 3mm CBI triple-level LED indicator delivers consistent optical performance with simplified PCB integration.
Key Features
Triple-Level LED Design
This indicator incorporates three vertically aligned 3mm LEDs, allowing engineers to display three independent status conditions in a single footprint. This stacked configuration reduces board space usage and enables tidy, organized indicator layouts.
Uniform 3mm LED Illumination
Each LED in the triple-level assembly uses a high-quality 3mm round LED, available in single colors, bi-color, or tri-color options depending on system requirements. The optical output is stable, bright, and easily visible in various environments.
Precise PCB Alignment
The housing is engineered to ensure perfect alignment when mounted onto printed circuit boards. This eliminates LED angle variations and promotes professional, consistent panel appearance.
High-Contrast Indicator Windows
A molded black or dark housing enhances contrast, allowing the illuminated LEDs to stand out clearly in daylight or under strong ambient lighting.
Multiple Lens Options
Depending on application needs, devices may use:
-
Water-clear lenses for maximum brightness
-
Diffused lenses for wide-angle soft illumination
-
Tinted lenses for enhanced color distinction
Durable Housing for Industrial Use
Made from heat-resistant, UL 94V-0 rated materials, this triple-level CBI unit withstands harsh manufacturing processes such as wave soldering.
RoHS-Compliant
Fully compliant with environmental standards, ensuring safe and green electronic product design.
Applications
Instrumentation & Test Equipment
Triple-level indicators are often used for showing multi-stage states, such as:
-
Power / Standby / Fault
-
Low / Normal / High readings
-
Ready / Busy / Error
Telecommunications Equipment
Used on base stations, routers, switches, and network hardware to communicate:
-
Port status
-
Signal strength
-
Line conditions
Industrial Automation & Control Panels
The vertical stacking capability makes it perfect for compact industrial equipment needing:
-
Process indicators
-
Alarm signals
-
Mode status lights
Consumer Electronics
Useful for multi-function devices requiring multiple indicators in a restricted space.
Servers and Power Supply Units
Often used for:
-
PSU health LEDs
-
Overheat warnings
-
Fan and system activity indicators
Benefits
Space-Saving Triple-Level Format
Three LEDs in one housing minimize PCB footprint while maximizing functionality.
Improved Assembly Efficiency
Pre-aligned LEDs reduce manual soldering errors and enhance production efficiency.
High Reliability for Long-Term Operation
Engineered for years of continuous operation with stable luminous output.
Consistent Aesthetic and Professional Look
Perfectly aligned indicators create a high-end, clean front-panel appearance.
Case Study
A UK-based manufacturer of industrial control systems needed an indicator solution for a compact PLC module. Their requirements:
-
Three independent system states
-
Limited PCB space
-
High visibility for industrial environments
The 3mm CBI triple-level LED allowed them to replace multiple discrete LEDs with a single, organized assembly. It reduced assembly time by 25%, increased visibility, and improved the final appearance of the module. The company standardized this CBI solution across its entire product line.
User Testimonials
✔ John W., Electronics Engineer (USA)
“The triple-level 3mm CBI LED indicators helped us simplify our PCB layouts significantly. Alignment is perfect every time.”
✔ Maria T., Product Designer (UK)
“Compact, bright, and reliable—these indicators are now our go-to option for front-panel status displays.”
✔ Alex R., Industrial Controls Manufacturer
“Switching from discrete LEDs to the triple-level CBI saved both space and assembly cost. Highly recommended.”
Conclusion
The 3mm CBI triple-level circuit board indicator LED offers engineers a compact, professional, and reliable multi-status display solution. With its vertically aligned triple-LED design, exceptional brightness, and robust construction, it is ideal for any industry requiring high-quality visual signaling in tight PCB spaces. This indicator simplifies assembly, enhances product aesthetics, and ensures long-term durability across a wide range of electronics applications.
