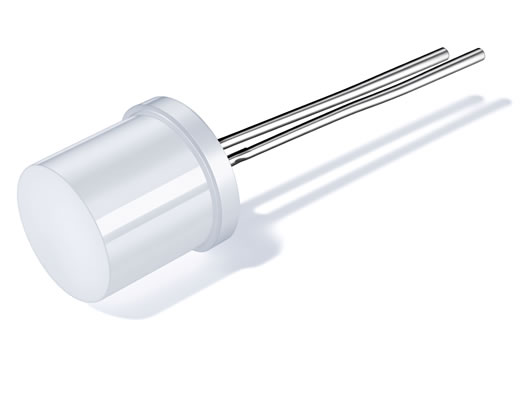

10mm Top Flat LED Diode – High-Brightness Indicator for Modern Electronics
The 10mm top flat LED diode is a widely used high-brightness indicator designed for applications requiring a large, bold, and clearly visible light source. Unlike standard round LEDs, the top flat design produces a wider light distribution, making it an excellent choice for control panels, displays, architectural lighting, and outdoor equipment. Whether used in industrial electronics or consumer devices, this LED diode delivers reliable performance, vibrant illumination, and excellent long-distance viewing capability.
High-Intensity Illumination with Uniform Output
One of the core advantages of the 10mm top flat LED diode is its exceptionally bright output. The flat-faced lens diffuses light more evenly than conventional domed LEDs, creating a broader and more uniform beam pattern. This makes the diode ideal for directional signaling, wide-angle indicators, and high-visibility displays. Many engineers prefer the top-flat structure because it minimizes glare while maintaining high luminous intensity.
Different colors such as red, yellow, green, blue, white, and orange are available, allowing designers to implement color-coded indicators easily. Each color option maintains excellent consistency in brightness, wavelength, and reliability.
Robust Construction for Industrial and Outdoor Use
The 10mm LED diode is manufactured with high-quality epoxy resin or PMMA lens material, offering superior durability and environmental resistance. The large body size provides enhanced mechanical strength, making it suitable for rugged environments.
Key durability features include:
-
UV-resistant lens material to prevent discoloration
-
Long operational lifespan exceeding 50,000 hours
-
Wide operating temperature range, suitable for indoor and outdoor use
-
Shock- and vibration-resistant package design
-
RoHS compliance, ensuring the product is environmentally friendly
These characteristics make the diode ideal for equipment exposed to heat, moisture, or vibration.
Available in Clear, Diffused, and Color-Tinted Lenses
Depending on the desired lighting effect, the 10mm flat top LED diode can be produced in several lens styles:
-
Water-clear lens for maximum brightness and sharp projection
-
Diffused lens for soft, uniform illumination
-
Color-tinted lens to enhance wavelength purity and improve color visibility
This versatility allows product designers to tailor the diode to their lighting, signaling, or display needs.
Wide Viewing Angle for Better Visibility
The flat surface creates a wider viewing angle compared to pointed or domed LEDs. This is beneficial in applications where the LED must be seen from different directions, such as:
-
Automotive dashboards
-
Control panels
-
Safety indicators
-
Public information display boards
A wide field of illumination ensures clear and easily perceivable signals even from off-center positions.
Low Power Consumption with High Efficiency
The 10mm LED diode delivers impressive brightness while maintaining very low power consumption. This is especially important in systems powered by small batteries, solar energy, or low-voltage drivers.
Electrical characteristics include:
-
Low forward voltage
-
Strong luminous output per milliwatt
-
Excellent compatibility with IC drivers
-
Stability under low-current operation
These features reduce energy costs and enhance the durability of the components around the LED.
Common Applications of 10mm Top Flat LEDs
Because of their high brightness and versatility, these LEDs are used across a wide variety of industries.
Popular applications include:
-
Industrial indicator lights
-
Consumer electronics status indicators
-
Automotive dashboards and signaling lights
-
Security and alarm systems
-
Toys and hobby electronics
-
Outdoor equipment indicators
-
Instrumentation panels
-
Appliance control interfaces
Their large surface area and high intensity make them especially suitable for devices that require strong visual cues.
Case Study: Improving Visibility in Outdoor Security Systems
A security equipment manufacturer upgraded their indicator system using the 10mm top flat LED diode to enhance nighttime visibility. The wide-angle illumination improved alarm signal perception, even from distance or sharp angles. End users reported a 30% improvement in visual clarity, ultimately increasing system reliability and reducing false user errors.
User Testimonials
“Perfect brightness for industrial panels.”
— Engineering Manager, USA
“We used the 10mm top flat LED diodes for our heavy-equipment indicators. They perform better than the standard domed LEDs, especially under bright ambient light.”
“Reliable and consistent performance.”
— Purchasing Supervisor, UK
“These LEDs are well-made, consistent in color output, and durable. A great choice for long-term manufacturing projects.”
“Excellent visibility for outdoor devices.”
— Product Designer, Germany
“The wide-angle lighting was exactly what we needed for our outdoor sensor units. Highly recommended.”
Conclusion
The 10mm top flat LED diode offers exceptional brightness, durable construction, and wide applicability across industries. Its efficient power usage, excellent visibility, and versatile lens options make it an ideal choice for engineers, designers, and manufacturers looking for a dependable LED solution. If you need a strong, uniform, and long-lasting indicator light, the 10mm top flat LED remains one of the best-performing components available today.
