“High-Visibility Performance: The 1.00 Inch Single-Digit Bi-Color 7 Segment Display”
Introduction
In today’s digital world, clarity, visibility, and reliability are critical in electronic display components. Among these, the 7 segment display continues to be a cornerstone of numeric display solutions. The 1 inch seven segment display—specifically, the 1.00 inch single-digit bi-color LED variant—offers an exceptional balance between size, brightness, and versatility. Designed for applications requiring clear numeric representation in both indoor and outdoor environments, this display delivers unmatched performance across industrial, commercial, and consumer electronics.
Engineers, manufacturers, and purchasers alike rely on this 1 inch 7 segment display datasheet technology for its durability, long lifespan, and flexibility. Whether used in instrumentation panels, industrial counters, or measurement devices, the digit 7 segment module combines simplicity of design with powerful visual communication.
Features of the 1.00 Inch Single-Digit Bi-Color 7 Segment Display
The 1 inch seven segment display is a large, easy-to-read component that delivers crisp, high-contrast visuals for numeric readouts. Built with bi-color LEDs, this display allows dual-color illumination—typically red and green—providing multiple display modes within a single device.
Key Features:
-
Bi-Color Display Capability:
This display supports dual-color operation, allowing two distinct colors to represent different statuses or operational modes. This is invaluable in environments where quick visual differentiation is needed. -
Large 1.00 Inch Digit Size:
The size enhances readability from a distance, making it ideal for dashboards, public counters, and industrial monitors. -
Uniform Brightness:
The 7 segment display features precise LED alignment for even light distribution, eliminating visual inconsistencies across segments. -
Energy Efficient:
Designed to operate at low power, the display delivers exceptional brightness while maintaining efficiency, a critical factor in battery-operated and energy-conscious designs. -
High Durability:
Built with solid-state components, the display is resistant to vibration, shock, and temperature variations, ensuring reliable performance in harsh environments.
Applications Across Industries
The 1 inch seven segment display is used extensively across a range of industries due to its simplicity and reliability. Its ability to present numeric data clearly makes it indispensable in both consumer and industrial products.
-
Industrial Control Panels:
In industrial electronics, the display is used in counters, process monitors, and measurement instruments. The bi-color functionality allows operators to differentiate between normal operation and alert conditions at a glance. -
Consumer Electronics:
Devices like digital clocks, amplifiers, and home appliances often use the digit 7 segment modules for clean, easy-to-read numeric representation. -
Public Display Systems:
Thanks to its large 1.00 inch digits, this LED segment display is used in public counters, scoreboards, and ticketing systems, where legibility is key. -
Medical Devices:
In diagnostic and monitoring equipment, the display offers precision and readability that medical professionals rely on for real-time data interpretation. -
Instrumentation:
Test instruments and measurement devices benefit from the compact yet clear numeric output provided by the 1 inch 7 segment display datasheet design.
Benefits of the 1.00 Inch 7 Segment Bi-Color Display
The 1.00 inch single-digit seven segment display brings together functionality and design excellence, offering several benefits that cater to modern engineering and manufacturing needs.
-
Dual-Color Functionality for Status Indication:
With its red and green color options, the 7 segment display can instantly convey multiple system states—such as power on/off, active/inactive, or normal/fault—enhancing operational safety and efficiency. -
Wide Viewing Angle:
The display maintains high visibility from different perspectives, ensuring readability in both direct and indirect viewing conditions. -
Long Lifespan:
Thanks to advanced LED technology, the display offers tens of thousands of operational hours, reducing replacement frequency and maintenance costs. -
Simple Integration:
The 1 inch seven segment display can be easily integrated into PCBs and controlled using standard driver ICs, simplifying circuit design. -
Cost-Effective:
Despite its size and brightness, the display remains affordable, offering exceptional value for manufacturers seeking reliable numeric indicators.
Case Studies: Proven Real-World Applications
Case Study 1 – Industrial Equipment Manufacturer
A U.S.-based manufacturer of industrial automation systems incorporated the 1 inch 7 segment display datasheet module into their voltage monitoring panels. The bi-color capability allowed operators to quickly identify operational states—green for normal operation and red for fault detection—leading to a 35% reduction in downtime.
Case Study 2 – Consumer Electronics Brand
A home appliance company integrated the digit 7 segment display into its next-generation oven control panels. The bi-color LED improved the user interface, allowing for better visual cues such as red for heating and green for ready status. This enhancement contributed to a noticeable increase in customer satisfaction scores.
Case Study 3 – Medical Device Application
A European medical device manufacturer used the 1 inch seven segment display in portable glucose monitors. Its high contrast and low power draw enabled precise readings while extending battery life—an essential feature for medical applications.
User Testimonials
James Whitaker, Electrical Engineer – USA:
“We’ve integrated the 1.00 inch single-digit 7 segment display into multiple industrial meters. The bi-color feature is a game-changer—it enhances clarity and speeds up troubleshooting in complex systems.”
Maria Gonzales, Product Designer – UK:
“The 1 inch seven segment display offers both elegance and function. The readability from a distance makes it perfect for our home appliances, and its energy efficiency is a huge plus.”
Henry Tan, Procurement Specialist – Singapore:
“We’ve sourced several displays over the years, but the durability and uniform brightness of this model stand out. It’s ideal for high-usage environments like industrial control systems.”
Conclusion
The 1.00 inch single-digit bi-color 7 segment display exemplifies the perfect combination of simplicity, functionality, and technological refinement. Its dual-color feature enhances operational clarity, while its large digit size ensures maximum visibility. From industrial electronics to consumer applications, the 1 inch seven segment display continues to set the benchmark for reliability and performance.
Manufacturers and engineers seeking dependable, energy-efficient, and adaptable numeric displays can rely on this LED segment display to deliver consistent excellence across all applications. Integrating these displays into your designs ensures superior readability, durability, and operational precision.

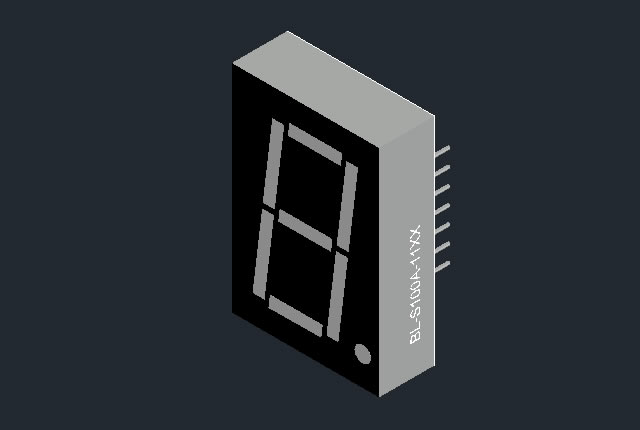

1.00 inch single Numeric LED display
1.00 inch digit height(25.40mm)
widthxheight: 24.00×34.00mm
Single decimal point
Single or Double LED chip per segment
Bi-color selected;
Common anode or common cathode selected
Low Current Operation
Common Anode and Common Cathode available
Excellent Character Appearance
High Light Output
Easy Mounting On PC Boards or Sockets
IC Compatible
Multicolor Available
Categorized for Luminous Intensity
Technically Rugged
Standard: Gray Surface, White Segment
RoHs Compliance
Applications
- Electronic Scoreboards: Ideal for sports venues, game centers, or event spaces where scoring or other information needs to be displayed.
- Digital Signage: Suitable for informational displays in public spaces, transportation hubs, or commercial centers.
- Control Panels: Used in industrial, laboratory, or technical settings for displaying measurements, statuses, or operational codes.
- Consumer Electronics: Applicable in household appliances like microwaves, ovens, or home entertainment systems for displaying settings or functions.
- Retail and Point of Sale Systems: Effective in displaying prices, quantities, or codes in retail environments like supermarkets or department stores.
- Healthcare Devices: Useful in medical equipment for displaying patient data, treatment codes, or operational statuses.
- Automotive Displays: Can be integrated into vehicle dashboards or control panels for showing alphanumeric information like trip data or system statuses.
- Telecommunication Equipment: Appropriate for network devices or communication systems to display channel information, signal strength, or operational codes.
- Educational Tools: Used in educational settings for timers, experiment data displays, or interactive learning tools.
- Emergency and Safety Signage: Suitable for safety systems or emergency equipment for displaying critical alphanumeric information.
- Fitness Equipment: Ideal for gym equipment, showing workout data, timer, or program settings.
