„Precision and Performance: The 3228 SMD LED Diode and Reverse Mount SMD LED Advantage”

Introduction

In the fast-paced world of electronic design, compact and efficient lighting components are essential for achieving performance, reliability, and visual precision. Among the most advanced solutions on the market today is the LED 3228, a versatile and high-efficiency component designed for space-sensitive and performance-driven applications.

The 3228 SMD LED diode is engineered for superior illumination and durability, while the reverse mount LED configuration ensures flexible placement in modern PCB layouts. This innovative pairing delivers exceptional optical performance with minimal footprint, ideal for applications that demand precision — from wearable technology and automotive interiors to industrial control panels and display systems.

As the 3228 reverse mount LED continues to gain popularity, it is redefining expectations for SMD 3228 LED solutions, combining superior brightness, long lifespan, and design versatility in one compact package.

Features of the LED 3228 Reverse Mount SMD LED

The LED 3228 series showcases a set of engineering advancements that elevate it above conventional surface-mount LEDs. Designed for performance-critical environments, it merges optical precision with robust reliability.

Key Technical Features Include:

• Compact Dimensions (3.2mm × 2.8mm):
  The small package size allows designers to integrate the SMD 3228 LED into dense circuit boards without sacrificing light intensity.

• Reverse Mount Configuration:
  The reverse mount LED design enables light emission through the PCB surface, reducing glare and improving visual uniformity — perfect for indicators and backlighting systems.

• High Luminous Efficiency:
  The diode’s advanced chip design ensures bright, uniform light output while minimizing power consumption.

• Wide Viewing Angle:
  The LED 3228 emits consistent light over a broad range, providing excellent visibility and even illumination.

• Enhanced Heat Dissipation:
  Built with thermally optimized materials, this LED ensures stable performance even during extended operation.

• Durable and Long-Lasting:
  The SMD 3228 LED is constructed using high-quality encapsulation materials, offering vibration resistance, moisture protection, and an extended lifespan.

• Multi-Color Options:
  Available in standard colors like red, green, blue, white, amber, and bi-color configurations, meeting diverse application requirements.

Applications of the 3228 SMD LED Diode

The 3228 SMD LED diode is known for its versatility across multiple industries, thanks to its adaptability and reliability. Its reverse mount LED design further enhances its integration potential in compact electronic systems.

1. Consumer Electronics

Used in mobile phones, wearables, and smart home devices, the LED 3228 ensures compactness and visual clarity. Its reverse mount layout is ideal for indicator lighting, enhancing both function and aesthetics.

2. Automotive Systems

Automotive dashboards, instrument clusters, and ambient lighting systems benefit from the SMD 3228 LED due to its stability under vibration and temperature variations.

3. Industrial Control Panels

The 3228 reverse mount LED provides reliable signal indication for industrial controllers, equipment panels, and automation interfaces.

4. Display and Signage

Its uniform brightness and slim profile make it perfect for backlighting small displays, signage modules, and alphanumeric indicators.

5. Medical Equipment

In diagnostic tools, monitoring devices, and instrumentation, the LED 3228 ensures precise illumination and dependable operation under sensitive conditions.

6. Communication Devices

The SMD 3228 LED enhances visibility and energy efficiency in modems, routers, and data transmission equipment.

7. Decorative and Architectural Lighting

Designers value the reverse mount LED for creating sleek, flush designs where light needs to emanate from below the surface for a cleaner finish.

Benefits of Using the LED 3228 Reverse Mount Design

Integrating the LED 3228 into circuit boards brings multiple operational and design benefits. Its reverse mount structure and compact design offer an edge in both performance and efficiency.

• Efficient Space Utilization:
  The reverse mount LED fits perfectly into thin and flexible PCB layouts, enabling designers to maximize surface usage.

• Superior Light Uniformity:
  With precise optical alignment, the SMD 3228 LED delivers consistent brightness and even diffusion across lighting surfaces.

• Energy Efficiency:
  The LED 3228 consumes less power while maintaining brightness, contributing to longer battery life and energy savings.

• Improved Thermal Stability:
  Its design minimizes heat buildup, ensuring steady illumination even in prolonged operational conditions.

• Ease of Manufacturing:
  Fully compatible with standard surface-mount assembly processes, the diode streamlines mass production without compromising quality.

• Versatile Design Options:
  Available in multiple color temperatures and intensities, the SMD 3228 LED supports both functional and aesthetic lighting needs.

• Longevity and Reliability:
  Built for demanding environments, the diode ensures long service life and minimal maintenance.

Case Studies

Case Study 1 – Automotive Dashboard Lighting (Germany):
A leading automotive manufacturer integrated the LED 3228 reverse mount LED in their dashboard indicator lights. The design’s low profile and uniform output reduced glare and improved display readability under various lighting conditions. Production time decreased by 15% due to simplified PCB assembly.

Case Study 2 – Wearable Device Backlighting (Japan):
A tech company designing fitness trackers adopted the SMD 3228 LED for its compact design and energy efficiency. The result was a brighter, thinner display that extended battery life by 20% while maintaining color stability.

Case Study 3 – Industrial Machine Indicators (USA):
An industrial automation firm replaced traditional through-hole indicators with reverse mount LEDs, achieving a sleeker control panel design and enhanced resistance to dust and vibration. Customer feedback praised the improved aesthetics and performance stability.

User Testimonials

Michael Rogers, Product Engineer (USA):
„The LED 3228 is our go-to component for precision indicator lighting. The reverse mount design is perfect for our compact control systems.”

Emily Tan, Lighting Designer (Singapore):
„The SMD 3228 LED provides bright, consistent illumination while simplifying PCB integration. It’s a top performer for architectural projects.”

Luca Moretti, Automotive Specialist (Italy):
„We appreciate the durability of the reverse mount LED in our automotive dashboards. It handles temperature variations beautifully.”

Conclusion

The 3228 SMD LED diode and its reverse mount LED configuration represent the next generation of precision lighting technology. Compact, efficient, and robust, this diode is designed to meet the evolving needs of modern electronics.

Whether in industrial machinery, automotive dashboards, wearable devices, or communication systems, the LED 3228 provides exceptional brightness and durability. Its 3228 reverse mount LED structure not only optimizes PCB design but also enhances visual uniformity and thermal stability.

For engineers and product developers seeking reliable, energy-efficient lighting components, the SMD 3228 LED stands as a proven, future-ready solution for high-performance applications.

Features

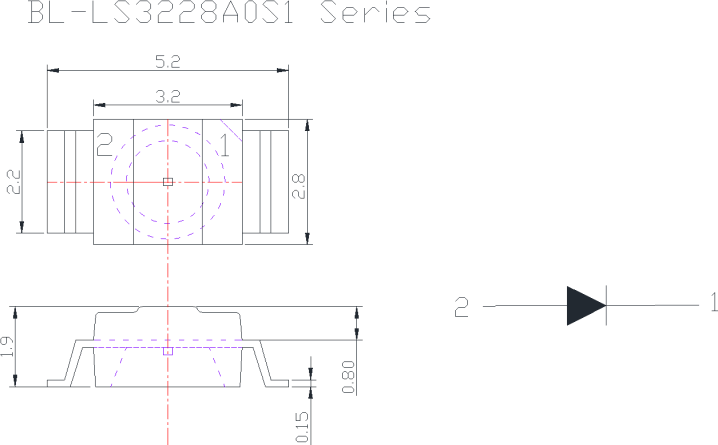

• 3.2mm x 2.8mm SMD, 1.9mm Thickness, reverse mount LED Package: This Surface-Mount Device (SMD) LED is compact, making it suitable for high-density mounting on circuit boards. Its PLCC2 (Plastic Leaded Chip Carrier) package ensures robustness and reliability.
• Mono-Color Type with Ultra Brightness: Provides a single-color light output with high luminosity, ensuring clear visibility and strong illumination.
• Compatible with Automatic Placement Equipment: Designed for seamless integration with automated assembly systems, enabling efficient, high-speed placement and soldering on circuit boards.
• Wide Viewing Angle: Offers a broad range of visibility, making the LED effective for applications where it needs to be seen from different angles.
• Ideal for Backlight and Indicator: Well-suited for use as a backlight in display panels or as an indicator light in various electronic devices.
• Packaged 2,000 Pieces per Reel: Supplied in reels of 2,000 pieces, facilitating bulk handling and automated assembly processes.
• RoHS Compliance: Manufactured in accordance with the Restriction of Hazardous Substances directive, ensuring environmentally safer production and use.

Applications

• Backlighting in Displays: Suitable for backlighting LCDs, control panels, and keypads in various electronic devices.
• Indicator Lights in Electronics: Ideal for use as status or warning lights in consumer electronics, industrial machinery, and automotive applications.
• Automotive Lighting: Appropriate for interior and exterior lighting solutions in vehicles, including dashboard lights, accent lighting, and external signal lights.
• Portable Electronics: Given its small size and brightness, it’s well-suited for use in portable devices like smartphones, tablets, and wearable technology.
• Control Panels: Useful in control panels for machinery and industrial equipment, providing clear indication and backlighting.
• Medical Devices: Can be employed in various medical instruments for backlighting and status indicators, where reliability and clear visibility are essential.
• Decorative and Architectural Lighting: Suitable for decorative lighting in interior design, architectural projects, and ambient lighting setups.
• Safety and Emergency Equipment: Applicable in safety gear and emergency lighting due to its high visibility and compact design.
