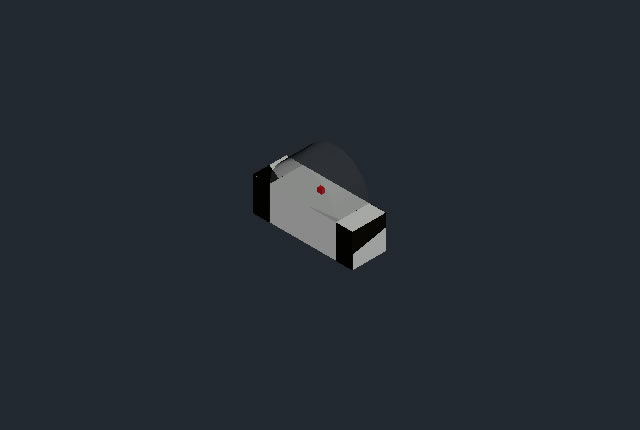

Datasheet Obtain 3D specification files
Initial Graphics Exchange Specification (.IGS)Standard for the Exchange of Product Model Data (.STEP)To examine all 3D specifications, save the files to your local drive and open them with your 3D application.
Lens colors in 3D files are solely for visual representation; consult the Datasheet for accurate lens type and color information.
In the event of a mismatch, the dimensions in the datasheet take precedence over the 3D specifications.
«Precision Detection and Efficiency: The 3010 SMD LED Photodiode Side-Emitting Solution»
Introduction
In today’s rapidly evolving electronics industry, Photodiodes have become indispensable components for sensing, detection, and optical communication. Among these, the 3010 SMD LED diode, Photodiode, side-emitting model stands out for its compact design, high responsiveness, and precise light detection capabilities. Designed for efficient optical signal conversion, this diode delivers accuracy and durability in various industrial, consumer, and communication applications.
The Photodiode operates by converting light energy into electrical current, playing a crucial role in infrared sensing and optical detection systems. Often referred to as an IR diode, it efficiently detects light in the infrared spectrum, ensuring fast and reliable signal processing. Its side-emitting structure allows it to capture light from specific angles, enhancing sensitivity and integration flexibility in compact designs.
This professional-grade diode is also commonly used as a Photodiode receiver in smart control systems, automation devices, and optical encoders — applications that rely heavily on consistent performance and compact surface-mount integration.
Features of the 3010 SMD LED Photodiode
The 3010 SMD LED diode represents a perfect combination of advanced semiconductor technology and precise optical design. Its side-emitting Photodiode structure and surface mount configuration make it highly efficient and easy to integrate into modern electronic systems.
Key Features:
-

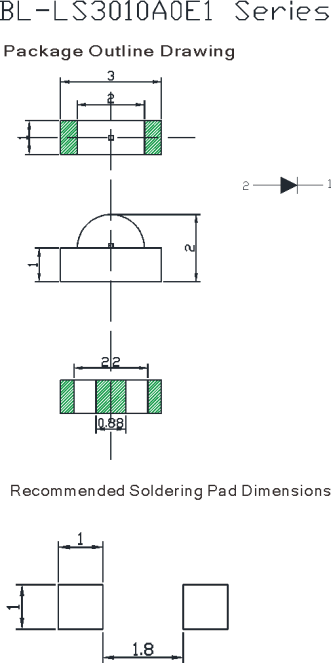

Compact 3.0mm x 1.0mm SMD Package:
The small form factor makes the Photodiode ideal for tight spaces, maintaining performance while minimizing circuit footprint. -
Side-Emitting Design:
Unlike conventional top-view diodes, the side-emitting IR diode captures or emits light horizontally, ideal for edge-lighting or optical sensing applications. -
High Responsivity:
The Photodiode receiver delivers fast and accurate detection of visible or infrared light, crucial for automation and sensing systems. -
Low Dark Current:
Reduced noise ensures superior signal clarity and precision, making it suitable for sensitive instruments. -
Excellent Temperature Stability:
Engineered to perform under varying temperature conditions, ensuring stable operation in industrial environments. -
Surface Mount Design:
The surface mount LED-style package supports automated production for consistent quality and reduced assembly costs. -
Durable Construction:
Built with robust encapsulation materials, offering vibration resistance, long operational life, and reliability under stress.
Applications of 3010 SMD Photodiodes
The 3010 SMD LED Photodiode finds extensive applications in industries that depend on optical sensing and data communication. Its IR diode capabilities and precision response make it an integral part of advanced electronic systems.
-
Infrared Remote Controls and Sensors:
Used in consumer electronics for motion detection, remote signaling, and touchless switches. The Photodiode receiver ensures accurate infrared light detection. -
Optical Communication Systems:
The IR diode functions effectively as a signal receiver in fiber optic communication, providing stable and fast light-to-electric conversion. -
Industrial Automation:
Integrated into machinery for object detection, proximity sensing, and position tracking, enhancing automation reliability. -
Medical Equipment:
Utilized in heart rate sensors, pulse oximeters, and diagnostic instruments where precision light measurement is critical. -
Security and Surveillance Systems:
The Photodiode plays a vital role in motion sensors, door detectors, and light barriers. -
Smart Devices and IoT Systems:
Compact size and high sensitivity make the SMD 3010 Photodiode suitable for embedded systems and wireless control devices. -
Optical Encoders and Counters:
Acts as a Photodiode receiver for rotational or linear position feedback in automation and robotics.
Benefits of the 3010 SMD Photodiode
The 3010 SMD LED diode is engineered to deliver superior performance with enhanced precision and energy efficiency. It provides multiple benefits that cater to both technical and commercial applications.
-
Exceptional Sensitivity:
The Photodiode offers rapid response to changes in light intensity, enabling precise measurement and detection. -
Compact Integration:
Its surface mount LED design allows seamless PCB integration, suitable for miniaturized and high-density circuits. -
Wide Spectral Range:
The IR diode can detect light across visible and infrared wavelengths, ensuring versatility in different environments. -
Energy Efficiency:
Operates on low power, reducing energy consumption and heat generation, extending component life. -
High Reliability:
The Photodiode receiver is designed for long-term stability, maintaining consistent performance in harsh conditions. -
Low Noise Operation:
The minimized dark current and stable signal output make it ideal for applications demanding precision and accuracy. -
Ease of Assembly:
The SMD 3010 Photodiode is compatible with automated soldering and inspection systems, supporting large-scale production.
Case Studies
Case Study 1 – Industrial Automation Systems (Germany):
An industrial robotics manufacturer integrated 3010 SMD Photodiodes for optical sensing in robotic arms. The side-emitting IR diode allowed accurate distance sensing with minimal space usage. The system’s reliability improved by 20%, reducing sensor errors in reflective environments.
Case Study 2 – Medical Monitoring Devices (USA):
A health-tech company implemented Photodiode receivers in wearable medical devices for pulse and oxygen detection. The SMD 3010 LED Photodiode provided high sensitivity and fast response, enhancing accuracy in patient monitoring systems.
Case Study 3 – Consumer Electronics (Japan):
A leading electronics brand adopted IR diodes in their smart TV remote control systems. The surface mount LED design improved the manufacturing efficiency, while the Photodiode‘s fast response enhanced device interaction.
User Testimonials
Daniel Wong, Product Engineer (Singapore):
«We’ve tested multiple models, but the 3010 SMD Photodiode stands out for its responsiveness and durability. It’s ideal for compact PCB layouts.»
Megan Liu, R&D Specialist (China):
«The side-emitting IR diode design allows more flexibility in our automation systems. It performs well even in challenging industrial conditions.»
James Turner, Electronics Procurement Manager (UK):
«The Photodiode receiver integrates seamlessly into our products, offering both reliability and easy assembly during mass production.»
Conclusion
The 3010 SMD LED diode, Photodiode, side-emitting model is an advanced solution for engineers and designers seeking accuracy, reliability, and compact performance. Combining the sensitivity of Photodiodes with the robustness of a surface mount LED package, it offers unmatched versatility for modern electronics.
Its side-emitting IR diode structure ensures optimal light detection and signal transmission in space-constrained applications, while the Photodiode receiver function guarantees precision in optical sensing and control. Whether for industrial automation, medical devices, or communication systems, the SMD 3010 Photodiode stands out as a trusted component for high-performance applications.
By merging high sensitivity, compact design, and energy efficiency, the 3010 SMD Photodiode continues to lead in innovation—empowering the next generation of optical detection and smart technology systems.
Features of 3010 SMD Photodiode Diode (Side Emitting):
- Compact 3010 package: 3.0mm x 1.0mm.
- Photodiode with side-emitting capability.
- Compatibility with automatic placement equipment.
- Wide viewing angle for versatile visibility.
- Applications include remote control, IR wireless data transmission, and security alarms.
- Package: 3,000 pieces.
- RoHS compliance for environmental consideration.
Possible Applications:
- Infrared remote control systems.
- IR wireless data transmission.
- Security alarm systems.
- Proximity sensors.
- Ambient light sensing.
- Smart home applications.
- Gesture recognition systems.
- Object detection.
- Optical encoders.
- Communication devices.
- Industrial automation.
- Medical equipment.
- Consumer electronics.
- Wearable technology.
- Smart appliances.
- Automotive applications.
- Robotics.
- Customized infrared projects.
