«Precision Illumination and Detection: Exploring Photodiode Types in 1206 SMD LED Dome Lens Technology»

Introduction

In modern electronic and optical systems, photodiode types play an essential role in converting light into electrical signals for measurement, sensing, and communication. One of the most reliable and efficient designs in this field is the 1206 SMD LED dome lens Photodiode, which offers compact size, high responsiveness, and exceptional optical clarity. Combining the structural integrity of a surface-mount LED with the functionality of Photodiode light technology, this component is a cornerstone in the development of smart sensors, remote controls, and automation systems.

The 1206 SMD LED package, enhanced by a dome lens, ensures optimal light focus and improved sensitivity to illumination across visible and infrared spectra. This design allows engineers and manufacturers to integrate Photodiode lights into compact electronic assemblies with high performance and reliability. Whether used in IR receiver LED lights or signal detection circuits, the Photodiode remains one of the most valuable tools in precision electronics.

Understanding Photodiode Types

There are several photodiode types in use today, each optimized for specific applications and wavelengths. The 1206 SMD LED dome lens Photodiode represents a refined version of these sensors, tailored for compact devices requiring both light detection and emission capabilities.

Main Types of Photodiodes Include:

1. PN Junction Photodiode:
   The most common type, built with a simple p-n junction. It converts light energy directly into current, widely used in basic detection circuits.

2. PIN Photodiode:
   Features an intrinsic layer between the p and n regions, offering higher speed and sensitivity, suitable for optical communication and high-frequency detection.

3. Avalanche Photodiode:
   Provides internal gain through avalanche multiplication, ideal for extremely low-light environments and long-distance optical signal detection.

4. Schottky Photodiode:
   Offers very fast response times using metal-semiconductor junctions, perfect for ultra-high-speed electronics and precision measurement systems.

The 1206 SMD LED dome lens Photodiode often incorporates PIN characteristics, balancing sensitivity, speed, and compactness — essential for modern automation and Photodiode lights applications.

Features of 1206 SMD LED Dome Lens Photodiode

The 1206 Photodiode integrates the precision of optical sensing with the practical benefits of surface-mount design. Below are its distinctive technical and structural features:

• Compact 3.2mm × 1.6mm SMD Package:
  Optimized for dense PCB layouts, allowing flexible integration in miniature electronic devices.

• Dome Lens Design:
  Enhances light focus and improves angular response, making it highly effective in IR receiver LED lights and remote-control systems.

• High Sensitivity to Infrared and Visible Light:
  Capable of detecting a broad range of wavelengths, ensuring reliable operation across multiple lighting conditions.

• Fast Response Time:
  Ideal for systems that require rapid detection or communication, including optical data transmission and industrial feedback systems.

• Low Dark Current:
  Maintains high signal-to-noise ratio for precision sensing.

• Durability:
  Built to withstand high operating temperatures, vibrations, and humidity — crucial for industrial and automotive environments.

• Surface-Mount Compatibility:
  Enables fully automated placement and soldering, reducing production costs and improving consistency.

Applications of 1206 SMD LED Dome Lens Photodiode

The versatility of the 1206 SMD Photodiode makes it applicable across multiple fields of modern electronics. Its ability to detect and emit light efficiently supports a range of functions in both industrial and consumer products.

1. IR Communication Systems:
   Acts as a key component in IR receiver LED lights for wireless data transmission, remote controllers, and smart devices.

2. Optical Sensors:
   Used in automatic lighting systems, motion detectors, and environmental sensors to measure light intensity and detect movement.

3. Consumer Electronics:
   The compact Photodiode lights are found in remote-control receivers, smart home devices, and display brightness sensors.

4. Industrial Automation:
   Plays a crucial role in object detection, counting, and machine vision systems requiring rapid optical feedback.

5. Medical Equipment:
   Used in pulse oximeters and diagnostic instruments to detect variations in light absorption through tissues.

6. Safety and Security Devices:
   Found in surveillance systems and light barriers, offering reliable object sensing and intrusion detection.

7. Optical Communication Systems:
   The Photodiode light efficiently converts modulated light into electrical signals for data transfer.

Benefits of Using 1206 SMD LED Dome Lens Photodiodes

The 1206 Photodiode offers several benefits that make it a preferred solution in precision electronics.

• High Detection Accuracy:
  The dome lens enhances light gathering capability, resulting in superior accuracy for detecting low-intensity light signals.

• Energy Efficiency:
  With low power consumption and high conversion efficiency, it supports sustainable and compact designs.

• Compact Form Factor:
  Its surface-mount configuration allows it to fit seamlessly into modern PCBs, reducing space requirements.

• Versatile Wavelength Range:
  Works effectively across visible and infrared spectrums, ensuring flexibility in both IR receiver LED lights and optical sensors.

• Durability and Longevity:
  Built with robust encapsulation materials, the Photodiode delivers consistent performance over years of continuous operation.

• Cost-Effective Manufacturing:
  The SMD 1206 Photodiode supports automated assembly, lowering production time and improving quality control.

• Stable Output:
  Delivers consistent results even under variable temperature and light conditions, crucial for industrial reliability.

Case Studies

Case Study 1 – Smart Home Systems (Germany):
A European home automation company integrated 1206 SMD Photodiodes into smart lighting controls. The Photodiode lights enabled precise ambient detection, automatically adjusting indoor brightness. The result was a 25% reduction in energy consumption while maintaining optimal comfort levels.

Case Study 2 – Medical Diagnostic Equipment (USA):
A medical technology manufacturer utilized Photodiode types in portable diagnostic tools. The Photodiode light provided real-time feedback for optical sensors, improving data accuracy in low-light conditions.

Case Study 3 – Automotive Safety Systems (Japan):
A leading car manufacturer adopted 1206 SMD Photodiodes in automatic headlight dimming systems. The IR receiver LED lights quickly detected oncoming traffic, adjusting beam intensity automatically, enhancing both driver visibility and road safety.

User Testimonials

Alex Chen, Electronics Engineer (China):
«We use the 1206 SMD Photodiode across multiple sensor modules. Its response speed and consistency are exceptional.»

Maria Gomez, Lighting Product Designer (Spain):
«The dome lens enhances light directionality perfectly for our IR receiver LED lights. Compact, durable, and easy to assemble.»

Jacob Smith, Automation Specialist (USA):
«Photodiode lights from this series are reliable even in harsh industrial environments. We’ve standardized them in all our systems.»

Conclusion

The 1206 SMD LED dome lens Photodiode is an outstanding innovation in optical sensing technology. Its compact size, energy efficiency, and high sensitivity make it a leading choice across industries — from consumer electronics to industrial automation.

As one of the most advanced photodiode types, it excels in converting Photodiode light into stable electrical signals, ensuring precision and reliability. Whether in IR receiver LED lights, diagnostic tools, or smart lighting systems, this diode delivers superior performance and durability.

The 1206 Photodiode reflects the evolution of Photodiode lights — compact, intelligent, and efficient — supporting the growing demand for reliable optical sensing in modern technology.

Features of 1206 SMD Photodiode Dome (Reverse Package):

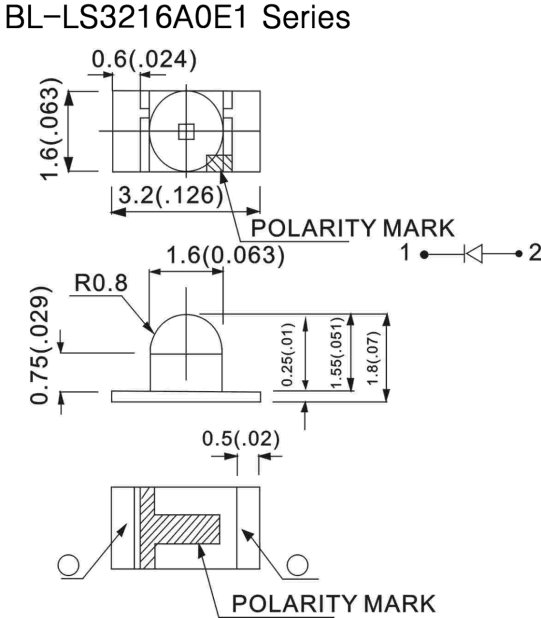

• Compact 1206 package: 3.2mm x 1.6mm x 1.8mm.
• Photodiode with a dome and reverse package.
• Low power consumption for energy efficiency.
• Wide viewing angle for versatile visibility.
• Applications include remote control, IR wireless data transmission, and security alarms.
• Package: 3,000 pieces per reel.
• PB-Free for environmental safety.
• RoHS compliance for environmental consideration.

Possible Applications:

• Infrared remote control systems.
• IR wireless data transmission.
• Security alarm systems.
• Proximity sensors.
• Ambient light sensing.
• Smart home applications.
• Gesture recognition systems.
• Object detection.
• Optical encoders.
• Communication devices.
• Industrial automation.
• Medical equipment.
• Consumer electronics.
• Wearable technology.
• Smart appliances.
• Automotive applications.
• Robotics.
• Customized infrared projects.
