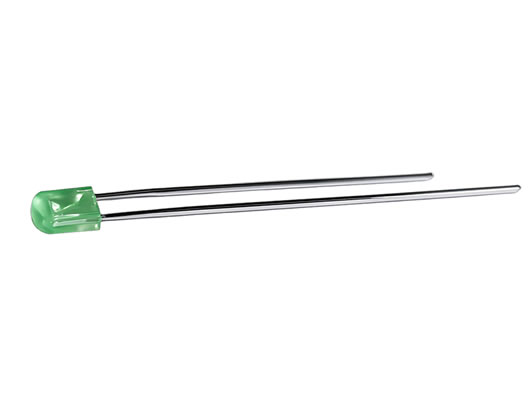

2×3×4mm Rectangular LED Diode, 2-Pin – Compact, Bright, and Engineered for Precision
The 2×3×4mm rectangular LED diode, 2-pin is a compact yet powerful light-emitting solution widely used in modern electronic devices that require clear indication, reliable signaling, and precise illumination. With its space-saving rectangular profile, this LED is ideal for applications where board area is limited but high visibility and durability are essential. Its 2-pin configuration ensures straightforward integration into PCBs, control modules, and consumer devices.
Designed for professional engineers, purchasers, and system integrators, the 2×3×4mm rectangular LED diode offers industry-proven stability, excellent optical performance, and long service life—making it a preferred option across instrumentation, communication devices, automation modules, and more.
Key Features
● Slim 2×3×4mm Rectangular Package
The compact rectangular housing maximizes PCB space efficiency while providing a larger emitting surface compared to round LEDs. It fits easily into densely populated boards and directional light windows.
● High Brightness & Clear Light Output
Engineered with high-efficiency chips, the LED produces vivid, uniform illumination suitable for indicator panels, display modules, and user interface lighting.
●Durable 2-Pin Through-Hole Design
The simple and robust 2-lead structure ensures stable soldering, reliable electrical contact, and long life in constant-use environments.
● Multiple Lens Options
Available in:
-
Diffused (soft, uniform glow)
-
Transparent (high brightness)
-
Water clear (maximum intensity)
This makes the LED adaptable to any optical requirement.
● Compatible With Various Driving Circuits
Low current capability and IC compatibility ensure smooth integration into:
-
Controllers
-
Home appliances
-
Power management boards
-
Consumer electronics
● RoHS Compliant
Manufactured according to environmental and safety standards, ensuring safe integration into global products.
Typical Applications
The 2×3×4mm rectangular LED diode (2-pin) is widely deployed in the following:
● Status and Indicator Lamps
Perfect for UI panels, routers, instruments, and appliance displays.
● Consumer Electronics
Used in headphones, chargers, computer peripherals, toys, and handheld gadgets.
● Communication & Networking Devices
Provides clear indication for modems, switches, routers, signal modules, and IoT devices.
● Industrial Control & Automation
Ideal for compact control units, PLC panels, sensor indicators, and diagnostic lights.
● Gaming & Entertainment Equipment
Used in gaming consoles, arcade machines, scoreboards, audio visualizers, and LED-driven decorative effects.
● Battery Chargers & Power Supplies
Provides visible charging status signals using minimal PCB space.
● DIY Electronics & Educational Kits
Perfect for makers, learners, and prototyping environments due to its simple 2-pin structure.
Benefits At a Glance
| Benefit | Description |
|---|---|
| Space Efficiency | Small 2×3×4mm package for compact PCB designs |
| High Optical Clarity | Consistent and sharp light output |
| Long Lifespan | Stable chip performance with low heat generation |
| Low Power Consumption | Ideal for portable and energy-constrained devices |
| Multiple Colors Available | Red, green, yellow, blue, white, and custom options |
| Cost-Effective | Affordable but professional-grade LED solution |
Why Engineers Prefer 2×3×4mm Rectangular LEDs
The rectangular lens shape allows controlled light projection, making it extremely useful for:
-
Narrow slots
-
Indicator windows
-
Light pipes
-
Compact UI panels
Its predictable beam spread and mechanical stability ensure precision in both industrial and consumer electronics.
Customer Testimonials
✔ “Perfect for instrumentation.”
We used these LEDs in thousands of our controller units—they deliver excellent brightness and zero failures during production.
— Automation Device Manufacturer
✔ “Ideal for compact consumer products.”
The form factor fits beautifully in our headphone charging indicators. Highly recommended for tight PCB layouts.
— Consumer Electronics Brand
✔ “Reliable, consistent, and cost-effective.”
We switched to these rectangular LEDs for our gaming equipment indicators. The clarity is outstanding.
— Arcade Machine Developer
Conclusion
The 2×3×4mm rectangular LED diode, 2-pin is a compact yet powerful indicator LED designed for modern industrial, commercial, and consumer electronics. With excellent brightness, durability, and easy integration, it offers a dependable lighting solution for engineers seeking high performance in a small package.
If you need efficient, space-saving, and durable LED indicators, this model is an ideal choice for your next device design or production line.
