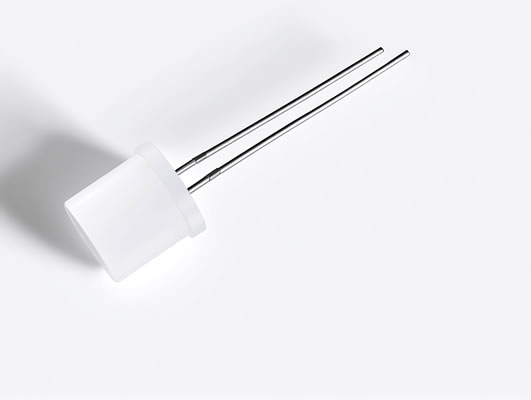

10mm Flat Top Cylindrical LED Diode, Bi-Color, 2 Leads – Multi-Color Combinations
The 10mm flat top cylindrical LED diode, bi-color, 2 leads is a versatile light component designed for applications requiring vivid color output, dual-color signaling, and wide viewing angles. Available in many color combinations—including Red + Blue, Red + Green, Red + Yellow, and others—this LED is offered in both bi-polar LED and bi-color LED configurations. With its large 10mm diameter, flat-top cylindrical lens, and bright optical performance, this LED is ideal for engineers and manufacturers seeking reliable and attention-grabbing indication solutions.
Key Features
✔ Dual-Color Output (2 Leads, Multiple Combinations)
This 10mm bi-color LED allows two colors to be displayed from a single package. Popular combinations such as red/blue, red/green, red/yellow, and customized pairings support diverse design requirements.
-
Bi-color LED: two colors share a common lead
-
Bi-polar LED: color changes with reverse polarity
This simplifies PCB layout while offering dynamic visual indication.
✔ Flat Top Cylindrical Lens for Uniform Light
The flat top lens provides:
-
Even illumination
-
Wide viewing angle performance
-
Better diffusion for panel indicators
The cylindrical body ensures consistent optical output and enhances brightness when viewed from the front or at an angle.
✔ Large 10mm Size for High Visibility
Compared with 3mm or 5mm LEDs, this 10mm LED diode delivers far greater optical presence, making it suitable for applications that require:
-
Long-distance visibility
-
Clear status display
-
Decorative and accent lighting
✔ Available Lens Types
To accommodate different lighting effects, the LED is available in:
-
Diffused lens – soft, uniform output
-
Transparent lens – crisp, bright illumination
-
Water-clear lens – maximum brightness
✔ Low Current / IC Compatibility
Engineered for modern electronics, this LED offers:
-
Low power consumption
-
Direct compatibility with driver ICs and microcontrollers
-
Stable response even at low current levels
✔ RoHS Compliant
Manufactured to meet global environmental standards, ensuring safe and eco-friendly performance.
Applications
1. Indicator Lights
Perfect for dashboards, control panels, and machine indicators where two-color functionality enhances status communication.
2. Consumer Electronics
Used in device status lights, battery indicators, charging signals, gaming devices, and more.
3. Automotive and Transportation
Ideal for instrument clusters, door indicators, switch illumination, and signaling lights.
4. Industrial Equipment
Enhances operator interfaces, safety indicators, and diagnostic systems requiring high visibility.
5. Decorative & Ambient Lighting
Multi-color options allow it to be used in custom lighting builds, artistic installations, and design accents.
6. Safety & Warning Systems
Dual colors enable clear contrast between normal, warning, or error states.
7. Educational / DIY Projects
Popular among hobbyists for prototyping, breadboard experiments, and microcontroller projects (Arduino, ESP32, Raspberry Pi).
Benefits
-
Two colors in one package reduces PCB complexity.
-
Enhanced visibility due to 10mm diameter.
-
Multiple lens types allow customization based on brightness needs.
-
Energy efficient, suitable for battery-powered devices.
-
Durable epoxy resin construction ensures long operating life.
Example Case Study
Industrial Control Panel Upgrade
A manufacturing company replaced traditional incandescent indicators with 10mm flat-top bi-color LEDs (red/green).
Results:
-
65% reduction in power consumption
-
Brighter visibility under factory lighting
-
Simplified wiring by using 2-lead bi-polar configuration
-
Improved operator response time due to clearer dual-color signaling
User Testimonials
✔ Alex – Electronics Engineer
“The 10mm bi-color LEDs offer outstanding brightness. The red/green version is perfect for machine-state indication on our PCBs.”
✔ Mark – Automotive Technician
“Using the flat-top lens in dashboards gives a wide visibility angle. The bi-polar function is extremely convenient.”
✔ Linda – Hobbyist Maker
“These LEDs are great for DIY signal projects. I love the red/yellow combo—super bright and reliable.”
Conclusion
The 10mm flat top cylindrical LED diode (bi-color, 2 leads) is a high-performance component designed for visibility, versatility, and efficiency. Its multiple color combinations, flat-top design, and compatibility with IC-driven circuits make it an excellent choice for industrial, commercial, and consumer electronic applications. Whether you need strong visual indication, flexible color output, or attractive lighting effects, this LED provides a dependable and cost-effective solution.
