Number of Bars
Series No:
Weight:(g/pcs)
Dimension:(mm)
Specification:
Datasheet Inquiry
Description:

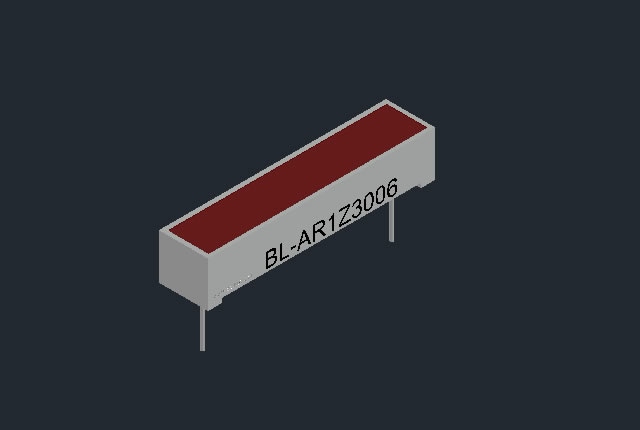

“Precision Illumination: The LED Light Bar (Rectangular, 1 Bar, 30×6mm) for High-Performance Bargraph LED Displays”
Introduction
In the fast-evolving world of electronic indicators and visual feedback systems, the LED light bar (rectangular, 1 bar, 30×6mm) plays a pivotal role. Designed for professional-grade performance, it delivers bright, uniform illumination and exceptional reliability across industrial and consumer applications.
This component is an essential part of a bargraph LED display, where precision and visibility are key. Whether monitoring voltage levels, signal strength, or operational status, this rectangular bargraph LED transforms electrical data into clear, readable light signals. Engineers and electronics manufacturers rely on this compact component for its combination of aesthetic appeal, low power consumption, and robust design.
The LED light bar family continues to gain traction for projects that demand both technical performance and modern visual design. Its rectangular 30×6mm format offers the perfect balance between compact size and visibility, making it a preferred choice for professional-grade instrumentation and control panels.
Features of the 30×6mm LED Light Bar
The bargraph LED display is built for precision and endurance. Every element of its design contributes to stable performance and dependable illumination:
-
Slim Rectangular Profile (30×6mm):
Ideal for narrow display areas or compact panels, providing flexibility in layout and orientation. -
High Brightness and Clarity:
The rectangular bargraph LED emits bright, consistent light that remains visible even in high-ambient environments. -
Energy-Efficient Design:
Consumes minimal current, supporting energy-conscious systems and portable devices. -
Long Operating Life:
With lifespans exceeding 50,000 hours, the component delivers reliability for long-term installations. -
Color Options:
Available in red, green, yellow, blue, and bi-color, allowing for intuitive multi-status indication. -
Strong Epoxy Encapsulation:
Protects internal components from dust, vibration, and temperature fluctuations. -
Uniform Light Emission:
Designed for even brightness across the bar, eliminating hot spots or dim sections. -
Simple Integration:
Standard lead spacing makes it compatible with existing PCB designs, reducing assembly complexity.
These features ensure that the LED light bar is not only functional but also versatile for design and performance optimization.
Applications of the Bargraph LED Display
The bargraph LED display is used across a range of industries and products. Its precision and clarity make it a preferred display technology for data visualization and monitoring:
1. Industrial Automation Panels
In factory automation and process control, LED light bars serve as real-time visual indicators for equipment status, temperature levels, and safety thresholds. Operators benefit from instant visual cues without the need for numerical interpretation.
2. Audio Equipment
Professional audio mixers and amplifiers integrate rectangular bargraph LEDs for signal-level visualization. The vibrant light feedback adds functionality and aesthetic appeal.
3. Communication Systems
In telecommunication devices, the bargraph LED display provides signal strength indicators, enabling quick and easy diagnostics.
4. Power Supply and Battery Management
Used to display voltage, charge level, or current draw, LED bars provide quick, color-coded visual feedback in energy systems.
5. Medical Instruments
Precision monitoring devices employ LED light bars for power indicators, data tracking, and system readiness displays.
6. Automotive and Marine Equipment
Dashboards, control modules, and navigation devices use LED bars for intuitive power, speed, or temperature readouts.
Benefits of Using the 30×6mm Rectangular Bargraph LED
The rectangular bargraph LED offers a combination of performance, energy efficiency, and flexibility that makes it indispensable in modern electronic design:
-
High Visibility in Compact Spaces:
The slim 30×6mm form factor ensures optimal visibility without taking up excessive board space. -
Versatile Design Integration:
Fits seamlessly in both vertical and horizontal display configurations. -
Power Efficiency:
Designed for low-current operation, making it suitable for battery-based applications. -
Exceptional Durability:
Resistant to mechanical stress, ensuring consistent performance in demanding environments. -
Aesthetic Appeal:
Offers clean, professional visuals suitable for both industrial and consumer devices. -
Long-Term Reliability:
With robust encapsulation and efficient heat dissipation, the LEDs maintain performance stability. -
Customizable Options:
Manufacturers can choose from single-color, dual-color, or multi-segment options for unique applications.
Case Studies
Case Study 1 – Industrial Control Systems (Germany)
A German automation company integrated the bargraph LED display into its control consoles to visualize hydraulic pressure levels. The compact 30×6mm LED light bar provided the perfect balance between panel density and visibility. Operators reported faster response times and reduced reading errors by 25%.
Case Study 2 – Audio Equipment Manufacturer (Japan)
A Japanese audio company implemented the rectangular bargraph LED in equalizer units. The slim size and vivid brightness created an attractive, responsive display that enhanced user experience and brand perception.
Case Study 3 – Renewable Energy Systems (USA)
An American solar inverter company adopted LED light bars to monitor power output and battery charge. The component’s clarity in outdoor conditions made it ideal for renewable applications, improving end-user satisfaction and product reliability.
User Testimonials
John P., Electronics Engineer (USA):
“The 30×6mm bargraph LED display fits perfectly into compact circuit boards. Its brightness and uniformity make system status visualization effortless.”
Hiroshi M., Product Designer (Japan):
“We used the rectangular LED light bar in our new series of amplifiers. The display performance is excellent, with no uneven lighting.”
Maria F., Control Systems Manager (Spain):
“Reliable and long-lasting — the LED bars performed flawlessly even under 24/7 industrial operation. Highly recommended for durable equipment.”
Design and Integration Considerations
To achieve optimal performance and longevity from the bargraph LED display, engineers should consider several best practices during integration:
-
Proper Current Regulation:
Always use current-limiting resistors or constant-current drivers to maintain stable brightness and protect the LEDs. -
Voltage Compatibility:
Verify that the LED forward voltage matches the power supply design. -
Heat Dissipation:
Though LEDs generate minimal heat, ensure sufficient spacing and airflow for high-brightness applications. -
Environmental Protection:
Apply conformal coatings for protection against moisture and dust in industrial settings. -
Color Coding Strategy:
Utilize multi-color LED bars for layered data visualization — green for normal, yellow for warning, red for critical. -
Mounting Alignment:
Ensure precise alignment on the PCB to maintain consistent light output and visual symmetry.
Conclusion
The LED light bar (rectangular, 1 bar, 30×6mm) exemplifies modern efficiency, durability, and performance in electronic display components. As part of a bargraph LED display, it translates technical data into vibrant, accessible information — bridging the gap between functionality and design.
Its reliability and compactness make it suitable for everything from control panels to advanced consumer devices. With minimal energy consumption, long lifespan, and aesthetic versatility, this rectangular bargraph LED delivers unmatched performance for engineers and manufacturers.
If your next project demands clear visibility, professional design, and dependable operation, the LED light bar offers a high-quality, scalable solution that meets today’s display challenges.
Features
- Display Area Shape: Rectangular, offering a clear and distinct area for illumination.
- Display Area Number: Features one display area.
- Reflector Dimensions: Length of 30mm and width of 6mm, creating a slim and elongated display.
- Uniform Light Emitting Area: Ensures consistent and even lighting across the display.
- Low Current Operation: Energy-efficient, reducing power consumption.
- Wide Viewing Angle: Makes the display easily visible from different perspectives.
- Easily Mounted on P.C. Boards: Designed for straightforward integration into electronic systems.
- Flush Mountable: Can be installed to align seamlessly with the surface, ensuring a clean and integrated appearance.
- Excellent On/Off Contrast: Enhances visibility and readability, particularly important for indicator lights.
- Can be Used with Panels and Legend Mounts: Versatile in terms of installation, suitable for various panel types.
- Categorized for Luminous Intensity: Ensures uniform brightness across different units.
- Different Colors in One Unit Available: Provides options for various color displays, enhancing customization.
- Standard: Black Face, White Segment: Offers a classic and easily readable appearance.
- RoHS Compliance: Manufactured in accordance with environmental and safety standards.
Applications
- Indicator Lights: Ideal for applications requiring slim and clear indicator lights in electronics, machinery, or other equipment.
- Control Panels: Suitable for use in control panels in various devices, especially where space is limited.
- Signal Lights: Applicable in settings where small, but clear signal lights are required.
- Instrumentation Displays: Useful for displaying status or readings in narrow instrumentation panels.
- Consumer Electronics: Can be integrated into various consumer electronic devices for display or indication purposes.
- Safety and Emergency Equipment: Suitable for use in compact safety devices requiring clear indicator lights.
- Information Displays: Effective in narrow information displays in public areas or systems.
Electrical-optical characteristics:
Package configuration & Internal circuit diagram
Obtain 3D specification files
Initial Graphics Exchange Specification (.IGS)Standard for the Exchange of Product Model Data (.STEP)To examine all 3D specifications, save the files to your local drive and open them with your 3D application.
Lens colors in 3D files are solely for visual representation; consult the Datasheet for accurate lens type and color information.
In the event of a mismatch, the dimensions in the datasheet take precedence over the 3D specifications.
All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.
Partno description:
LED light bar is widely applied in instrument show box, elevator,etc
Related Information
Applied for:
1. Application
The Seven Segment LED is widely applied for ordinary electronic equipment (such as office equipment,
communication equipment and household applications). Checking with BETLUX’s Sales in
advance for information on applications in which exceptional reliability is required, particularly
when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in
aviation, transportation, traffic control equipment, medical and life support systems and safety
devices).
2. Storage
The storage ambient for the Seven Segment LED should not exceed 30℃ temperature or 70% relative humidity.
For extended storage out of their original packaging, it is recommended that the Seven Segment LEDs be stored
in a sealed container with appropriate desiccant, or in a desiccator with nitrogen ambient.
3. Cleaning
Avoid using any unspecified chemical solvent to clean LED . For example, Trichloroethylene, Chlorosen, Acetone, and Diflon S3MC.
Any cleaning method can only be taken under normal temperature in one minute or less if it is required.
Use water to clean the Seven Segment LED if necessary under room temperature
dry it immediately after that.
4.Forming
Any unsuitable stress applied to the epoxy may break bonding wires in LED
Any forming on lead pin must be done before soldering, not during or after soldering.
Avoid applying any stress to resin in order to prevent the epoxy fracture and break on bonding wire.
While forming, please use a tie bar cut or equivalent to hold or bend the pin.
2mm from the base of resin is the minimum distance for the place bending the lead pin.
Avoid bending the lead pin at the same point twice or more.
Soldering
When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.
Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.
Recommended soldering conditions:
| IR Reflow Soldering (for SMD display) | Wave Soldering | Soldering Iron | |||
| Pre-Heat | 150-180°C | Pre-Heat | 100°C Max. | Temperature | 300°C Max. |
| Pre-Heat Time | 120sec Max. | Pre-Heat Time | 60sec Max. | ||
| Peak Temperature | 260°C Max. | SolderWave | 260°C Max. | Soldering Time | 3sec Max.(one time only) |
| Soldering Time | 10 sec Max. | Soldering Time | 5sec Max. | ||
Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED
ESD(Electrostatic Discharge)
Static Electricity or power surge will damage the LED.
Suggestions to prevent ESD (Electrostatic Discharge):
n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs
n All devices, equipment, and machinery must be properly grounded
n Work tables, storage racks, etc. should be properly grounded
n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s
plastic lens as a result of friction between LEDs during storage and handling
ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,
low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”
and Vf of the suspect LEDs at low currents.
The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP
product.
LED dirve IC by Maxim Integrated
MAX6959 4½-Digit LED Display Driver
MAX6958 4½-Digit LED Display Driver
MAX6955 7-, 14-, 16-Segment LED Display Driver
MAX6956 LED Static Display Driver and I/O Port
MAX6954 7-, 14-, 16-Segment LED Display Driver
MAX6952 5 x 7 Matrix LED Display Driver
MAX6957 LED Static Display Driver and I/O Port
MAX6950 5-Digit LED Display Driver
MAX6951 8-Digit LED Display Driver
ICM7212 4-Digit LED Driver
ICM7212A 4-Digit LED Driver
ICM7212AM 4-Digit LED Driver
ICM7212M 4-Digit LED Driver
ICM7218A 8-Digit LED Driver
ICM7218B 8-Digit LED Driver
ICM7218C 8-Digit LED Driver
ICM7218D 8-Digit LED Driver
MAX7221 8-Digit LED Display Driver
MAX7219 8-Digit LED Display Driver
When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:
- Determine the Forward Voltage (Vf) of the LED(s):
Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.
- Determine the Forward Current (If) of the LED(s):
The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.
- Decide on the Configuration:
Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.
Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.
Calculate Total Power Requirements:
Power (W) = Total Forward Voltage (V) x Total Forward Current (A)
For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:
Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W
- Select an Appropriate Power Supply:
- Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
- Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
- Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
- Consider Additional Features:
- Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
- Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
- Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
- Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
- Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.
In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.
Here are some well-regarded brands in the industry:
- Mean Well: One of the most recognized brands in the LED power supply industry, Mean Well offers a wide range of products suitable for both indoor and outdoor applications. Their units often come with features like overcurrent protection, dimming capabilities, and high efficiency.
- Tridonic: A global leader in lighting technology, Tridonic offers LED drivers and power supplies that cater to various lighting solutions, from simple setups to advanced smart lighting systems.
- Philips Advance Xitanium: Philips is a well-known brand in the lighting industry, and their Xitanium series of LED drivers are known for reliability and performance. They cater to both indoor and outdoor LED applications.
- Osram: Another giant in the lighting industry, Osram offers a range of LED drivers and power supplies suitable for various applications, including architectural and street lighting.
- LIFUD: Specializing in LED drivers, LIFUD is known for its high-quality products that cater to both commercial and residential LED lighting solutions.
- MOSO: This brand offers a variety of LED drivers, especially for outdoor and industrial applications. Their products are known for durability and performance.
- TDK-Lambda: With a history in power electronics, TDK-Lambda offers a range of power supplies and LED drivers suitable for various applications, emphasizing reliability and advanced features.
