Series No:
Weight:(g/pcs)
Dimension:(mm)
Package:
Specification:
Inquiry
Description:
Introduction to 5mm Flat Top LEDs
The 5mm flat top LED represents a key advancement in LED technology, characterized by its unique top-flat shape. This design allows for a wider viewing angle compared to traditional rounded LEDs, making them an ideal choice for applications requiring broad light dispersion. The phrase “5mm flat top led” not only denotes the LED’s physical dimensions and shape but also highlights its distinct advantage in creating uniform light distribution across a wide area.
Unleashing the Potential of 5mm LEDs
The utility of 5mm LEDs extends across various sectors, from consumer electronics and automotive to industrial control panels. Their small size combined with the flat top design enhances their applicability in spaces where light needs to be spread over a broad area without the use of additional light-diffusing components. Furthermore, the inclusion of 940nm LEDs within this category opens up applications in infrared projects, such as remote controls, night-vision systems, and non-visible lighting requirements for surveillance.
Applications and Versatility
5mm top flat LED diodes are not just limited to visible light applications. The 940nm LED variant, operating in the infrared spectrum, is crucial for applications requiring invisible light, such as sensor systems, security cameras, and IR communication devices. The versatility of these LEDs, whether in visible or infrared wavelengths, makes them indispensable in modern electronic design.
The Benefits: Lighting the Way Forward
Incorporating 5mm top flat LEDs into electronic designs offers numerous advantages:
- Enhanced Visibility and Uniformity: The flat top design ensures light is evenly distributed, ideal for backlighting and indicator applications.
- Energy Efficiency: Like all LEDs, these diodes consume significantly less power compared to traditional lighting solutions, contributing to greener electronics.
- Longevity and Reliability: LEDs are known for their durability, and the 5mm top flat LEDs are no exception, boasting a long operational life which reduces replacement costs.
Case Studies: Shining Examples of Innovation
A notable case study in the automotive sector illustrates the integration of 5mm top flat LEDs into dashboard and interior lighting, enhancing visibility and aesthetic appeal. Another example comes from the consumer electronics field, where these LEDs have been used in home appliances to provide clear, uniform indicator lights that improve user interface and design.
User Testimonials: A Beacon of Success
Feedback from the electronics manufacturing industry underscores the value of 5mm top flat LEDs. An engineer noted, “The wide viewing angle and uniform light distribution of the 5mm flat top LEDs have significantly improved the aesthetic and functionality of our products.” A purchaser added, “Their durability and efficiency have made them a staple in our procurement process, ensuring high-quality components in our electronics.”
Conclusion: A Brighter Future with 5mm Top Flat LED Diodes
5mm top flat LED diodes stand at the forefront of LED technology, offering innovative solutions to lighting and design challenges in the electronics industry. With their broad applicability, energy efficiency, and the unique advantages they bring, these LEDs are set to play a crucial role in the evolution of electronic components.
Call to Action: Embrace the innovation and versatility of 5mm top flat LED diodes in your next electronics project. Discover how these compact yet powerful components can transform your designs and illuminate the path to success.
Features

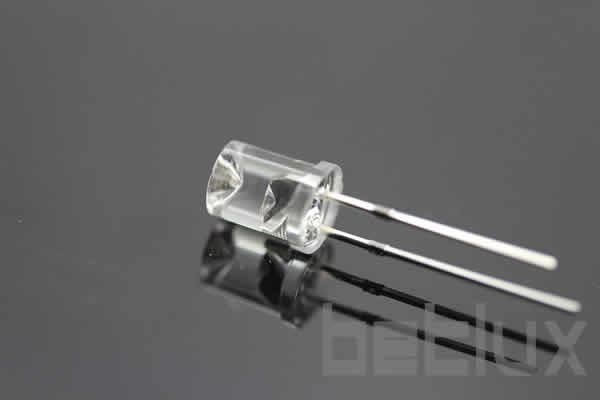

- 5mm Cylindrical, Inverted Cone Design: This LED features a unique cylindrical shape with an inverted cone design, which influences light dispersion, creating a distinctive visual and lighting effect.
- Ultra Brightness: Provides high luminosity, ensuring clear visibility and strong illumination, ideal for applications requiring intense light output.
- Choice of Various Viewing Angles: Available in different viewing angles to suit specific lighting requirements, allowing for flexibility in how the light is directed and perceived.
- Lens Options: Comes with various lens types including diffused (for a softer, more dispersed light), transparent (for clear, direct light), and water clear (for the brightest, most straightforward light).
- IC Compatible / Low Current Capability: Designed to integrate easily with integrated circuits (ICs) and to operate efficiently on low current, enhancing energy efficiency and making them suitable for various electronic applications.
- RoHS Compliance: Manufactured in line with the Restriction of Hazardous Substances directive, ensuring the LEDs are environmentally friendly and safe for use.
Applications
- Indicator Lights: Ideal for use as indicator lights in electronic devices, appliances, and machinery, where the inverted cone design can provide a unique light pattern.
- Decorative Lighting: Suitable for decorative lighting in architectural designs, interior design, or artistic installations, where the unique shape can add aesthetic value.
- Automotive Lighting: Appropriate for use in automotive applications, especially for interior lighting or dashboard indicators, benefiting from the distinct illumination.
- Consumer Electronics: Can be used in personal electronic devices for status indicators or as a design element, particularly where a unique lighting pattern is preferred.
- Safety and Warning Signals: Suitable for use in safety signs, emergency lighting systems, and warning signals, where the distinct light pattern can contribute to visibility.
- Entertainment and Stage Lighting: Perfect for creating special lighting effects in entertainment and stage lighting setups.
- Educational and DIY Projects: Often used in DIY electronics and educational projects due to their distinctive design and versatility.
- General Lighting Applications: Can be employed in various lighting applications where the inverted cone design offers a specific advantage in light dispersion.
Electrical-optical characteristics:
Article No
| color | material | wavelength
| apperance | v_typ | v_max | luminous_min | luminous_typ | degree |
|---|---|---|---|---|---|---|---|---|---|
BL-L532BC |
Blue |
InGaN |
430 |
Water Clear |
4.2 |
200 |
600 |
110 |
|
BL-L532BGC |
Ultra Bluish Green |
InGaN |
505 |
Water Clear |
4.2 |
250 |
800 |
110 |
|
BL-L532LRC |
Super Red |
AlGaAs,DH |
660 |
Water Clear |
2.2 |
80 |
150 |
110 |
|
BL-L532PGC |
Ultra Pure Green |
InGaN |
525 |
Water Clear |
4.2 |
400 |
1000 |
110 |
|
BL-L532SRC |
Hi Red |
AlGaAs,SH |
660 |
Water Clear |
2.2 |
30 |
80 |
110 |
|
BL-L532UBC |
Ultra Blue |
InGaN |
470 |
Water Clear |
4.2 |
550 |
1000 |
110 |
|
BL-L532UEC |
Ultra Orange |
AlGaInP |
630 |
Water Clear |
2.5 |
100 |
350 |
110 |
|
BL-L532UGC |
Ultra Green |
AlGaInP |
574 |
Water Clear |
2.5 |
40 |
80 |
110 |
|
BL-L532URC |
Ultra Red |
AlGaAs,DDH |
660 |
Water Clear |
2.2 |
100 |
300 |
110 |
|
BL-L532UWC |
Ultra White |
InGaN |
- |
Water Clear |
4.2 |
250 |
1000 |
110 |
|
BL-L532UYC |
Ultra Yellow |
AlGaInP |
590 |
Water Clear |
2.5 |
100 |
350 |
110 |
|
BL-L532VC |
UV |
InGaN |
405 |
Water Clear |
4.2 |
20 |
50 |
110 |
Package configuration & Internal circuit diagram
All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.
Partno description:
LEDs, Light Emitting diodes, which include various small kinds, such as 3mm, 5mm, 8mm, 10mm; round type, rectangular type square type, tower type, Oval led, elliptical, flat top; SMDs, high power led, piranha LEDs
More Information
Lens Color:
| Code | D | T | C | W | E | |
| Meaning | color Diffused | Color Tinted | Water Clear | Water Diffused | Orange diffused |
Absolute maximum ratings (Ta=25°C)
| Parameter | SR | LR | UR | UE | UY | UG | PG | BG | B | UB | UV | W | Unit |
| Forward Current I F | 25 | 25 | 25 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | mA |
| Power Dissipation P d | 60 | 60 | 60 | 65 | 65 | 75 | 110 | 110 | 120 | 120 | 120 | 120 | mW |
| Reverse Voltage V R | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | V |
| Peak Forward Current I PF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 100 | 100 | 100 | 100 | 100 | mA |
| Operation Temperature T OPR | -40 to +80 | °C | |||||||||||
| Storage Temperature T STG | -40 to +85 | °C | |||||||||||
| Lead Soldering Temperature T SOL | Max.260+-5°C for 3 sec Max. (1.6mm from the base of the epoxy bulb) | °C | |||||||||||
Related Information
Applied for:
The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment,
communication equipment and household applications). Consult Betlux’s Sales in advance for information on
applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs
may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical
and life support systems and safety devices).
CAUTIONS for Through-Hole LED Lamps
1. Application
The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment, communication equipment and household applications). Consult Betlux’s Sales in advance for information on applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical and life support systems and safety devices).
2. Storage
The storage ambient for the LEDs should not exceed 30℃ temperature or 70% relative humidity. It is
recommended that LEDs out of their original packaging are used within three months
For extended storage out of their original packaging, it is recommended that the LEDs be stored in a sealed
container with appropriate desiccant or in a desiccator with nitrogen ambient.
3. Cleaning
Use alcohol-based cleaning solvents such as isopropyl alcohol to clean the LED if necessary
4. Lead Forming & Assembly
During lead forming, the leads should be bent at a point at least 3mm from the base of LED lens. Do not use
the base of the leadframe as a fulcrum during forming.
Lead forming must be done before soldering, at normal temperature.
During assembly on PCB, use minimum clinch force possible to avoid excessive mechanical stress.
Soldering
When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.
Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.
Recommended soldering conditions:
| IR Reflow Soldering (for SMD display) | Wave Soldering | Soldering Iron | |||
| Pre-Heat | 150-180°C | Pre-Heat | 100°C Max. | Temperature | 300°C Max. |
| Pre-Heat Time | 120sec Max. | Pre-Heat Time | 60sec Max. | ||
| Peak Temperature | 260°C Max. | SolderWave | 260°C Max. | Soldering Time | 3sec Max.(one time only) |
| Soldering Time | 10 sec Max. | Soldering Time | 5sec Max. | ||
Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED
ESD(Electrostatic Discharge)
Static Electricity or power surge will damage the LED.
Suggestions to prevent ESD (Electrostatic Discharge):
n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs
n All devices, equipment, and machinery must be properly grounded
n Work tables, storage racks, etc. should be properly grounded
n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s
plastic lens as a result of friction between LEDs during storage and handling
ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,
low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”
and Vf of the suspect LEDs at low currents.
The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP
product.
Drive Method
An LED is a current-operated device. In order to ensure intensity uniformity on multiple LEDs connected in
parallel in an application, it is recommended that a current limiting resistor be incorporated in the drive circuit,
in series with each LED as shown in Circuit A below.
When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:
- Determine the Forward Voltage (Vf) of the LED(s):
Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.
- Determine the Forward Current (If) of the LED(s):
The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.
- Decide on the Configuration:
Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.
Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.
Calculate Total Power Requirements:
Power (W) = Total Forward Voltage (V) x Total Forward Current (A)
For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:
Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W
- Select an Appropriate Power Supply:
- Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
- Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
- Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
- Consider Additional Features:
- Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
- Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
- Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
- Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
- Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.
In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.
