3228 SMD led diode,reverse mount LED

3228 SMD led diode,reverse mount LED

Discrete LEDs package

Series No:

bl-ls3228a0s1

Weight:(g/pcs)

Dimension:(mm)

3.2 x 2.8 x 1.9

Package:

SMD 3228

Specification:

downloadDatasheet

Inquiry

any question?
Description:

“Precision and Performance: The 3228 SMD LED Diode and Reverse Mount SMD LED Advantage”

Introduction

In the fast-paced world of electronic design, compact and efficient lighting components are essential for achieving performance, reliability, and visual precision. Among the most advanced solutions on the market today is the LED 3228, a versatile and high-efficiency component designed for space-sensitive and performance-driven applications.

The 3228 SMD LED diode is engineered for superior illumination and durability, while the reverse mount LED configuration ensures flexible placement in modern PCB layouts. This innovative pairing delivers exceptional optical performance with minimal footprint, ideal for applications that demand precision — from wearable technology and automotive interiors to industrial control panels and display systems.

As the 3228 reverse mount LED continues to gain popularity, it is redefining expectations for SMD 3228 LED solutions, combining superior brightness, long lifespan, and design versatility in one compact package.

Features of the LED 3228 Reverse Mount SMD LED

The LED 3228 series showcases a set of engineering advancements that elevate it above conventional surface-mount LEDs. Designed for performance-critical environments, it merges optical precision with robust reliability.

Key Technical Features Include:

  • Compact Dimensions (3.2mm × 2.8mm):
    The small package size allows designers to integrate the SMD 3228 LED into dense circuit boards without sacrificing light intensity.

  • Reverse Mount Configuration:
    The reverse mount LED design enables light emission through the PCB surface, reducing glare and improving visual uniformity — perfect for indicators and backlighting systems.

  • High Luminous Efficiency:
    The diode’s advanced chip design ensures bright, uniform light output while minimizing power consumption.

  • Wide Viewing Angle:
    The LED 3228 emits consistent light over a broad range, providing excellent visibility and even illumination.

  • Enhanced Heat Dissipation:
    Built with thermally optimized materials, this LED ensures stable performance even during extended operation.

  • Durable and Long-Lasting:
    The SMD 3228 LED is constructed using high-quality encapsulation materials, offering vibration resistance, moisture protection, and an extended lifespan.

  • Multi-Color Options:
    Available in standard colors like red, green, blue, white, amber, and bi-color configurations, meeting diverse application requirements.

Applications of the 3228 SMD LED Diode

The 3228 SMD LED diode is known for its versatility across multiple industries, thanks to its adaptability and reliability. Its reverse mount LED design further enhances its integration potential in compact electronic systems.

1. Consumer Electronics

Used in mobile phones, wearables, and smart home devices, the LED 3228 ensures compactness and visual clarity. Its reverse mount layout is ideal for indicator lighting, enhancing both function and aesthetics.

2. Automotive Systems

Automotive dashboards, instrument clusters, and ambient lighting systems benefit from the SMD 3228 LED due to its stability under vibration and temperature variations.

3. Industrial Control Panels

The 3228 reverse mount LED provides reliable signal indication for industrial controllers, equipment panels, and automation interfaces.

4. Display and Signage

Its uniform brightness and slim profile make it perfect for backlighting small displays, signage modules, and alphanumeric indicators.

5. Medical Equipment

In diagnostic tools, monitoring devices, and instrumentation, the LED 3228 ensures precise illumination and dependable operation under sensitive conditions.

6. Communication Devices

The SMD 3228 LED enhances visibility and energy efficiency in modems, routers, and data transmission equipment.

7. Decorative and Architectural Lighting

Designers value the reverse mount LED for creating sleek, flush designs where light needs to emanate from below the surface for a cleaner finish.

Benefits of Using the LED 3228 Reverse Mount Design

Integrating the LED 3228 into circuit boards brings multiple operational and design benefits. Its reverse mount structure and compact design offer an edge in both performance and efficiency.

  • Efficient Space Utilization:
    The reverse mount LED fits perfectly into thin and flexible PCB layouts, enabling designers to maximize surface usage.

  • Superior Light Uniformity:
    With precise optical alignment, the SMD 3228 LED delivers consistent brightness and even diffusion across lighting surfaces.

  • Energy Efficiency:
    The LED 3228 consumes less power while maintaining brightness, contributing to longer battery life and energy savings.

  • Improved Thermal Stability:
    Its design minimizes heat buildup, ensuring steady illumination even in prolonged operational conditions.

  • Ease of Manufacturing:
    Fully compatible with standard surface-mount assembly processes, the diode streamlines mass production without compromising quality.

  • Versatile Design Options:
    Available in multiple color temperatures and intensities, the SMD 3228 LED supports both functional and aesthetic lighting needs.

  • Longevity and Reliability:
    Built for demanding environments, the diode ensures long service life and minimal maintenance.

Case Studies

Case Study 1 – Automotive Dashboard Lighting (Germany):
A leading automotive manufacturer integrated the LED 3228 reverse mount LED in their dashboard indicator lights. The design’s low profile and uniform output reduced glare and improved display readability under various lighting conditions. Production time decreased by 15% due to simplified PCB assembly.

Case Study 2 – Wearable Device Backlighting (Japan):
A tech company designing fitness trackers adopted the SMD 3228 LED for its compact design and energy efficiency. The result was a brighter, thinner display that extended battery life by 20% while maintaining color stability.

Case Study 3 – Industrial Machine Indicators (USA):
An industrial automation firm replaced traditional through-hole indicators with reverse mount LEDs, achieving a sleeker control panel design and enhanced resistance to dust and vibration. Customer feedback praised the improved aesthetics and performance stability.

User Testimonials

Michael Rogers, Product Engineer (USA):
“The LED 3228 is our go-to component for precision indicator lighting. The reverse mount design is perfect for our compact control systems.”

Emily Tan, Lighting Designer (Singapore):
“The SMD 3228 LED provides bright, consistent illumination while simplifying PCB integration. It’s a top performer for architectural projects.”

Luca Moretti, Automotive Specialist (Italy):
“We appreciate the durability of the reverse mount LED in our automotive dashboards. It handles temperature variations beautifully.”

Conclusion

The 3228 SMD LED diode and its reverse mount LED configuration represent the next generation of precision lighting technology. Compact, efficient, and robust, this diode is designed to meet the evolving needs of modern electronics.

Whether in industrial machinery, automotive dashboards, wearable devices, or communication systems, the LED 3228 provides exceptional brightness and durability. Its 3228 reverse mount LED structure not only optimizes PCB design but also enhances visual uniformity and thermal stability.

For engineers and product developers seeking reliable, energy-efficient lighting components, the SMD 3228 LED stands as a proven, future-ready solution for high-performance applications.

3228 SMD led diode
3228 SMD led diode

Features

  • 3.2mm x 2.8mm SMD, 1.9mm Thickness, reverse mount LED Package: This Surface-Mount Device (SMD) LED is compact, making it suitable for high-density mounting on circuit boards. Its PLCC2 (Plastic Leaded Chip Carrier) package ensures robustness and reliability.
  • Mono-Color Type with Ultra Brightness: Provides a single-color light output with high luminosity, ensuring clear visibility and strong illumination.
  • Compatible with Automatic Placement Equipment: Designed for seamless integration with automated assembly systems, enabling efficient, high-speed placement and soldering on circuit boards.
  • Wide Viewing Angle: Offers a broad range of visibility, making the LED effective for applications where it needs to be seen from different angles.
  • Ideal for Backlight and Indicator: Well-suited for use as a backlight in display panels or as an indicator light in various electronic devices.
  • Packaged 2,000 Pieces per Reel: Supplied in reels of 2,000 pieces, facilitating bulk handling and automated assembly processes.
  • RoHS Compliance: Manufactured in accordance with the Restriction of Hazardous Substances directive, ensuring environmentally safer production and use.

Applications

  • Backlighting in Displays: Suitable for backlighting LCDs, control panels, and keypads in various electronic devices.
  • Indicator Lights in Electronics: Ideal for use as status or warning lights in consumer electronics, industrial machinery, and automotive applications.
  • Automotive Lighting: Appropriate for interior and exterior lighting solutions in vehicles, including dashboard lights, accent lighting, and external signal lights.
  • Portable Electronics: Given its small size and brightness, it’s well-suited for use in portable devices like smartphones, tablets, and wearable technology.
  • Control Panels: Useful in control panels for machinery and industrial equipment, providing clear indication and backlighting.
  • Medical Devices: Can be employed in various medical instruments for backlighting and status indicators, where reliability and clear visibility are essential.
  • Decorative and Architectural Lighting: Suitable for decorative lighting in interior design, architectural projects, and ambient lighting setups.
  • Safety and Emergency Equipment: Applicable in safety gear and emergency lighting due to its high visibility and compact design.

RoHs Compliance, Pb-free              Anti-Static Attention

Electrical-optical characteristics:
Filters Sort results
Reset Apply
More information, Contact us at sales@betlux.com
Package configuration & Internal circuit diagram

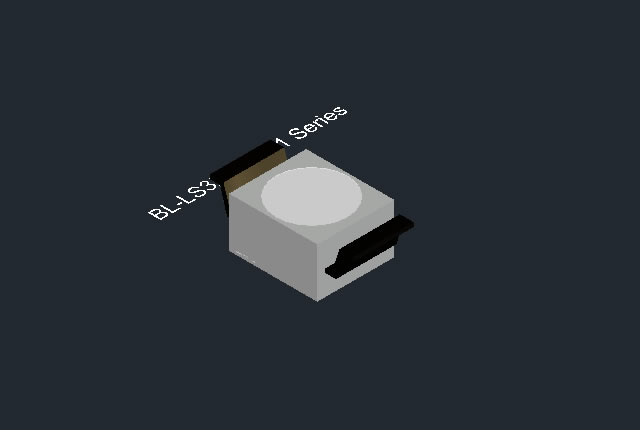

Obtain 3D specification files


downloadInitial Graphics Exchange Specification (.IGS)
downloadStandard for the Exchange of Product Model Data (.STEP)

To examine all 3D specifications, save the files to your local drive and open them with your 3D application.
Lens colors in 3D files are solely for visual representation; consult the Datasheet for accurate lens type and color information.
In the event of a mismatch, the dimensions in the datasheet take precedence over the 3D specifications.

3228 SMD led diode,reverse mount LED


All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.

Partno description:

LEDs, Light Emitting diodes, which include various small kinds, such as 3mm, 5mm, 8mm, 10mm; round type, rectangular type square type, tower type, Oval led, elliptical, flat top; SMDs, high power led, piranha LEDs

Part No of LED diode

More Information

Lens Color:

CodeDTCWE
Meaningcolor DiffusedColor TintedWater ClearWater DiffusedOrange diffused

Absolute maximum ratings (Ta=25°C)

ParameterSRLRURUEUYUGPGBGBUBUVWUnit
Forward Current I F252525303030303030303030mA
Power Dissipation P d606060656575110110120120120120mW
Reverse Voltage V R555555555555V
Peak Forward Current I PF (Duty 1/10 @1KHZ)150150150150150150150100100100100100mA
Operation Temperature T OPR-40 to +80°C
Storage Temperature T STG-40 to +85°C
Lead Soldering Temperature T SOL  Max.260+-5°C for 3 sec Max. (1.6mm from the base of the epoxy bulb)°C
Related Information

Applied for:
auto lampcameradome lightrgb screentraffic light



The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment,

communication equipment and household applications). Consult Betlux’s Sales in advance for information on

applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs

 may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical

and life support systems and safety devices).

CAUTIONS for Through-Hole LED Lamps

1. Application
The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment, communication equipment and household applications). Consult Betlux’s Sales in advance for information on applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical and life support systems and safety devices).

2. Storage
The storage ambient for the LEDs should not exceed 30℃ temperature or 70% relative humidity. It is
recommended that LEDs out of their original packaging are used within three months
For extended storage out of their original packaging, it is recommended that the LEDs be stored in a sealed
container with appropriate desiccant or in a desiccator with nitrogen ambient.

3. Cleaning
Use alcohol-based cleaning solvents such as isopropyl alcohol to clean the LED if necessary

4. Lead Forming & Assembly
During lead forming, the leads should be bent at a point at least 3mm from the base of LED lens. Do not use
the base of the leadframe as a fulcrum during forming.
Lead forming must be done before soldering, at normal temperature.
During assembly on PCB, use minimum clinch force possible to avoid excessive mechanical stress.

led diode formingassembly notice of led diode

Soldering

When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.

Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.

Recommended soldering conditions:



IR Reflow Soldering (for SMD display)Wave SolderingSoldering Iron
Pre-Heat150-180°CPre-Heat100°C Max.Temperature300°C Max.
Pre-Heat Time120sec Max.Pre-Heat Time60sec Max.
Peak Temperature260°C Max.SolderWave260°C Max.Soldering Time3sec Max.(one time only)
Soldering Time10 sec Max.Soldering Time5sec Max.

Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED

ESD(Electrostatic Discharge)

Static Electricity or power surge will damage the LED.

Suggestions to prevent ESD (Electrostatic Discharge):

n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs

n All devices, equipment, and machinery must be properly grounded

n Work tables, storage racks, etc. should be properly grounded

n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s

 plastic lens as a result of friction between LEDs during storage and handling

ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,

low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”

and Vf of the suspect LEDs at low currents.

The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP

 product.

antistatic notice-smd led

Drive Method

An LED is a current-operated device. In order to ensure intensity uniformity on multiple LEDs connected in

parallel in an application, it is recommended that a current limiting resistor be incorporated in the drive circuit,

 in series with each LED as shown in Circuit A below.

drive notice - led diode

When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:

  • Determine the Forward Voltage (Vf) of the LED(s):

Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.

  • Determine the Forward Current (If) of the LED(s):

The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.

  • Decide on the Configuration:

Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.

Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.

Calculate Total Power Requirements:

Power (W) = Total Forward Voltage (V) x Total Forward Current (A)

For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:

Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W

  • Select an Appropriate Power Supply:
  • Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
  • Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
  • Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
  • Consider Additional Features:
  • Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
  • Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
  • Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
  • Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
  • Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.

In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.

Here are some well-regarded brands in the industry:

  • Mean Well: One of the most recognized brands in the LED power supply industry, Mean Well offers a wide range of products suitable for both indoor and outdoor applications. Their units often come with features like overcurrent protection, dimming capabilities, and high efficiency.
  • Tridonic: A global leader in lighting technology, Tridonic offers LED drivers and power supplies that cater to various lighting solutions, from simple setups to advanced smart lighting systems.
  • Philips Advance Xitanium: Philips is a well-known brand in the lighting industry, and their Xitanium series of LED drivers are known for reliability and performance. They cater to both indoor and outdoor LED applications.
  • Osram: Another giant in the lighting industry, Osram offers a range of LED drivers and power supplies suitable for various applications, including architectural and street lighting.
  • LIFUD: Specializing in LED drivers, LIFUD is known for its high-quality products that cater to both commercial and residential LED lighting solutions.
  • MOSO: This brand offers a variety of LED drivers, especially for outdoor and industrial applications. Their products are known for durability and performance.
  • TDK-Lambda: With a history in power electronics, TDK-Lambda offers a range of power supplies and LED drivers suitable for various applications, emphasizing reliability and advanced features.
Need help?

Related products

Scroll to Top
