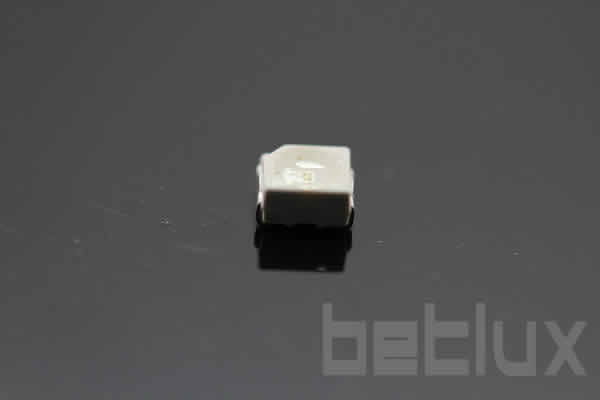

1210 bi-color SMD LED

Series No:




3.2 x 2.7 x 1.1


SMD 1210 chipLED





The Versatility and Efficiency of 1210 Bi-Color SMD LEDs

In the dynamic world of electronic components, the 1210 bi-color SMD LED stands out for its versatility and efficiency, offering a wealth of applications across a broad range of industries. As technology evolves, so does the demand for more efficient and space-saving components. The 1210 bi-color SMD LED, a small yet powerful device, meets these needs with its dual-color functionality, making it a preferred choice for engineers and designers alike.

Features of the 1210 Bi-Color SMD LED

The 1210 bi-color SMD LED is distinguished by its ability to emit two different colors from a single two-pin package. This dual functionality not only reduces the amount of space required on printed circuit boards but also simplifies the design and manufacturing processes. Each LED combines two distinct diodes, which can be controlled independently or together to provide various color outputs, including mixed colors depending on the combination of diodes used.

Applications of the SMD LED 1210

The adaptability of the 1210 bi-color SMD LED allows for its use in various applications:

  • Consumer Electronics: Utilized in devices such as smartphones, tablets, and personal electronics for status indicators.
  • Automotive: Employed in dashboard lighting and indicator signals, where space is at a premium and reliability is critical.
  • Industrial Equipment: Integrated into control panels and machinery for fault indication and status reporting, enhancing operational safety and efficiency.

Benefits of Using Bi-Color SMD LEDs

Opting for 1210 bi-color SMD LEDs brings several key benefits:

  • Space Efficiency: Combining two colors into one unit reduces PCB clutter and simplifies design.
  • Cost-Effectiveness: Reduces the number of components needed, lowering both the cost and complexity of manufacturing.
  • Enhanced Functionality: Offers more information in a smaller footprint, crucial for high-tech applications requiring precise status indicators.

Case Studies: Real-World Implementations of 1210 Bi-Color SMD LEDs

A notable example includes a leading automotive manufacturer that integrated these LEDs into vehicle dashboards, significantly reducing the space and weight of the lighting modules. This change contributed to an overall lighter vehicle, which improved fuel efficiency without sacrificing functionality.

User Testimonials: Endorsements from Industry Professionals

Professionals in electronics design frequently commend the 1210 bi-color SMD LED for its performance and reliability. One senior electronics designer stated, “Using 1210 bi-color SMD LEDs allowed us to innovate our product design while maintaining high standards of efficiency and reliability.”

Exploring UV LED Lights with Bi-Color Capabilities

The integration of UV LED lights in devices requiring sterilization capabilities, such as medical equipment and water purification systems, represents a growing trend. Here, the 1210 bi-color SMD LED can also play a role by providing visible status indicators alongside UV functionality, enhancing the device’s usability and safety.

Conclusion: Why Choose 1210 Bi-Color SMD LEDs?

For manufacturers, engineers, and product designers seeking a reliable, versatile, and efficient lighting solution, the 1210 bi-color SMD LED is an excellent choice. Its dual-color functionality coupled with its compact design makes it an invaluable component in modern electronic design. We encourage industry professionals to consider these LEDs for their next project to leverage their advantages in enhancing product design and functionality.

1210 bi-color SMD LED
1210 bi-color SMD LED


  • 3.2mm x 2.7mm SMD, 1.1mm Thickness: This Surface-Mount Device (SMD) LED is compact, with a small footprint and slim profile, making it suitable for high-density mounting on circuit boards.
  • Bi-Color Type: The LED can emit two different colors, adding versatility to its use in various signaling and display applications.
  • Compatible with Automatic Placement Equipment: Designed for easy integration with automated assembly lines, facilitating efficient, high-speed placement and soldering on circuit boards.
  • Wide Viewing Angle: Its design ensures a broad viewing angle, making the LED visible from different perspectives, which is crucial for displays and indicators.
  • Ideal for Backlight and Indicator: Well-suited for use as a backlight in display panels or as a multi-colored indicator in electronic devices.
  • Packaged 3,000 Pieces per Reel: The LEDs are supplied in bulk, with 3,000 pieces per reel, which is ideal for large-scale production and helps in efficient handling.
  • RoHS Compliance: Manufactured in accordance with the Restriction of Hazardous Substances directive, ensuring the product is environmentally friendly and safe for use.


  • Backlighting in Displays: Suitable for backlighting LCDs, control panels, and keypads in various electronic devices, especially where dual-color illumination is desired.
  • Indicator Lights: Ideal for use as status or warning lights in consumer electronics, automotive dashboards, and control panels in industrial machinery.
  • Consumer Electronics: Can be used in personal electronic devices like smartphones and tablets, particularly for dual-color notification or status lights.
  • Automotive Interior Lighting: Appropriate for use in car dashboards and control systems where dual-color indicators are beneficial.
  • Portable and Wearable Electronics: Given its compact size and dual-color capability, it’s well-suited for small, portable devices like smartwatches and fitness trackers.
  • Control Panels in Machinery: Useful for indicating different statuses or warnings in machinery and industrial equipment.
  • Medical Equipment: Applicable in medical devices for dual-color status indicators, providing clear and reliable signaling.
  • Decorative Lighting: Suitable for creating ambient lighting effects in architectural designs, art installations, and interior decor.

RoHs Compliance, Pb-free              Anti-Static Attention

Electrical-optical characteristics:
Filters Sort results
Reset Apply
Article No
Water Clear
Water Clear
Water Clear
Hi Red
Water Clear
Ultra Orange
Water Clear
Ultra Green
Water Clear
Ultra Green
Water Clear
Package configuration & Internal circuit diagram
1210 bi-color SMD LED

All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.

Partno description:

LEDs, Light Emitting diodes, which include various small kinds, such as 3mm, 5mm, 8mm, 10mm; round type, rectangular type square type, tower type, Oval led, elliptical, flat top; SMDs, high power led, piranha LEDs

Part No of  LED diode

More Information

Lens Color:

Meaningcolor DiffusedColor TintedWater ClearWater DiffusedOrange diffused

Absolute maximum ratings (Ta=25°C)

Forward Current I F252525303030303030303030mA
Power Dissipation P d606060656575110110120120120120mW
Reverse Voltage V R555555555555V
Peak Forward Current I PF (Duty 1/10 @1KHZ)150150150150150150150100100100100100mA
Operation Temperature T OPR-40 to +80°C
Storage Temperature T STG-40 to +85°C
Lead Soldering Temperature T SOL  Max.260+-5°C for 3 sec Max. (1.6mm from the base of the epoxy bulb)°C
Related Information

Applied for:
auto lampcameradome lightrgb screentraffic light


The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment,

communication equipment and household applications). Consult Betlux’s Sales in advance for information on

applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs

 may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical

and life support systems and safety devices).

CAUTIONS for Through-Hole LED Lamps

1. Application
The LEDs described here are intended to be used for ordinary electronic equipment (such as office equipment, communication equipment and household applications). Consult Betlux’s Sales in advance for information on applications in which exceptional reliability is required, particularly when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in aviation, transportation, traffic control equipment, medical and life support systems and safety devices).

2. Storage
The storage ambient for the LEDs should not exceed 30℃ temperature or 70% relative humidity. It is
recommended that LEDs out of their original packaging are used within three months
For extended storage out of their original packaging, it is recommended that the LEDs be stored in a sealed
container with appropriate desiccant or in a desiccator with nitrogen ambient.

3. Cleaning
Use alcohol-based cleaning solvents such as isopropyl alcohol to clean the LED if necessary

4. Lead Forming & Assembly
During lead forming, the leads should be bent at a point at least 3mm from the base of LED lens. Do not use
the base of the leadframe as a fulcrum during forming.
Lead forming must be done before soldering, at normal temperature.
During assembly on PCB, use minimum clinch force possible to avoid excessive mechanical stress.

led diode formingassembly notice of led diode


When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.

Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.

Recommended soldering conditions:


IR Reflow Soldering (for SMD display)Wave SolderingSoldering Iron
Pre-Heat150-180°CPre-Heat100°C Max.Temperature300°C Max.
Pre-Heat Time120sec Max.Pre-Heat Time60sec Max.
Peak Temperature260°C Max.SolderWave260°C Max.Soldering Time3sec Max.(one time only)
Soldering Time10 sec Max.Soldering Time5sec Max.

Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED

ESD(Electrostatic Discharge)

Static Electricity or power surge will damage the LED.

Suggestions to prevent ESD (Electrostatic Discharge):

n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs

n All devices, equipment, and machinery must be properly grounded

n Work tables, storage racks, etc. should be properly grounded

n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s

 plastic lens as a result of friction between LEDs during storage and handling

ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,

low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”

and Vf of the suspect LEDs at low currents.

The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP


antistatic notice-smd led

Drive Method

An LED is a current-operated device. In order to ensure intensity uniformity on multiple LEDs connected in

parallel in an application, it is recommended that a current limiting resistor be incorporated in the drive circuit,

 in series with each LED as shown in Circuit A below.

drive notice - led diode

When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:

  • Determine the Forward Voltage (Vf) of the LED(s):

Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.

  • Determine the Forward Current (If) of the LED(s):

The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.

  • Decide on the Configuration:

Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.

Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.

Calculate Total Power Requirements:

Power (W) = Total Forward Voltage (V) x Total Forward Current (A)

For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:

Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W

  • Select an Appropriate Power Supply:
  • Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
  • Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
  • Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
  • Consider Additional Features:
  • Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
  • Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
  • Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
  • Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
  • Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.

In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.

Here are some well-regarded brands in the industry:

  • Mean Well: One of the most recognized brands in the LED power supply industry, Mean Well offers a wide range of products suitable for both indoor and outdoor applications. Their units often come with features like overcurrent protection, dimming capabilities, and high efficiency.
  • Tridonic: A global leader in lighting technology, Tridonic offers LED drivers and power supplies that cater to various lighting solutions, from simple setups to advanced smart lighting systems.
  • Philips Advance Xitanium: Philips is a well-known brand in the lighting industry, and their Xitanium series of LED drivers are known for reliability and performance. They cater to both indoor and outdoor LED applications.
  • Osram: Another giant in the lighting industry, Osram offers a range of LED drivers and power supplies suitable for various applications, including architectural and street lighting.
  • LIFUD: Specializing in LED drivers, LIFUD is known for its high-quality products that cater to both commercial and residential LED lighting solutions.
  • MOSO: This brand offers a variety of LED drivers, especially for outdoor and industrial applications. Their products are known for durability and performance.
  • TDK-Lambda: With a history in power electronics, TDK-Lambda offers a range of power supplies and LED drivers suitable for various applications, emphasizing reliability and advanced features.
