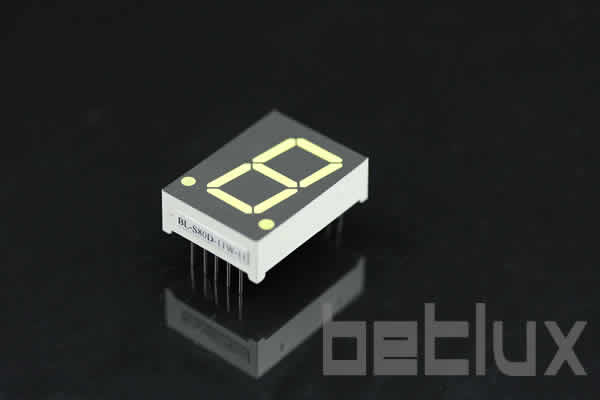

0.80 inch single-digit seven segment led display, bi-color

0.80 inch single-digit seven segment led display, bi-color

Series No:

BL-S80E-11

Weight:(g/pcs)

5

Dimension:(mm)

20 x 27.7 x 10

Character Height: (inch)

0.80 inch

Specification:

download

Inquiry

Description:

The 0.80 inch single-digit seven segment LED display, bi-color is a versatile component widely used in various electronic applications. This article delves into the 7 segment multiplex technology, highlighting its efficiency and readability. Commonly known as a segment display, this LED component is essential for displaying numerical information clearly. We will explore its features, benefits, and applications, along with case studies and user testimonials, to provide a comprehensive understanding of its importance for electronics manufacturers, engineers, and administrators.

Features of the 0.80 Inch Single-Digit Seven Segment LED Display, Bi-Color

High Visibility

The 7 segment multiplex display offers high visibility with bright LED segments that ensure clear readability from a distance. The bi-color feature allows for two different colors to be displayed, enhancing its utility in conveying various statuses or alerts.

Robust Design

This segment display is designed to be durable and robust, capable of withstanding harsh environmental conditions. Its reliable construction ensures consistent performance over time, which is critical for both industrial and commercial applications.

Energy Efficiency

Despite its size, the 7 segment multiplex display is energy-efficient, consuming minimal power. This makes it suitable for devices that require continuous operation without significantly increasing energy costs.

Ease of Integration

The 0.80 inch single-digit seven segment LED display is easy to integrate into various electronic systems. Its straightforward design and compatibility with common digit 7 drivers simplify the installation process for engineers and manufacturers.

Applications of the 0.80 Inch Single-Digit Seven Segment LED Display, Bi-Color

Consumer Electronics

In consumer electronics, the 7 segment multiplex display is used in devices such as digital clocks, timers, and home appliances. Its clear and bright display enhances user experience by providing easy-to-read numerical data.

Industrial Equipment

The 0.80 inch single-digit seven segment LED display is widely used in industrial equipment, including control panels and measurement devices. Its high visibility and reliability are crucial for accurate monitoring and data display in industrial settings.

Medical Devices

Medical devices, such as diagnostic equipment and monitors, rely on the segment display for precise and easily readable numerical displays. This reliability is vital in healthcare environments where accuracy is paramount.

Automotive Applications

In the automotive industry, the 7 segment multiplex display is prevalent in dashboards and instrument panels. Its durability and readability enhance driver information systems, contributing to safer and more efficient vehicle operation.

Benefits of the 0.80 Inch Single-Digit Seven Segment LED Display, Bi-Color

Cost-Effective Solution

The 7 segment multiplex display provides a cost-effective solution for numerical data display. Its affordability, combined with high performance, makes it a popular choice across various industries.

Versatility

The segment display is highly versatile and can be used in numerous applications, from consumer products to industrial machinery. This adaptability makes it a valuable component for diverse electronic systems.

Reliable Performance

Known for its reliable performance, the 0.80 inch single-digit seven segment LED display consistently delivers clear and accurate numerical displays. This reliability is crucial for applications where precision is essential.

User-Friendly Design

The 7 segment multiplex display is designed to be user-friendly, with straightforward connections that facilitate easy integration into different systems. This user-friendliness reduces setup time and complexity, benefiting both novice and experienced engineers.

Case Studies

Case Study 1: Enhancing Industrial Control Panels

A leading industrial equipment manufacturer integrated the 0.80 inch single-digit seven segment LED display into their control panels. This integration resulted in improved readability and faster data interpretation by operators, leading to enhanced efficiency and reduced errors in the manufacturing process. The bi-color feature allowed for clear status indications, improving operational workflow.

Case Study 2: Improving Medical Device Accuracy

A medical device company used the 7 segment multiplex display in their latest diagnostic equipment. The clear, precise readings provided by the display significantly increased user satisfaction and trust in the device’s reliability. The ability to switch between colors enhanced the device’s functionality, allowing for better patient monitoring.

Case Study 3: Automotive Dashboard Innovation

An automotive manufacturer integrated the segment display into their new vehicle dashboards. The improved visibility and durability of the display contributed to better driver information systems and overall customer satisfaction. The bi-color capability allowed for clear alerts and status updates, enhancing safety features.

User Testimonials

Testimonial 1: Electronics Engineer

“As an electronics engineer, the 7 segment multiplex display is a key component in my projects. Its reliability and clarity are unmatched, making my work more efficient and accurate. The bi-color feature adds a level of versatility that is invaluable.”

Testimonial 2: Product Manager

“We chose the 0.80 inch single-digit seven segment LED display for our latest line of consumer electronics. The feedback from users has been overwhelmingly positive, highlighting the display’s readability and performance. The digit 7 clarity is exceptional.”

Testimonial 3: Industrial Designer

“The segment display has significantly improved our industrial control systems. Its durability and efficiency have been a game-changer for our product offerings. The bi-color display has enhanced the functionality and user experience of our equipment.”

Conclusion

The 0.80 inch single-digit seven segment LED display, bi-color is a versatile, reliable, and cost-effective component that serves a wide range of applications. From consumer electronics to industrial machinery, its benefits are clear and substantial. By incorporating this display into your projects, you can ensure high performance and user satisfaction. Whether you are an electronics engineer, a product manager, or an industrial designer, the 7 segment multiplex display offers the perfect solution for your numerical display needs.

Call to Action: Enhance your electronic projects with the 0.80 inch single-digit seven segment LED display today and experience the difference in performance and reliability.

0.80 inch single-digit seven segment led display, bi-color
0.80 inch single-digit seven segment led display, bi-color

Features: 0.80 inch Single-Digit Seven-Segment LED Display, Bi-Color

  • Digit Height: 20.40mm
  • Overall Dimensions: 20.00mm x 27.70mm
  • Double or single-digit display with decimal point options
  • Bi-color selection (Orange + Green) for versatile visual displays
  • Common anode or common cathode selected for flexibility
  • Low current operation for energy efficiency
  • RoHS compliant, ensuring environmental friendliness

Application:

  • Numeric displays in digital clocks and timers
  • Temperature and humidity readouts
  • Counting and measurement displays in instruments
  • Score displays in sports-related devices
  • Indicator lights in control panels
  • Numeric values in handheld devices
  • Compact numeric readouts in various electronic equipment
Electrical-optical characteristics:
Filters Sort results
Reset Apply
Part No. (Cathode)
Part No. (Anode)
Emitting Color
Material
Peak Wavelength (nm)
Voltage typ.(v)
Voltage max. (v)
Luminous min
Luminous typ
BL-S80E-11B
BL-S80F-11B
ultra Blue
InGaN/SiC
470
4.2
50
65
BL-S80E-11D
BL-S80F-11D
Super Red
GaAlAs/DH
660
2.2
52
75
BL-S80E-11E
BL-S80F-11E
Orange
GaAsP/GaP
635
2.5
30
65
BL-S80E-11G
BL-S80F-11G
Green
GaP/GaP
570
2.5
30
65
BL-S80E-11H
BL-S80F-11H
Red
GaP/GaP
700
2.6
3.5
5
BL-S80E-11PG
BL-S80F-11PG
Ultra Pure Green
InGaN/SiC
525
4.2
60
97.5
BL-S80E-11S
BL-S80F-11S
Hi Red
GaAlAs/SH
660
2.2
35
50
BL-S80E-11UB
BL-S80F-11UB
ultra Blue
InGaN/SiC
470
4.2
55
80
BL-S80E-11UE
BL-S80F-11UE
Ultra Orange
AlGaInP
630
2.5
35
70
BL-S80E-11UG
BL-S80F-11UG
Ultra Green
AlGaInP
574
2.5
52
75
BL-S80E-11UR
BL-S80F-11UR
Ultra Red
GaAlAs/DDH
660
2.2
55
85
BL-S80E-11UY
BL-S80F-11UY
Ultra Yellow
AlGaInP
590
2.5
35
70
BL-S80E-11W
BL-S80F-11W
Ultra White
InGaN
-
4.2
80
BL-S80E-11Y
BL-S80F-11Y
Yellow
GaAsP/GaP
585
2.5
30
65
Package configuration & Internal circuit diagram
0.80 inch single-digit seven segment led display, bi-color


All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.

Partno description:

LED seven segment , called also LED numeric display, is widely applied in home appliance panel display and other application.

Part No of Seven segment LED display

More information

Reflector Surface color (1st number)/ Segment Lens color (2nd number):

Number012345
Ref Surface ColorWhiteBlackGrayRedGreen
Epoxy ColorWater clearWhite diffusedRed DiffusedGreen DiffusedYellow Diffused

Absolute maximum ratings (Ta= 25°C)

Parameter SDUREYGUnit
Forward Current IF 252525252530mA
Power Dissipation Pd 606060606065mW
Reverse Voltage VR 555555V
Peak Forward Current IPF (Duty 1/10 @1KHZ) 150150150150150150mA
Operation Temperature TOPR-40 to +80°C
Storage Temperature TSTG-40 to +85°C
Lead Soldering Temperature TSOL  Max.260+ 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb)°C

Absolute maximum ratings (Ta= 25°C)

ParameterUHRUEYOUYUGPGUBUWUnit
Forward Current IF3030303030303030mA
Power Dissipation Pd7565656575110120120mW
Reverse Voltage VR55555555V
Peak Forward Current IPF (Duty 1/10 @1KHZ)150150150150150150100100mA
Operation Temperature TOPR-40 to +80°C
Storage Temperature TSTG-40 to +85°C
Lead Soldering Temperature TSOLMax.260+ 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb)°C
Related Information

Applied for:
dvd player radio train instrument refrigerator

1. Application
The Seven Segment LED is widely applied for ordinary electronic equipment (such as office equipment,
communication equipment and household applications). Checking with BETLUX’s Sales in
advance for information on applications in which exceptional reliability is required, particularly
when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in
aviation, transportation, traffic control equipment, medical and life support systems and safety
devices).

2. Storage
The storage ambient for the Seven Segment LED should not exceed 30℃ temperature or 70% relative humidity.
For extended storage out of their original packaging, it is recommended that the Seven Segment LEDs be stored
in a sealed container with appropriate desiccant, or in a desiccator with nitrogen ambient.

3. Cleaning
Avoid using any unspecified chemical solvent to clean LED . For example, Trichloroethylene, Chlorosen, Acetone, and Diflon S3MC.
Any cleaning method can only be taken under normal temperature in one minute or less if it is required.
Use water to clean the Seven Segment LED if necessary under room temperature
dry it immediately after that.

4.Forming
Any unsuitable stress applied to the epoxy may break bonding wires in LED
Any forming on lead pin must be done before soldering, not during or after soldering.
Avoid applying any stress to resin in order to prevent the epoxy fracture and break on bonding wire.
While forming, please use a tie bar cut or equivalent to hold or bend the pin.
2mm from the base of resin is the minimum distance for the place bending the lead pin.
Avoid bending the lead pin at the same point twice or more.

seven segment display forming caution

Soldering

When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.

Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.

Recommended soldering conditions:



IR Reflow Soldering (for SMD display)Wave SolderingSoldering Iron
Pre-Heat150-180°CPre-Heat100°C Max.Temperature300°C Max.
Pre-Heat Time120sec Max.Pre-Heat Time60sec Max.
Peak Temperature260°C Max.SolderWave260°C Max.Soldering Time3sec Max.(one time only)
Soldering Time10 sec Max.Soldering Time5sec Max.

Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED

ESD(Electrostatic Discharge)

Static Electricity or power surge will damage the LED.

Suggestions to prevent ESD (Electrostatic Discharge):

n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs

n All devices, equipment, and machinery must be properly grounded

n Work tables, storage racks, etc. should be properly grounded

n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s

 plastic lens as a result of friction between LEDs during storage and handling

ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,

low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”

and Vf of the suspect LEDs at low currents.

The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP

 product.

antistatic notice-smd led

LED dirve IC by  Maxim Integrated

 MAX6959  4½-Digit LED Display Driver

 MAX6958  4½-Digit LED Display Driver

 MAX6955  7-, 14-, 16-Segment LED Display Driver

 MAX6956  LED Static Display Driver and I/O Port

 MAX6954  7-, 14-, 16-Segment LED Display Driver

 MAX6952  5 x 7 Matrix LED Display Driver

 MAX6957  LED Static Display Driver and I/O Port

MAX6950  5-Digit LED Display Driver

 MAX6951  8-Digit LED Display Driver

 ICM7212  4-Digit LED Driver

 ICM7212A  4-Digit LED Driver

 ICM7212AM  4-Digit LED Driver

 ICM7212M  4-Digit LED Driver

 ICM7218A  8-Digit LED Driver

 ICM7218B  8-Digit LED Driver

 ICM7218C  8-Digit LED Driver

 ICM7218D  8-Digit LED Driver

 MAX7221  8-Digit LED Display Driver

 MAX7219  8-Digit LED Display Driver

 provide in-depth design and IC selection help for design engineers.  Each solution is dedicated to a popular end-equipment type and features design information, circuits and a block diagram.   Within a block diagram, click on a block to view best-fit integrated circuits recommended by Maxim engineers.

When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:

  • Determine the Forward Voltage (Vf) of the LED(s):

Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.

  • Determine the Forward Current (If) of the LED(s):

The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.

  • Decide on the Configuration:

Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.

Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.

Calculate Total Power Requirements:

Power (W) = Total Forward Voltage (V) x Total Forward Current (A)

For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:

Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W

  • Select an Appropriate Power Supply:
  • Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
  • Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
  • Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
  • Consider Additional Features:
  • Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
  • Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
  • Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
  • Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
  • Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.

In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.

Here are some well-regarded brands in the industry:

  • Mean Well: One of the most recognized brands in the LED power supply industry, Mean Well offers a wide range of products suitable for both indoor and outdoor applications. Their units often come with features like overcurrent protection, dimming capabilities, and high efficiency.
  • Tridonic: A global leader in lighting technology, Tridonic offers LED drivers and power supplies that cater to various lighting solutions, from simple setups to advanced smart lighting systems.
  • Philips Advance Xitanium: Philips is a well-known brand in the lighting industry, and their Xitanium series of LED drivers are known for reliability and performance. They cater to both indoor and outdoor LED applications.
  • Osram: Another giant in the lighting industry, Osram offers a range of LED drivers and power supplies suitable for various applications, including architectural and street lighting.
  • LIFUD: Specializing in LED drivers, LIFUD is known for its high-quality products that cater to both commercial and residential LED lighting solutions.
  • MOSO: This brand offers a variety of LED drivers, especially for outdoor and industrial applications. Their products are known for durability and performance.
  • TDK-Lambda: With a history in power electronics, TDK-Lambda offers a range of power supplies and LED drivers suitable for various applications, emphasizing reliability and advanced features.
Need help?
Scroll to Top
