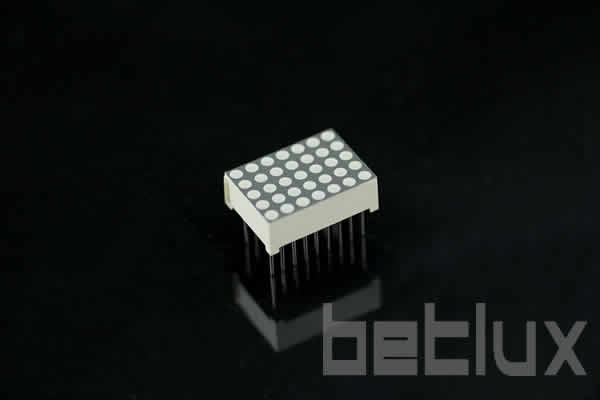

0.7 inch height 5×7 LED dot matrix, bi-color

Series No:

BL-M07A571xx

Weight:(g/pcs)

1.75

Dimension:(mm)

12.7 x 17.8 x 6.3

Dot height:(mm)

0.7 inch

Dot pitch:(mm)

2.54mm

Dot size:(mm)

1.8mm

Specification:

download

Inquiry

Description:

Introduction

The 0.7 inch height 5×7 LED dot matrix display stands out in the electronics market for its compact size and dual-color capabilities. Especially relevant for electronics manufacturers, engineers, purchasers, and administrators, this display technology is pivotal due to its adaptability and efficiency. This article dives into the detailed datasheet of the 5×7 dot matrix display, shedding light on its features, applications, and benefits, complemented by real-world case studies and user testimonials.

Understanding the 5×7 Dot Matrix Display

A 5×7 dot matrix display utilizes a grid of lights to represent characters and graphics in a matrix of 5 columns and 7 rows. The bi-color functionality enhances this by allowing each dot to light up in two distinct colors, typically red and green, offering more versatility in visual signaling and data representation.

Key Features

  • Height and Visibility: The 0.7-inch height makes it large enough for readability while maintaining a compact footprint, ideal for space-sensitive applications.
  • Bi-Color Capability: This feature enables the display to convey more information through color coding, crucial in various signaling and user interface applications.
  • Low Power Consumption: Essential for battery-operated devices, the low power requirement helps in extending device longevity.

Applications in Electronics

  • Consumer Electronics: Used in alarm clocks, calculators, and other personal devices for clear data display.
  • Industrial Applications: Ideal for control panel displays in machinery where reliability and clarity are paramount.
  • Communication Devices: Utilized in caller ID displays, enhancing usability through bi-color indications.

Benefits of Using Bi-Color 0.7 Inch 5×7 LED Dot Matrix Displays

  • Enhanced User Experience: Bi-color displays allow for more intuitive user interfaces.
  • Customization: Adaptable to different needs and environments, supporting both indoor and outdoor applications.
  • Durability: These displays are designed for longevity and robust performance, even under adverse conditions.

Case Studies: Real-World Applications

Case studies from various sectors, such as consumer electronics and industrial manufacturing, demonstrate the practical applications and advantages of using the 5×7 dot matrix display. These studies reveal significant improvements in device interface usability and customer satisfaction.

User Testimonials

Testimonials from electronics engineers highlight the reliability and the enhancement in device functionality due to integrating the 5×7 dot matrix display datasheet into their designs. Purchasers note the economic benefits of opting for these efficient and durable displays.

Conclusion

The 0.7 inch height 5×7 LED dot matrix, particularly in bi-color, offers substantial benefits for a wide array of electronic applications. Its flexibility, coupled with low power consumption and high visibility, makes it an invaluable component in the electronics design industry. For those looking to incorporate a reliable and efficient display solution into their products, the 5×7 dot matrix display proves to be a superior choice.

Call to Action Discover how the 5×7 dot matrix display can revolutionize your product designs by accessing a comprehensive datasheet today. Optimize your applications by leveraging the versatility and efficiency of bi-color LED displays.

0.7 inch height 5x7 LED dot matrix, bi-color
0.7 inch height 5×7 LED dot matrix, bi-color

Features

  • Compact Matrix Size: With a height of 19.7mm and a display width and height of 12.70×17.80mm, it offers a small yet effective display area.
  • Dot Characteristics: It features circular dots, each with a size of 1.90mm, providing clear and distinct illumination for its size.
  • Grid Layout: The matrix has 5 columns and 7 rows, allowing for a variety of display patterns and characters in a very compact form.
  • Energy-Efficient Operation: Designed for low current usage, making it suitable for energy-saving applications and long-term use.
  • High Contrast and Brightness: The high contrast and light output ensure that the display is easily readable under various lighting conditions.
  • Code Compatibility: Compatible with ASCII and EBCDIC codes, offering flexibility for different programming and display purposes.
  • Horizontal Stackability: Can be stacked horizontally, which is useful for creating wider or more complex display panels.
  • Circuit Design Flexibility: Available with both column cathode and anode options, providing versatility for different electronic designs.
  • Easy Installation: Designed for straightforward mounting on printed circuit boards or sockets, enhancing its adaptability in various projects.
  • Consistent Brightness: LEDs are categorized for luminous intensity, ensuring uniform brightness across the display.
  • Durability: Technically rugged, making it reliable for various applications and operational conditions.
  • Aesthetic Design: Features a standard gray surface with white dots, offering a sleek and professional appearance.
  • Environmental Compliance: RoHS compliance indicates that it is manufactured with environmentally friendly practices.

Applications

  • Miniature Electronic Displays: Ideal for applications requiring small, clear displays, such as wearable technology or compact electronic devices.
  • Custom Indicators: Suitable for creating custom indicators or readouts in small-scale machinery, appliances, or other electronic equipment.
  • Educational Tools: Can be used in educational settings for teaching electronics and programming, particularly for projects involving visual outputs.
  • Interactive Art and DIY Projects: Appropriate for small-scale interactive art installations or for hobbyist electronics projects.
  • Prototyping: Useful for prototyping electronic components or systems where space is limited and a clear display is necessary.
  • Portable Devices: Its small size and low power requirements make it suitable for portable electronic devices like handheld gadgets.
  • Informational Signage: Appropriate for small-scale information displays in public areas, offices, or retail environments.

RoHs Compliance, Pb-free              Anti-Static Attention

Electrical-optical characteristics:
Filters Sort results
Reset Apply
Part No.(Row Cathode)
Part No. (Row Anode)
Color
Material
Peak Wavelength (nm)
Voltage typ. (v)
Voltage Max. (v)
Luminous Min.
Luminous typ.
BL-M07A571DUG
BL-M07B571DUG
Ultra Red
AlGaInP
660
2.5
110
BL-M07A571DUG
BL-M07B571DUG
Ultra Green
AlGaInP
574
2.5
130
BL-M07A571EG
BL-M07B571EG
Orange
GaAsP/GaP
635
2.5
90
BL-M07A571EG
BL-M07B571EG
Green
GaP/GaP
570
2.5
95
BL-M07A571SG
BL-M07B571SG
Super Red
AlGaInP
660
2.5
100
BL-M07A571SG
BL-M07B571SG
Green
GaP/GaP
570
2.5
95
BL-M07A571UEUG
BL-M07B571UEUG
Ultra Orange
AlGaInP
630
2.5
100
BL-M07A571UEUG
BL-M07B571UEUG
Ultra Green
AlGaInP
574
2.5
130
Package configuration & Internal circuit diagram
0.7 inch height 5x7 LED dot matrix, bi-color


All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.

Partno description:

LED dot matrix is widely used in LED information board indoor and semi-outdoor

Part No of LED dot matrix

More Information

Reflector Surface color (1st number)/ dot Lens color (2nd number):

Number012345
Ref Surface ColorWhiteBlackGrayRedGreen
Dot Epoxy ColorWater clearWhite diffusedRed DiffusedGreen DiffusedYellow Diffused

Absolute maximum ratings (Ta= 25°C)

Parameter SDUREYGUnit
Forward Current IF 252525252530mA
Power Dissipation Pd 606060606065mW
Reverse Voltage VR 555555V
Peak Forward Current IPF (Duty 1/10 @1KHZ) 150150150150150150mA
Operation Temperature TOPR-40 to +80°C
Storage Temperature TSTG-40 to +85°C
Lead Soldering Temperature TSOL  Max.260+ 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb)°C

Absolute maximum ratings (Ta= 25°C)

ParameterUHRUEYOUYUGPGUBUWUnit
Forward Current IF3030303030303030mA
Power Dissipation Pd7565656575110120120mW
Reverse Voltage VR55555555V
Peak Forward Current IPF (Duty 1/10 @1KHZ)150150150150150150100100mA
Operation Temperature TOPR-40 to +80°C
Storage Temperature TSTG-40 to +85°C
Lead Soldering Temperature TSOLMax.260+ 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb)°C
Related Information

Applied for:
trainbus information boardLED screnmessage boardindustry instrument

1. Application
The Seven Segment LED is widely applied for ordinary electronic equipment (such as office equipment,
communication equipment and household applications). Checking with BETLUX’s Sales in
advance for information on applications in which exceptional reliability is required, particularly
when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in
aviation, transportation, traffic control equipment, medical and life support systems and safety
devices).

2. Storage
The storage ambient for the Seven Segment LED should not exceed 30℃ temperature or 70% relative humidity.
For extended storage out of their original packaging, it is recommended that the Seven Segment LEDs be stored
in a sealed container with appropriate desiccant, or in a desiccator with nitrogen ambient.

3. Cleaning
Avoid using any unspecified chemical solvent to clean LED . For example, Trichloroethylene, Chlorosen, Acetone, and Diflon S3MC.
Any cleaning method can only be taken under normal temperature in one minute or less if it is required.
Use water to clean the Seven Segment LED if necessary under room temperature
dry it immediately after that.

4.Forming
Any unsuitable stress applied to the epoxy may break bonding wires in LED
Any forming on lead pin must be done before soldering, not during or after soldering.
Avoid applying any stress to resin in order to prevent the epoxy fracture and break on bonding wire.
While forming, please use a tie bar cut or equivalent to hold or bend the pin.
2mm from the base of resin is the minimum distance for the place bending the lead pin.
Avoid bending the lead pin at the same point twice or more.

seven segment display forming caution

Soldering

When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.

Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.

Recommended soldering conditions:



IR Reflow Soldering (for SMD display)Wave SolderingSoldering Iron
Pre-Heat150-180°CPre-Heat100°C Max.Temperature300°C Max.
Pre-Heat Time120sec Max.Pre-Heat Time60sec Max.
Peak Temperature260°C Max.SolderWave260°C Max.Soldering Time3sec Max.(one time only)
Soldering Time10 sec Max.Soldering Time5sec Max.

Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED

ESD(Electrostatic Discharge)

Static Electricity or power surge will damage the LED.

Suggestions to prevent ESD (Electrostatic Discharge):

n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs

n All devices, equipment, and machinery must be properly grounded

n Work tables, storage racks, etc. should be properly grounded

n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s

 plastic lens as a result of friction between LEDs during storage and handling

ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,

low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”

and Vf of the suspect LEDs at low currents.

The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP

 product.

antistatic notice-smd led

LED dirve IC by  Maxim Integrated

 MAX6959  4½-Digit LED Display Driver

 MAX6958  4½-Digit LED Display Driver

 MAX6955  7-, 14-, 16-Segment LED Display Driver

 MAX6956  LED Static Display Driver and I/O Port

 MAX6954  7-, 14-, 16-Segment LED Display Driver

 MAX6952  5 x 7 Matrix LED Display Driver

 MAX6957  LED Static Display Driver and I/O Port

MAX6950  5-Digit LED Display Driver

 MAX6951  8-Digit LED Display Driver

 ICM7212  4-Digit LED Driver

 ICM7212A  4-Digit LED Driver

 ICM7212AM  4-Digit LED Driver

 ICM7212M  4-Digit LED Driver

 ICM7218A  8-Digit LED Driver

 ICM7218B  8-Digit LED Driver

 ICM7218C  8-Digit LED Driver

 ICM7218D  8-Digit LED Driver

 MAX7221  8-Digit LED Display Driver

 MAX7219  8-Digit LED Display Driver

 provide in-depth design and IC selection help for design engineers.  Each solution is dedicated to a popular end-equipment type and features design information, circuits and a block diagram.   Within a block diagram, click on a block to view best-fit integrated circuits recommended by Maxim engineers.

When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:

  • Determine the Forward Voltage (Vf) of the LED(s):

Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.

  • Determine the Forward Current (If) of the LED(s):

The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.

  • Decide on the Configuration:

Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.

Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.

Calculate Total Power Requirements:

Power (W) = Total Forward Voltage (V) x Total Forward Current (A)

For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:

Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W

  • Select an Appropriate Power Supply:
  • Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
  • Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
  • Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
  • Consider Additional Features:
  • Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
  • Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
  • Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
  • Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
  • Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.

In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.
