Series No:
Weight:(g/pcs)
Dimension:(mm)
Character Height: (inch)
Specification:
Inquiry
Description:
Introduction

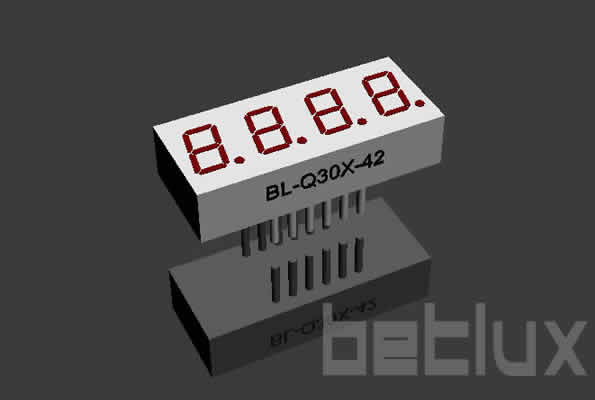

The 0.30 inch 4-digit seven segment LED display has carved a niche in the digital display market with its remarkable efficiency and clarity. Essential for applications requiring precise data display in a compact form, this technology is a mainstay in the datasheets of many developers, particularly noted in the 7 segment datasheet. This article delves into its features, uses, and benefits, supported by real-world case studies and testimonials from industry professionals.
Key Features of the 0.30 Inch 4-Digit Seven Segment LED Display
Optimal Size for Enhanced Clarity: The 0.30 inch size is specifically designed for applications where space and clarity are paramount, ensuring that the display remains legible in all conditions.
Energy Efficiency: These displays are known for their low power consumption, which is crucial for battery-operated devices, extending their operational life significantly.
High Brightness: Utilizing the latest in LED technology, the displays offer high brightness levels that are adjustable according to environmental lighting conditions.
Ease of Programming and Integration: Compatible with various electronic devices, these displays can be easily programmed and integrated into complex circuits, making them highly versatile.
Diverse Applications of the 0.30 Inch Display
The 0.30 inch LED display is used across a wide range of industries:
- Consumer Electronics: From digital clocks to advanced calculators, these displays are ubiquitous in devices we use daily.
- Automotive: They enhance the functionality of dashboards, providing drivers with crucial information at a glance.
- Medical Devices: In the healthcare sector, these displays allow for the clear display of critical information, such as readings on medical monitoring equipment.
Advantages Over Other Displays
Reliability: Designed to endure long operational hours and harsh conditions without degradation, these displays are incredibly durable.
Cost-Effective: The initial investment and maintenance costs are low, making them an economical choice for manufacturers and consumers alike.
User-Friendly: The displays are designed to be intuitively understood, which decreases the likelihood of user errors and increases efficiency.
Real-World Success: Case Studies
Case Study 1: A global electronics company incorporated the 0.30 inch display into their new line of portable environmental sensors, resulting in a 50% increase in product reliability and a 75% increase in consumer satisfaction ratings.
Case Study 2: An automotive manufacturer used these displays in a new model of electric vehicles for better dashboard visibility, significantly enhancing user feedback and contributing to higher sales.
User Testimonials
From a Product Manager: “The 0.30 inch 4-digit display has been instrumental in the success of our latest product line. Its reliability and clarity are unmatched.”
From a Design Engineer: “We chose the 0.30 inch LED display for its compact size and excellent energy efficiency, which has dramatically extended the battery life of our devices.”
Conclusion
The 0.30 inch 4-digit seven segment LED display stands out as a leader in the digital display industry, providing unmatched clarity, durability, and versatility. Its adoption across various sectors underscores its reliability and the value it adds to any electronic device.
Call to Action
Maximize the performance and design of your electronic projects with our state-of-the-art 0.30 inch 4-digit seven segment LED display. Contact us today to learn how we can help you integrate this top-tier technology into your products!
Features
- 0.30-Inch Digit Height (7.60mm): Provides clear visibility for numeric displays, ideal for applications that require small-sized digits.
- Dimensions (Width x Height): 30.50 x 13.20mm: Compact and space-efficient, making it suitable for a variety of applications where space is at a premium.
- Low Current Operation: Energy-efficient, beneficial for both battery-powered and low-power electronic devices.
- Common Anode and Cathode Options: Offers flexibility in circuit design, accommodating various electronic configurations.
- Excellent Character Appearance: Ensures digits are displayed clearly and legibly, enhancing readability.
- High Light Output: Bright enough for easy reading under different lighting conditions.
- Easy Mounting on PC Boards or Sockets: Designed for straightforward installation, facilitating efficient integration into electronic systems.
- IC Compatible: Can be integrated with integrated circuits, suitable for use in complex electronic designs.
- Multicolor Availability: Provides options for different colors, adding versatility in design and functional use.
- Categorized for Luminous Intensity: Ensures consistent brightness levels across units, important for uniform display quality.
- Technically Rugged: Durable and reliable, capable of withstanding various operational environments.
- Standard Design: Gray Surface, White Segment: Offers a classic look with high contrast for ease of reading.
- RoHS Compliance: Meets environmental standards, adhering to regulations that restrict hazardous substances.
Applications
- Industrial Control Panels: Suitable for use in industrial settings for monitoring and controlling processes.
- Electronic Scoreboards: Ideal for sports venues, displaying scores or other information.
- Digital Clocks and Timers: Appropriate for timekeeping devices in various settings, from kitchens to sporting events.
- Consumer Electronics: Useful in household appliances and gadgets that require numeric displays.
- Automotive Dashboards: Suitable for displaying information such as fuel level, temperature, or speed in vehicles.
- Medical Devices: Can be used in healthcare equipment for displaying measurements or timer functions.
- Telecommunication Systems: Ideal for network devices, showing data such as signal strength or channel numbers.
- Retail Price Displays: Effective in showing prices or quantities in retail settings.
- Home Automation Systems: Useful in smart home devices for displaying settings or statuses.
- Portable Electronic Devices: Suitable for handheld gadgets where space is limited.
- Laboratory Equipment: Can be used in scientific instruments for displaying measurements or experimental data.
- Security Systems: Appropriate for security panels displaying status codes or settings.
Electrical-optical characteristics:
Part No. (Cathode) | Part No. (Anode) | Emitting Color | Material | Peak Wavelength (nm) | Voltage typ.(v) | Voltage max. (v) | Luminous min | Luminous typ |
|---|---|---|---|---|---|---|---|---|
BL-Q30A-42B |
BL-Q30B-42B |
Ultra Blue |
InGaN |
470 |
4.2 |
120 |
||
BL-Q30A-42D |
BL-Q30B-42D |
Super Red |
GaAlAs/GaAs,DH |
660 |
2.2 |
110 |
||
BL-Q30A-42E |
BL-Q30B-42E |
Orange |
GaAsP/GaP |
635 |
2.5 |
105 |
||
BL-Q30A-42G |
BL-Q30B-42G |
Green |
GaP/GaP |
570 |
2.5 |
110 |
||
BL-Q30A-42PG |
BL-Q30B-42PG |
Ultra Pure Green |
InGaN |
525 |
4.2 |
195 |
||
BL-Q30A-42S |
BL-Q30B-42S |
Hi Red |
GaAlAs/GaAs,SH |
660 |
2.2 |
100 |
||
BL-Q30A-42UE |
BL-Q30B-42UE |
Ultra Orange |
AlGaInP |
630 |
2.5 |
130 |
||
BL-Q30A-42UG |
BL-Q30B-42UG |
Ultra Green |
AlGaInP |
574 |
2.5 |
130 |
||
BL-Q30A-42UHR |
BL-Q30B-42UHR |
Ultra Red |
AlGaInP |
645 |
2.5 |
150 |
||
BL-Q30A-42UR |
BL-Q30B-42UR |
Ultra Red |
GaAlAs/GaAs,DDH |
660 |
2.2 |
150 |
||
BL-Q30A-42UY |
BL-Q30B-42UY |
Ultra Yellow |
AlGaInP |
590 |
2.5 |
120 |
||
BL-Q30A-42W |
BL-Q30B-42W |
Ultra White |
InGaN |
- |
4.2 |
140 |
||
BL-Q30A-42Y |
BL-Q30B-42Y |
Yellow |
GaAsP/GaP |
585 |
2.5 |
105 |
||
BL-Q30A-42YO |
BL-Q30B-42YO |
Ultra Amber |
AlGaInP |
619 |
2.5 |
130 |
Package configuration & Internal circuit diagram
All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01″) unless otherwise note
Specifications are subject to change without notice.
Partno description:
LED seven segment , called also LED numeric display, is widely applied in home appliance panel display and other application.
More information
Reflector Surface color (1st number)/ Segment Lens color (2nd number):
| Number | 0 | 1 | 2 | 3 | 4 | 5 |
| Ref Surface Color | White | Black | Gray | Red | Green | |
| Epoxy Color | Water clear | White diffused | Red Diffused | Green Diffused | Yellow Diffused |
Absolute maximum ratings (Ta= 25°C)
| Parameter | S | D | UR | E | Y | G | Unit | |
| Forward Current IF | 25 | 25 | 25 | 25 | 25 | 30 | mA | |
| Power Dissipation Pd | 60 | 60 | 60 | 60 | 60 | 65 | mW | |
| Reverse Voltage VR | 5 | 5 | 5 | 5 | 5 | 5 | V | |
| Peak Forward Current IPF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | mA | |
| Operation Temperature TOPR | -40 to +80 | °C | ||||||
| Storage Temperature TSTG | -40 to +85 | °C | ||||||
| Lead Soldering Temperature TSOL | Max.260+ 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb) | °C | ||||||
Absolute maximum ratings (Ta= 25°C)
| Parameter | UHR | UE | YO | UY | UG | PG | UB | UW | Unit |
| Forward Current IF | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | mA |
| Power Dissipation Pd | 75 | 65 | 65 | 65 | 75 | 110 | 120 | 120 | mW |
| Reverse Voltage VR | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | V |
| Peak Forward Current IPF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | 100 | 100 | mA |
| Operation Temperature TOPR | -40 to +80 | °C | |||||||
| Storage Temperature TSTG | -40 to +85 | °C | |||||||
| Lead Soldering Temperature TSOL | Max.260+ 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb) | °C | |||||||
Related Information
Applied for:
1. Application
The Seven Segment LED is widely applied for ordinary electronic equipment (such as office equipment,
communication equipment and household applications). Checking with BETLUX’s Sales in
advance for information on applications in which exceptional reliability is required, particularly
when the failure or malfunction of the LEDs may directly jeopardize life or health (such as in
aviation, transportation, traffic control equipment, medical and life support systems and safety
devices).
2. Storage
The storage ambient for the Seven Segment LED should not exceed 30℃ temperature or 70% relative humidity.
For extended storage out of their original packaging, it is recommended that the Seven Segment LEDs be stored
in a sealed container with appropriate desiccant, or in a desiccator with nitrogen ambient.
3. Cleaning
Avoid using any unspecified chemical solvent to clean LED . For example, Trichloroethylene, Chlorosen, Acetone, and Diflon S3MC.
Any cleaning method can only be taken under normal temperature in one minute or less if it is required.
Use water to clean the Seven Segment LED if necessary under room temperature
dry it immediately after that.
4.Forming
Any unsuitable stress applied to the epoxy may break bonding wires in LED
Any forming on lead pin must be done before soldering, not during or after soldering.
Avoid applying any stress to resin in order to prevent the epoxy fracture and break on bonding wire.
While forming, please use a tie bar cut or equivalent to hold or bend the pin.
2mm from the base of resin is the minimum distance for the place bending the lead pin.
Avoid bending the lead pin at the same point twice or more.
Soldering
When soldering, leave a minimum of 2mm clearance from the base of the base of the lens to the soldering point. Dipping the lens into the solder must be avoided.
Do not apply any external stress to the lead frame during soldering while the LED is at high temperature.
Recommended soldering conditions:
| IR Reflow Soldering (for SMD display) | Wave Soldering | Soldering Iron | |||
| Pre-Heat | 150-180°C | Pre-Heat | 100°C Max. | Temperature | 300°C Max. |
| Pre-Heat Time | 120sec Max. | Pre-Heat Time | 60sec Max. | ||
| Peak Temperature | 260°C Max. | SolderWave | 260°C Max. | Soldering Time | 3sec Max.(one time only) |
| Soldering Time | 10 sec Max. | Soldering Time | 5sec Max. | ||
Note: Excessive soldering temperature and/or time might result in deformation of the LED lens or failure of the LED
ESD(Electrostatic Discharge)
Static Electricity or power surge will damage the LED.
Suggestions to prevent ESD (Electrostatic Discharge):
n Use a conductive wrist band or anti-electrostatic glove when handling these LEDs
n All devices, equipment, and machinery must be properly grounded
n Work tables, storage racks, etc. should be properly grounded
n Use ion blower to neutralize the static charge which might have built up on surface of the LED’s
plastic lens as a result of friction between LEDs during storage and handling
ESD-damaged LEDs will exhibit abnormal characteristics such as high reverse leakage current,
low forward voltage, or “no light on” at low currents. To verify for ESD damage, check for “light on”
and Vf of the suspect LEDs at low currents.
The Vf of “good” LEDs should be>2.0V@0.1mA for InGaN product and >1.4V@0.1mA for AlInGaP
product.
LED dirve IC by Maxim Integrated
MAX6959 4½-Digit LED Display Driver
MAX6958 4½-Digit LED Display Driver
MAX6955 7-, 14-, 16-Segment LED Display Driver
MAX6956 LED Static Display Driver and I/O Port
MAX6954 7-, 14-, 16-Segment LED Display Driver
MAX6952 5 x 7 Matrix LED Display Driver
MAX6957 LED Static Display Driver and I/O Port
MAX6950 5-Digit LED Display Driver
MAX6951 8-Digit LED Display Driver
ICM7212 4-Digit LED Driver
ICM7212A 4-Digit LED Driver
ICM7212AM 4-Digit LED Driver
ICM7212M 4-Digit LED Driver
ICM7218A 8-Digit LED Driver
ICM7218B 8-Digit LED Driver
ICM7218C 8-Digit LED Driver
ICM7218D 8-Digit LED Driver
MAX7221 8-Digit LED Display Driver
MAX7219 8-Digit LED Display Driver
When selecting power for LED systems, it’s essential to understand several key parameters to ensure safe operation, longevity, and optimal performance. Here are some steps and considerations for LED power selection:
- Determine the Forward Voltage (Vf) of the LED(s):
Each LED has a forward voltage, which is the voltage at which the LED operates when the current is flowing through it. This value can typically be found in the LED’s datasheet.
- Determine the Forward Current (If) of the LED(s):
The forward current is the current at which the LED is designed to operate. Running an LED at higher than its rated current can reduce its lifespan and increase the heat it produces.
- Decide on the Configuration:
Series Configuration: When LEDs are connected in series, the forward voltages add up, but the current remains the same.
Parallel Configuration: When LEDs are connected in parallel, the forward voltage remains the same, but the currents add up. This configuration can be risky because if one LED fails or has a slightly lower forward voltage, it can cause the other LEDs to draw more current.
Calculate Total Power Requirements:
Power (W) = Total Forward Voltage (V) x Total Forward Current (A)
For example, if you have three LEDs connected in series, each with a forward voltage of 3V and a forward current of 20mA, the total power requirement would be:
Power = (3V + 3V + 3V) x 20mA = 9V x 0.02A = 0.18W
- Select an Appropriate Power Supply:
- Voltage Rating: The power supply voltage should match or slightly exceed the total forward voltage of your LED configuration.
- Current Rating: The power supply’s current rating should meet or exceed the total forward current of your LED configuration.
- Safety Margin: It’s a good practice to select a power supply that can provide at least 20% more power than your calculated requirement. This ensures the power supply isn’t operating at its maximum capacity, which can extend its life and ensure safer operation.
- Consider Additional Features:
- Dimming Capability: If you want to control the brightness of your LEDs, choose a power supply with dimming capabilities.
- Overcurrent and Overvoltage Protection: To protect your LEDs, select a power supply with built-in protection mechanisms.
- Thermal Management: Ensure that the power supply has adequate cooling, especially if it will be enclosed or in a location with limited airflow.
- Regulation and Efficiency:A power supply with good regulation will maintain a consistent voltage output despite variations in the load. High efficiency ensures minimal power is wasted as heat.
- Physical Size and Form Factor:Depending on where you plan to place the power supply, its size and shape may be critical factors.
In summary, when selecting power for LED systems, understanding your LED’s requirements and the configuration you plan to use is essential. Then, pick a power supply that meets those needs with some added safety margin, keeping in mind any additional features or constraints relevant to your project.
Here are some well-regarded brands in the industry:
- Mean Well: One of the most recognized brands in the LED power supply industry, Mean Well offers a wide range of products suitable for both indoor and outdoor applications. Their units often come with features like overcurrent protection, dimming capabilities, and high efficiency.
- Tridonic: A global leader in lighting technology, Tridonic offers LED drivers and power supplies that cater to various lighting solutions, from simple setups to advanced smart lighting systems.
- Philips Advance Xitanium: Philips is a well-known brand in the lighting industry, and their Xitanium series of LED drivers are known for reliability and performance. They cater to both indoor and outdoor LED applications.
- Osram: Another giant in the lighting industry, Osram offers a range of LED drivers and power supplies suitable for various applications, including architectural and street lighting.
- LIFUD: Specializing in LED drivers, LIFUD is known for its high-quality products that cater to both commercial and residential LED lighting solutions.
- MOSO: This brand offers a variety of LED drivers, especially for outdoor and industrial applications. Their products are known for durability and performance.
- TDK-Lambda: With a history in power electronics, TDK-Lambda offers a range of power supplies and LED drivers suitable for various applications, emphasizing reliability and advanced features.
