| LED BAR >> LIGHT BAR >> LED light bar (circle,20mm big LED)
| Contact us | betlux@betlux.com
 | product | LED light bar (circle,20mm big LED) |
| Part NO | BL-AC1Z20 | |
| Dimension | 20mm Diameter | |
| kinds | LED BAR -> LIGHT BAR | |
| Datasheet |  |
Feature:

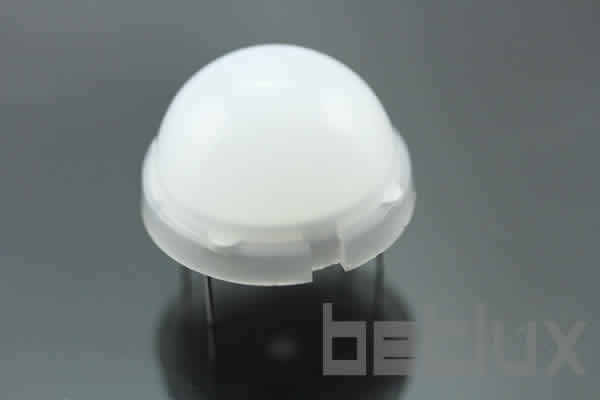

20mm Circle single color LED light bar display series
Applied for:
Super bight LED Electrical-optical characteristics: (Ta=25掳C) (Test Condition: IF=20mA)

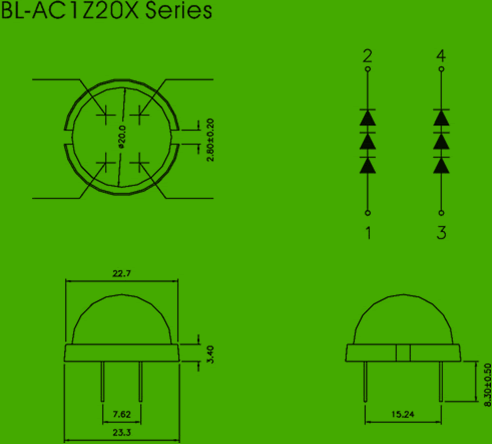

Package configuration & Internal circuit diagram
Notes:
1. All dimensions are in millimeters (inches)
2. Tolerance is 卤0.25(0.01")unless otherwise noted.
3. Specifications are subject to change without notice.
Reflector Surface color (1st number)/ Bar Lens color (2nd number):
| Number | 0 | 1 | 2 | 3 | 4 | 5 |
| Ref Surface Color | White | Black | Gray | Red | Green | |
| light bar Epoxy Color | Water clear | White diffused | Red Diffused | Green Diffused | Yellow Diffused |
| Parameter | S | D | UR | E | Y | G | Unit | |
| Forward Current IF | 25 | 25 | 25 | 25 | 25 | 30 | mA | |
| Power Dissipation Pd | 60 | 60 | 60 | 60 | 60 | 65 | mW | |
| Reverse Voltage VR | 5 | 5 | 5 | 5 | 5 | 5 | V | |
| Peak Forward Current IPF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | mA | |
| Operation Temperature TOPR | -40 to +80 | 掳C | ||||||
| Storage Temperature TSTG | -40 to +85 | 掳C | ||||||
| Lead Soldering Temperature TSOL | Max.260卤 5掳C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb) | 掳C | ||||||
| Parameter | UHR | UE | YO | UY | UG | PG | UB | UW | Unit |
| Forward Current IF | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | mA |
| Power Dissipation Pd | 75 | 65 | 65 | 65 | 75 | 110 | 120 | 120 | mW |
| Reverse Voltage VR | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | V |
| Peak Forward Current IPF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | 100 | 100 | mA |
| Operation Temperature TOPR | -40 to +80 | 掳C | |||||||
| Storage Temperature TSTG | -40 to +85 | 掳C | |||||||
| Lead Soldering Temperature TSOL | Max.260卤 5掳C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb) | 掳C | |||||||
