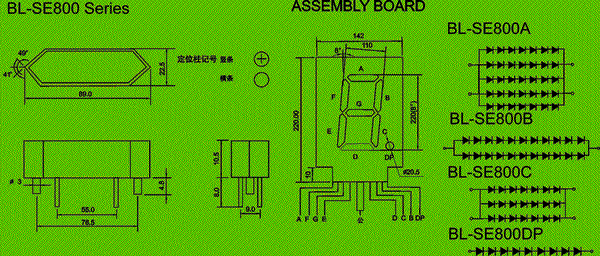

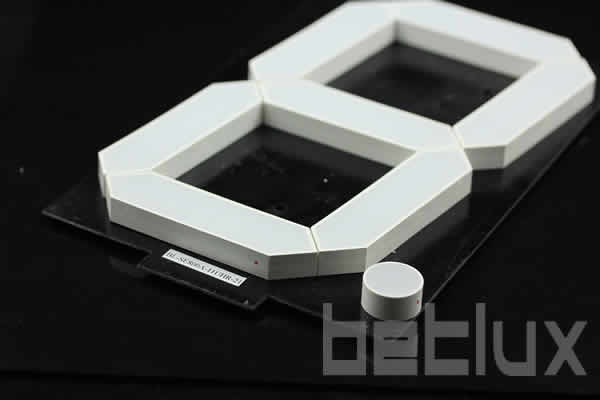

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Strict" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd"> <html xmlns="http://www.w3.org/1999/xhtml" > <head> <title>Large Digit Displays | Large Digital LED Displays | 8 inch</title> <meta name="Description" content="BL-SE800A LED NUMERIC DISPLAY 8 inch single big digit segment display,Large Digit Displays , Large Digital LED Displays , 8 inch,big segment led display, 7 inch segment LED supplier, infrared diodo, blue digit led, white led matrix, rgb LED Dot matrix, LED Single Digit 7 Segment, Blinking LED, bi,color LED, LED 4 Digit 7 Segment Display, SMD LED company,LED digital, Ovel type LED, light emitting diodes, LED LIGHT BAR, super bright LED lamp, Super bright white LED, LED CLUSTER, super flux LED, super flux, LED strip, LED neon, LED customize product "> <meta name="Keywords" content="Large Digit Displays , Large Digital LED Displays , 8 inch,big segment led display, 7 inch segment LED supplier, infrared diodo, blue digit led, white led matrix, rgb LED Dot matrix, LED Single Digit 7 Segment, Blinking LED, bi,color LED, LED 4 Digit 7 Segment Display, SMD LED company,LED digital, Ovel type LED, light emitting diodes, LED LIGHT BAR, super bright LED lamp, Super bright white LED, LED CLUSTER, super flux LED, super flux, LED strip, LED neon, LED customize product "> <meta http-equiv=content-type content="text/html; charset=utf-8 "> <meta name="Author" content="Donald"> <meta name="Contact" content="BETLUX@betlux.com"> <meta name="Copyright" content="BETLUX.com"> <link rel="stylesheet" type="text/css" href="../betlux09.css" /> </head> <body> <div id="wrap"> <div id="header"> <div id="slogan2"> <h1>Large Digit Displays | Large Digital LED Displays | 8 inch</h1> </div> <h2><a href="../index.html"><img src="../Images/betlux-en.gif" alt="Large Digit Displays | Large Digital LED Displays | 8 inch,betlux, LED supplier"/></a></h2> <p><strong>LED digital world, share with you the quality LED technology</strong> <div id="header_inner"> <a id="header-link" href="../top.html"></a> <h1><span>SEVEN SEGMENT LED, </span>Big Digit </h1> </div> </p> </div> <div id="contentfull"> <h1>Find quality 7 Segment LED display product </h1> <p><b><a href="../LED-manufacturer_betlux.asp"><font color="#000000" size="2"> </font></a>|&nbsp;<a href='SEVEN-SEGMENT-LED-1.htm'>SEVEN SEGMENT LED</a>&nbsp;&gt;&gt;&nbsp;<a href='SEVEN-SEGMENT-LED-Big-Digit-1.htm'>Big Digit</a>&nbsp;&gt;&gt;&nbsp;8 inch single big digit segment display </b> <a href='mailto:sales@BETLUX.com?subject=inquiry%20from%20www.BETLUX.com'><img src="../Img/addtocart.gif" alt="Email contact" width="30" height="30" border="0"/></a></p> <p><table width=500 border=1 cellspacing=0 cellpadding=0><tr><td width=30% rowspan=6><div align=center><img alt='product image - Large Digit Displays | Large Digital LED Displays | 8 inch-8 inch single big digit segment display' border=0 src='../pic/BL-SE800A-big_segment_display.jpg' width=300 height=200></div></td><td width=12% height=12>product</td><td><b><a href='8-inch-single-big-digit-segment-display-BL-SE800A.htm'>8 inch single big digit segment display</a></b></td></tr><tr><td width=12% height=12>Part NO</td><td>BL-SE800A</td></tr><tr><td width=12% height=12>Dimension</td><td>142 x 220mm</td></tr><tr><td height=12>kinds</td><td><a href='SEVEN-SEGMENT-LED-1.htm'>SEVEN SEGMENT LED</a> -> <a href='SEVEN-SEGMENT-LED-Big-Digit-1.htm'>Big Digit</a></td></tr><tr><td height=12>Datasheet</td><td><a href='../product/LED_seven_segment_display/big_segment_LED_display/BL-SE800A.PDF' title='PDF downlaod of LED products -BL-SE800A'><img alt='PDF datasheet of BL-SE800A-Large Digit Displays | Large Digital LED Displays | 8 inch' src='../Images/pdf.gif' border=0 width=20 height=20></a></td></tr></table></p> <p><img src="../Images/rohs-compliance-50.png" alt="RoHs Compliance, Pb-free" width="42" height="50" /> <img src="../Images/ANTISTATIC-50.png" alt="Anti-Static Attention" width="114" height="50" /></p> <p><br/> <strong>Feature:</strong><br/> <p>8.00 inch single Numeric LED display <br />big segment display<br />8.00 inch digit height(220mm)<br />widthxheight: 142*220mm<br />Single decimal point and a comma<br />Common anode or common cathode selected<br />Low Current Operation<br /> Common Anode and Common Cathode available<br /> Excellent Character Appearance<br /> High Light Output<br /> Easy Mounting On PC Boards or Sockets<br /> IC Compatible<br /> Multicolor Available<br /> Categorized for Luminous Intensity<br /> Technically Rugged<br /> Standard: Gray Surface, White Segment<br />RoHs Compliance<br /> </p></p> <p> <strong>Applied for:<br /> <img src="../Images/LED-apply-for/LED-for-dvd-player.gif" alt="dvd player" width="100" height="116" title="LED for dvd player" /><img src="../Images/LED-apply-for/LED-for-radio.gif" alt="radio" width="100" height="116" title="LED for radio" /><img src="../Images/LED-apply-for/LED-for-train.gif" alt="train" width="100" height="116" title="LED for train" /><img src="../Images/LED-apply-for/LED-for-instrument.gif" alt="instrument" width="100" height="116" title="LED for instrument" /><img src="../Images/LED-apply-for/LED-for-refrigrate.gif" alt="refrigerator" width="100" height="116" title="LED for refrigerator" /></strong></p> <p><strong>Super Bright LED Electrical-optical characteristics: (Ta=25cC) (Test Condition: IF=20mA) </strong><br/> Electrical-optical characteristics:(Ta=25C) (Test Condition:IF=20mA)<br/><table width=100% border=1 bordercolor=#666666 > <tr bgcolor=#666666> <td width=18% >Part No C.C.</td> <td width=18% >Part No C.A.</td> <td width=10% >color</td> <td width=6% >wavelength</td> <td width=6% >V typical <td width=6% >V max <td width=9% >Brightness</td> </tr> <tr> <td width=18% ><font color= #666666>BL-SE800A-11S</font></td> <td width=18% ><font color= #666666>BL-SE800B-11S</font></td> <td width=10% ><font color= #F1503C>High Bright Red</font></td> <td width=6% ><font color= #666666>660</font></td> <td width=6% ><font color= #666666>1.85</font></td> <td width=6% ><font color= #666666>2.2</font></td> <td width=9% ><font color= #666666>180</font></td> <tr> <td width=18% ><font color= #666666>BL-SE800A-11UR</font></td> <td width=18% ><font color= #666666>BL-SE800B-11UR</font></td> <td width=10% ><font color= #F1503C>Ultra Bright Red</font></td> <td width=6% ><font color= #666666>660</font></td> <td width=6% ><font color= #666666>1.85</font></td> <td width=6% ><font color= #666666>2.2</font></td> <td width=9% ><font color= #666666>220</font></td> <tr> <td width=18% ><font color= #666666>BL-SE800A-11E</font></td> <td width=18% ><font color= #666666>BL-SE800B-11E</font></td> <td width=10% ><font color= #F27545>Orange</font></td> <td width=6% ><font color= #666666>635</font></td> <td width=6% ><font color= #666666>2.1</font></td> <td width=6% ><font color= #666666>2.5</font></td> <td width=9% ><font color= #666666>180</font></td> <tr> <td width=18% ><font color= #666666>BL-SE800A-11UE</font></td> <td width=18% ><font color= #666666>BL-SE800B-11UE</font></td> <td width=10% ><font color= #F27545>High Bright Orange</font></td> <td width=6% ><font color= #666666>630</font></td> <td width=6% ><font color= #666666>2.1</font></td> <td width=6% ><font color= #666666>2.5</font></td> <td width=9% ><font color= #666666>190</font></td> <tr> <td width=18% ><font color= #666666>BL-SE800A-11UY</font></td> <td width=18% ><font color= #666666>BL-SE800B-11UY</font></td> <td width=10% ><font color= #FEFF27>High Bright Yellow</font></td> <td width=6% ><font color= #666666>590</font></td> <td width=6% ><font color= #666666>2.1</font></td> <td width=6% ><font color= #666666>2.5</font></td> <td width=9% ><font color= #666666>190</font></td> <tr> <td width=18% ><font color= #666666>BL-SE800A-11Y</font></td> <td width=18% ><font color= #666666>BL-SE800B-11Y</font></td> <td width=10% ><font color= #FFE50C>Yellow</font></td> <td width=6% ><font color= #666666>585</font></td> <td width=6% ><font color= #666666>2.1</font></td> <td width=6% ><font color= #666666>2.5</font></td> <td width=9% ><font color= #666666>150</font></td> <tr> <td width=18% ><font color= #666666>BL-SE800A-11UG</font></td> <td width=18% ><font color= #666666>BL-SE800B-11UG</font></td> <td width=10% ><font color= #66FF00>High Bright Green</font></td> <td width=6% ><font color= #666666>574</font></td> <td width=6% ><font color= #666666>2.2</font></td> <td width=6% ><font color= #666666>2.5</font></td> <td width=9% ><font color= #666666>210</font></td> <tr> <td width=18% ><font color= #666666>BL-SE800A-11G</font></td> <td width=18% ><font color= #666666>BL-SE800B-11G</font></td> <td width=10% ><font color= #66CC00>Green</font></td> <td width=6% ><font color= #666666>570</font></td> <td width=6% ><font color= #666666>2.2</font></td> <td width=6% ><font color= #666666>2.5</font></td> <td width=9% ><font color= #666666>200</font></td> <tr> <td width=18% ><font color= #666666>BL-SE800A-11PG</font></td> <td width=18% ><font color= #666666>BL-SE800B-11PG</font></td> <td width=10% ><font color= #339900>Super Pure Green</font></td> <td width=6% ><font color= #666666>525</font></td> <td width=6% ><font color= #666666>3.0</font></td> <td width=6% ><font color= #666666>4.2</font></td> <td width=9% ><font color= #666666>260</font></td> <tr> <td width=18% ><font color= #666666>BL-SE800A-11UB</font></td> <td width=18% ><font color= #666666>BL-SE800B-11UB</font></td> <td width=10% ><font color= #0000FF>Super Bright Blue</font></td> <td width=6% ><font color= #666666>470</font></td> <td width=6% ><font color= #666666>3.0</font></td> <td width=6% ><font color= #666666>4.2</font></td> <td width=9% ><font color= #666666>200</font></td> </table> </p> <p><strong>Package configuration & Internal circuit diagram </strong><br/> <img src='../product/LED_drawing/BL-SE800A-LED-big-segment-display.gif' alt='Large Digit Displays | Large Digital LED Displays | 8 inch Package diagram ' title='8 inch single big digit segment display circuit and dimension' width=600 border=0> <br/> Notes:<br/> 1)All dimensions are in millimeters (inches)<br/> 2)Tolerance is dS0.25(0.01")unless otherwise noted.<br/> 3)Specifications are subject to change without notice. </p> <p><strong>Reflector Surface color (1st number)/ Segment Lens color (2nd number):</strong></p> <table width="722" cellpadding="0" cellspacing="0"> <tr> <td width="142" >Number</td> <td width="92" >0</td> <td width="95" >1</td> <td width="95" >2</td> <td width="112" >3</td> <td width="118" >4</td> <td width="66" >5</td> </tr> <tr> <td >Ref Surface Color</td> <td >White</td> <td >Black</td> <td >Gray</td> <td >Red</td> <td >Green</td> <td >&nbsp;</td> </tr> <tr> <td height="62" >Epoxy Color</td> <td >Water clear</td> <td >White diffused</td> <td >Red Diffused</td> <td >Green Diffused</td> <td >Yellow Diffused</td> <td >&nbsp;</td> </tr> </table> <strong>Absolute maximum ratings (Ta= 25cC) </strong> <table cellspacing="0" cellpadding="0"> <tr> <td>Parameter</td> <td>&nbsp;</td> <td>S</td> <td>D</td> <td>UR</td> <td>E</td> <td>Y</td> <td>G</td> <td>Unit</td> </tr> <tr> <td >Forward Current IF</td> <td >&nbsp;</td> <td >25</td> <td >25</td> <td >25</td> <td >25</td> <td >25</td> <td >30</td> <td>mA</td> </tr> <tr> <td >Power Dissipation Pd</td> <td >&nbsp;</td> <td >60</td> <td >60</td> <td >60</td> <td >60</td> <td >60</td> <td >65</td> <td>mW</td> </tr> <tr> <td >Reverse Voltage VR</td> <td >&nbsp;</td> <td >5</td> <td >5</td> <td >5</td> <td >5</td> <td >5</td> <td >5</td> <td>V</td> </tr> <tr> <td>Peak Forward Current IPF (Duty 1/10 @1KHZ) </td> <td>&nbsp;</td> <td>150</td> <td>150</td> <td>150</td> <td>150</td> <td>150</td> <td>150</td> <td>mA</td> </tr> <tr> <td >Operation Temperature TOPR</td> <td colspan="7" >-40 to +80</td> <td>cC</td> </tr> <tr> <td >Storage Temperature TSTG</td> <td colspan="7" >-40 to +85</td> <td>cC</td> </tr> <tr> <td>Lead Soldering Temperature TSOL</td> <td colspan="7" >&nbsp; Max.260dS 5cC for 3 sec Max. ( 1.6mm from the base of the epoxy bulb)</td> <td>cC</td> </tr> </table> <strong>Absolute maximum ratings (Ta= 25cC) </strong> <table cellspacing="0" cellpadding="0"> <tr> <td>Parameter</td> <td>UHR</td> <td>UE</td> <td>YO</td> <td>UY</td> <td>UG</td> <td>PG</td> <td>UB</td> <td>UW</td> <td>Unit</td> </tr> <tr> <td >Forward Current IF</td> <td >30</td> <td >30</td> <td >30</td> <td >30</td> <td >30</td> <td >30</td> <td >30</td> <td >30</td> <td >mA</td> </tr> <tr> <td >Power Dissipation Pd</td> <td >75</td> <td >65</td> <td >65</td> <td >65</td> <td >75</td> <td >110</td> <td >120</td> <td >120</td> <td >mW</td> </tr> <tr> <td >Reverse Voltage VR</td> <td >5</td> <td >5</td> <td >5</td> <td >5</td> <td >5</td> <td >5</td> <td >5</td> <td >5</td> <td >V</td> </tr> <tr> <td>Peak Forward Current IPF (Duty 1/10 @1KHZ) </td> <td>150</td> <td>150</td> <td>150</td> <td>150</td> <td>150</td> <td>150</td> <td>100</td> <td>100</td> <td>mA</td> </tr> <tr> <td >Operation Temperature TOPR</td> <td colspan="8" >-40 to +80</td> <td >cC</td> </tr> <tr> <td >Storage Temperature TSTG</td> <td colspan="8" >-40 to +85</td> <td >cC</td> </tr> <tr> <td>Lead Soldering Temperature TSOL</td> <td colspan="8" >Max.260dS 5cC for 3 sec Max. ( 1.6mm from the base of the epoxy bulb)</td> <td>cC</td> </tr> </table> <p>Related Products: <br/> <strong><a href="SEVEN-SEGMENT-LED-SINGLE-DIGIT-1.htm" title="Seven segment LED -Single Digit ">Single Digit</a> | <a href="SEVEN-SEGMENT-LED-DOUBLE-DIGITS-1.htm" title="Seven segment LED - Dual Digit">Dual Digit</a> | <a href="SEVEN-SEGMENT-LED-THREE-DIGITS-1.htm" title="Seven segment LED -Three Digit ">Three Digit</a> | <a href="SEVEN-SEGMENT-LED-FOUR-DIGITS-1.htm" title="Seven segment LED -Four and over Digit ">Four and over Digit</a> | <a href="SEVEN-SEGMENT-LED-ALPHANUMERIC-LED-1.htm" title="Seven segment LED - Alpha-numeric display">Alpha-numeric display</a> | <a href="SEVEN-SEGMENT-LED-BIG-DIGIT-1.htm" title="Seven segment LED - Large Segment">Large Segment</a> <br /> <a href="SEVEN-SEGMENT-LED-LED-CLOCK-1.htm" title="Seven segment LED -LED clock board ">LED clock board</a> | <a href="SEVEN-SEGMENT-LED-PANEL-DISPLAY-1.htm" title="Seven segment LED -LED panel ">LED panel</a> | Custom LED display</strong></p> <p>[<a href='javascript:window.print()'>Print</a >]&nbsp;[<a href='javascript:history.back()'>Return</a>]&nbsp;</p> <p></p> </div> <div id="footer"> <p> &copy; 2003-2010<b> Betlux,LED Manufacturer from China</b> <script language="javascript" src="http://count41.51yes.com/click.aspx?id=417416479&logo=11"></script> </p> <p> <a href="../index.html">Home</a> | <a href="sitemap.htm">Sitemap</a> | <a href="mailto:betlux@betlux.com?subject=inquiry%20from%20betlux">Email</a> </p> <p> <a href='http://www.opto-electronics.com.cn' title='USA mirror site of LED digital world'>USA Site</a> | Language Select: <a href='../led/8-inch-single-big-digit-segment-display-BL-SE800A.htm ' >English</a>| <a href='../fr/8-inch-single-big-digit-segment-display-BL-SE800A.htm ' >French</a>| <a href='../de/8-inch-single-big-digit-segment-display-BL-SE800A.htm ' >German</a>| <a href='../ru/8-inch-single-big-digit-segment-display-BL-SE800A.htm ' >Russian</a>| <a href='../es/8-inch-single-big-digit-segment-display-BL-SE800A.htm ' >Spainish</a>| <a href='../pt/8-inch-single-big-digit-segment-display-BL-SE800A.htm ' >Portuguese</a>| <a href='../cn/8-inch-single-big-digit-segment-display-BL-SE800A.htm ' >Chinese</a>| <a href='../led/index_ab.htm' >Arabic</a>| <a href='../led/index_by.htm' >belarusian</a>| <a href='../led/index_cz.htm' >Czech</a>| <a href='../led/index_dk.htm' >Danish</a>| <a href='../led/index_fi.htm' >Finnish</a>| <a href='../led/index_hu.htm' >Hungarian</a>| <a href='../led/index_it.htm' >italian</a>| <a href='../led/index_jp.htm' >japanese</a>| <a href='../led/index_kr.htm' >korean</a>| <a href='../led/index_nl.htm' >dutch</a>| <a href='../led/index_pl.htm' >Polish</a>| <a href='../led/index_ps.htm' >persian</a>| <a href='../led/index_ro.htm' >Romanian</a>| <a href='../led/index_tr.htm' >turkish</a>| <a href='../led/index_vn.htm' >Vietnamese</a>| </p> <p><strong>Large Digit Displays | Large Digital LED Displays | 8 inch</strong> </p> </div> </div> </BODY> </HTML>
